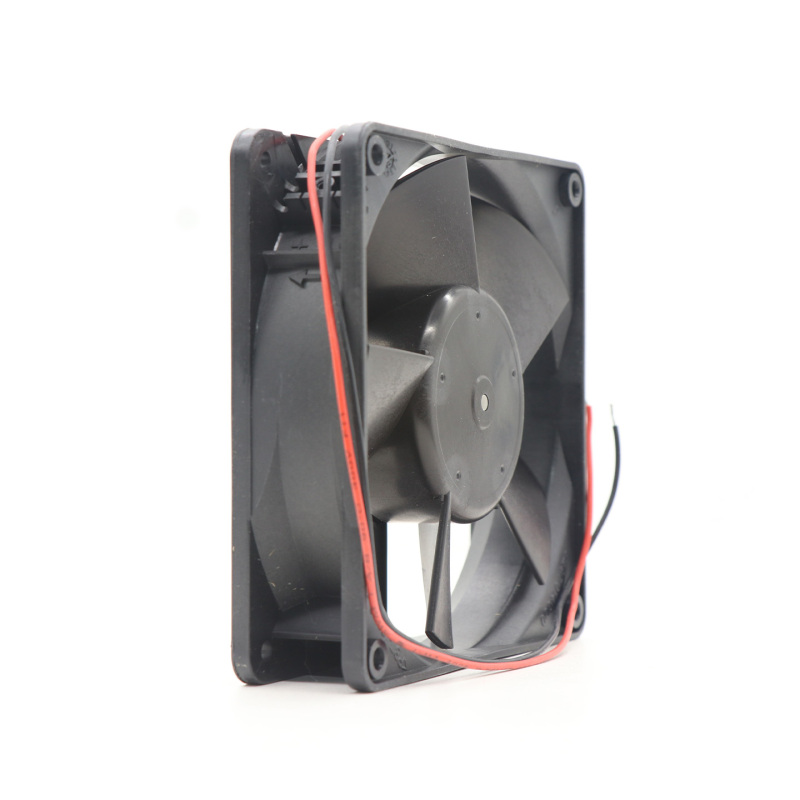

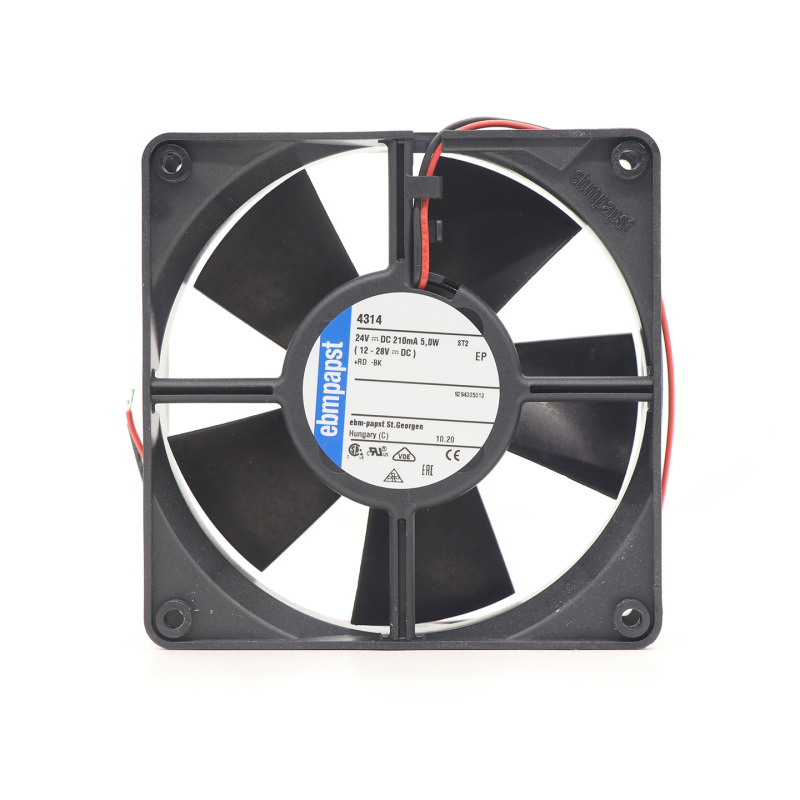

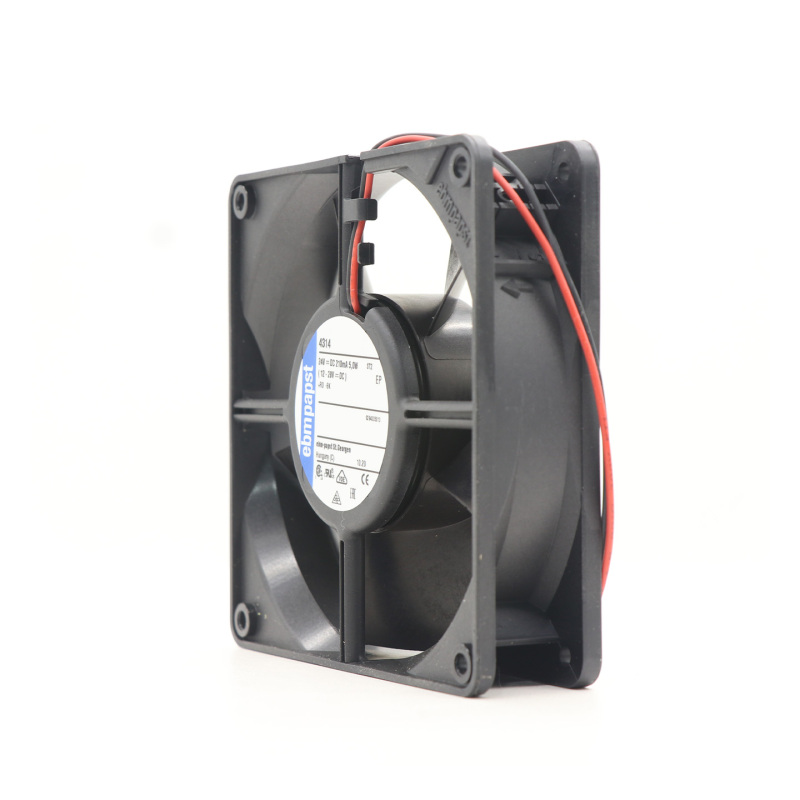

| Brand: | ebmpapst |
| Part No.: | 4314 |
| Fan Type: | Compact Fan |
| Rated Voltage (V): | 24 |
| Size (mm): | 119*119*32 |

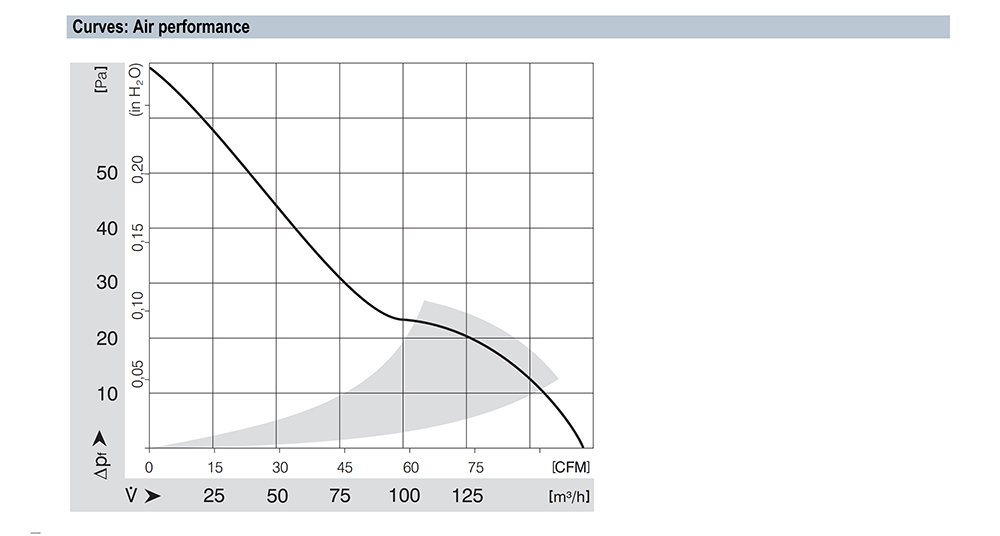

| Max. Air Flow (m3/h): | 170 |
| Max. Pressure (Pa): | 69 |
| Input Power (W): | 5 |
| Speed (rpm): | 2800 |
| Noise (dB): | 45 |
Brand Background
ebm-papst has a long history and profound technical background. For many years, it has been focusing on the research and development and production of ventilation and drive systems. The company is driven by innovation and continuously launches high-quality and high-performance products, occupying an important position in the global fan market. Its products are widely used in many fields such as industry, electronics, medical care, and automobiles. With its excellent performance and reliable quality, it has won high recognition from customers.
Product parameter interpretation

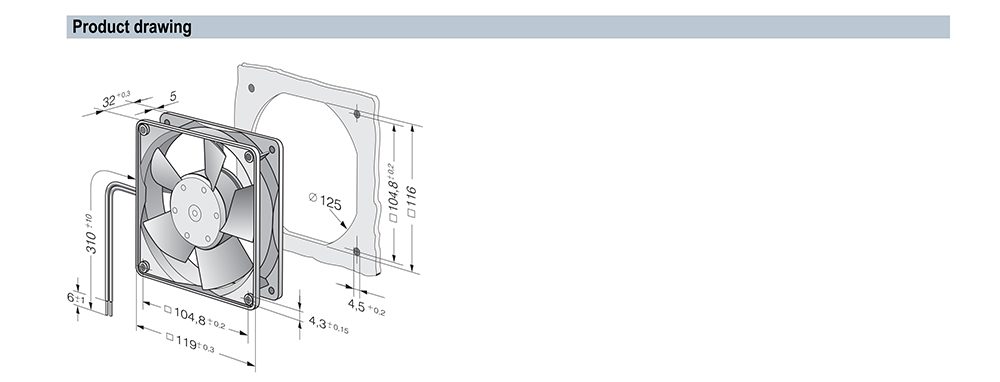

Dimensions: The size of the 4314 fan is 119×119×32 mm. This compact design gives it a great advantage in space utilization. Compared with some large fans, it can easily adapt to various equipment with strict space requirements, such as small cabinets, precision instruments, etc.
Rated voltage: The rated voltage is 24V, which is a common and stable power supply specification. The 24V voltage can not only ensure the normal operation of the fan, but also be relatively safe, reducing electrical safety hazards. At the same time, it is also convenient for integration with the power supply system of other equipment.
Maximum air volume: The maximum air volume can reach 170 cubic meters per hour, which indicates that the fan has a strong air delivery capacity. In scenarios where rapid ventilation or heat dissipation is required, the hot air can be quickly discharged and fresh air can be introduced to effectively reduce the temperature of the equipment.
Input power: The input power is 5W. The lower power consumption means that energy can be saved during operation and the cost of use can be reduced. This feature is particularly important for some equipment that runs continuously for a long time.
Speed: The speed is 2800 rpm. The stable speed ensures that the fan can work continuously and efficiently. The reasonable speed design enables the fan to generate sufficient air volume without generating excessive noise and vibration.
Product Features Analysis
Efficient heat dissipation: With its large air volume and reasonable air duct design, the 4314 fan can quickly and effectively remove heat from the equipment. In electronic equipment, overheating may cause component performance degradation or even damage, and the efficient heat dissipation capacity of this fan can greatly improve the stability and reliability of the equipment.
Low-noise operation: Although the noise value is not mentioned in the product parameters, in the actual design, EBM-PAPST uses advanced noise reduction technology. By optimizing the impeller shape and motor structure, the noise generated by air flow and mechanical operation is reduced. This makes the fan not cause obvious interference to the surrounding environment during operation, and is suitable for noise-sensitive occasions such as offices and laboratories.
High reliability: The use of high-quality materials and exquisite manufacturing technology ensures the stability and reliability of the fan during long-term operation. After strict quality inspection and life testing, it can adapt to various complex working environments, reduce the probability of failure, and reduce maintenance costs.
Convenient installation: The design of the fan takes into account the convenience of installation and is equipped with suitable mounting holes and interfaces. Whether it is fixed with screws or other installation methods, the installation can be completed quickly and easily, saving installation time and labor costs.
Application scenario discussion
Electronic equipment heat dissipation: In electronic equipment such as computer servers and communication equipment, as the performance continues to improve, the heat dissipation problem has become increasingly prominent. The 4314 fan can be installed inside the equipment to provide effective heat dissipation support for key components such as processors and graphics cards, ensuring that the equipment can remain stable even when running under high load.
Industrial automation equipment: Industrial automation equipment usually needs to operate in harsh environments, such as high temperature, humidity, dust, etc. The high reliability and adaptability of the 4314 fan enable it to provide ventilation and heat dissipation for the equipment in these environments, ensure the normal operation of the equipment, and improve production efficiency.
Medical equipment: Medical equipment has extremely high requirements for stability and noise. The low noise operation and efficient heat dissipation performance of the 4314 fan make it an ideal heat dissipation solution for medical imaging equipment, monitoring equipment, etc., and can provide guarantees for the precise operation of medical equipment.
Conclusion
The EBM-PAPST 4314 fan has become a leader in the field of small fans with its reasonable parameter design, unique product features and a wide range of application scenarios. Whether in electronic equipment, industrial automation or medical equipment, it can play an important role and provide strong support for the stable operation of various equipment. In the future development, I believe that the 4314 fan will continue to meet the needs of more users with its excellent performance.
