8300101141 VWCE040KJDES – AxiForce 40 Series Cooling Fan | 12V DC High Pressure for Low-Voltage Compact Electronics | US/EU Stock

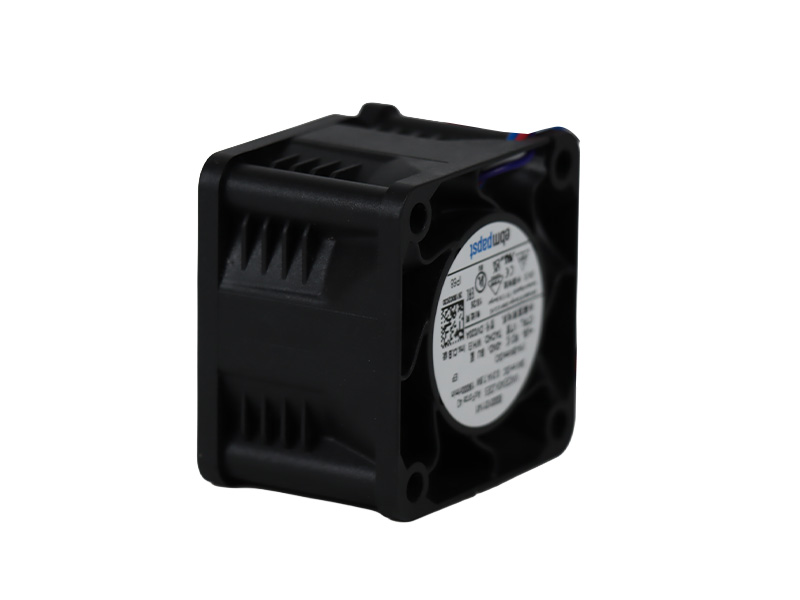

The VWCE040KJDES is a high-performance 40mm axial cooling fan from ebm-papst’s innovative AxiForce product family, specifically engineered for 12V DC systems requiring extremely high static pressure in compact form factors. While the VWCE040KJDFS serves 24V industrial applications, the VWCE040KJDES is optimized for low-voltage renewable energy platforms, portable electronics, automotive-grade systems, and off-grid power equipment where 12V is the standard bus voltage.

This compact fan delivers 45 m³/h of free airflow (26.5 CFM) and an industry-leading 1,030 Pa static pressure (4.14 in. H₂O) at 22,000 RPM, with power consumption of just 11W. The AxiForce platform features innovative aerodynamic air channels, a new single-phase motor concept with integrated IC-based motor control, and powerful control electronics – making it ideal for thermal management in photovoltaic inverters, power conversion systems (PCS) , battery energy storage systems (BESS) , EV charging stations, and server/IT enclosures.

For customers across North America and Europe – including the United States, Canada, Germany, France, the UK, and the Netherlands – the VWCE040KJDES solves critical cooling challenges in high-ambient-temperature environments (up to 70°C) with ball bearing construction rated for 70,000 hours L10 at 40°C. We maintain US and EU warehouse stock for fast regional delivery (2–5 business days).

Key differentiator from VWCE040KJDFS (24V): The VWCE040KJDES operates at 12V DC (6–13.8V range) – making it the only 40mm high-pressure fan in the AxiForce family for 12V systems. Perfect for solar-powered equipment, RVs, marine electronics, and automotive applications where 12V is the native voltage.

2.1 Ultra-Compact Design for Space-Constrained Electronics

As electronic equipment becomes increasingly compact, engineers face growing challenges in managing heat within limited installation spaces. Modern renewable energy systems, telecommunications devices, battery-powered equipment, and embedded computing platforms often require powerful cooling solutions that occupy minimal space.

With dimensions of only 40 × 40 × 28 mm (1.57" × 1.57" × 1.10"), 8300101141 VWCE040KJDES is specifically engineered for applications where installation space is extremely limited. The compact footprint enables integration into 1U and 2U server platforms, portable solar power systems, compact PCS cabinets, telecommunications equipment, battery-powered devices, industrial controllers, and mobile energy systems.

Despite its small size, 8300101141 VWCE040KJDES delivers cooling performance typically associated with significantly larger products, allowing OEMs and system integrators to increase power density without compromising thermal reliability.

2.2 Native 12V DC Operation for Mobile and Off-Grid Applications

One of the most important advantages of this model is its compatibility with 12V DC power systems, which remain the global standard across numerous mobile, renewable energy, and battery-powered applications.

Operating within a voltage range of 6V to 13.8V, the fan can be directly powered from solar batteries, automotive electrical systems, marine power supplies, RV electrical networks, portable power stations, and off-grid energy systems. Unlike higher-voltage cooling solutions, no additional DC-DC conversion hardware is required, simplifying system architecture and reducing component costs.

Direct 12V operation also improves overall energy efficiency by minimizing conversion losses. For battery-powered equipment where power consumption directly impacts runtime, this efficiency advantage can contribute to longer operating periods and improved overall system performance.

The wide voltage tolerance further enhances reliability by allowing stable operation during battery charging cycles, voltage fluctuations, startup conditions, and temporary power variations commonly encountered in renewable energy and mobile applications.

2.3 Industry-Leading Static Pressure for High-Resistance Cooling Paths

A defining characteristic of 8300101141 VWCE040KJDES is its extraordinary static pressure capability. Generating up to 1,030 Pa (4.14 in. H₂O), it produces pressure levels approximately six times greater than typical 60mm AxiForce models and significantly higher than conventional compact axial fans.

High static pressure becomes critical whenever airflow must overcome resistance created by dense heatsinks, fine-pitch cooling fins, dust filters, protective grilles, cable obstructions, or confined airflow channels. In these environments, many compact fans experience severe performance degradation once installed inside actual equipment.

This fan is specifically optimized to maintain airflow under high-impedance conditions. Its ability to push air through restrictive thermal pathways ensures that heat can be effectively removed from critical components even when airflow resistance increases over time due to dust accumulation or aging infrastructure.

For engineers designing power electronics, telecommunications systems, battery storage platforms, and compact computing equipment, this capability translates directly into improved thermal stability, enhanced component protection, and longer equipment lifespan.

2.4 Exceptional Airflow Performance in a 40mm Platform

Delivering up to 45 m³/h (26.5 CFM) of airflow, this fan achieves an impressive balance between compact dimensions and cooling capacity.

Generating this level of airflow from a 40mm platform requires highly optimized aerodynamic engineering. Advanced blade geometry and airflow channel design maximize air movement while maintaining energy-efficient operation.

The resulting airflow is sufficient to cool processors, power semiconductors, communication modules, battery management systems, and other heat-generating components found in today's compact electronic equipment.

When combined with its exceptional static pressure performance, 8300101141 VWCE040KJDES provides highly effective cooling in both open-air and restricted-airflow environments. This versatility enables a single fan platform to serve a wide variety of applications without requiring significant redesign of enclosure airflow architecture.

2.5 Ultra-High-Speed Performance for Aggressive Thermal Management

To achieve its exceptional cooling capability, the fan operates at rotational speeds of up to 22,000 RPM. This high-speed operation allows the fan to generate substantial airflow and static pressure despite its compact dimensions.

Such performance is particularly valuable in applications where thermal loads can change rapidly and localized hotspots must be addressed immediately. High-performance processors, power conversion modules, charging electronics, networking hardware, and edge computing devices often experience sudden increases in heat generation that require fast and effective cooling responses.

The ability to deliver aggressive cooling from a compact package enables equipment manufacturers to design smaller and more powerful products while maintaining safe operating temperatures and preventing performance degradation caused by thermal stress.

2.6 Long-Life Ball Bearing System for Continuous-Duty Operation

Reliability remains a primary concern in mission-critical equipment expected to operate continuously for years. To meet these demanding requirements, 8300101141 VWCE040KJDES incorporates a premium ball bearing system designed for long service life and stable performance.

Under standard operating conditions at 40°C (104°F), 8300101141 VWCE040KJDES achieves an L10 life expectancy of up to 70,000 hours. Even in elevated ambient temperatures reaching 70°C (158°F), it continues to provide approximately 35,000 hours of operational life.

Ball bearing technology offers significant advantages over sleeve-bearing alternatives, including superior resistance to vibration, improved performance at elevated temperatures, and reliable operation regardless of mounting orientation.

These characteristics make 8300101141 VWCE040KJDES particularly suitable for renewable energy systems, transportation equipment, telecommunications infrastructure, industrial automation systems, and mobile platforms where maintenance access may be limited and downtime is costly.

2.7 Intelligent PWM Control and Real-Time Speed Monitoring

Modern cooling systems increasingly require adaptive thermal management rather than fixed-speed operation. To support this trend, 8300101141 VWCE040KJDES integrates advanced PWM speed control and tachometer monitoring functionality.

The PWM interface supports frequencies from 1 kHz to 25 kHz, allowing system controllers to dynamically adjust cooling performance according to actual thermal demand. During low-load operation, fan speed can be reduced to minimize energy consumption, acoustic output, and mechanical wear. As thermal loads increase, cooling performance automatically scales to meet system requirements.

This intelligent control strategy improves overall energy efficiency while extending component lifespan and reducing operating costs.

The integrated open-collector tachometer output provides continuous speed feedback for remote monitoring and predictive maintenance programs. System operators can verify proper operation, identify abnormal performance trends, and proactively address potential issues before overheating occurs.

2.8 Optimized for Protected Indoor Environments

The fan features an IP20 protection rating and is specifically optimized for indoor environments where maximum cooling performance is the primary design objective.

Typical installations include server racks, telecommunications shelters, industrial control cabinets, battery monitoring systems, RV electrical compartments, laboratory equipment, medical electronics, and automation systems.

By focusing on aerodynamic efficiency rather than extensive environmental sealing, the design maximizes airflow and pressure performance while maintaining compact dimensions and low power consumption. This approach makes the fan highly effective in sheltered environments where thermal management is the dominant engineering challenge.

2.9 Global Certifications for International Deployment

For OEM manufacturers and equipment designers serving multiple regions, compliance with international safety standards is essential. 8300101141 VWCE040KJDES is designed to support global product deployment through certification to major North American and European requirements.

Compliance with UL 507 and EN 62368 standards simplifies system certification and helps reduce regulatory barriers when entering international markets. These certifications demonstrate adherence to stringent safety requirements covering electrical performance, mechanical integrity, and operational reliability.

In addition, EMC Class B compliance ensures compatibility with sensitive electronic equipment by minimizing electromagnetic interference. This is particularly important in telecommunications infrastructure, industrial automation systems, computing platforms, and precision electronic devices where signal integrity and system stability are critical.

By combining advanced thermal performance, intelligent control capabilities, long-term reliability, and international regulatory compliance, 8300101141 VWCE040KJDES provides a comprehensive cooling solution for today's most demanding compact electronic systems.

As renewable energy systems, mobile power platforms, and edge computing infrastructure continue to expand, thermal management requirements are becoming increasingly demanding. Modern electronic devices are expected to deliver higher performance while occupying less space, often operating in environments where airflow is restricted and power efficiency is critical.

The VWCE040KJDES is specifically designed for these challenges. Combining native 12V operation, exceptional static pressure, intelligent PWM control, and long-life ball bearing technology, the VWCE040KJDES provides reliable cooling in applications where conventional compact fans struggle to maintain airflow. Its ability to operate directly from low-voltage DC power systems makes it particularly attractive for off-grid energy solutions, battery-powered equipment, transportation electronics, and remote communication infrastructure.

Unlike larger industrial cooling fans, the VWCE040KJDES is optimized for compact systems where installation space is limited but cooling performance remains mission-critical. As a result, it is widely deployed across renewable energy, energy storage, telecommunications, transportation, and portable electronic applications.

3.1 Photovoltaic (PV) Solar Inverters for Off-Grid and Remote Power Systems

Off-grid solar power installations continue to grow in residential, agricultural, marine, and telecommunications markets. These systems commonly rely on 12V battery architectures to power cabins, RVs, boats, remote monitoring stations, and isolated telecom sites.

Within these systems, solar inverters generate considerable heat from MOSFETs, transformers, inductors, and power conversion circuits. Effective thermal management is essential to maintain conversion efficiency and prevent premature component aging.

The VWCE040KJDES is particularly well suited for compact inverter designs because it operates directly from a 12V DC supply without requiring additional voltage conversion hardware. This simplifies system design, reduces component count, and improves overall energy efficiency.

Its industry-leading static pressure enables airflow to penetrate dense heatsinks and restrictive cooling channels commonly found inside modern inverter enclosures. Even as dust accumulates over years of operation, the fan continues to maintain effective airflow, helping preserve stable operating temperatures and long-term inverter reliability.

The integrated PWM control function further enhances efficiency by automatically adjusting cooling performance according to inverter load conditions, providing maximum cooling during peak solar production while reducing power consumption during low-load periods.

3.2 Power Conversion Systems (PCS) for Small-Scale Energy Storage

Power Conversion Systems serve as the interface between batteries and electrical loads, continuously managing energy flow during charging and discharging cycles. Although compact in size, these systems generate substantial thermal loads due to the continuous operation of power semiconductors and conversion circuitry.

Many small-scale battery storage systems utilize 12V battery banks or 12V auxiliary circuits, making the VWCE040KJDES a natural cooling solution. Because the fan can operate directly from the existing power architecture, integration is straightforward and efficient.

One of the major cooling challenges within PCS equipment is maintaining airflow through compact heatsinks and sealed electronic compartments. The VWCE040KJDES addresses this challenge through its exceptionally high static pressure capability, ensuring continuous airflow even when airflow resistance increases.

Its wide operating voltage range of 6V to 13.8V also accommodates battery voltage fluctuations that occur during charging and discharging cycles, helping maintain stable cooling performance under varying operating conditions.

For system integrators and energy storage manufacturers, this translates into improved thermal stability, greater reliability, and longer equipment service life.

3.3 Battery Energy Storage Systems (BESS) for RV, Marine, and Mobile Applications

The growing popularity of lithium-ion batteries in recreational vehicles, campervans, boats, and mobile power systems has increased demand for compact and reliable cooling solutions.

Battery performance and lifespan are highly dependent on temperature control. Excessive heat or uneven temperature distribution can accelerate battery degradation and reduce overall system efficiency. Effective airflow is therefore critical for maintaining battery health and ensuring safe operation.

The VWCE040KJDES is particularly effective in battery enclosures where airflow must travel through narrow channels between battery modules. These restricted airflow paths create significant pressure loss that many conventional compact fans cannot overcome.

By delivering up to 1,030 Pa of static pressure, the VWCE040KJDES helps maintain consistent airflow throughout battery racks and energy storage compartments. Multiple units can also be configured in push-pull arrangements to improve airflow distribution across larger battery assemblies.

The fan's ball bearing construction provides excellent resistance to vibration and shock, making it especially suitable for mobile applications such as RVs, marine vessels, service vehicles, and transportable energy storage systems.

3.4 Portable EV Charging Equipment and Compact Charging Systems

As electric vehicle adoption continues to increase, demand for portable and compact charging solutions is growing rapidly. Portable charging equipment often contains densely packed control electronics, communication modules, and auxiliary power systems that generate concentrated thermal loads within very limited enclosure space.

The VWCE040KJDES provides an effective cooling solution for these compact charging systems. Its small 40mm footprint allows installation within crowded electronic compartments where larger cooling devices cannot fit.

The fan's high-pressure performance enables airflow to move efficiently around cable bundles, circuit boards, protective barriers, and other obstacles commonly found inside charging equipment. This helps maintain safe operating temperatures for sensitive electronics while reducing the risk of thermal derating.

Because many portable chargers incorporate 12V auxiliary power supplies, the fan can be integrated directly without additional voltage conversion, simplifying product design and improving system efficiency.

3.5 Edge Computing, Telecommunications, and Remote IT Infrastructure

The expansion of edge computing, industrial IoT, remote monitoring, and 5G communications has created increasing demand for compact computing equipment capable of operating in isolated locations.

Unlike traditional data centers, edge servers and telecommunications systems are frequently deployed in outdoor cabinets, industrial facilities, renewable energy sites, and remote communication shelters where maintenance access may be limited.

The VWCE040KJDES provides an ideal cooling solution for these environments due to its compact size, high-pressure performance, and integrated monitoring capabilities. Its ability to overcome airflow resistance makes it particularly effective in compact 1U servers, industrial PCs, telecommunications equipment, and edge computing platforms where dense heatsinks and airflow guides create significant pressure drop.

The integrated tachometer output enables remote health monitoring, allowing operators to detect abnormal fan behavior before overheating occurs. This predictive maintenance capability helps improve system uptime while reducing service costs for remote installations.

3.6 Additional High-Pressure Applications in Mobile and Compact Electronics

Beyond renewable energy and telecommunications infrastructure, the VWCE040KJDES is widely utilized across numerous specialized 12V applications where compact size, high static pressure, and long-term reliability are essential.

Marine navigation systems, including radar equipment, sonar systems, communication devices, and chart plotters, often operate within tightly sealed enclosures where effective cooling is required despite limited airflow pathways. The fan's compact dimensions and pressure capability make it particularly effective in these environments.

Recreational vehicle power centers containing inverters, battery chargers, solar charge controllers, and energy management systems also benefit from the fan's ability to maintain airflow through filtered and dust-prone compartments.

Portable power stations and solar generators increasingly rely on compact high-performance cooling solutions as battery capacities and inverter outputs continue to increase. The VWCE040KJDES helps maintain safe operating temperatures while fitting within highly space-constrained designs.

Automotive electronics, including battery management systems, DC-DC converters, onboard power modules, and vehicle communication systems, benefit from the fan's vibration-resistant ball bearing construction and stable long-term performance.

In addition, remote telecommunications equipment and portable medical devices frequently utilize the VWCE040KJDES to provide reliable cooling within compact electronic assemblies where system reliability directly impacts operational performance.

By combining native 12V operation, exceptional static pressure, intelligent thermal control, and long service life, the VWCE040KJDES has become an ideal cooling solution for modern renewable energy systems, mobile power platforms, compact electronics, and next-generation communications infrastructure.

4. Available Models

5. Why Choose Our VWCE040KJDES for Your US/EU Project?

ISO 9001:2015 Certified – Same quality as original ebm-papst. Full factory traceability from ebm-papst’s global manufacturing network.

US & EU Warehouse Stock – Warehouses located in the USA (Ohio/Memphis) and Germany (Baden-Württemberg). 2–3 day delivery to most US states; 2–5 days to EU countries (Germany, France, UK, Netherlands, Italy, Spain).

1-Year Warranty – Full replacement warranty on all VWCE040KJDES fans.

Technical Support – Datasheets, wiring diagrams, PWM configuration guides, and thermal simulation assistance for 12V high-pressure applications.

Bulk Pricing – Volume discounts for 10+ units (RV OEMs, portable power station manufacturers, off-grid solar integrators).

Local Compliance – UL507 (US/Canada), CE (Europe), UKCA (UK). No re-certification needed.

12V Expertise – We understand 12V systems. Ask us about low-voltage design considerations for high-pressure cooling.

The 8300101141 VWCE040KJDES combines ultra-compact dimensions, industry-leading static pressure, intelligent PWM control, and native 12V DC operation in a single high-performance cooling solution. Designed for applications where space is limited but thermal demands are significant, it delivers reliable airflow through dense heatsinks, filters, and restricted airflow paths that challenge conventional compact fans. Its long-life ball bearing system, wide operating voltage range, and global safety certifications make it well suited for renewable energy systems, battery storage, mobile power equipment, telecommunications infrastructure, edge computing devices, and other mission-critical electronics. For engineers seeking maximum cooling performance from a compact 40mm platform, the VWCE040KJDES provides an efficient, reliable, and future-ready thermal management solution.

Q: What is the difference between VWCE040KJDES (12V) and VWCE040KJDFS (24V)?

A: The VWCE040KJDES is designed for 12V nominal systems (6–13.8V range), while the VWCE040KJDFS is for 24V systems (15–28V). All other specifications (airflow 45 m³/h, pressure 1,030 Pa, speed 22,000 RPM, noise 60 dB(A)) are identical. Choose based on your system’s auxiliary voltage.

Q: What is the difference between this 12V 40mm fan and the 12V 60mm fan (VWCD060WHDGS)?

A: The VWCE040KJDES generates 1,030 Pa static pressure – over 6x higher than the 60mm model (160 Pa). It is designed for high-impedance applications (dense heatsinks, fine filters, narrow 1U chassis). The 60mm series is for balanced, low-restriction cooling with lower noise (43 dB(A) vs 60 dB(A)). Choose 40mm for pressure, 60mm for noise-sensitive free-air applications.

Q: Is VWCE040KJDES UL certified for use in the United States?

A: Yes. UL507 (File E38324) – Certified for use in the US and Canada. Also meets CSA C22.2 No.113.

Q: How loud is this fan at full speed?

A: 60 dB(A) at free air. This is typical for high-pressure 40mm fans at 22,000 RPM. Use PWM control to reduce speed (and noise) when full cooling is not required. At 50% PWM, noise drops significantly (~15–20 dB reduction).

Q: Can this fan be used outdoors?

A: No – IP20 rating is for sheltered indoor use only (control cabinets, RV electrical compartments, server rooms). Direct exposure to water or dust will damage the fan. For outdoor 12V applications, see AxiForce 60 series with IP68 rating (VWCD060WHDGS).

Q: What is the operating temperature range?

A: -20°C to +70°C (-4°F to +158°F). Storage: -40°C to +80°C (-40°F to +176°F).

Q: Does this fan support speed control via PWM?

A: Yes. PWM input frequency range: 1–25 kHz (typical 2 kHz). 0% PWM = off (standby), 100% PWM = full speed (22,000 RPM). Compatible with Arduino, Raspberry Pi, solar charge controller aux outputs, and industrial PLCs.

Q: What is the starting current?

A: Maximum starting current is ≤ 2,300 mA. Ensure your 12V power supply or battery can handle this inrush current (typical for high-speed 40mm fans). A 12V lead-acid or LiFePO4 battery handles this easily; verify your DC power supply rating.

Q: Can I run this fan directly from a 12V solar panel?

A: Not recommended. Solar panel voltage can exceed 13.8V (e.g., 12V panel Voc ~21V). Always use a voltage regulator or ensure your charge controller provides stable 12V output within the 6–13.8V range.

Q: Delivery time to California or Texas?

A: 2–3 business days from our US warehouse (Ohio). Expedited 1-day shipping available.

Q: Delivery time to Germany, France, or the UK?

A: 2–5 business days from our German warehouse (Baden-Württemberg). UK deliveries cleared for customs – no additional delays.

Q: Do you provide a datasheet with detailed dimensions?

A: Yes. Download the PDF below – includes all mechanical drawings (40x40x28 mm, 4x Ø4.3 mm mounting holes, 310 mm wire length) in both metric and imperial units.

Q: Is this fan CE marked for the European market?

A: Yes. CE declaration of conformity available. Compliant with EN 62368 (audio/video/ICT equipment safety) and EN 55032 (EMC Class B).

Q: Can I get a sample before placing a bulk order?

A: Yes. Single-unit samples available for engineering evaluation. Contact our technical sales team.

Q: What is the L10 life expectancy?

A: 70,000 hours at 40°C, 35,000 hours at 70°C, and 117,500 hours at 40°C per IPC 9591 standard.

Q: Why is the pressure rating so high (1,030 Pa)?

A: High RPM (22,000) and optimized blade geometry. This allows the fan to maintain airflow through dense heatsinks (fin pitch < 2mm), fine dust filters (G4/F5), and narrow 1U/2U server chassis where standard fans would stall.
