Cooling towers are selected for a demanding design condition, but they rarely remain at that point throughout the year. Process load, chiller load and ambient wet-bulb temperature change continuously. At partial load, the tower needs less heat rejection and usually less airflow. Matching fan output to this reduced requirement can save energy while maintaining a stable leaving-water temperature.

Why partial load dominates

Design-day conditions may occur for only a limited number of hours. At night, during mild weather or when production is reduced, the heat load falls. A constant-speed fan still delivers near-design airflow unless it is cycled off. This can overcool the water, increase starts and stops, and use more electricity than necessary. Understanding the annual load profile is therefore essential for fan selection and control.

Reducing speed

The fan affinity laws show why speed modulation is effective: power falls much faster than airflow as speed is reduced in a suitable system. The practical saving depends on motor efficiency, electronics and minimum speed. Slow, continuous adjustment can maintain temperature more smoothly than wide on-off cycling. However, the controller should not command a speed below the fan's approved stable range.

Maintaining thermal control

The main controlled variable is often leaving-water temperature. A properly placed and calibrated sensor is critical. Excessive deadband can cause temperature swings, while aggressive tuning can make fan speed hunt. Some systems reset the leaving-water setpoint based on chiller or process conditions. Any reset strategy should consider total plant energy, because colder water may reduce downstream equipment power even if tower fan power increases.

Multi-fan sequencing

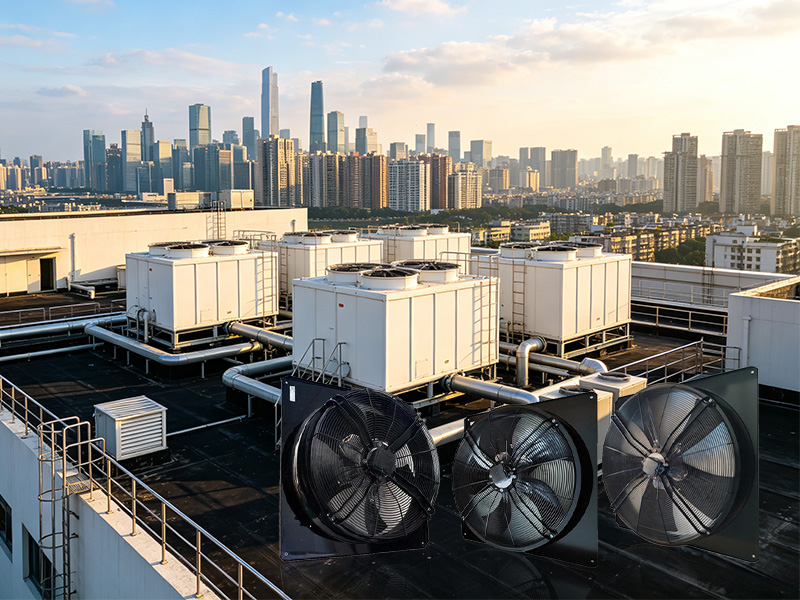

In a multi-cell tower, operators can run more fans slowly, fewer fans faster or use a staged combination. Running all available fans at low speed may improve airflow distribution, while staging may reduce standby consumption or simplify maintenance. The preferred sequence should be tested against fan efficiency, tower distribution and acoustic requirements. Idle fan openings must be considered because they may permit bypass or reverse flow.

Seasonal constraints

Very low loads introduce concerns such as icing, plume visibility and minimum process temperature. The correct response may include reduced airflow, cell isolation or a manufacturer-approved winter sequence. These limits should override pure energy optimization. High-wind conditions may also affect natural airflow and cause uneven performance, particularly in open or closely spaced installations.

EC fans at partial load

EC fans can provide integrated variable-speed operation and may offer status feedback or communication, depending on the selected product. ebm-papst EC options may suit applications that require precise modulation, but the selection must be validated at all expected speeds. Commissioning should test sensor failure, minimum and maximum commands, fan staging and recovery after power loss. Trend data can then be used to refine the sequence based on real performance.

Conclusion

Partial-load operation offers a major opportunity to reduce cooling tower fan energy while improving temperature stability. The preferred strategy coordinates sensor accuracy, speed limits, multi-fan sequencing and seasonal protections. Trend data should be reviewed after commissioning so the sequence can be refined around actual tower behavior.
