Temperature: A Critical Factor in Fan Selection and Application

Temperature stands as one of the most critical parameters to take into account during the fan selection process.

It is important to distinguish between two temperature specifications associated with fans: operating temperature and storage and transportation temperature. These two values serve different purposes and must not be confused.

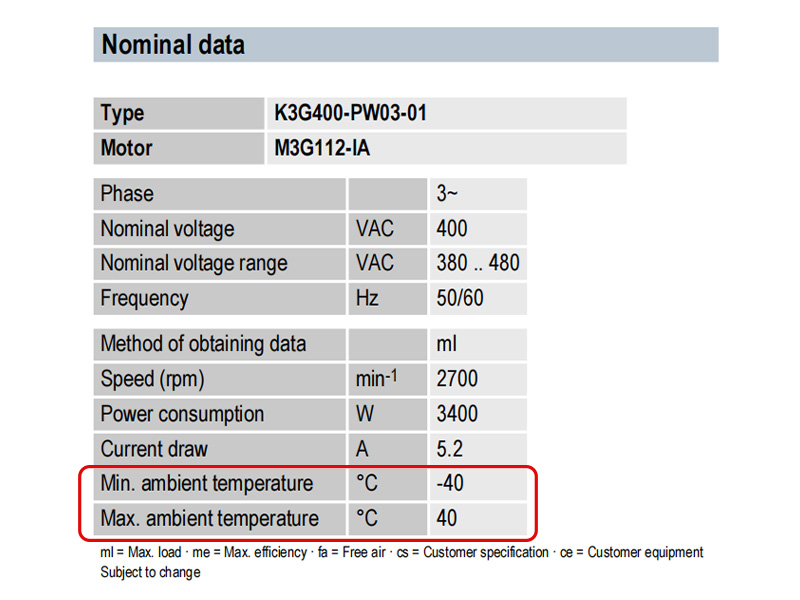

Operating temperature refers to the minimum and maximum ambient temperatures within which a fan can operate normally. When the ambient temperature goes beyond the upper limit or drops below the lower limit of the rated operating range, the fan can no longer maintain stable and reliable performance. During operation, the fan itself generates heat, causing the motor temperature to rise. Combined with external ambient temperature, once the total exceeds the motor’s thermal tolerance, it becomes highly susceptible to burnout or permanent damage.

Storage and transportation temperature, on the other hand, defines the minimum and maximum ambient temperatures that the equipment can withstand in a non-operating, stored state. If exposed to temperatures outside this range, the fan may not function properly even after returning to a suitable operating temperature when powered on again.

Many factors influence the operating temperature range of a fan, including motor winding design, bearing type, overall fan structure, and supply voltage conditions. For instance, some AC fans are compatible with both 50 Hz and 60 Hz power supplies, yet their maximum allowable operating temperatures can differ significantly between the two modes. This detail requires special attention from users and engineers alike.
