FAQ

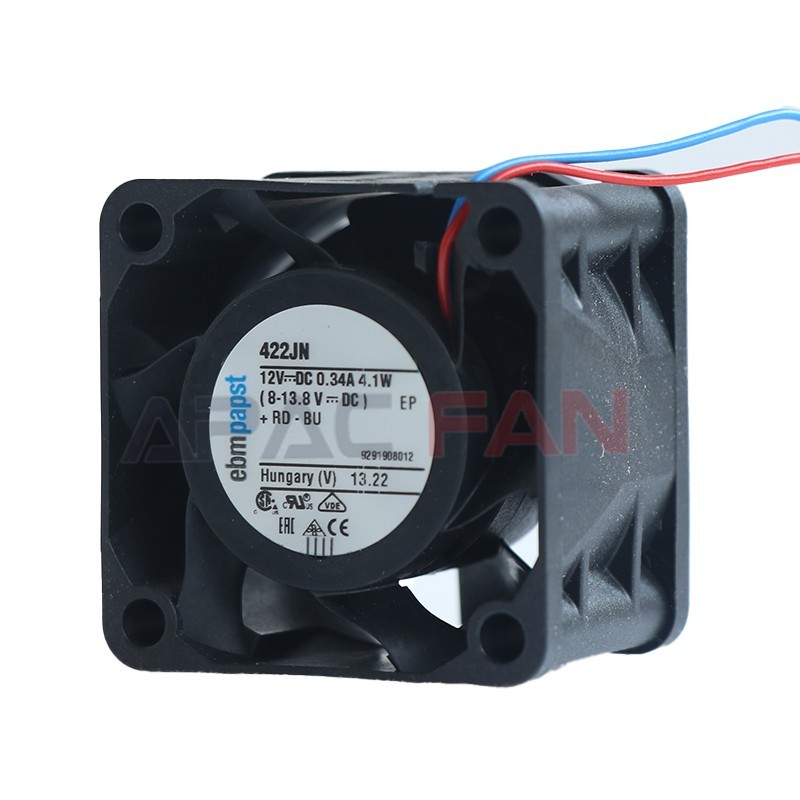

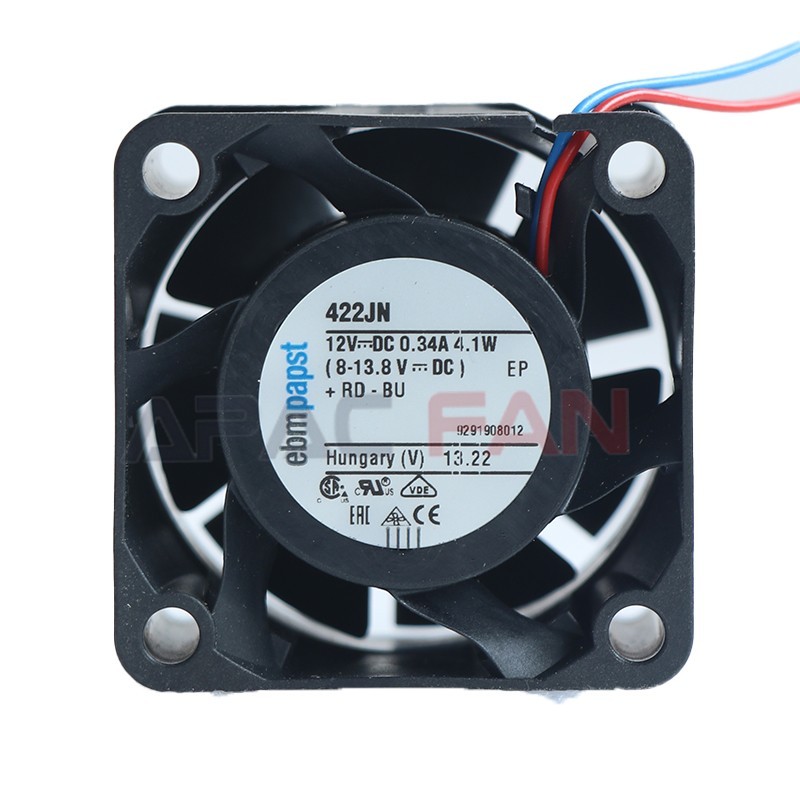

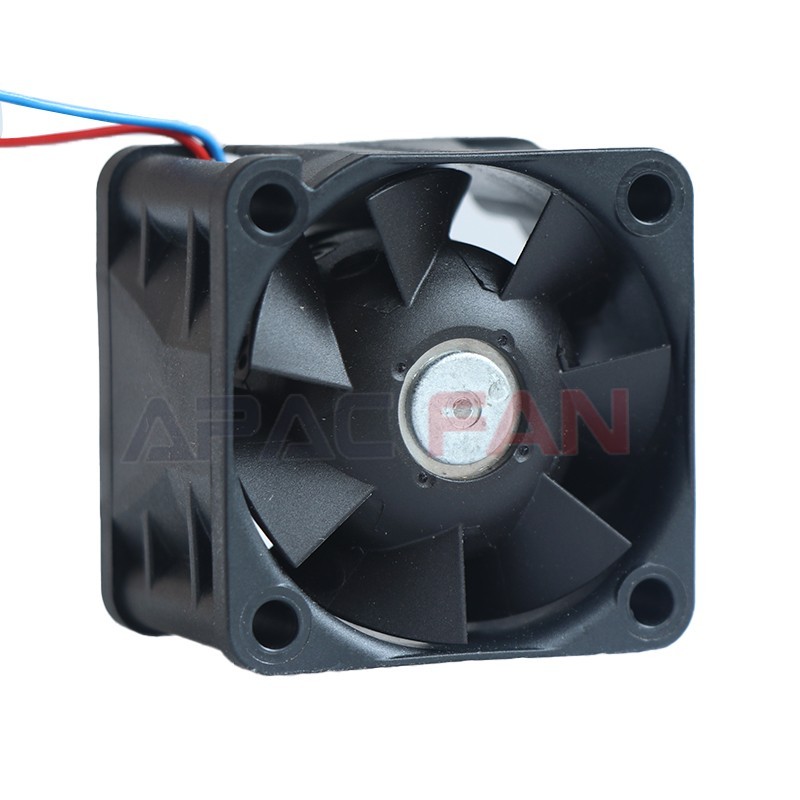

Q1: What is the rated voltage of the ebm-papst 422JN compact fan, and what types of devices is it suitable for?
A1: The ebm-papst 422JN has a rated voltage of 12V, making it a low-voltage compact fan. With dimensions of only 40×40×28mm, a maximum airflow of 30m³/h, and a maximum pressure of 365Pa, it is ideal for cooling small electronic devices with limited space, such as edge computing modules, small server nodes, communication terminals, and industrial control units.
Q2: What type of bearing system does the ebm-papst 422JN use, and how does it affect the fan's service life? A2:The ebm-papst 422JN features a ball bearing system. Compared to sleeve bearings, ball bearings offer better wear resistance and high-temperature tolerance, which allows them to handle the fan's high rotational speed of 14,250rpm. This significantly extends the fan's service life, making it particularly suitable for devices requiring long-term continuous operation.
Q3: What are the rotation direction and airflow direction of the ebm-papst 422JN, and what should be noted during installation?
A3: The ebm-papst 422JN rotates counterclockwise (when viewed toward the rotor), and the airflow direction is from the strut side. During installation, ensure the fan's air outlet aligns with the device's internal hot air exhaust path based on the cooling duct design. It supports any mounting position, but must be fixed using the specified torque (40N·cm for the wire outlet corner, 60N·cm for other corners) to avoid vibration affecting operational stability.
Q4: The ebm-papst 422JN has a maximum noise level of 48dB. How does this compare to similar products, and is it suitable for quiet environments?
A4: The 48dB noise level of the ebm-papst 422JN is moderate for high-speed 40mm compact fans (similar products typically range from 45-55dB). Its noise primarily comes from high-speed airflow, a result of its 14,250rpm speed designed to ensure pressure and airflow. Thus, it is better suited for scenarios where cooling efficiency takes priority over quietness; additional sound insulation may be needed for noise-sensitive environments.
Q5: The ebm-papst 422JN has an input power of 4.1W. How can energy consumption be balanced with cooling performance in practical use?
A5: The 4.1W input power of the ebm-papst 422JN is well-matched to its performance (14,250rpm, 30m³/h airflow), reflecting efficient design. In practice, balance energy consumption and cooling by using the device's temperature control system to dynamically adjust operation—e.g., adjusting speed or voltage based on device temperature. This reduces unnecessary power use during low loads while maintaining cooling effectiveness, making it suitable for power-sensitive portable or embedded devices.
