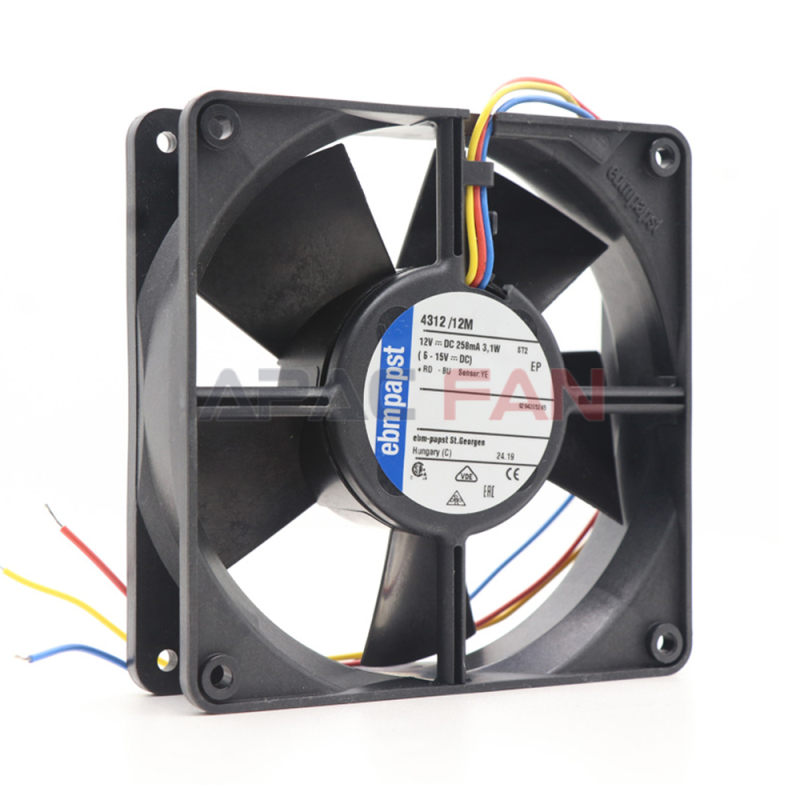

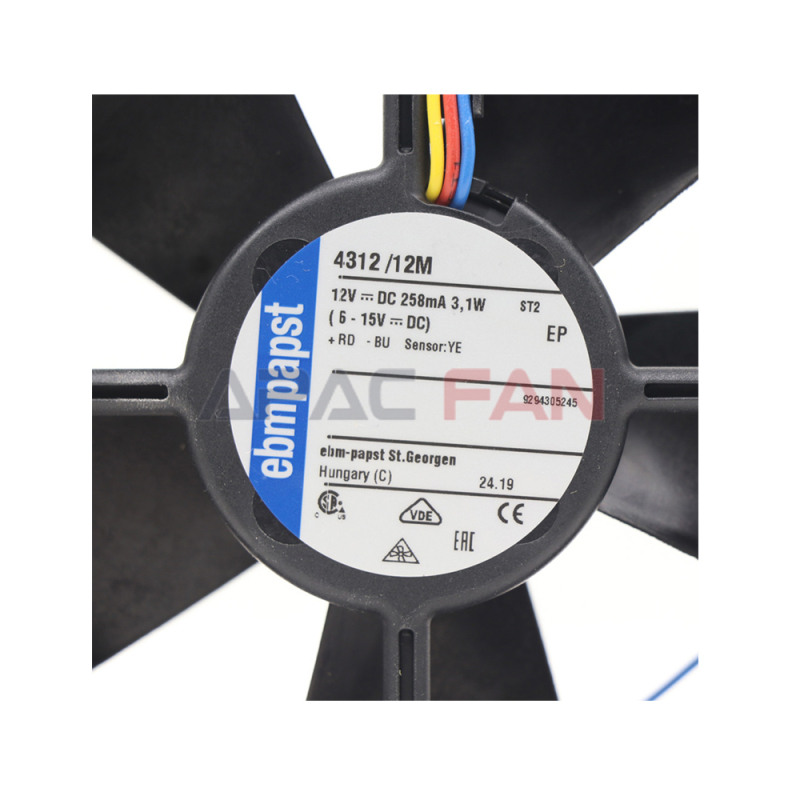

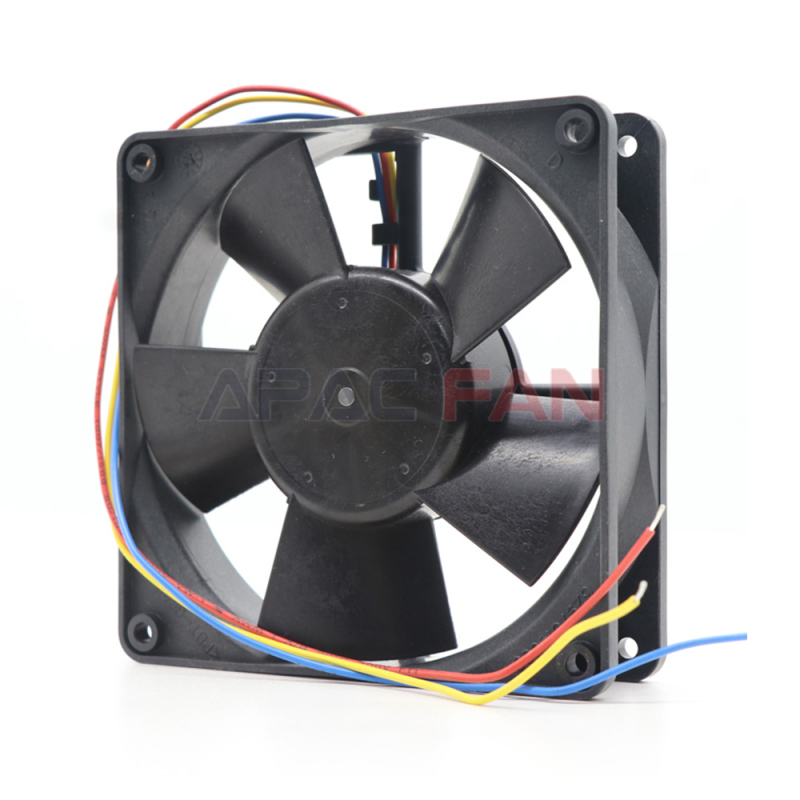

The 4312/12M is a 119 x 119 x 32mm DC compact fan with published airflow of 138 m³/h, pressure of 54 Pa and speed of 2,300 RPM. Its 3.1 W input supports efficient continuous electronics cooling.
| Brand： | ebm-papst |
| Part No： | 4312/12M |
| Fan Type： | Compact Fan |
| Rated Voltage(V)： | 12 |

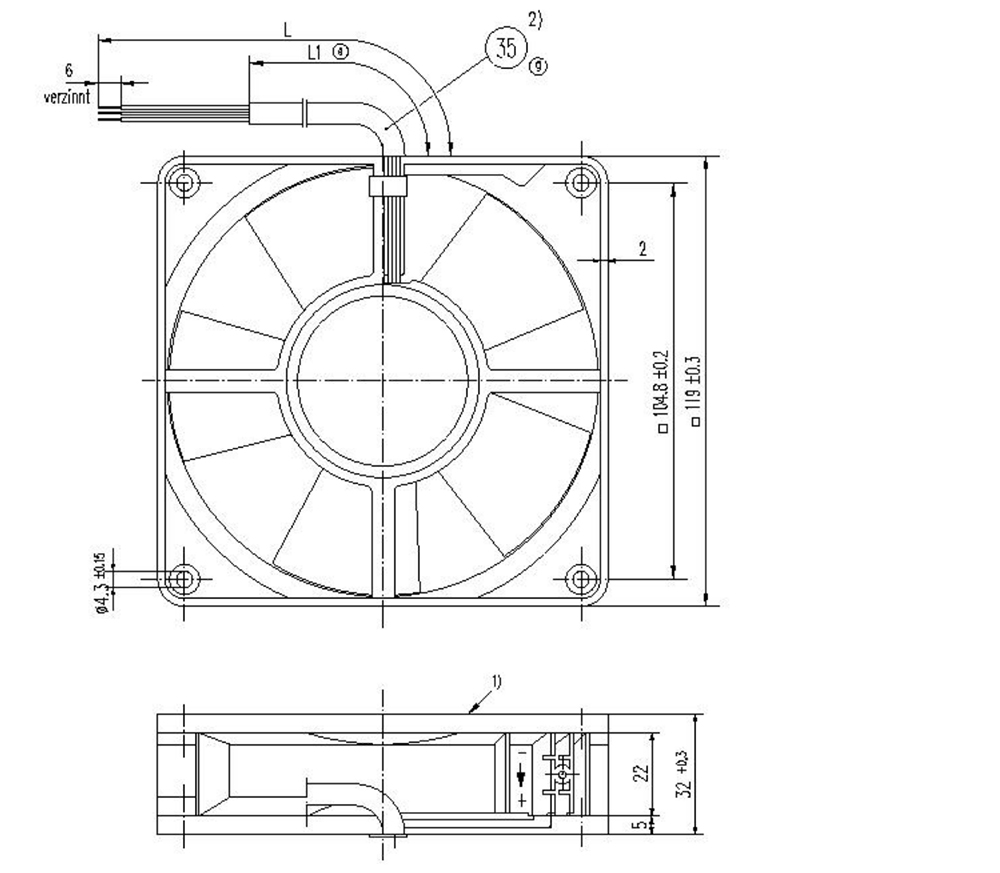

| Size(mm)： | 119*119*32 |

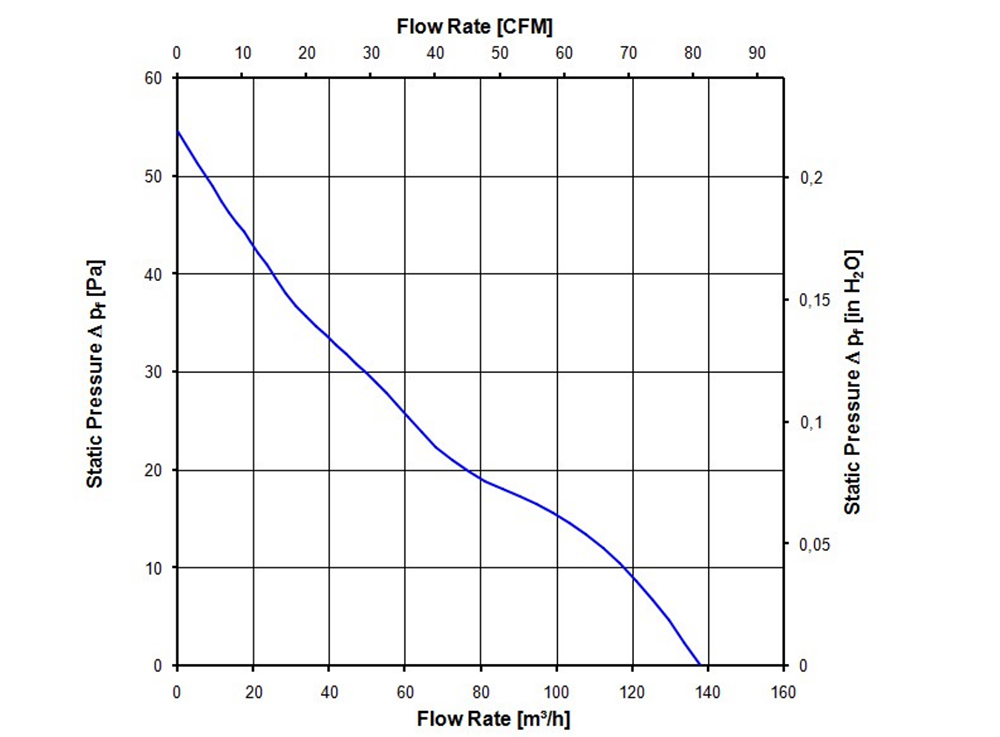

| Max.Air Flow(m³/h)： | 138 |
| Max.Pressure(Pa)： | 54 |
| Input Power(W)： | 3.1 |
| Speed(RPM)： | 2300 |
| Noise(dB)： | N/A |
| Airflow Direction: | Air outlet over struts |
| Bearing System: | Ball bearing |
| Mounting Position: | Any |
| Weight: | 0,220 kg |
| Housing Material: | Plastic |
| Impeller Material: | Plastic |
| Max. Torque When Mounted Across Both Mounting Flanges: | Wire outlet corner: 20 Ncm |
| Remaining corners: 20 Ncm | |
| Screw Size: | ISO 4762 - M4 degreased, without an additional brace and without washer |
Applications of 4312/12M
Typical applications for the 4312/12M include:
Key Features of 4312/12M
Low 3.1 W input
Efficient operation supports continuous cooling from a 12 V system.
Slim 32mm package
The frame fits equipment where a conventional 38mm fan is too deep.
Balanced 138 m³/h airflow
The output suits moderate enclosure cooling rather than extreme high-pressure duty.
Selection and Installation Notes for 4312/12M
Verify 12 V polarity, connector, mounting pattern, frame depth, airflow direction, startup current and signal leads. Confirm final suitability against the actual operating point and host-equipment requirements.
Why Choose the 4312/12M?
Choose the 4312/12M when the application specifically needs its documented fan concept and exact configuration. Its moderate 2,300 rpm design favors efficient general cooling over high-speed pressure performance. Accurate model verification reduces electrical, mechanical, control and performance mismatch risk.
FAQ About 4312/12M
Q1: What is the main selection strength of the 4312/12M?
A1: Efficient operation supports continuous cooling from a 12 V system.
Q2: What must be checked before replacing the 4312/12M?
A2: Verify 12 V polarity, connector, mounting pattern, frame depth, airflow direction, startup current and signal leads.
Q3: Why should the complete 4312/12M designation be retained?
A3: The complete code helps distinguish voltage, electronics, mounting or customer-specific details from related versions.
Q4: What is the most important application caution for the 4312/12M?
A4: Its moderate 2,300 rpm design favors efficient general cooling over high-speed pressure performance.
In the modern industrial and technological landscape, the demand for efficient and compact cooling solutions has never been greater. The ebm-papst 4312/12M compact fan emerges as a remarkable product that meets these exacting requirements. Manufactured by the esteemed brand ebm-papst, known for its engineering prowess and commitment to quality, this fan is a testament to innovation in the field of ventilation and cooling.
The 4312/12M compact fan is characterized by a set of parameters that define its functionality and performance. It operates at a rated voltage of 12 volts, which is a common and easily accessible power source in many electronic and industrial systems. This low-voltage operation not only makes it compatible with a wide range of devices but also contributes to its energy-efficiency.
With a size of 119 * 119 * 32 mm, the fan is truly compact. This small form factor allows it to be integrated into tight spaces where larger fans would be impractical. It can be easily installed in enclosures, cabinets, and other confined areas without taking up excessive space, making it an ideal choice for applications where space is at a premium.
The maximum air flow of the fan is an impressive 138 m³/h. This high air flow rate ensures that it can effectively dissipate heat from the components it is cooling. Whether it is a high-power electronic device or an industrial machine, the 4312/12M can deliver the necessary air movement to maintain optimal operating temperatures.
The fan can generate a maximum pressure of 54 Pa. This pressure capability is crucial for applications where the air needs to be forced through narrow ducts or over heat sinks. It allows the fan to overcome resistance and ensure a consistent and efficient flow of air.
The input power of the fan is 3.1 W. This relatively low power consumption is a significant advantage, especially in applications where energy efficiency is a priority. It not only reduces operating costs but also minimizes the heat generated by the fan itself, which is beneficial for the overall thermal management of the system.
The fan operates at a speed of 2300 RPM. This consistent speed ensures a stable and reliable air flow, which is essential for maintaining the performance and longevity of the components being cooled.
Compact fans like the 4312/12M offer several distinct advantages over their larger counterparts. Firstly, their small size provides greater flexibility in installation. They can be used in a variety of applications where space is limited, such as in small electronic devices, portable equipment, and densely packed industrial control panels. This flexibility allows for more creative and efficient system designs.
Secondly, compact fans are often more energy-efficient. As mentioned earlier, the 4312/12M has a relatively low input power. This is because smaller fans generally require less energy to operate. In addition, they can be more precisely matched to the cooling requirements of the application, reducing unnecessary energy consumption.
Another advantage is their quiet operation. Due to their smaller size and lower power requirements, compact fans tend to produce less noise. This is particularly important in applications where noise can be a distraction, such as in office environments, residential areas, and medical facilities.
Compact fans also offer better portability. They can be easily moved and installed in different locations, making them suitable for applications that require mobility, such as in mobile communication devices and small-scale industrial machinery.
In the electronics industry, heat management is a critical issue. As electronic devices become more powerful and compact, the amount of heat generated per unit volume increases. The 4312/12M compact fan can play a vital role in cooling these devices.
In desktop computers, the fan can be used to cool the CPU, GPU, and other high-power components. The high air flow rate and pressure capability of the fan ensure that it can effectively remove the heat generated by these components, preventing overheating and maintaining optimal performance. In laptops, the fan's compact size makes it an ideal choice for cooling the internal components. It can be placed in the limited space near the CPU and GPU to provide efficient cooling without adding excessive bulk to the laptop.
In servers, which are the backbone of many data centers, multiple 4312/12M fans can be used in combination to ensure proper ventilation and cooling. The fans can be arranged in a way that creates a uniform air flow pattern, preventing hot spots and ensuring the reliable operation of the servers. The energy-efficiency of the fans also helps to reduce the overall power consumption of the data center, which is a significant cost-saving factor.
Telecommunication equipment, such as routers, switches, and base stations, operates continuously and generates a large amount of heat. The 4312/12M fan can be used to cool these devices.
In routers and switches, the fan can be installed inside the enclosures to provide ventilation. The high air flow rate and pressure capability of the fan ensure that it can effectively remove the heat generated by the electronic components, preventing signal degradation and equipment failure. In base stations, which are often located in harsh environments, the fan's compact size and durability make it suitable for use. It can operate in high temperatures and dusty conditions, ensuring the reliable operation of the base station.
Medical equipment requires precise and reliable operation. Heat management is crucial to ensure the accuracy and performance of these devices. The 4312/12M fan can be used in a variety of medical equipment, such as diagnostic machines, surgical devices, and patient monitoring systems.
In diagnostic machines, such as MRI scanners and CT scanners, the fan can be used to cool the high-power components, such as the magnets and X-ray tubes. The high air flow rate and pressure capability of the fan ensure that it can effectively remove the heat generated by these components, preventing overheating and ensuring the accuracy of the diagnostic images. In surgical devices, such as laparoscopic instruments and electro-surgical units, the fan's compact size and quiet operation make it suitable for use. It can provide cooling without disturbing the surgical procedure. In patient monitoring systems, such as ECG monitors and blood pressure monitors, the fan can be used to cool the electronic components, ensuring the reliable operation of the equipment.
The automotive industry is increasingly relying on electronic systems to enhance the performance and functionality of vehicles. These electronic systems generate heat, and the 4312/12M fan can be used to cool them.
In automotive electronics, such as infotainment systems, engine control units, and battery management systems, the fan can be used to provide cooling. The high air flow rate and pressure capability of the fan ensure that it can effectively remove the heat generated by these components, preventing overheating and ensuring the reliable operation of the automotive electronics. In electric vehicles, the battery management system is a critical component that requires efficient cooling. The 4312/12M fan can be used to cool the battery pack, ensuring the safety and performance of the battery.
In the industrial automation industry, there are many control panels, PLCs, and other electronic devices that require cooling. The 4312/12M fan can be used to provide ventilation and cooling for these devices.
In control panels, the fan can be installed inside the enclosures to provide ventilation. The high air flow rate and pressure capability of the fan ensure that it can effectively remove the heat generated by the electronic components, preventing overheating and ensuring the reliable operation of the control panel. In PLCs, which are used to control industrial processes, the fan can be used to cool the internal components, ensuring the accurate and reliable operation of the PLC.
The ebm-papst 4312/12M compact fan is a versatile and efficient cooling solution that can be used in a wide range of applications. Its compact size, high air flow rate, pressure capability, and energy-efficiency make it an ideal choice for industries such as electronics, telecommunications, medical, automotive, and industrial automation. As technology continues to advance, the demand for such compact and efficient cooling solutions will only increase, and the 4312/12M fan is well-positioned to meet these challenges.
