| Brand： | ebm-papst |
| Part No： | 5218NH |
| Fan Type： | Compact Fan |
| Rated Voltage(V)： | 48 |

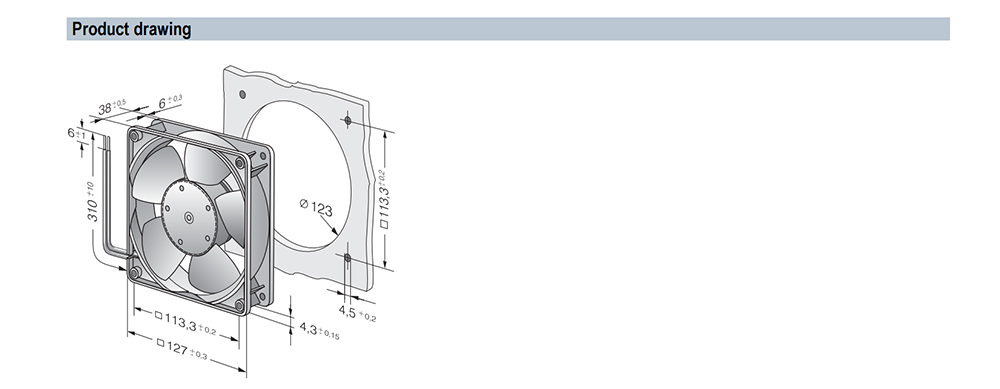

| Size(mm)： | 127*127*38 |
| Max.Air Flow(m³/h)： | 252 |
| Input Power(W)： | 9.6 |
| Speed(rpm)： | 3650 |
| General Description： | Power consumption when wide open; these values may be considerably higher at the operating point |
| Housing Material： | Glass-fiber reinforced PBT plastic |
| Impeller Material： | Glass-fiber reinforced PA plastic |
| Weight： | 0.310 kg |
| Airflow Direction： | Exhaust over struts |
| Direction of Rotation： | Counterclockwise, viewed toward rotor |
| Bearing： | Ball bearing |
| Service Life L10 at 40℃： | 45000 h |
| Service Life L10 at Maximum Temperature： | 32500 h |
| Cable Leads： | AWG 22, TR 64, stripped and tin-plated |
| Motor Protection： | Protection against reverse polarity and blocked rotor |
| Locked-Rotor Protection： | With electronic locked-rotor and overload protection |
| Approval： | VDE, CSA, UL, CE |
| Option： | Speed signal |
