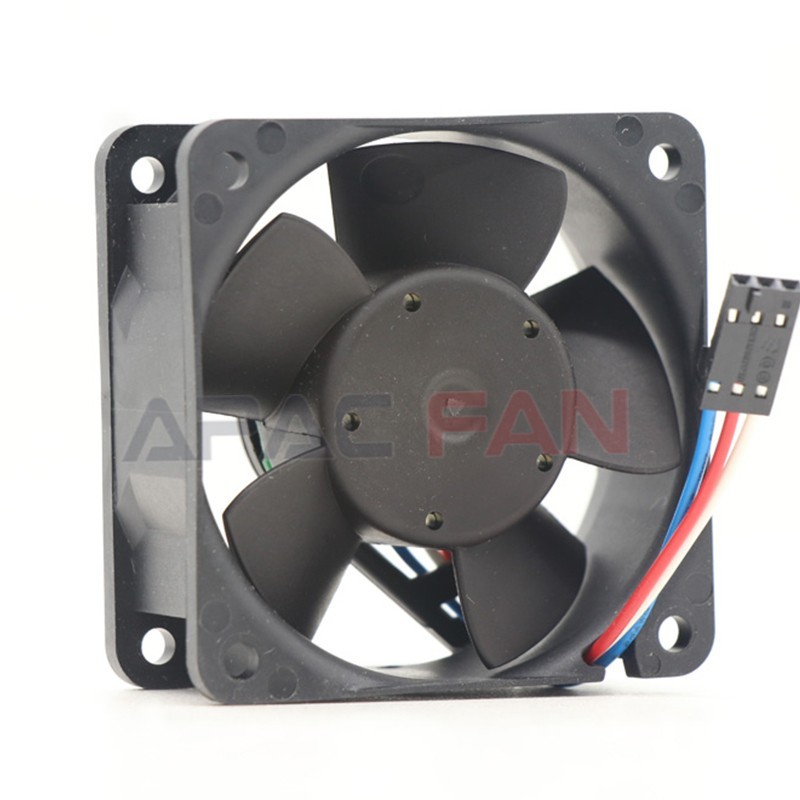

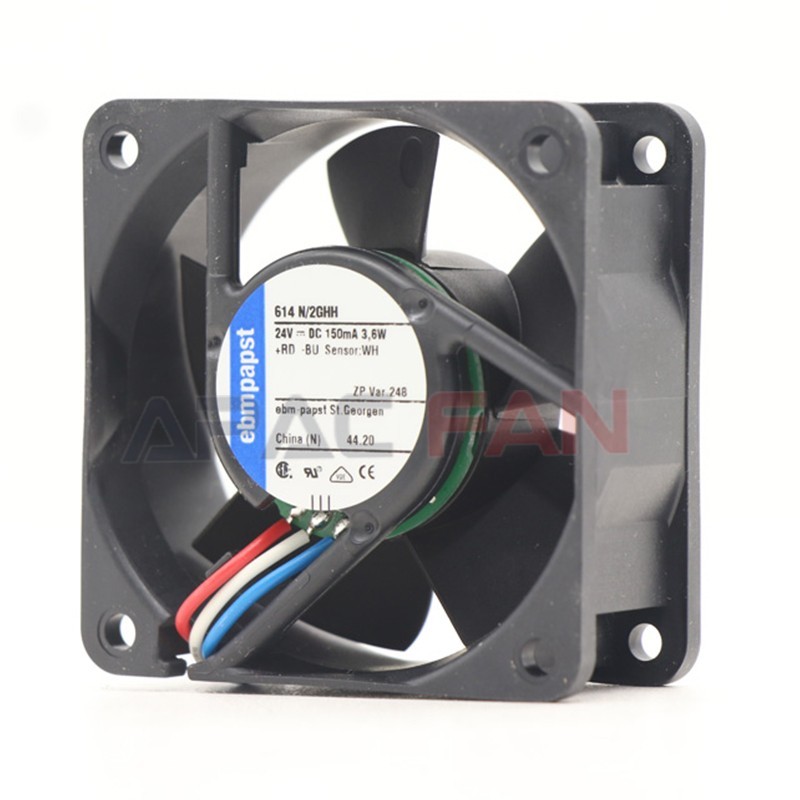

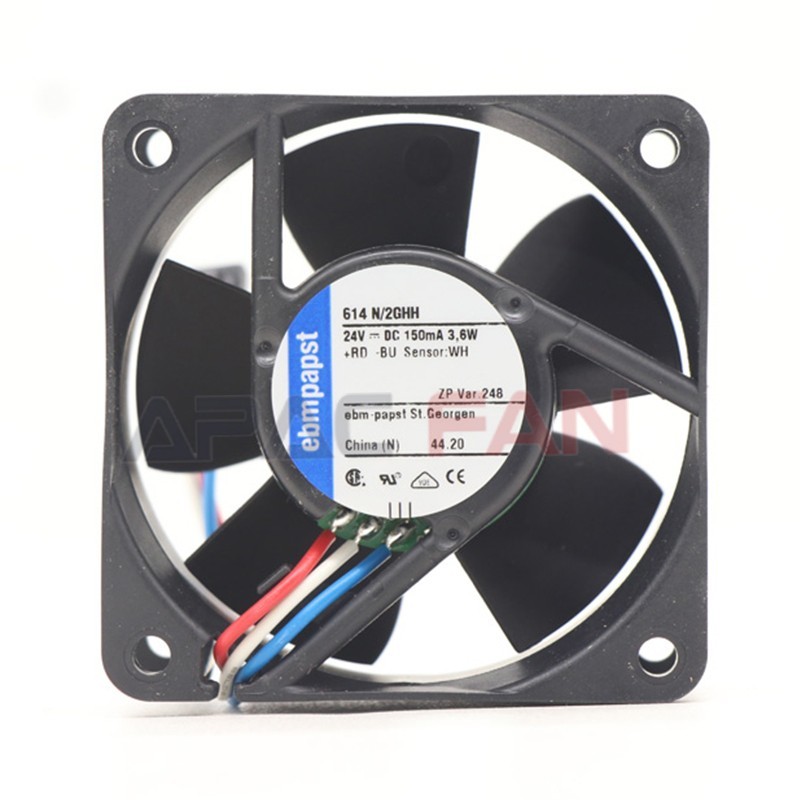

614N/2GHH-248 ebm-papst
No.614N/2GHH-248
(0)
85 Sold
$14.40
1/1
| Brand: | ebm-papst |
| Part No: | 614N/2GHH-248 |
| Fan Type: | Compact Fan |
| Rated Voltage(V): | 24 |

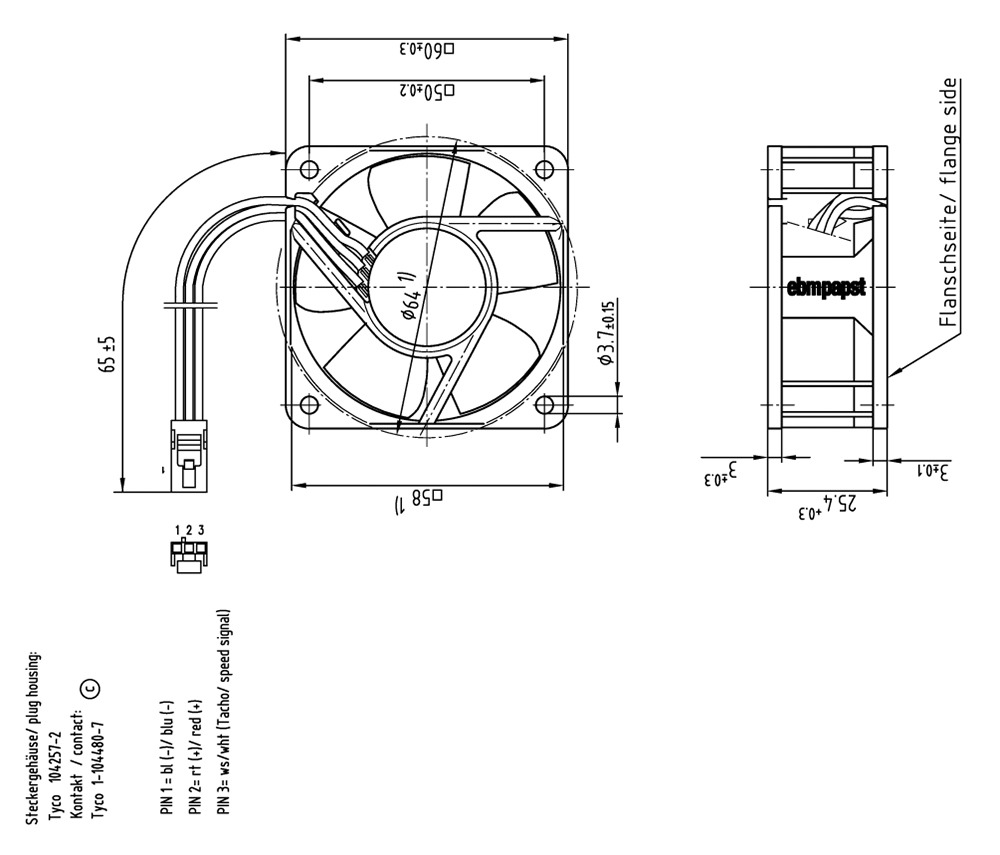

| Size(mm): | 60*60*25 |
| Max.Air Flow(m³/h): | 54 |
| Max.Pressure(Pa): | 134 |
| Input Power(W): | 3.6 |
| Speed(rpm): | 6850 |
| Airflow Direction: | Air outlet over struts |
| Rotating Direction: | Clockwise (looking at rotor) |
| Power Consumption: | 2.9 W |
| Mass: | 0,066 kg |
| Protection Class: | III |
| Max. Torque: | - When mounted across both mounting flanges (wire outlet corner): 20 Ncm - Remaining corners: 40 Ncm |
| Screw Size: | ISO 4762 - M3 degreased, without an additional brace and without washer |
