ebm-papst 624N: Compact Efficiency for 24V DC Systems
The ebm-papst 624N is a world-class DC axial compact fan, measuring 60x60x25mm, specifically engineered for precision cooling in 24V DC systems. It is the trusted industry standard for high-density power electronics, control cabinets, and telecommunications equipment. Utilizing an advanced external rotor motor with high-quality ball bearings, this fan provides an exceptional airflow rate of 40 m³/h (23.5 CFM).
At APAC FAN, we understand that reliability is non-negotiable for industrial infrastructure. That is why we guarantee every 624N unit we ship is 100% original ebm-papst technology. Featuring a fiberglass-reinforced PBT plastic housing and dual ball bearings, the 624N ensures a long-lasting service life of up to 72,500 hours. Whether you are replacing a critical component or sourcing for a new large-scale project, our verified stock ensures your cooling requirements are met with precision.
Official Technical Data Sheet
| Nominal Voltage |
24 VDC |
| Voltage Range |
12 ... 28 VDC |
| Nominal Speed |
6100 RPM |
| Airflow (Metric) |
40 m³/h |
| Power Consumption |
2.2 Watts |
| Bearing Type |
Dual Ball Bearing |
| Housing Material |
Fiberglass-reinforced PBT |
| Dimensions |

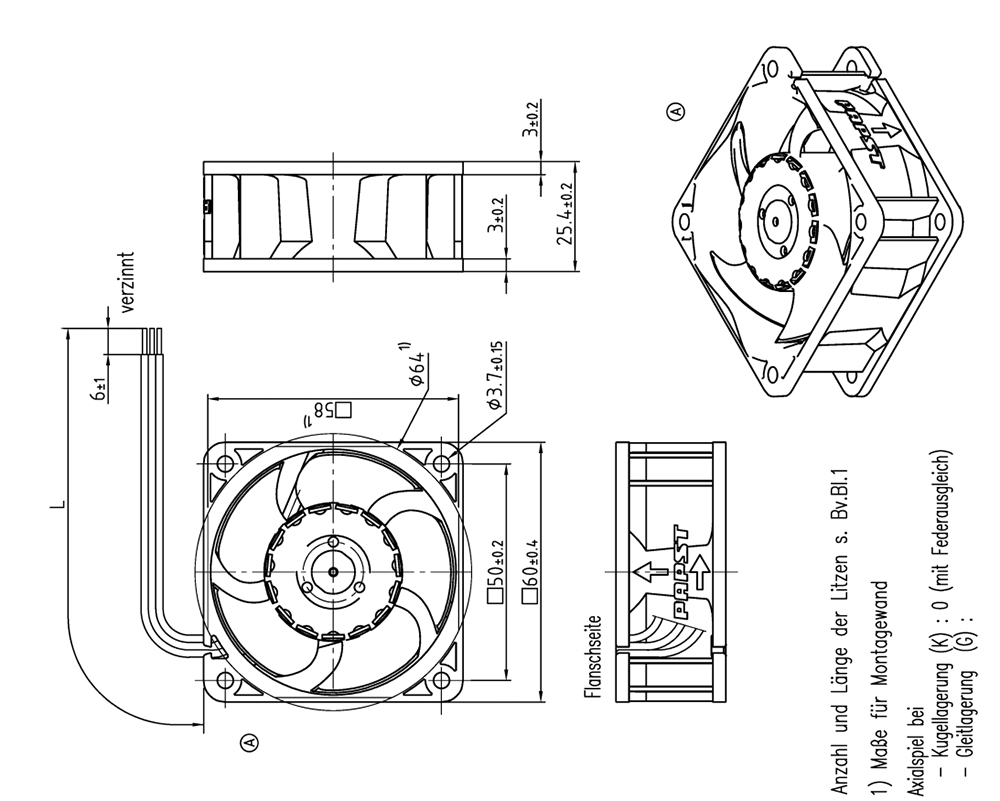

60 x 60 x 25.4 mm |
| L10 Life Expectancy |
72,500 Hours (@ 40°C) |
Bulk Sourcing & Project Pricing
APAC FAN supports large-scale industrial projects with verified authenticity and volume discounts.
REQUEST A BULK QUOTE NOW
Frequently Asked Questions
1. Is this fan a 100% genuine ebm-papst 624N?
Yes. APAC FAN guarantees that all 624N units are 100% original ebm-papst products, sourced via verified industrial channels to ensure quality and authenticity.
2. Can I use this fan at 12V DC?
Yes, the 624N has an operating range of 12V to 28V DC, though performance (RPM and airflow) will be lower at 12V compared to its nominal 24V rating.
3. Is the 624N suitable for continuous 24/7 operation?
Absolutely. Thanks to its dual ball bearing system, the 624N is rated for a long service life of 72,500 hours, making it ideal for constant industrial use.
4. What is the direction of airflow for this model?
Airflow in the 624N moves "exhaust over struts" (exhausts out through the frame struts). The direction of rotation is clockwise when viewed from the rotor side.
5. Does this fan have a speed control or PWM signal?
The standard 624N model is a 2-wire fan (Power and Ground). If you require PWM control or speed signal (Tachometer) versions, please contact us for specific sub-models.
