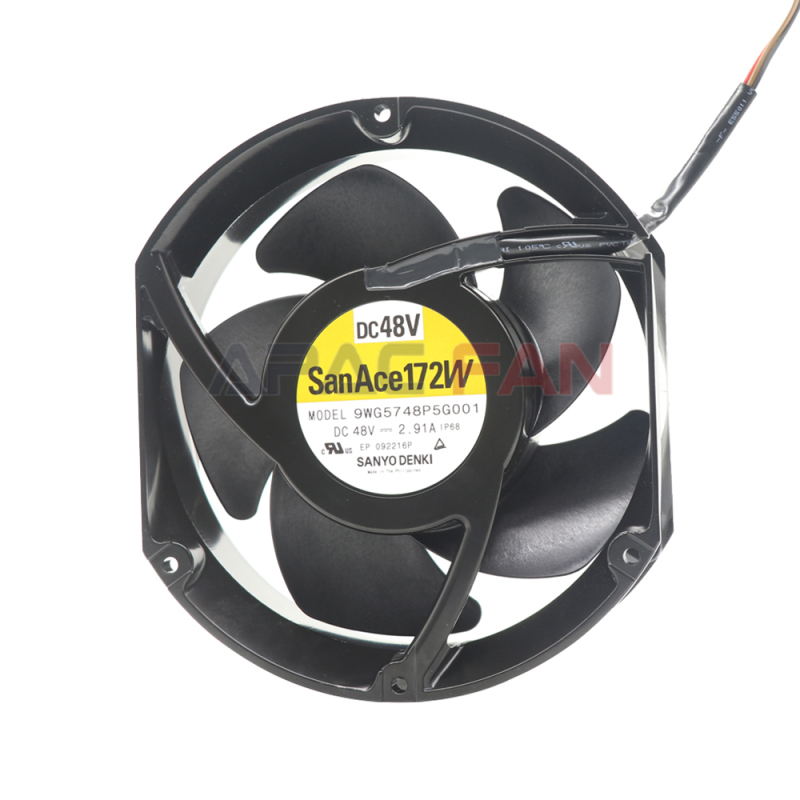

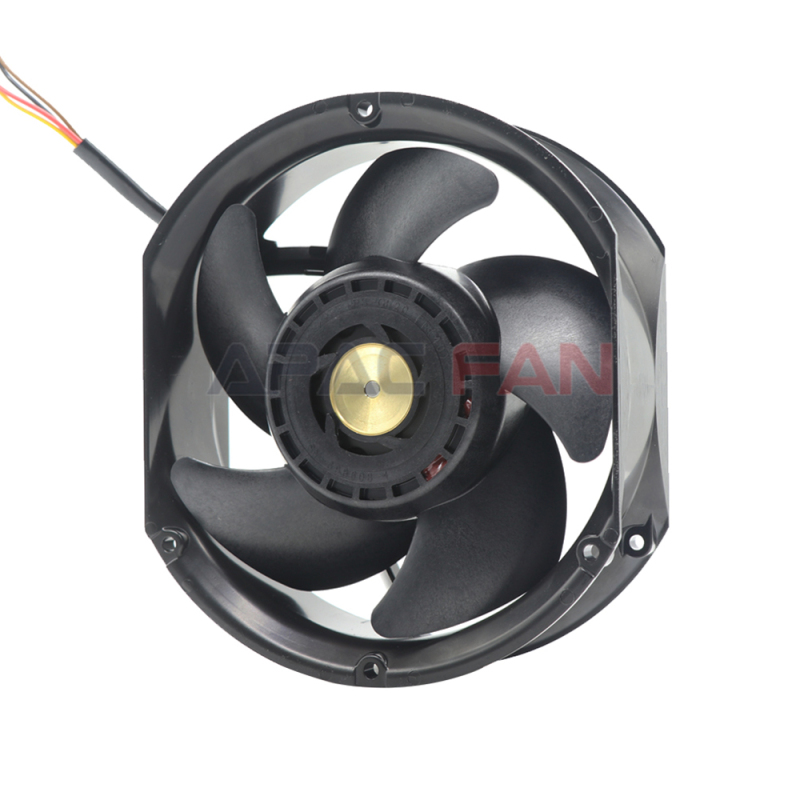

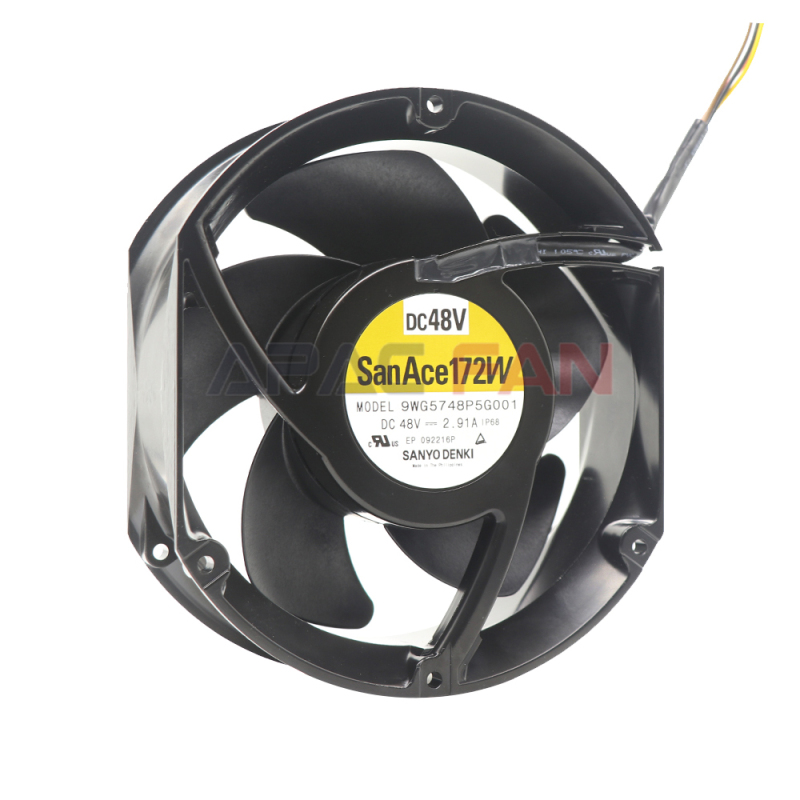

9WG5748P5G001 San Ace

Name: 9WG5748P5G001 San Ace
Brand: APAC FAN
SKU: 9WG5748P5G001
Price: 127.96 USD
Availability: InStock
Rating: 5.0 (3 reviews)

No.9WG5748P5G001

5.0 (3)

48 Sold

$127.96

San Ace,9WG5748P5G001,Axial Fan,172*150*51mm,546CFM,140W,78dB,8600RPM,1000Pa,48V

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (5)

1/1

Description

Brand：	San Ace
Part No：	9WG5748P5G001
Fan Type：	Axial Fan
Rated Voltage(V)：	48
Size(mm)：	17215051
Max.Air Flow(CFM)：	546
Max.Pressure(Pa)：	1000
Input Power(W)：	140
Speed(rpm)：	8600
Noise(dB)：	78
Frame Material:	Aluminum
Operating Voltage Range (V):	40.8～55.2
Rated Current (A):	2.91
Rated Input (W):	140.0
Rated Speed (min-1):	8600
Max. Airflow (m³/min):	15.46
Max. Static Pressure (inchH₂O):	4.02
Operating Temperature (˚C):	-20～+70
Expected Life (h):	40000/60℃ (70000/40℃)
Mass (g):	860
Sensor Type:	Pulse sensor
IP Rating:	IP68
PWM Control Function:	Yes
Ribbed:	No
