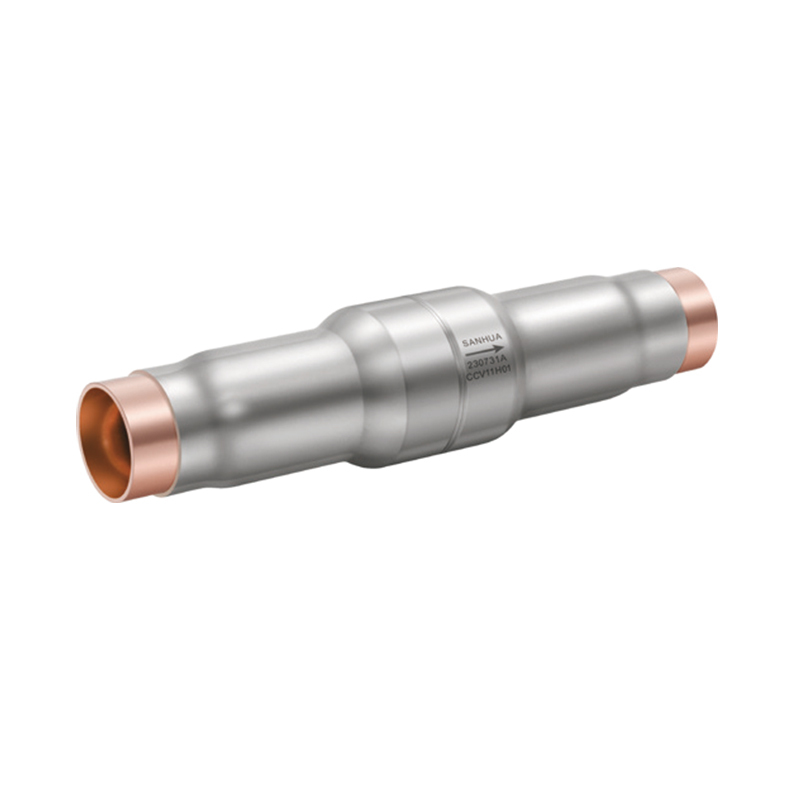

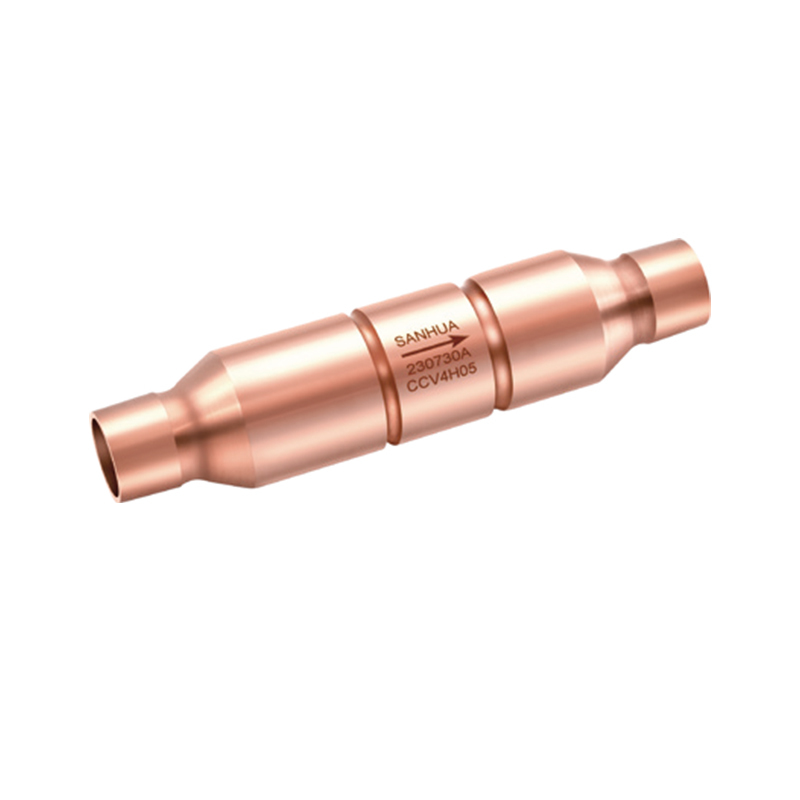

CCV SERIES Check Valve Magnetic Type

Name: CCV SERIES Check Valve Magnetic Type
Brand: APAC FAN
Availability: OutOfStock

0.0 (0)

0 Sold

$0.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Magnetic type check valves are designed for installation in commercial refrigerating systems and in residential or
industrial air conditioning plants. They are used to control the unidirectional fow of refrigerant to prevent backfow.
FEATURES
• LOW PRESSURE DROPS AND LOW INTERNAL LEAKAGE
• SIZE 1/4 “~3/4” ARE COPPER VALVE BODIES, AND SIZE NO LESS THAN 7/8 “ ARE STAINLESS STEEL VALVE BODIES (WITH COPPER JOINTS, NO WELDING PROTECTION IS REQUIRED)
• BUILT-IN FILTER
GENERAL SPECIFICATIONS
• Applicable for all common HCFC, HFC, HFO and HC refrige-rants such as: R22, R134a, R404A, R410A, R507A, R448A, R449A, R450A, R452A, R513A, R32, R1234yf, R1234ze(E), R1233zd(E), R454A/B/C, R455A, R290, R1270, R600a
• Medium temperature TS min./max.: -40°C ~+ 150°C
• Max. Operating pressure PS: 4.9MPa (49bar)
• Installation position:
- Flow direction corresponds to the arrow
- CCV can be installed in any position and direction in the system
• Declaration according to PED
