ebm-papst DV4114N: High-Performance Diagonal Axial Fan
The ebm-papst DV4114N is a premier industrial cooling solution engineered for high-pressure environments. Utilizing advanced diagonal-vane technology, this 119x119x38mm DC fan maintains exceptional airflow performance even in densely packed electronic enclosures. It is the trusted choice for telecommunications, high-end server racks, and critical industrial automation systems.
At APAC FAN, we guarantee the delivery of 100% authentic ebm-papst technology. The DV4114N provides a powerful 280 m³/h airflow at a nominal 6,000 RPM. With its robust die-cast aluminum housing and high-precision ball-bearing system, this fan is built for continuous, maintenance-free operation in demanding 24V DC applications.
DV4114N Official Technical Specifications
| Nominal Voltage |
24.0 VDC |
| Nominal Speed |
6,000 RPM |
| Max. Airflow |
280.0 m³/h (164.8 CFM) |
| Power Consumption |
20.5 W |
| Current Draw |
850 mA |
| Direction of Rotation |
Counter-clockwise (Links - viewed on rotor) |
| Airflow Direction |
Exhaust over struts (Uber Stege blasend) |
| Housing Material |
Die-cast Aluminum |

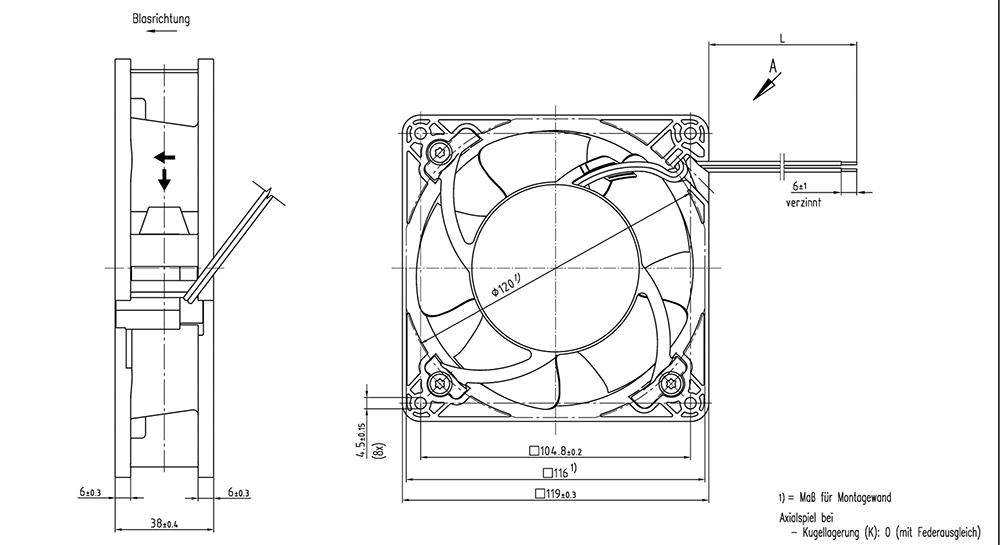

| Dimensions |
119 x 119 x 38 mm |
| Weight |
0.375 kg |
Need Bulk Pricing for DV4114N?
APAC FAN provides specialized B2B logistics and volume discounts for verified industrial projects.
REQUEST A QUOTE NOW
Frequently Asked Questions
1. What is the wiring definition for the DV4114N?
The fan is equipped with two lead wires for electrical connection: Red for +UB (Positive) and Blue for -GND (Negative).
2. What makes the "DV" diagonal series different?
The diagonal vane design allows the fan to generate significantly higher pressure than standard axial fans, ensuring efficient cooling even when airflow is obstructed by dense components.
3. Can I regulate the fan speed using PWM?
According to the manufacturer's safety instructions, speed control via PWM of the supply voltage is not permitted. Control should only be managed within the specified supply voltage range.
4. Is the fan housing made of plastic or metal?
The DV4114N features a high-quality die-cast aluminum housing, providing superior durability and heat dissipation for industrial use.
5. How often should the fan be maintained?
Official guidelines recommend a visual inspection at least every six months to check for wear, deposits, or corrosion on the impeller and to ensure all electrical connections remain secure.
