| Brand： | Delta |
| Part No： | FFB0412VHN |
| Rated Voltage(V)： | 12 |

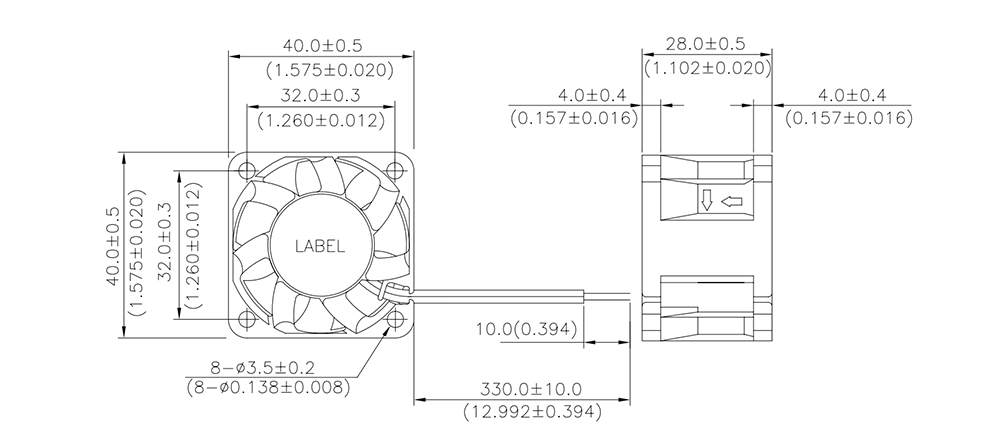

| Size(mm)： | 40*40*28 |

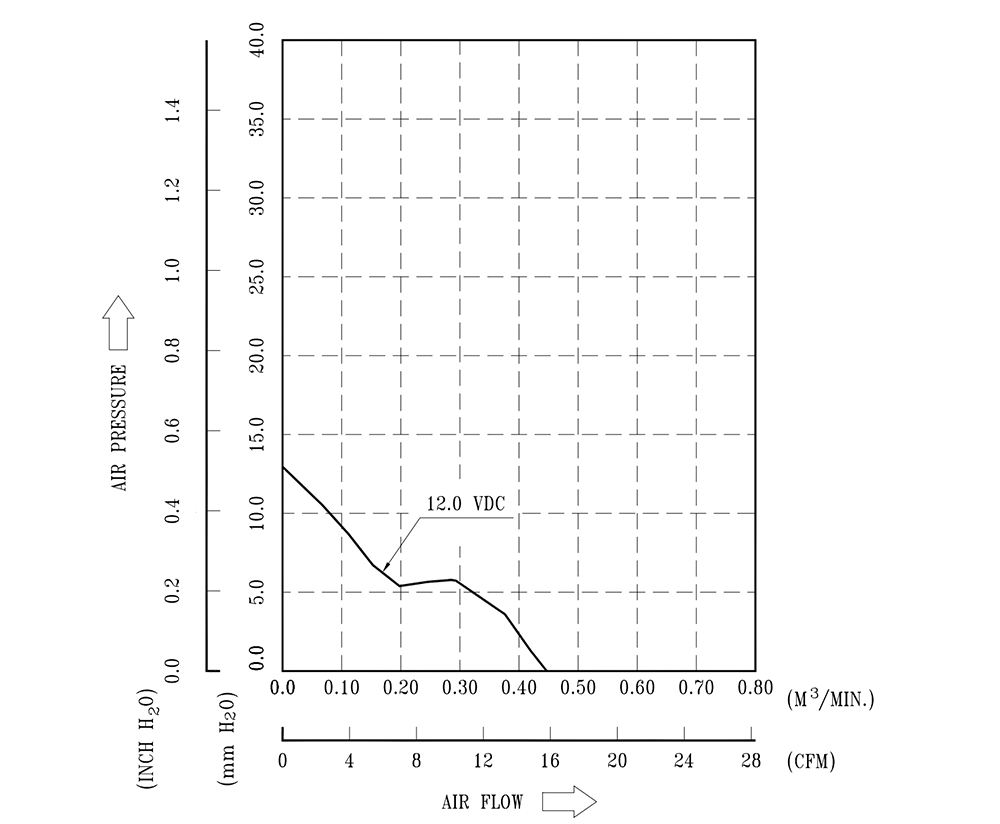

| Max.Air Flow(m³/h)： | 26.84 |
| Input Power(W)： | 1.92 |
| Speed(RPM)： | 9500 |
| Noise(dB)： | 45 |
| Insulation Strength: | 10 Meg Ohm min. at 500 VDC (Between frame and (+) terminal) |
| Dielectric Strength: | 5 mA max. at 500 VAC 50/60 Hz one minute, (Between frame and (+) terminal) |
| External Cover: | Open type |
| Life Expectance: | 70,000 hours continuous operation at 40 °C with 15 ~ 65 %RH. |
| Rotation: | Clockwise view from name plate side |
| Over Current Shut Down: | The current will shut down, when locking rotor. |
| Lead Wire: | UL 1007 -F- AWG #24 Black wire Negative(-) Red wire Positive(+) |
| Insulation Type: | UL: Class A |
