| Brand： | Delta |

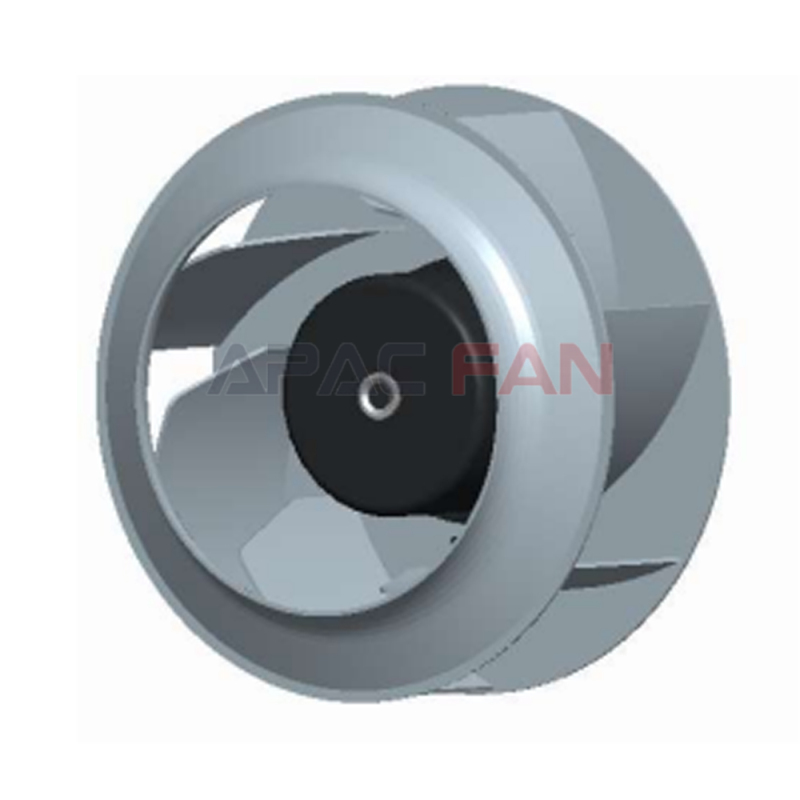

| Part No： | GTB025FUC19R N1 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | N/A |
| Max.Air Flow(m³/h)： | 2600 |
| Max.Pressure(Pa)： | 765 |
| Input Power(W)： | 415 |
| Speed(RPM)： | 3050 |
| Noise(dB)： | 79 |
| Rotation Direction: | CW, Seen on rotor |
| Material (Impeller / Frame): | Aluminum sheet / Die-cast aluminum |
| Bearing System: | Ball bearings |
| Weight: | 5.3 kg |
| Electrical Leads: | Lead wire |
| Operating Temperature Range: | -25 ~ +60 °C |
| Storage Temperature Range: | -40 ~ +70 °C |
| Safety Certification: | UL, cUL, TUV |
| IP Level: | IP54 |
| EMC Compliance: | EN61000-6-1/3, EN61000-3-2/3 |
| Protection Class: | Ⅰ |
| Insulation Class: | B |
| Leakage Current: | <= 3.5 mA |
| Motor Protection: | Over temperature protected |
| Life Expectancy: | 60,000 hrs at 40 °C / 15 ~ 65 %RH |
