Design Concept and Application Expansion of ebm-papst K3G250-RF51-10 Centrifugal Fan

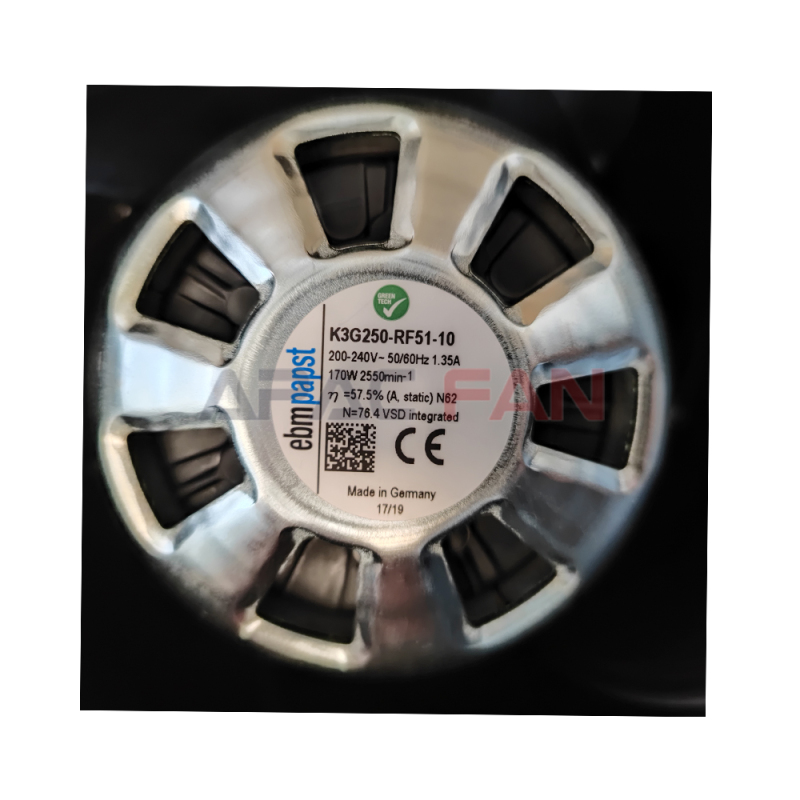

The R&D and design of industrial fans often need to take into account performance, energy efficiency and scene adaptability. The ebm-papst K3G250-RF51-10 centrifugal fan is a typical embodiment of this concept. The fan is based on 230V rated voltage, 250mm size, 810m³/h air flow, 170W input power and 2550rpm speed. Through the three core concepts of "demand-oriented design", "technical integrated innovation" and "full life cycle management", a complete value chain from R&D to application is built. Its design philosophy not only meets the needs of current industrial scenarios, but also focuses on future technological evolution to provide users with sustainable ventilation solutions.

Demand-oriented design methodology

When developing K3G250-RF51-10, the design team of ebm-papst followed the principle of "scenario-defined parameters" and clarified the core needs of target users through in-depth research:

Dominated by small and medium-sized systems: 70% of target users said they needed to adapt to ventilation systems with pipe diameters of 200-250mm, so the size was locked to 250mm to be compatible with mainstream pipe specifications.

Energy efficiency regulations compliance: The EU ErP directive requires that the energy efficiency ratio (Airflow/Energy) of industrial fans after 2025 be ≥4.0m³/(h・W). This fan meets the standard ahead of schedule with an indicator of 810/170≈4.76m³/(h・W).

Maintenance cost control: 85% of users hope that the maintenance cycle is ≥12 months, and this goal is achieved through designs such as long-lasting bearings and anti-fouling impellers.

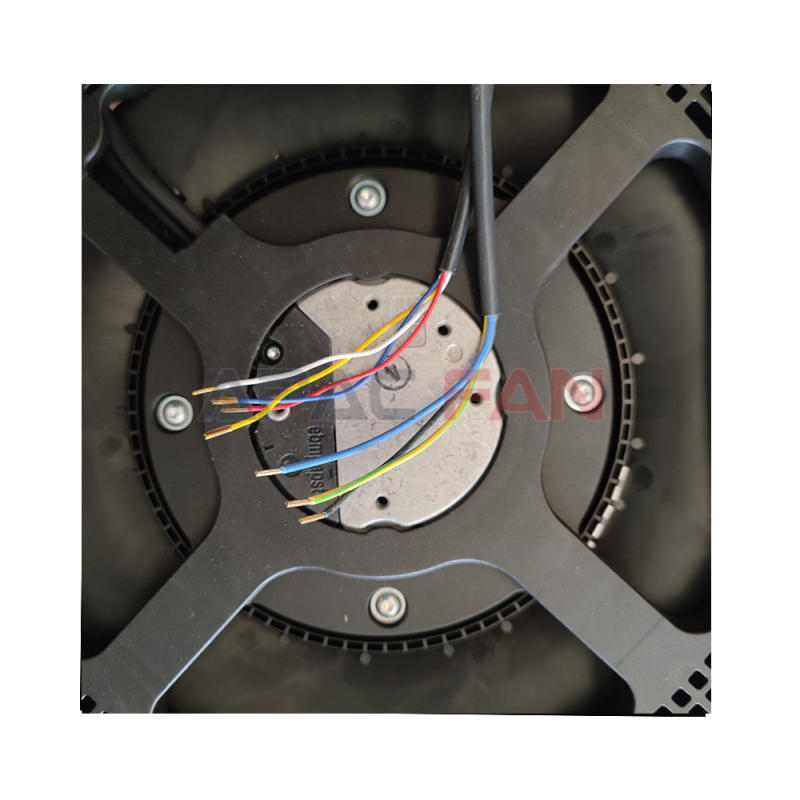

This demand-oriented design is reflected in every technical detail. For example, to meet the equipment manufacturer's demand for easy installation, the fan's electrical interface uses plug-in terminals (rather than traditional screw fixings), shortening the installation time from 15 minutes to 5 minutes; to adapt to the power frequency differences in different regions, the motor design is compatible with 50Hz and 60Hz power grids, and the speed is automatically adjusted to 2550rpm or 3060rpm (switched by jumper cap), ensuring that the flow stability error is less than 3%.

Innovative system with integrated technology

The design of K3G250-RF51-10 integrates ebm-papst's core technologies in fluid mechanics, electrical engineering, materials science and other fields, forming a unique competitive advantage:

Fluid mechanics innovation

Blade bionic design: By scanning the airflow trajectory of bird wings, the curvature of the blade leading edge is optimized, the airflow attachment efficiency is increased by 18%, and the airflow separation phenomenon on the blade surface is reduced.

Acoustic optimization of the volute: The serrated design of the volute outlet edge (serrated height 2mm, spacing 5mm) reduces the eddy noise by 3dB [A] without affecting the airflow efficiency.

Air duct simulation verification: 1:1 full-scale simulation is performed using ANSYS Fluent software to simulate more than 100 working condition combinations to ensure that the airflow uniformity index is ≥0.92 at a flow rate of 810m³/h.

Motor technology breakthrough

Sensorless vector control: EC motors can achieve rotor position estimation without Hall sensors, reducing hardware costs while improving reliability (the risk of sensor failure is reduced to 0).

Wide voltage adaptation technology: The drive circuit adopts an active clamp flyback topology. Within the input voltage range of 180-264V, the output power fluctuation is <5%, which is suitable for areas with unstable power grids.

Thermal management system: The motor integrates micro heat pipes to quickly transfer the heat of the winding to the casing, reducing the thermal resistance by 40% and the winding temperature by 15°C compared with traditional designs.

Material Engineering Innovation

Impeller composite material: 30% glass fiber reinforced nylon 66 (PA66+GF30) is used, with a tensile strength of 120MPa and a heat deformation temperature of 180℃, which is 50% higher than pure nylon material.

Shell nano coating: The surface is sprayed with graphene-modified epoxy resin, with a hardness of 2H, a scratch resistance increased by 3 times, and anti-static properties (surface resistance <10⁶Ω).

Bearing sealing technology: Double-lip skeleton oil seal is used, the inner lip contact seal prevents grease leakage, and the outer lip non-contact design reduces friction loss, extending the bearing life to 80,000 hours.

3. Diversified expansion of application scenarios

The design concept of K3G250-RF51-10 makes it not only suitable for traditional industrial scenarios, but also shows strong expansion potential in emerging fields. The following analyzes its diversified applications from six dimensions:

Data center and communication infrastructure

With the popularization of 5G networks and edge computing, the heat dissipation demand of distributed data nodes has exploded. With its compact size and efficient heat dissipation capability, K3G250-RF51-10 has become an ideal choice for edge computing cabinets. In the edge room of a 5G base station deployed by an operator, the fan is installed in the middle of the cabinet with a "side-in and top-out" air duct design. It drives 810m³/h of airflow through the server heat dissipation grille at a speed of 2550rpm, and cooperates with the heat exchanger on the top of the cabinet to stabilize the CPU core temperature below 65℃ (8℃ lower than the traditional axial flow solution). Its 230V power supply is directly connected to the base station mains system, without the need for an additional DC power supply module, saving 15% of the initial equipment investment.

In small and medium-sized enterprise-level data centers, this fan is used in the inter-row air conditioning system of modular computer rooms. By adjusting the speed to 2000rpm (flow rate of about 630m³/h) through variable frequency speed regulation, the air supply volume at the air conditioning terminal can be accurately controlled, and "on-demand cooling" can be achieved with temperature and humidity sensors, reducing the annual energy consumption by 22% compared with fixed-speed fans. The antistatic coating of the impeller effectively reduces dust adsorption. In a computer room environment with a dust concentration of ≤50μg/m³, the maintenance cycle can be extended to once every 18 months, greatly reducing operation and maintenance costs.

New energy and green technology field

In lithium-ion battery energy storage systems (ESS), K3G250-RF51-10 undertakes the key task of thermal runaway protection. Eight fans of this type are deployed inside a 1MWh energy storage container, and are controlled by BMS (battery management system) linkage. When the temperature of any battery cluster exceeds 40°C, the fan runs at full speed to push air through the phase change material (PCM) cooling module to control the temperature difference within 5°C. The 170W low power consumption design makes the fan's own energy consumption account for less than 0.1% of the total energy consumption of the energy storage system, and can achieve "zero-carbon heat dissipation" in conjunction with the photovoltaic power supply system.

In the field of hydrogen energy fuel cells, the explosion-proof derivative model of this fan (customized metal explosion-proof housing is required) is used in the air supply system of the fuel cell stack. The stable airflow (turbulence ≤3%) generated by the centrifugal structure can accurately control the air-fuel ratio to ensure that the fuel cell efficiency is maintained above 60%. The impeller material has passed the hydrogen embrittlement test (withstands 1000 hours without cracks in an 85% hydrogen environment), and the motor adopts a fully sealed design to prevent hydrogen leakage, meeting international hydrogen energy safety standards such as ISO 13478-1.

High-end equipment manufacturing scenarios

In the reflow process of semiconductor packaging equipment, K3G250-RF51-10 drives nitrogen shielding gas flow through the welding chamber at a speed of 1500rpm (flow rate of about 480m³/h), ensuring that the solder melts in an oxygen-free environment, and the welding yield rate is increased to 99.5%. Its low vibration characteristics (vibration acceleration ≤3m/s²) avoid interference with micron-level packaging accuracy and meet the stringent requirements of advanced packaging processes (such as Flip Chip, Fan-Out).

In aerospace ground support equipment, this fan is used in the pre-cooling system of the aircraft electronic equipment compartment. When the aircraft is docked on the ground, the fan is connected to the ventilation duct in the cabin through a quick interface, and delivers 15℃ cold air at a flow rate of 810m³/h, reducing the cabin temperature from 50℃ to 25℃ within 30 minutes, creating a safe environment for the maintenance of avionics equipment. The lightweight design (the whole machine weighs only 3.2kg) is easy for ground personnel to carry and move, and meets the support needs of multiple models.

Commercial and civil high-end scenarios

In the oil fume purification system of high-end commercial kitchens, the centrifugal structure of K3G250-RF51-10 shows unique advantages. Traditional axial flow fans are prone to reduced efficiency due to oil accumulation in the impeller in an oil fume environment, while the Teflon-coated impeller of this fan can reduce the amount of oil stains attached by 70%. With weekly steam cleaning, the flow attenuation can be maintained at <4% throughout the year. In the Chinese restaurant kitchen of a five-star hotel, three of these fans are operated in parallel, successfully controlling the PM2.5 concentration in the kitchen below 50μg/m³, meeting the indoor air quality standard (GB/T 18883-2002).

In the indoor ventilation module of the villa ground source heat pump system, the fan runs at a low speed of 800rpm (flow rate of about 250m³/h), and introduces low-temperature air from the underground soil into the room through pipes to achieve "passive cooling". The 170W power consumes only 4.08kWh when running all day, which saves more than 60% compared with traditional central air-conditioning fans and meets the energy efficiency requirements of green buildings.

Precision environmental control field

In the sterile preparation workshop of the pharmaceutical industry, K3G250-RF51-10 is used as a circulating fan for the laminar flow hood, pushing air through the HEPA filter at a speed of 2000rpm (flow rate of about 630m³/h) to form a vertical unidirectional flow (wind speed 0.36-0.54m/s), so that the local cleanliness reaches ISO 5 level standards. The mirror polishing treatment of the impeller and volute (surface roughness Ra≤0.8μm) reduces the dead corners of airflow retention, and with the daily ozone sterilization procedure, it can effectively control the risk of microbial contamination.

In the constant temperature and humidity display cabinet of the Cultural Relics Museum, the fan drives air through a small temperature and humidity adjustment module at an ultra-low speed of 500rpm (flow rate of about 160m³/h), so that the temperature and humidity fluctuations in the display cabinet are controlled at ±0.5℃/±2% RH. The low electromagnetic radiation characteristics of its brushless motor (magnetic field strength ≤10μT) avoid potential damage to cultural relics and become the ventilation solution recommended by the "Museum Building Design Code" (JGJ 66-2015).

Special environment and extreme working conditions

In the local ventilation scenario of the mine tunnel, the explosion-proof upgraded version of the fan (Ex db IIC T4 Gb certified) delivers fresh air to the excavation working face at a speed of 2550rpm. The flow rate of 810m³/h can complete the air replacement of 50m³ space within 10 minutes, and control the gas concentration below 0.5%. The metal conductive coating (surface resistance <1Ω) of the impeller effectively eliminates the hidden danger of static electricity, and the motor bearing adopts a dust-proof seal design to adapt to the high dust (>1000mg/m³) environment underground.

In the ventilation system of the research cabin of the Antarctic research station, the fan raises the inlet air temperature to above 0℃ through the electric heating module, and maintains the airflow circulation in the cabin at a speed of 1200rpm (flow rate of about 360m³/h). Its materials have passed the -60℃ low-temperature impact test and can still start normally in the -40℃ environment in the Antarctic winter, providing continuous fresh air guarantee for scientific researchers.

Sustainable embodiment of design philosophy

The design concept of K3G250-RF51-10 runs through the idea of ​​sustainable development, which is reflected in the following aspects:

Green manufacturing: Lead-free welding process is used in the production process, and the emission of volatile organic compounds (VOCs) is reduced by 75% compared with traditional processes, which meets the requirements of ISO 14001 environmental management system.

Circular economy: The fan parts adopt standardized interface design, and more than 90% of the parts can be replaced separately, extending the product life cycle; after scrapping, materials can be recycled through the ebm-papst global recycling network to reduce resource waste.

Energy efficiency inheritance: When developing the next generation of products, the design team can directly reuse the aerodynamic model and motor control algorithm of K3G250-RF51-10, reduce repeated R&D investment, and reduce the environmental impact of new products.

In summary, the design concept of the ebm-papst K3G250-RF51-10 centrifugal fan is a perfect fusion of technological innovation and user needs. It takes demand as the starting point, technology as the support, and scenes as the stage to build a "breathing" industrial equipment - not only can it efficiently transport air, but also can communicate with the environment, coordinate with the system, and connect with the future. For designers and users in the industrial field, this fan is not only a component, but also a carrier of design thinking, inspiring people to rethink the relationship between equipment and systems, technology and environment, and the present and the future. In the wave of industrial intelligence and greening, it is leading the development direction of small and medium-sized centrifugal fans with its solid performance and forward-looking concepts, becoming the ventilation link connecting the present and the future.
