FAQ
Q1: What advanced control features does the ebm-papst K3G250-RR03-H4 offer?

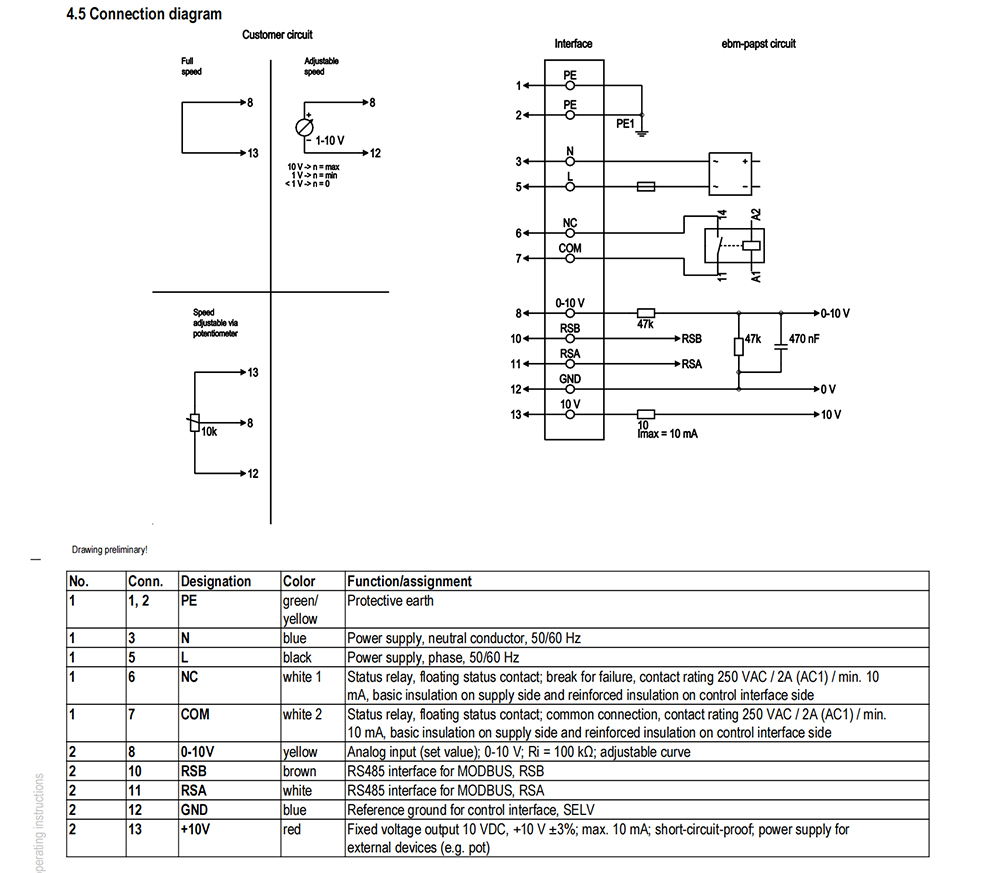

A1: The K3G250-RR03-H4 is equipped with an integrated PID controller, 0–10 VDC/PWM control input, RS-485 MODBUS-RTU communication, and an alarm relay. These features allow precise airflow control, system integration, and real-time monitoring, making it ideal for smart HVAC and industrial systems.
Q2: How does the IP55 protection rating benefit the K3G250-RR03-H4?
A2: IP55 ensures protection against dust ingress and water jets from any direction, enabling the K3G250-RR03-H4 to operate reliably in harsh or outdoor environments. This rating increases durability and reduces the risk of failure due to environmental exposure.
Q3: What materials contribute to the K3G250-RR03-H4’s durability?
A3: This model combines a die-cast aluminum housing, PA plastic and galvanized sheet-metal impeller, galvanized steel inlet nozzle, and coated steel guard grille. These materials provide mechanical strength, corrosion resistance, and long-term stability.
Q4: How does the K3G250-RR03-H4 ensure motor protection and safety?
A4: The fan includes motor current limitation, active PFC, phase failure detection, and thermal overload protection for both the motor and electronics. These safeguards prevent damage during overloads, voltage fluctuations, or abnormal operating conditions.
Q5: Can the K3G250-RR03-H4 be installed in any orientation?
A5: Yes, it supports installation in any position, offering flexibility for system designers. Its ball bearing construction ensures smooth operation and long service life regardless of mounting orientation.
