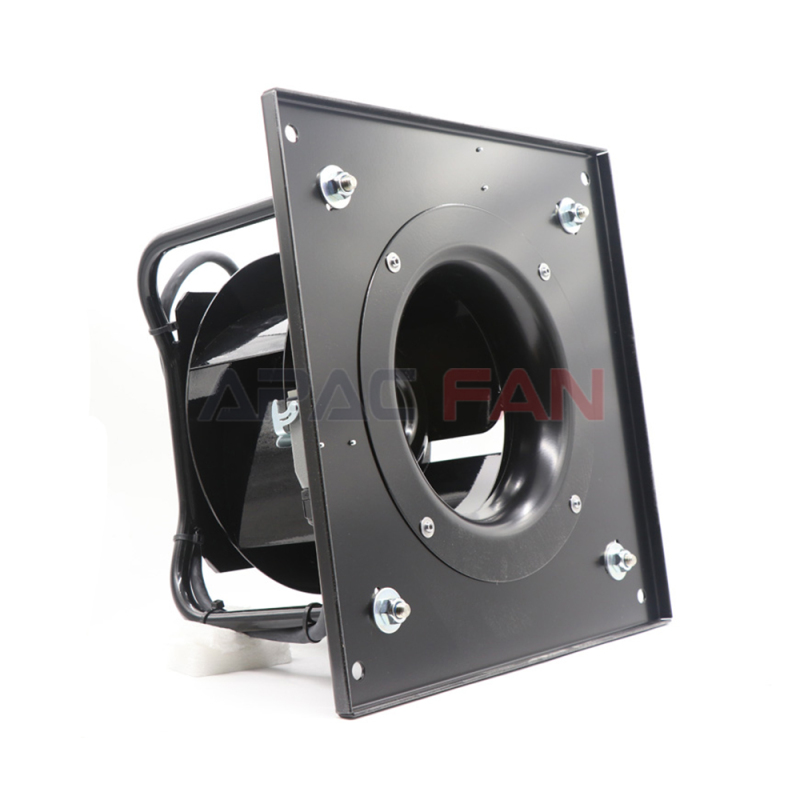

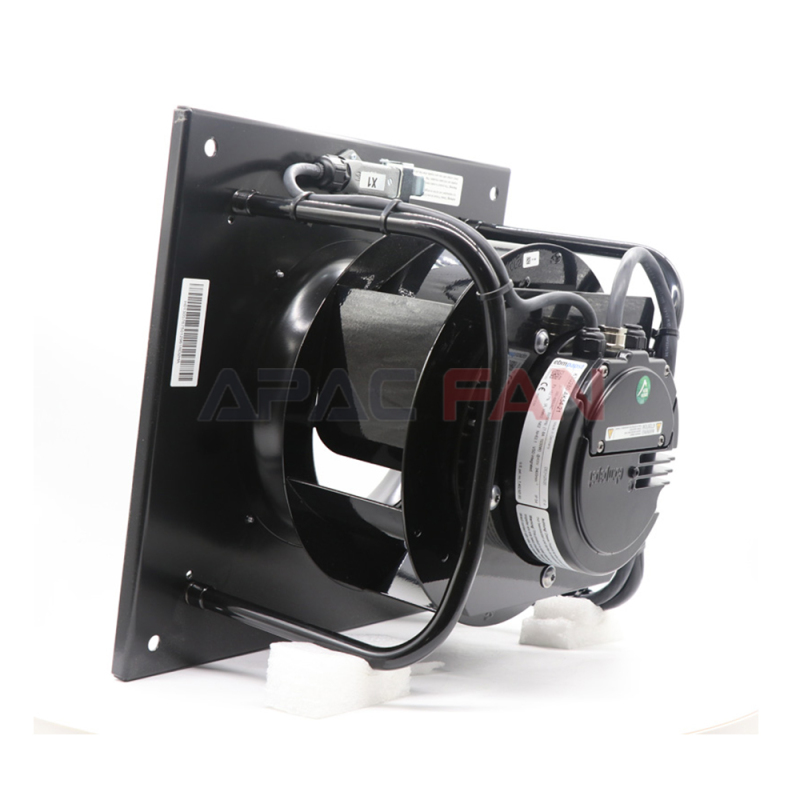

K3G280-AK54-21 ebm-papst

1. Introduction

In the field of industrial ventilation and air conditioning, centrifugal fans play a vital role. The K3G280-AK54-21 centrifugal fan produced by ebm-papst has become an ideal choice for many industrial scenarios due to its excellent performance and reliable quality. This article will introduce the various parameters, characteristics and application range of the fan in detail.

2. Basic information

K3G280-AK54-21 belongs to the type of centrifugal fan. Centrifugal fans are machines that rely on input mechanical energy to increase gas pressure and discharge gas. Their working principle is based on the action of centrifugal force and can efficiently transport air to a designated area. As a world-renowned fan manufacturer, ebm-papst has given this fan excellent performance with advanced technology and strict quality control.

3. Technical parameters

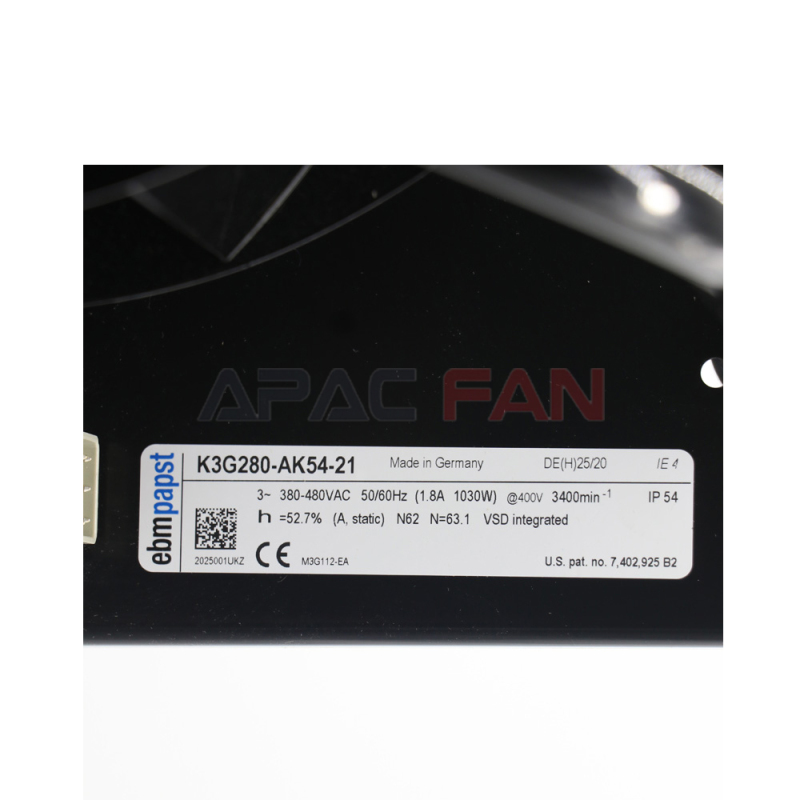

Brand and part number: The fan brand is ebm-papst and the part number is K3G280-AK54-21. This unique number helps users to accurately identify and operate in terms of procurement, maintenance and technical support.

Rated voltage: The rated voltage is 400V, which is suitable for most industrial power environments. Stable voltage input ensures that the fan can operate continuously and stably, providing reliable ventilation guarantee for industrial production.

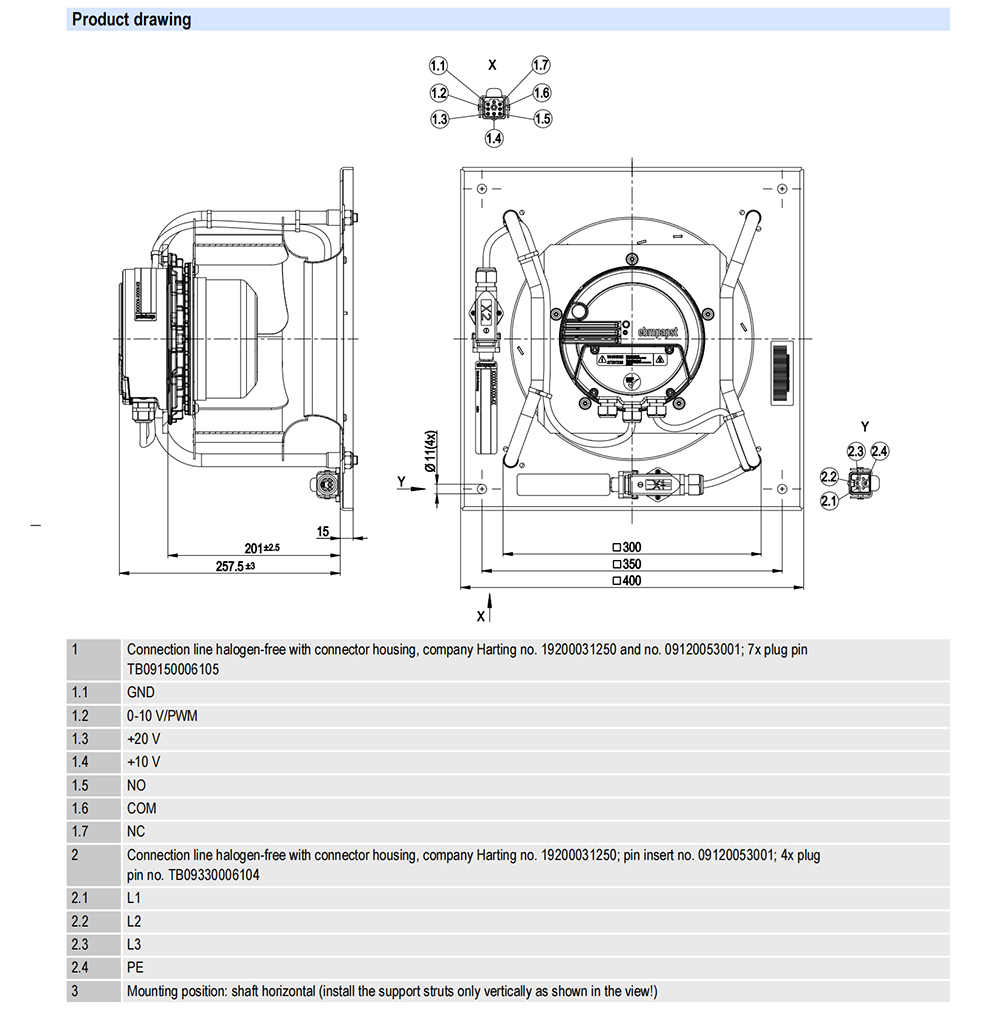

Size: The size of the fan is 280 mm. This compact design enables it to be installed in a limited space while ensuring sufficient air volume and pressure output.

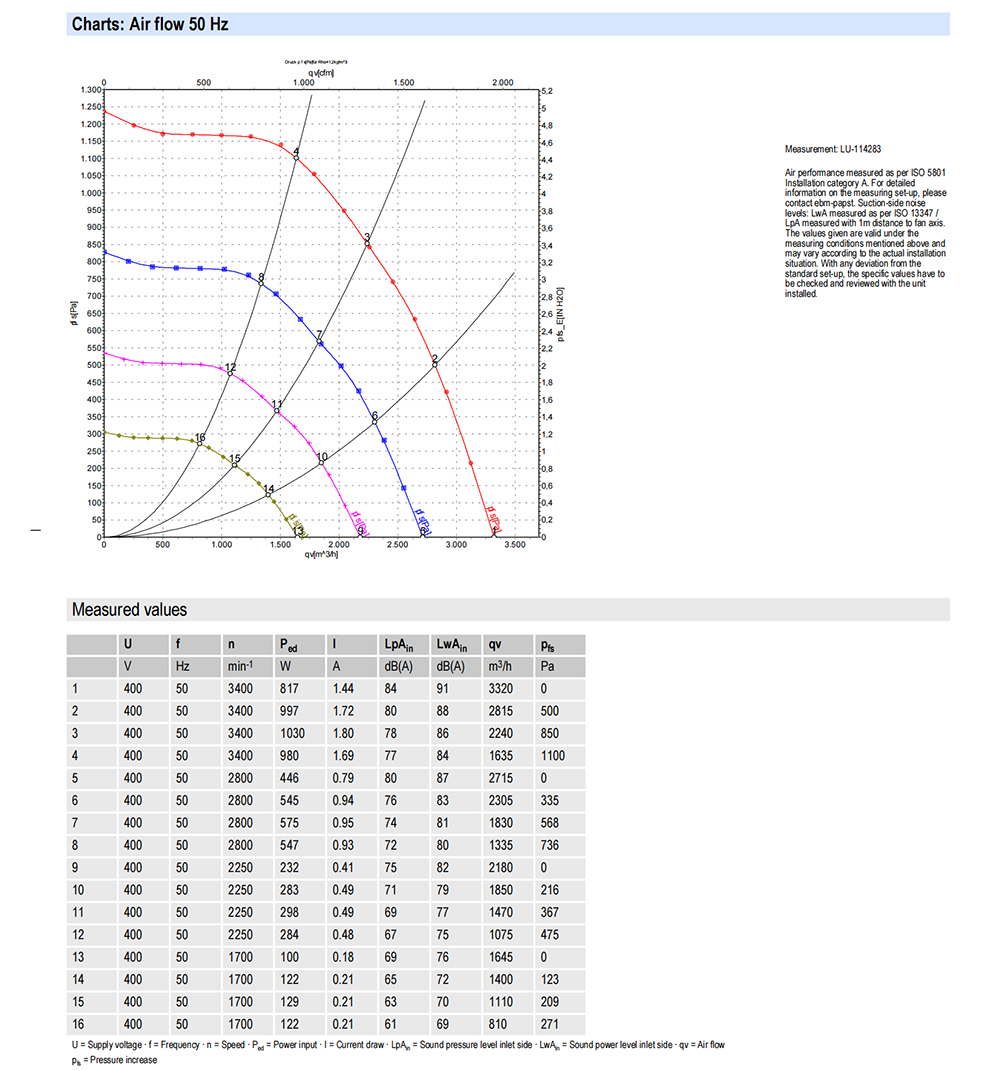

Maximum pressure: The maximum pressure can reach 1100Pa, which means that the fan can work normally in a ventilation system with a certain resistance, effectively overcome the pipe resistance, and transport air to a longer distance or higher position.

Input power: The input power is 1030W. The higher power ensures that the fan can provide strong power and achieve efficient air delivery.

Speed: The speed is 3400rpm. The high-speed rotating impeller can quickly inhale and exhaust air, thereby improving ventilation efficiency.

Noise level: The noise is 61dB. While ensuring efficient operation, the noise is controlled at a low level, reducing interference to the working environment and operators.

1. Features

High efficiency and energy saving: EBM-PAPST adopts advanced aerodynamic design and efficient motor technology, so that the K3G280-AK54-21 fan can effectively reduce energy consumption while providing high pressure and large air volume. By optimizing the shape of the impeller and the angle of the blades, the resistance of air flow is reduced, the energy conversion efficiency is improved, and the operating cost is saved for users.

Low noise operation: A series of noise reduction measures are taken during the design and manufacturing process of the fan. For example, the optimized air duct design reduces the noise generated during air flow, and the use of low-noise motors and shock-absorbing materials makes the noise generated by the fan during operation lower than the industry average, creating a quiet working environment for users.

High reliability: The fan adopts high-quality materials and exquisite manufacturing technology to ensure its stability and reliability during long-term operation. The motor has been strictly tested and screened to adapt to various harsh working environments. At the same time, the fan is also equipped with complete protection devices, such as overload protection, overheating protection, etc., which can effectively avoid equipment damage caused by unexpected situations.

Easy to install and maintain: The fan has a reasonable structural design and standardized installation interface, allowing users to easily install it into the ventilation system. In addition, the fan is also very convenient to maintain. It only needs to be cleaned and inspected regularly and the wearing parts replaced, which greatly reduces the user's maintenance cost and workload.

1. Application Scope

Industrial plant ventilation: In industrial plants, a large amount of heat, dust and harmful gases are generated during the production process, and a good ventilation system is required to ensure the health of workers and the normal operation of equipment. The high pressure and large air volume characteristics of the K3G280-AK54-21 fan can effectively discharge dirty air from the plant, introduce fresh air, and improve indoor air quality.

Commercial building ventilation: In commercial buildings such as shopping malls, hotels, and office buildings, there are densely populated people and poor air circulation, which can easily lead to a decrease in air quality. The fan can be used in the ventilation system of commercial buildings to provide customers and staff with a comfortable indoor environment.

Electronic equipment heat dissipation: Electronic equipment generates a lot of heat during operation. If the heat cannot be dissipated in time, it will affect the performance and life of the equipment. K3G280-AK54-21 fan can be installed in the cooling system of electronic equipment. Through efficient air delivery, the heat can be quickly dissipated to ensure that the equipment operates within the normal temperature range.

Laboratory ventilation: Various chemical experiments and scientific research are usually carried out in the laboratory, which will produce some harmful gases and odors. The high pressure and low noise characteristics of the fan can timely discharge harmful gases from the laboratory to ensure the safety and health of the experimenters.

1. Conclusion

K3G280-AK54-21 centrifugal fan has become a leader in the field of industrial ventilation and air conditioning with its excellent performance, reliable quality and wide range of applications. Its high efficiency and energy saving, low noise operation, high reliability and easy installation and maintenance can meet the ventilation needs of different users in various industrial and commercial scenarios. With the continuous development of industrial technology and the continuous improvement of environmental requirements, K3G280-AK54-21 fan will be widely used in more fields.
