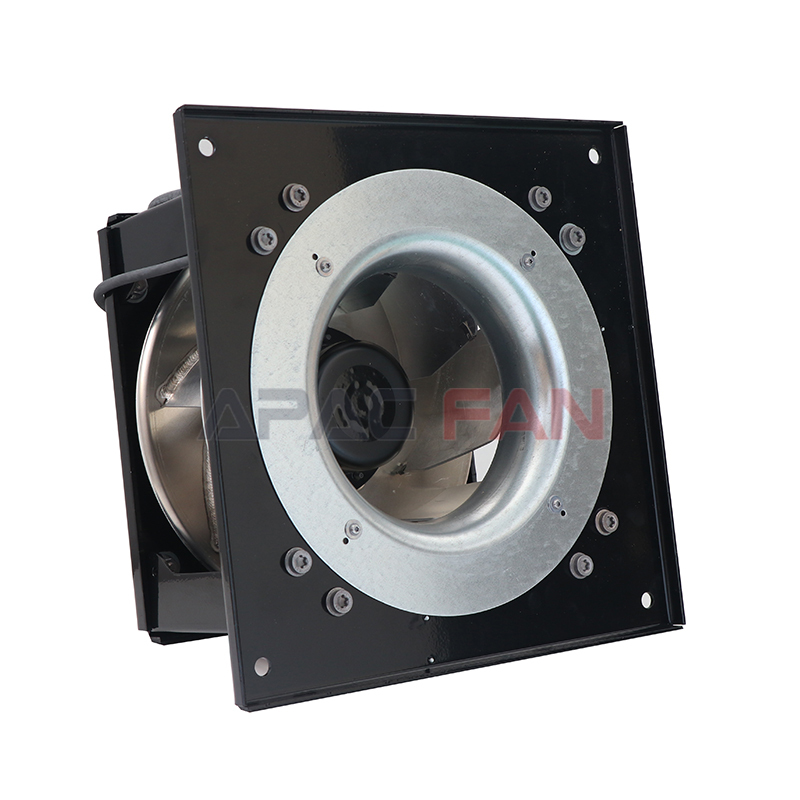

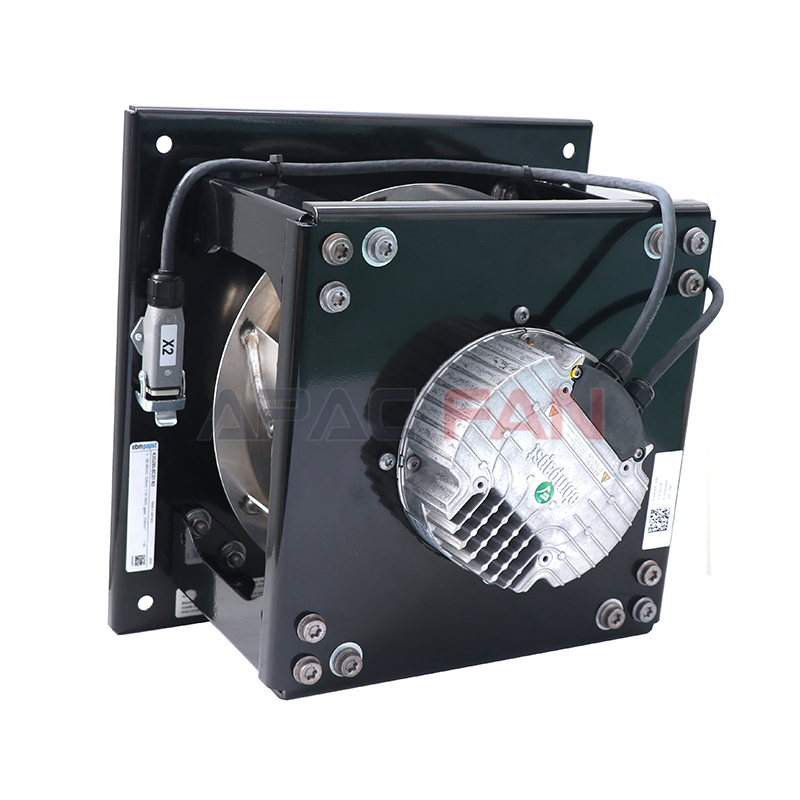

EC centrifugal module, backward-curved, single-intake with cube design, for rail applications

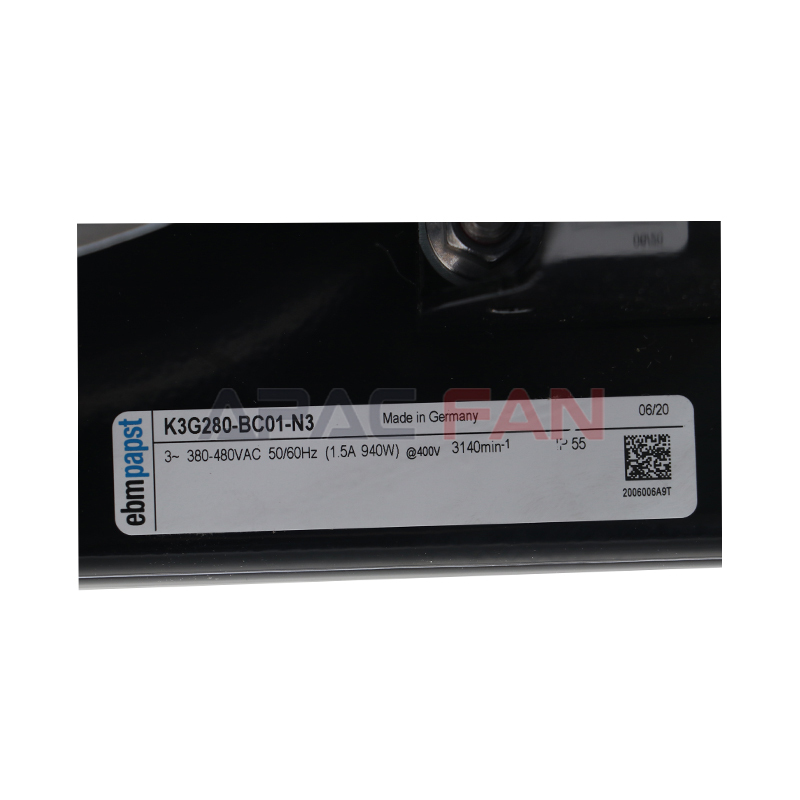

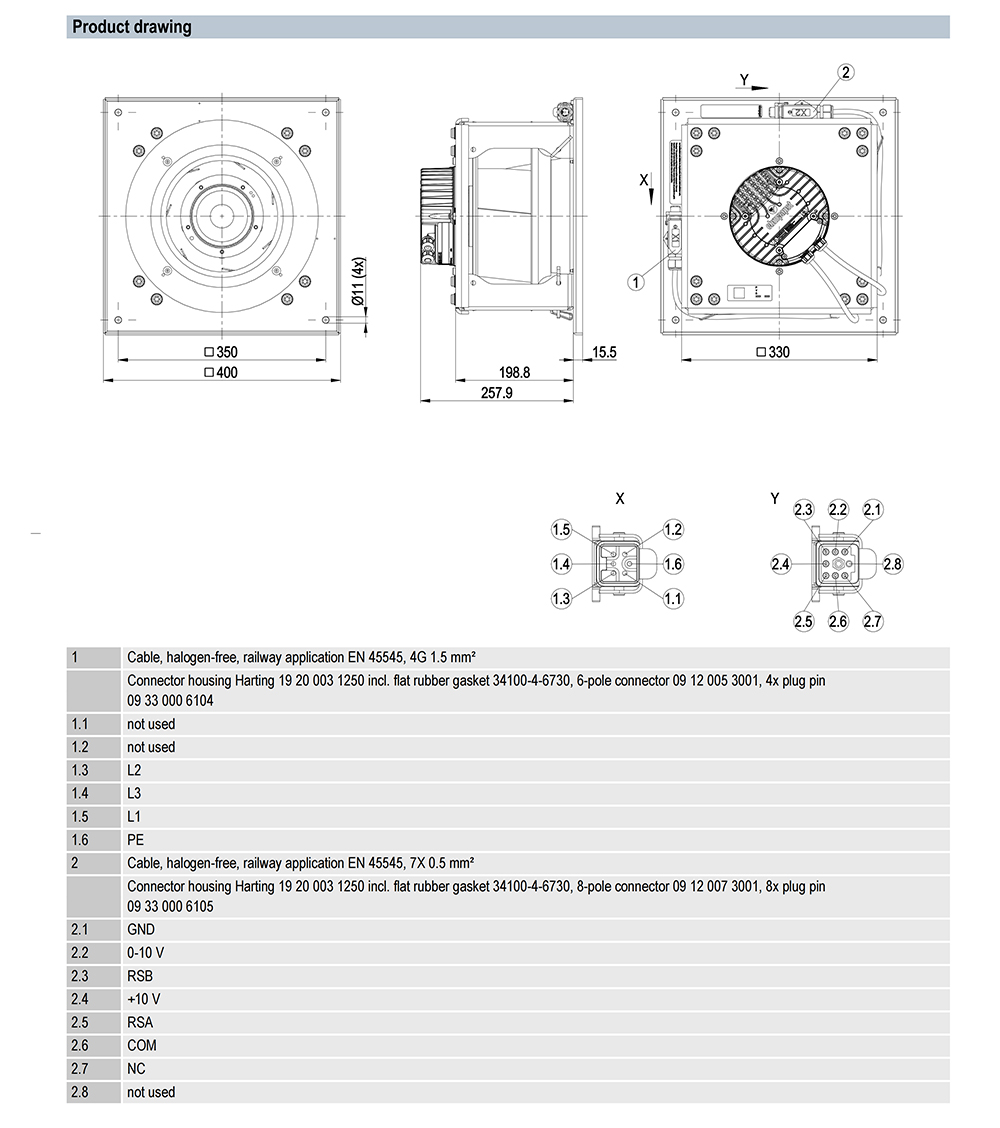

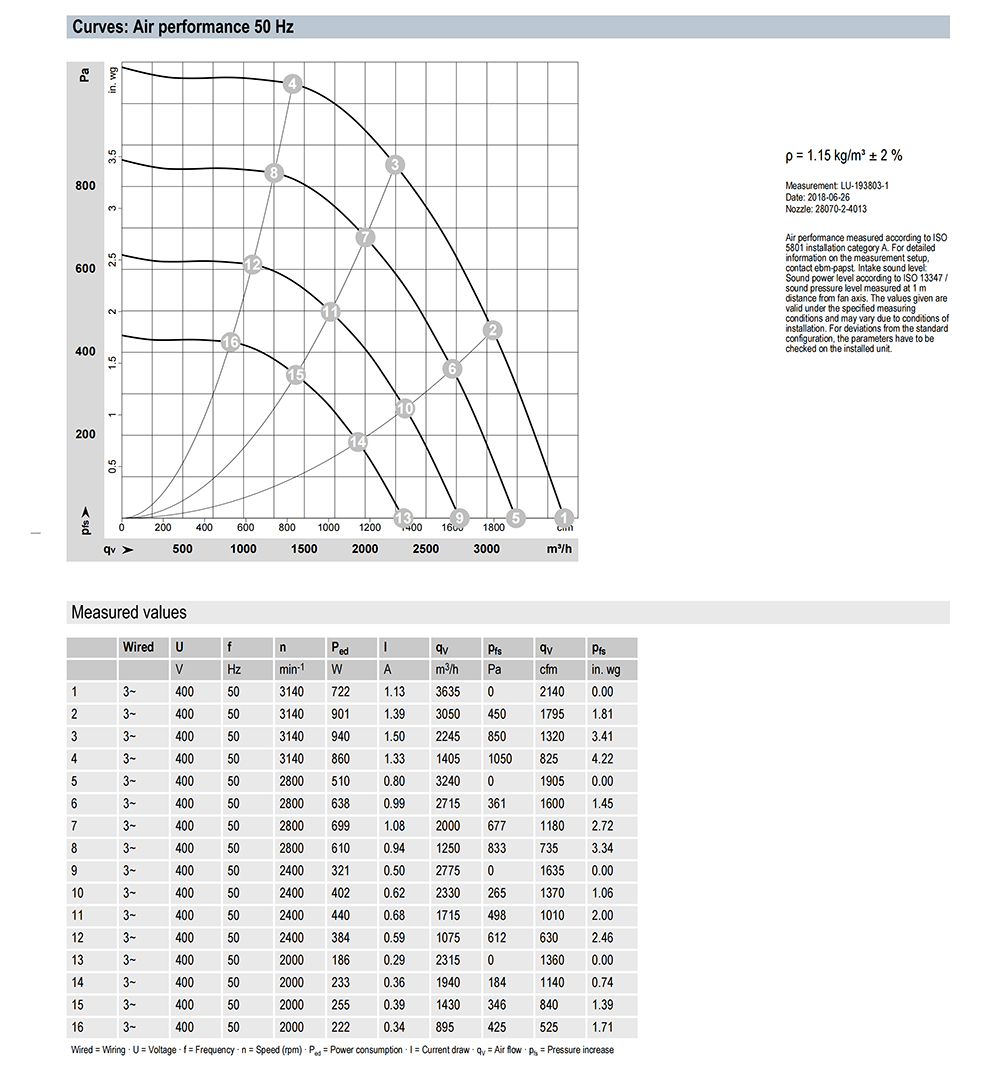

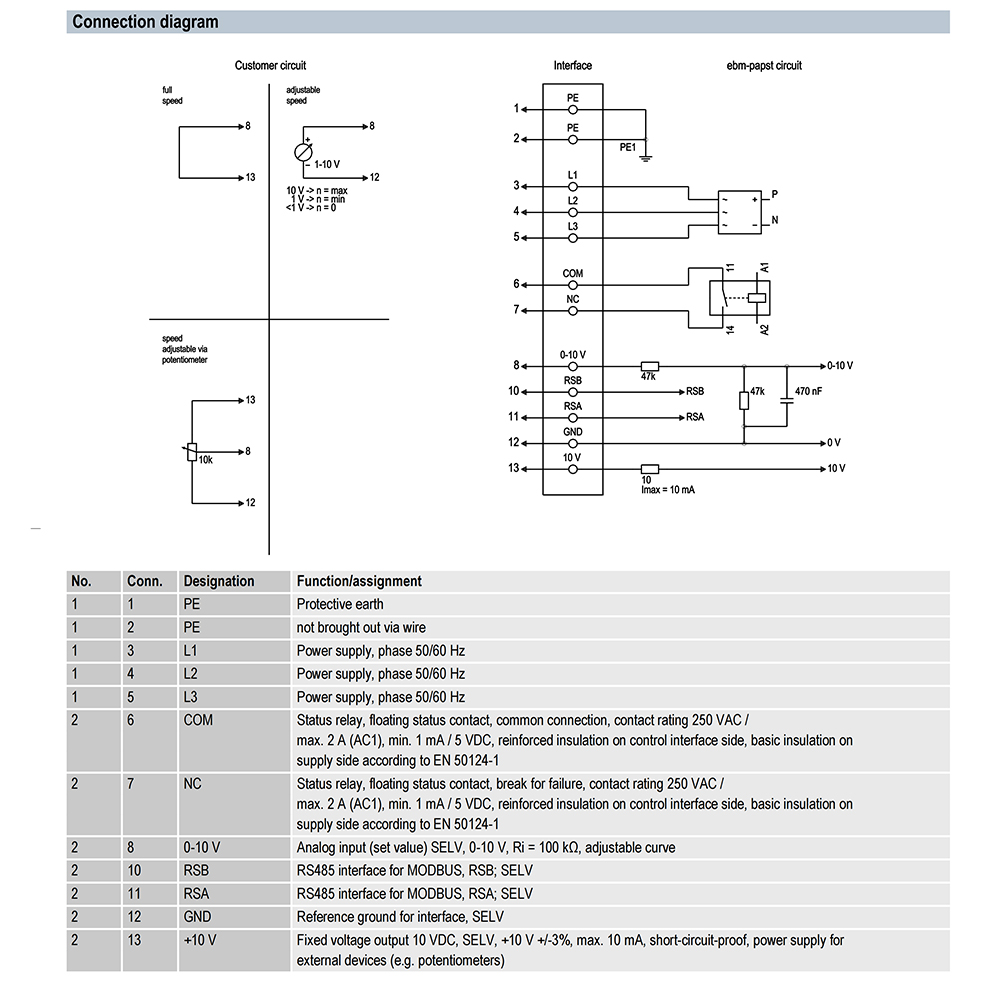

| Brand: | ebm-papst |
| Part No: | K3G280-BC01-N3 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 400 |
| Size(mm): | 280 |
| Max.Air Flow(m³/h): | 3635 |
| Max.Pressure(Pa): | 1050 |
| Input Power(W): | 940 |
| Speed(RPM): | 3140 |
| Weight: | 17.98 kg |
| Motor Size: | 84 |
| Rotor Surface: | Painted black |
| Electronics Housing Material: | Die-cast aluminum |
| Impeller Material: | Sheet aluminum |
| Support Plate Material: | Sheet steel, galvanized and painted black |
| Spacer Material: | Sheet steel, galvanized and coated with black plastic (RAL 9005) |
| Inlet Nozzle Material: | Sheet steel, galvanized |
| Number of Blades: | 7 |
| Direction of Rotation: | Clockwise, viewed toward rotor |
| Degree of Protection: | IP55 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | H3 |
| Max. Permitted Ambient Temp. for Motor (transport/storage): | +80 °C |
| Min. Permitted Ambient Temp. for Motor (transport/storage): | -40 °C |
| Installation Position: | Any |
| Condensation Drainage Holes: | None |
| Mode: | S1 |
| Motor Bearing: | Ball bearing; (sealed) |
| Technical Features: | - Output 10 VDC, max. 10 mA - Alarm relay - Integrated PID controller - Power limiter - Motor current limitation - Emergency operation - PFC, passive - RS-485 MODBUS-RTU - Soft start - EEPROM write cycles: 100,000 maximum - Control input 0-10 VDC / PWM - Control interface with SELV potential safely disconnected from the mains - Overvoltage detection - Thermal overload protection for electronics/motor - Line undervoltage / phase failure detection |
| EMC Regulations: | According to EN 50121-3-2 |
| Touch Current According to IEC 60990 (measuring circuit Fig. 4, TN system): | <= 3.5 mA |
| Electrical Hookup: | Plug |
| Motor Protection: | Thermal switch auto reset, internally connected |
| With Cable: | Lateral |
| Protection Class Assignment: | I; If a protective earth is connected by the customer. This component for installation may have several local protection classes. This information relates to this component’s basic design. The final protection class is based on the component’s intended installation and connection. |
| Conformity with Standards: | EN 15085-1, CPC3: 2013; EN 45545-2, HL3: 2013 + A1:2015; EN 50155: 2008; EN 61373, Cat. 1B: 2010 |
| Comment on CE: | Ecodesign Directive 2009/125/EC + Fan Regulation (EC) No. 327/2011 does not apply, as use only in means of transport for transporting persons or goods. |
| Approval: | EAC; CCC |
| Comment: | A prerequisite for operation is a Class 1 vehicle electrical system architecture according to EN 50533; if supply potential (e.g. 230 VAC) is passed through the alarm relay, the SELV signal wires lose their property of reinforced insulation and they then have only basic insulation. The SELV property (reinforced insulation) is not lost when voltages of up to 110 VDC are passed through the alarm relay. |
