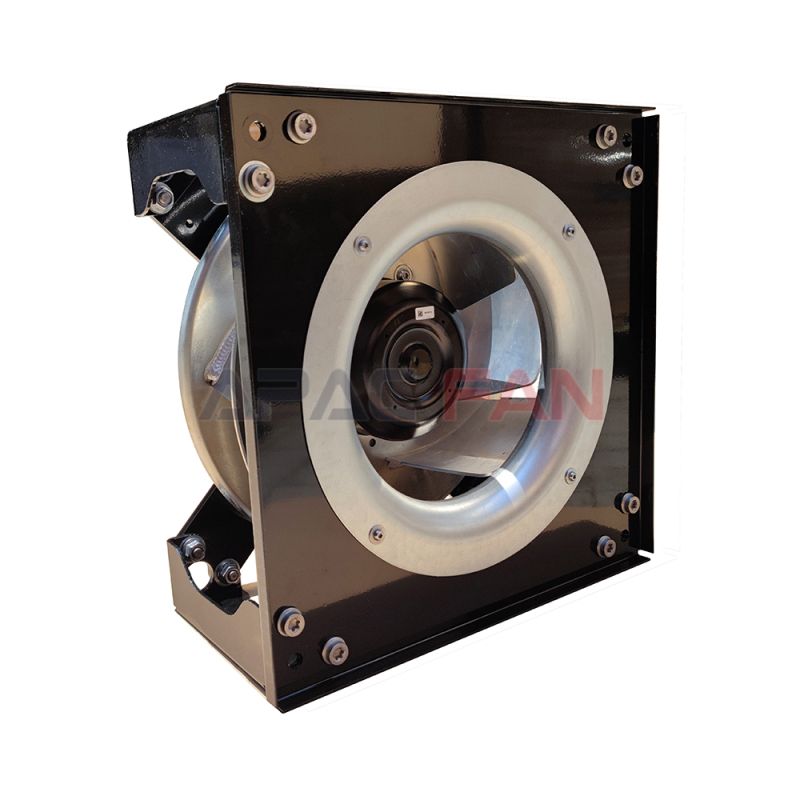

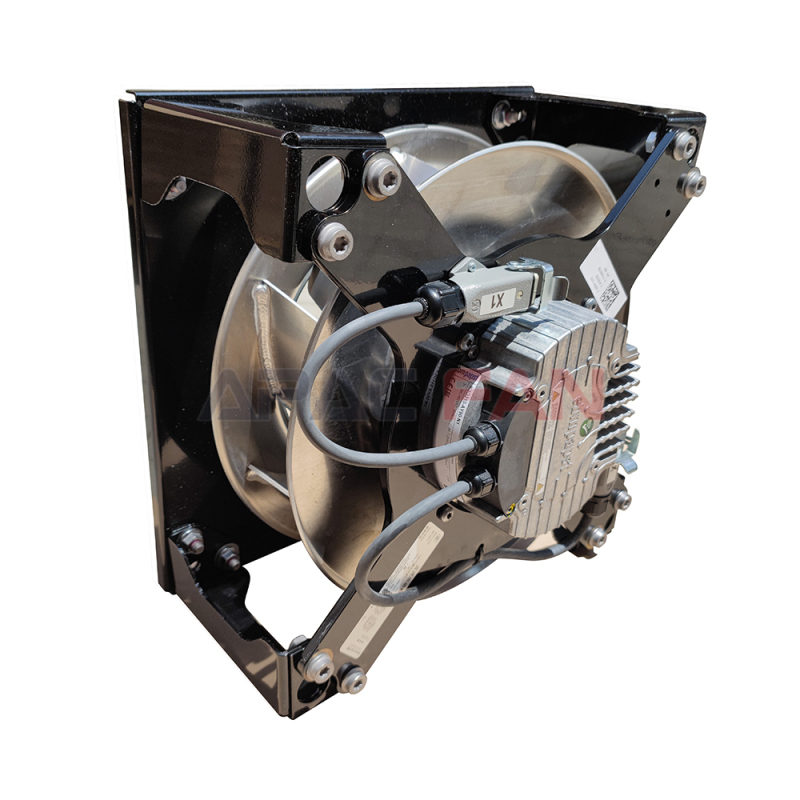

K3G310-AY90-N1 ebm-papst

• Interpretation of key parameters

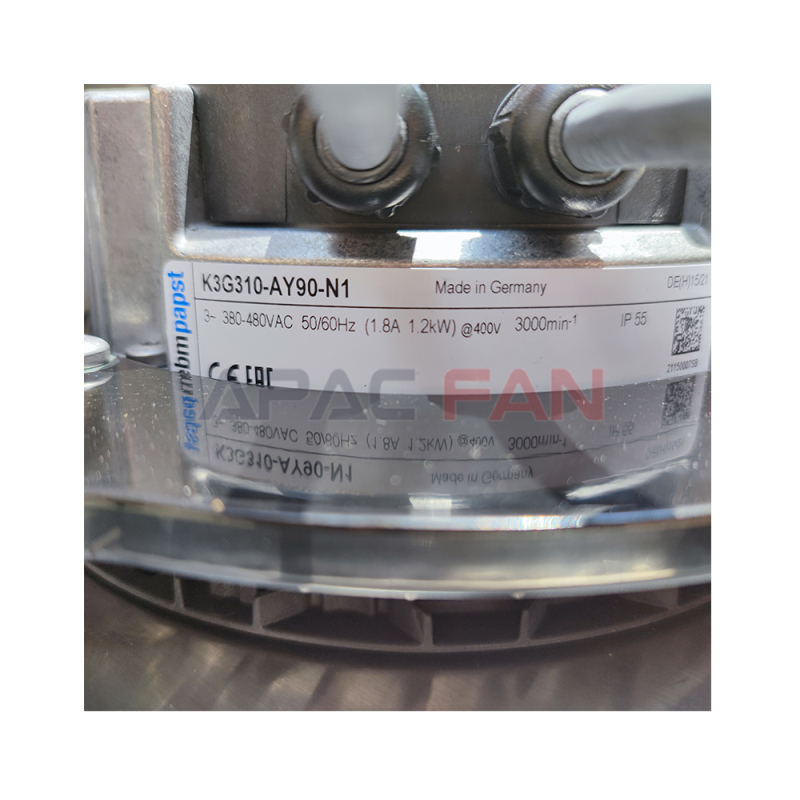

Rated voltage: The rated voltage of K3G310-AY90-N1 fan is 400V, which makes it more suitable for industrial fields or places with high power demand. In industrial production, many equipment and systems require high voltage to provide sufficient power. A rated voltage of 400V can ensure stable operation of fans and provide reliable power support for industrial ventilation systems. For example, in the ventilation system of a large factory, the fan can be directly connected to the factory's 400V power network, providing stable energy supply for equipment cooling and air circulation in the workshop.

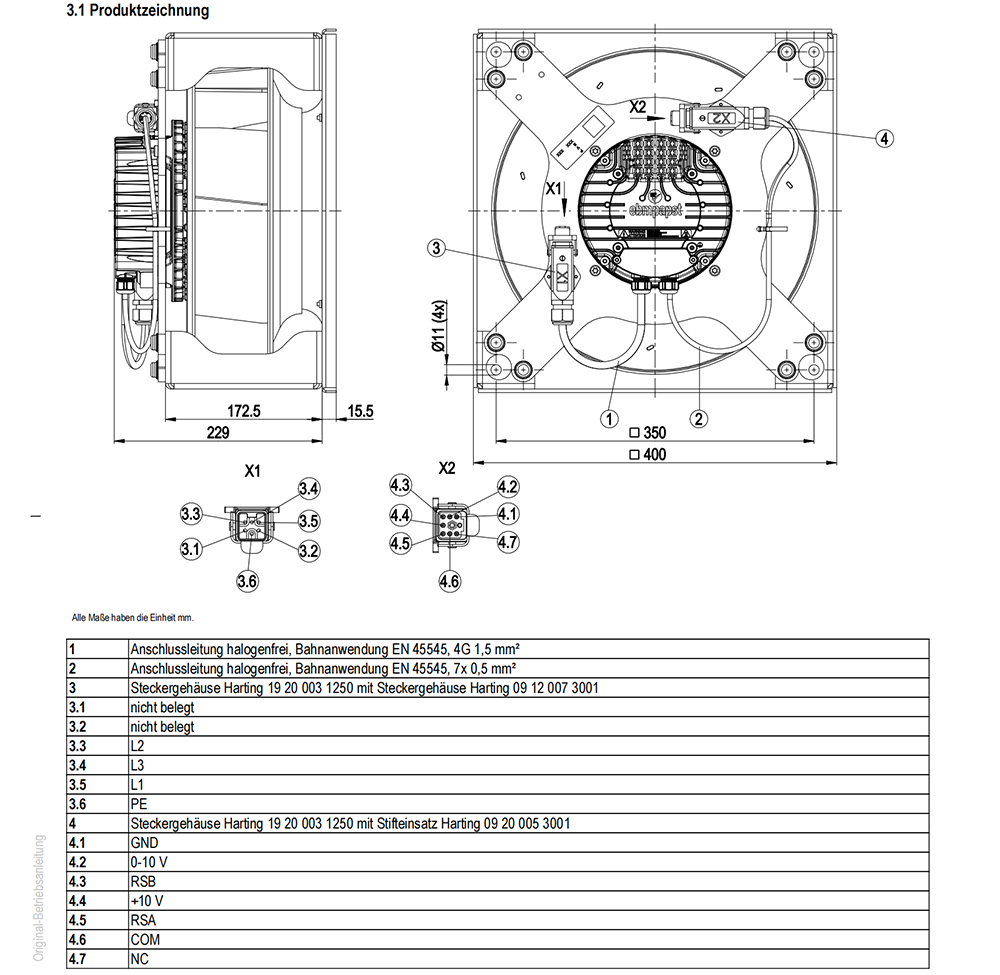

Size specifications: The size of the fan is 310 millimeters, which is a medium to large size. This size has certain advantages in some places where space is required. On the one hand, larger sizes can accommodate larger impellers, which may generate greater air volume and pressure to meet the needs of some large ventilation systems; On the other hand, in some large equipment or ventilation ducts, a size of 310mm can better adapt and ensure the overall coordination of the ventilation system. For example, in large air conditioning units or industrial exhaust systems, the size of K3G310-AY90-N1 fan can be well matched with other components to achieve efficient air delivery.

Airflow and pressure: Centrifugal fans use the high-speed rotation of the impeller to obtain kinetic energy from the gas under the action of centrifugal force, and then convert the kinetic energy into pressure energy through the volute shell, thereby achieving the transportation of air. The high speed of 3000rpm and large size of K3G310-AY90-N1 fan imply that it can generate high pressure and a certain amount of air volume in a suitable system, suitable for scenarios that require overcoming large resistance or long-distance air transportation, such as ventilation systems in industrial plants or high-rise buildings with long ventilation ducts.

Speed and power: The speed is 3000rpm and the input power is 1200W. The high speed of 3000rpm enables the impeller to rotate rapidly, generating strong wind power and providing sufficient power for the transportation of air. The combination of high-speed and fan structural design can achieve a large amount of air flow in a short period of time, improving ventilation efficiency. The input power of 1200W is relatively high, which matches the high speed and large size of the fan, indicating its strong power output capability. Although the power is high, in some places with high ventilation requirements, such as ventilation systems in large industrial production workshops or commercial complexes, this high-power fan can better meet the ventilation needs, ensuring effective air circulation and environmental comfort.

Noise level: The noise label is not applicable, but as a well-known brand like ebm-papst, a series of noise reduction measures will inevitably be taken in the design and manufacturing process of fans, such as optimizing the impeller shape, using sound-absorbing materials, improving motor design, etc., to minimize the impact of fan operation on the surrounding environment. In practical applications, through reasonable installation and sound insulation treatment, it is believed that the fan can operate within an acceptable noise range without causing significant interference to the surrounding environment.

• Analysis of unique characteristics

Efficient centrifugal gas transportation method: As a centrifugal fan, the working principle of K3G310-AY90-N1 is based on centrifugal force. When the motor drives the impeller to rotate at high speed, gas is sucked into the center of the impeller. Under the action of centrifugal force, the gas moves outward along the blades of the impeller, with increasing speed and kinetic energy. After leaving the impeller, the gas enters the volute. As the cross-sectional area of the volute gradually increases, the flow velocity of the gas gradually decreases, and kinetic energy is converted into pressure energy, thereby allowing the gas to obtain higher pressure and ultimately be discharged through the air outlet. This working method gives the fan a unique advantage in conveying high pressure, medium low air volume, and can meet the needs of various complex ventilation scenarios. For example, in some ventilation systems that require air to be transported to higher positions or overcome greater resistance, the K3G310-AY90-N1 fan can leverage its centrifugal characteristics to effectively complete the ventilation task.

Stable and reliable operating performance: ebm-papst's exquisite manufacturing process ensures the stability and reliability of K3G310-AY90-N1 fan. The structural design of the fan has been optimized, using high-strength materials and precise manufacturing processes, which can withstand the enormous stress and vibration generated during high-speed operation. The impeller has undergone strict dynamic balance testing and can maintain stable operation at a speed of 3000rpm, reducing noise and equipment wear caused by vibration, greatly extending the service life of the equipment. The motor adopts high-quality materials and advanced design, with high efficiency and stability, and can maintain good performance during long-term operation. In some industries that require extremely high stability of equipment operation, such as electronic manufacturing, pharmaceuticals, etc., K3G310-AY90-N1 fan can operate stably for a long time, providing reliable ventilation guarantee for the production process.

Good environmental adaptability: This fan has certain adaptability to different working environments and conditions. Although the rated voltage of 400V is relatively high, it is more common in the industrial field and can adapt to most industrial power systems. The 310mm size can be reasonably arranged in various ventilation scenarios. In some special working environments, such as high temperature, high humidity, and high dust, K3G310-AY90-N1 fan can still operate stably and meet ventilation needs by using special protective measures and materials, such as high-temperature resistant materials, dust-proof nets, moisture-proof coatings, etc. For example, in some metallurgical factories or chemical workshops, there may be environments with high temperatures, high dust, and corrosive gases. By adopting corresponding protective measures, fans can effectively resist the impact of harsh environments and ensure the normal operation of ventilation systems.

• Exploration of Technological Advantages

Optimization of the working principle of centrifugal fan: K3G310-AY90-N1 fan has been optimized based on the working principle of centrifugal fan. The blade shape and angle of the impeller are carefully designed, using advanced aerodynamic principles to enable gas to obtain greater kinetic and pressure energy when passing through the impeller. By special twisting design and precise angle adjustment of the blades, the friction and energy loss of gas on the blade surface are reduced, enabling the fan to achieve higher pressure output at the same power. At the same time, the design of the snail shell has also been optimized to better guide the flow of gas, improve the pressure conversion efficiency of gas, and further enhance the overall performance of the fan.

Innovation in motor and transmission technology: The fan adopts an efficient motor that can efficiently convert electrical energy into mechanical energy, driving the impeller to rotate at high speed. The design of the motor has been optimized to have high efficiency and stability, and can maintain good performance during long-term operation. The transmission system adopts precision bearings and reliable couplings to ensure that the power of the motor can be stably transmitted to the impeller, reducing energy loss and mechanical failures. In terms of motor control, advanced speed regulation technology may be used to accurately adjust the fan speed according to actual needs, achieving energy conservation, consumption reduction, and precise control. For example, by using frequency conversion speed regulation technology, the speed of the fan can be automatically adjusted according to the temperature, humidity and other parameters of the ventilation environment, so that the fan can maintain the best operating state under different working conditions.

The K3G310-AY90-N1 centrifugal fan occupies an important position in the fan market due to its unique parameter advantages, excellent characteristics, and advanced technological advantages. Whether it is ventilation in the industrial field or in some commercial places with high ventilation requirements, it can exert its powerful performance and provide users with efficient and reliable ventilation solutions.
