K3G450-AZ30-01 ebm-papst

Structural Design and Material Innovation in the ebm-papst K3G450-AZ30-01 Centrifugal Fan​​

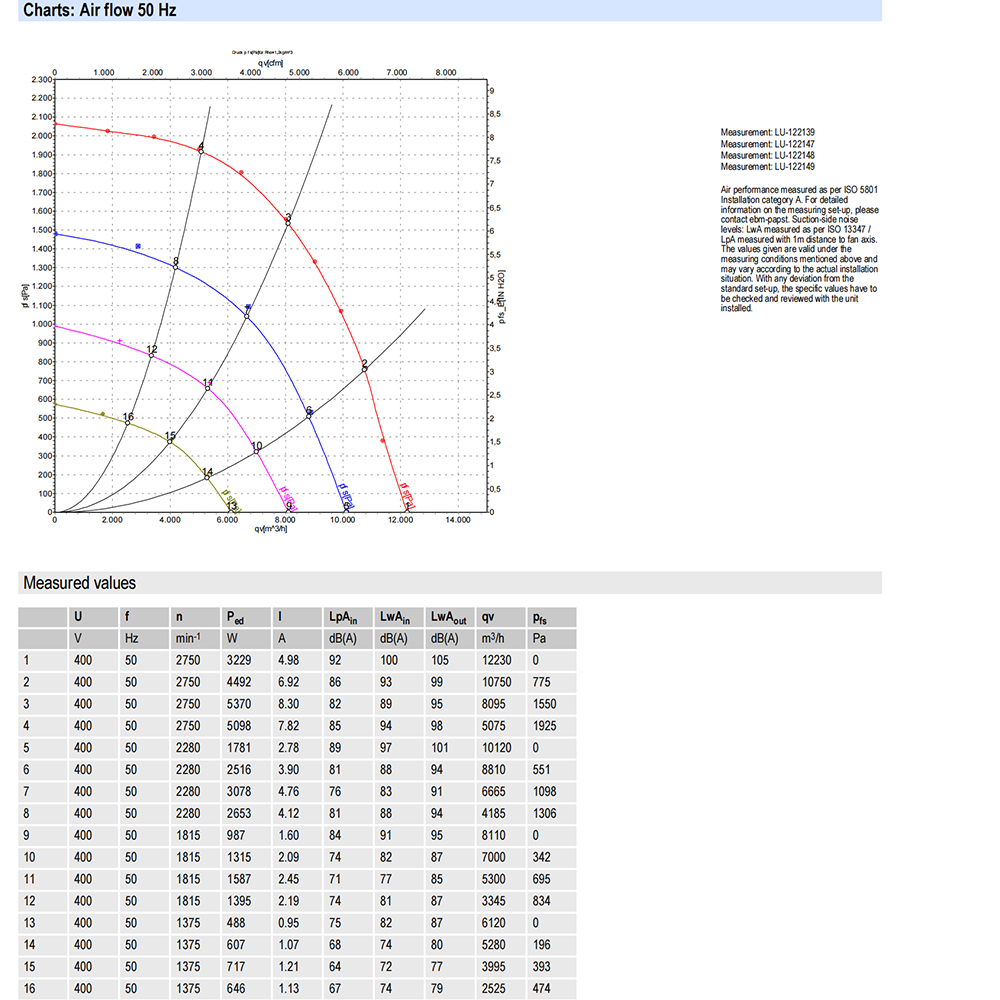

The ebm-papst K3G450-AZ30-01 centrifugal fan is a testament to precision engineering, designed to meet the rigorous demands of industrial and commercial airflow management. With its 450 mm frame size and 400 V operational voltage, this fan is engineered to deliver high airflow (up to 12,230 m³/h) and static pressure (1,925 Pa) while maintaining durability in extreme environments. This article delves into the thoughtfully engineered structure and material choices that define its performance and reliability.

​​Aerodynamic Design and Blade Engineering​​

At the heart of the fan’s functionality lies its seven-blade aluminum sheet impeller. The blade count and swept geometry are optimized to balance airflow efficiency with noise suppression, a critical consideration in applications ranging from manufacturing floors to HVAC systems. The blades are designed with a backward-curved profile, which enhances stability at high rotational speeds (2,750 rpm) while reducing turbulence. This aerodynamic precision ensures consistent airflow even under varying system pressures, making the fan suitable for applications requiring steady performance, such as cooling towers or process ventilation.

The impeller’s surface is coated in black, a finishing treatment that not only improves aesthetic appeal but also provides oxidation resistance. This coating is particularly vital in environments with high humidity or chemical exposure, where untreated aluminum might degrade over time. Additionally, the rotor assembly—including the shaft and bearings—is engineered for minimal vibration, ensuring smooth operation that minimizes mechanical wear and acoustic disturbances.

​​Structural Integrity Through Advanced Materials​​

The fan’s housing and electronics enclosure are constructed from die-cast aluminum, a material chosen for its exceptional strength-to-weight ratio and resistance to corrosion. Die-casting allows for complex geometries that enhance structural rigidity, ensuring the housing can withstand mechanical stress and environmental factors such as impacts or thermal cycling. The galvanized steel mounting plate further reinforces the fan’s base, providing a stable platform for installation in high-vibration settings.

The support bracket, also made of galvanized steel, is coated in black to match the rotor’s protective finish. This dual-layer protection guards against rust and abrasion, extending the fan’s lifespan in corrosive environments like marine facilities or chemical processing plants. Notably, the rotor-side condensate discharge holes are strategically positioned to prevent water accumulation, a feature that enhances reliability in humid or outdoor installations.

​​Thermal Management and Environmental Resilience​​

Operating across a temperature range from -40°C to +80°C, the K3G450-AZ30-01 is built to endure extreme thermal conditions. The motor’s insulation class F ensures safe operation under high heat, while the humidity class F4-1 guarantees resilience against moisture ingress. This thermal adaptability makes the fan viable for applications such as refrigeration systems in frozen food storage or exhaust ventilation in arctic research stations.

The fan’s IP54 protection rating further underscores its environmental durability. While not fully waterproof, this rating safeguards against dust ingress and water jets, making it suitable for outdoor installations or areas with moderate splashing, such as agricultural silos or wastewater treatment plants. For added versatility, the mounting position can be configured as shaft horizontal, rotor-on-bottom, or rotor-on-top (upon request), allowing adaptation to spatial constraints or directional airflow requirements.

​​Modular Design for Versatile Applications​​

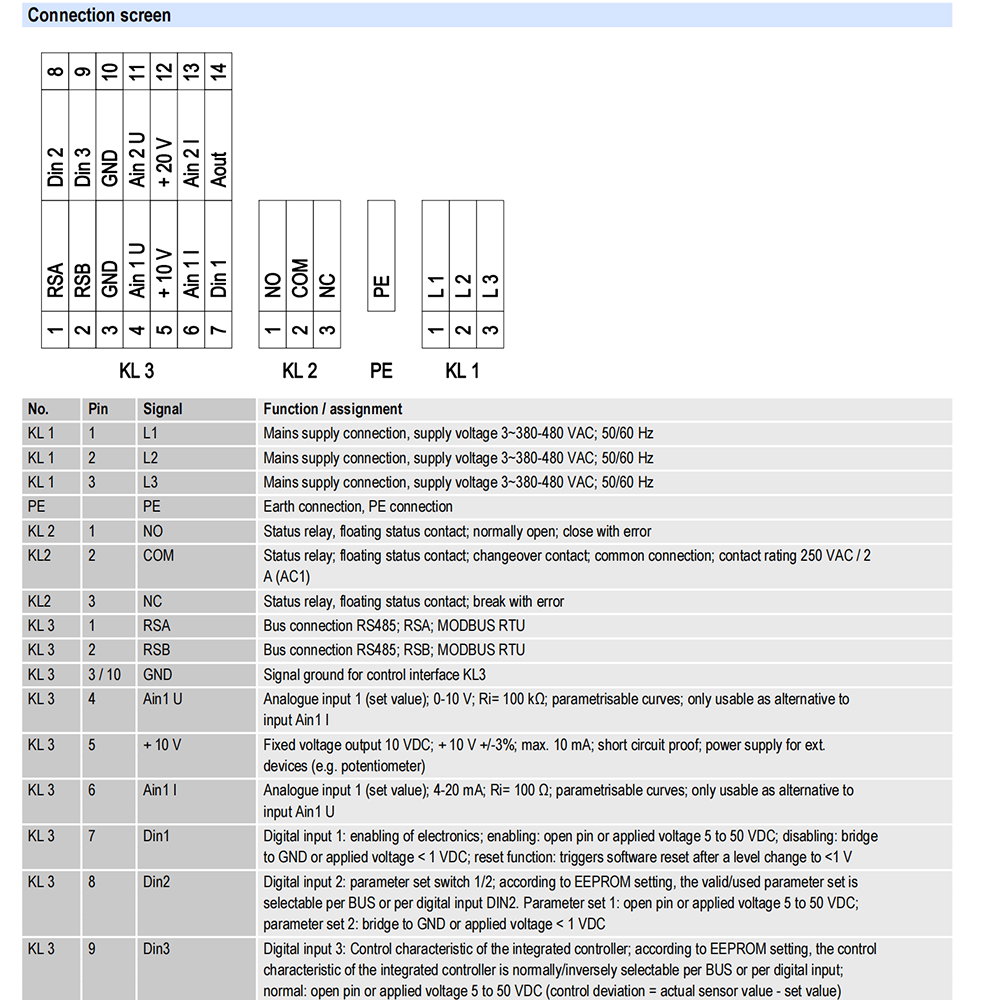

The K3G450-AZ30-01’s modular architecture simplifies integration into diverse systems. The zinc-coated support bracket and stainless steel inlet nozzle provide corrosion resistance, while the galvanized sheet steel components ensure longevity in industrial settings. Electrical connections are routed through a terminal box, streamlining installation and reducing the risk of exposure to contaminants.

One standout feature is the fan’s compatibility with multiple mounting orientations. For instance, rotor-on-bottom configurations are ideal for vertical ductwork, whereas horizontal setups suit compact machinery enclosures. This flexibility enables the fan to serve roles in HVAC systems, exhaust ducts, or process cooling towers without requiring custom engineering.

​​Compliance and Safety in Design​​

Safety is embedded in every layer of the fan’s construction. The motor is equipped with ball bearings that require minimal maintenance, while the passive PFC (Power Factor Correction) minimizes electrical waste, aligning with global energy efficiency standards. The integrated alarm relay and over-temperature sensors provide real-time diagnostics, alerting operators to potential issues such as motor overheating or power fluctuations.

Compliance with international certifications—such as CE, UL, and CSA—guarantees the fan’s adherence to electromagnetic compatibility (EMC) and electrical safety regulations. Its immunity to industrial interference (EN 61000-6-2) ensures reliable performance in electrically noisy environments, while leakage currents below 3.5 mA enhance operator safety.

​​Sustainability and Long-Term Performance​​

The K3G450-AZ30-01 is designed with sustainability in mind. Its passive PFC reduces harmonic distortion in power grids, contributing to energy efficiency goals. The use of recyclable materials like die-cast aluminum and galvanized steel further lowers its environmental footprint. With a robust build quality and low maintenance requirements, the fan minimizes resource consumption over its lifecycle.

In industrial applications, such as metal fabrication shops or automotive assembly lines, the fan’s durability reduces downtime and replacement costs. For example, in a paint booth exhaust system, the corrosion-resistant materials and high static pressure capability ensure consistent airflow despite particulate-laden air, maintaining air quality and worker safety.

​​Conclusion: A Foundation of Engineering Excellence​​

The ebm-papst K3G450-AZ30-01 centrifugal fan exemplifies how material science and structural innovation converge to solve real-world challenges. From its aerodynamic impeller to its corrosion-resistant coatings, every component is engineered to deliver reliability under pressure. Whether deployed in harsh industrial settings or climate-critical HVAC systems, this fan’s design philosophy prioritizes longevity, adaptability, and compliance—qualities that make it a cornerstone of modern airflow management. By blending technical precision with practical versatility, the K3G450-AZ30-01 sets a benchmark for performance in demanding environments.
