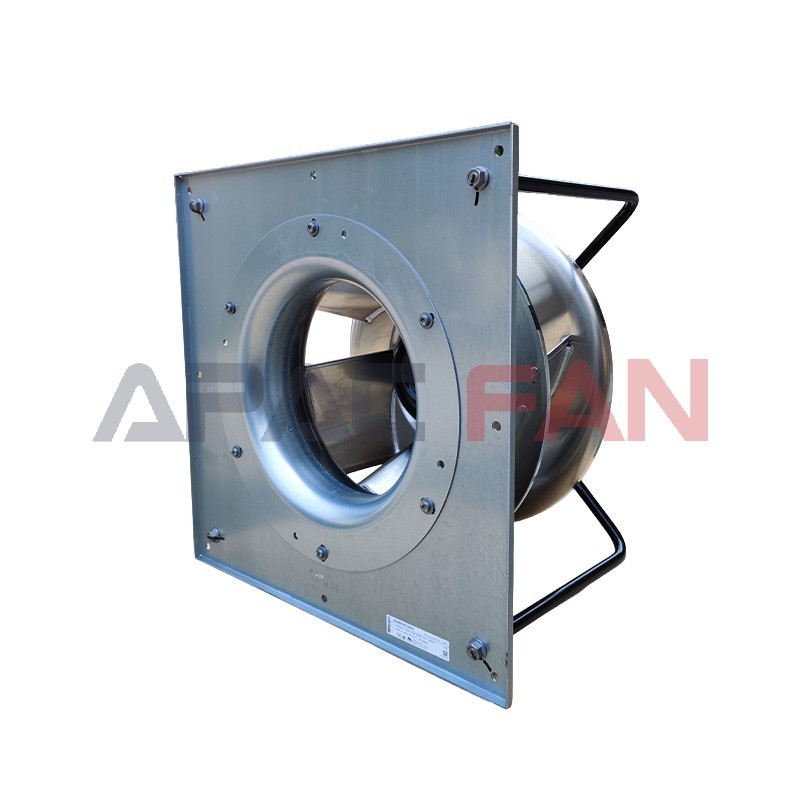

K3G450-PA31-61 is a EC centrifugal fan intended for air-handling units and related air-moving or cooling equipment. The listed product information is: Technical values should be confirmed against the current specification table and datasheet..
| Brand: | ebm-papst |
| Part No.: | K3G450-PA31-61 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage (V): | 400 |
| Size (mm): | 450 |
| Max. Air Flow (m³/h): | 14000 |
| Max. Pressure (Pa): | 1600 |
| Input Power (W): | 4500 |
| Speed (RPM): | 2480 |
| Noise (dB): | 92 |

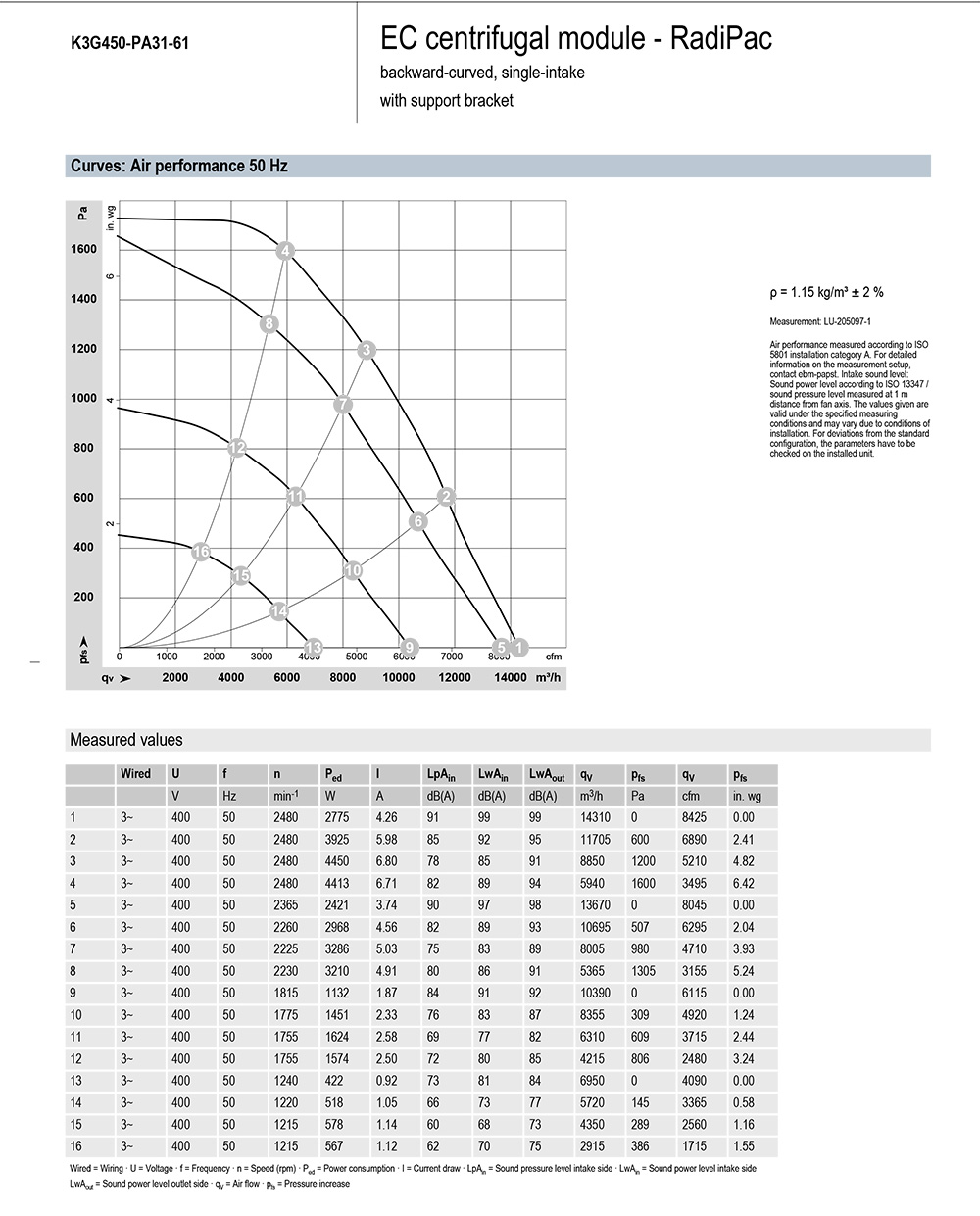

K3G450-PA31-61 should be selected from its fan curve and installation data rather than by frame size alone. Confirm electrical supply, airflow, pressure, control requirements and mounting before placing an order.

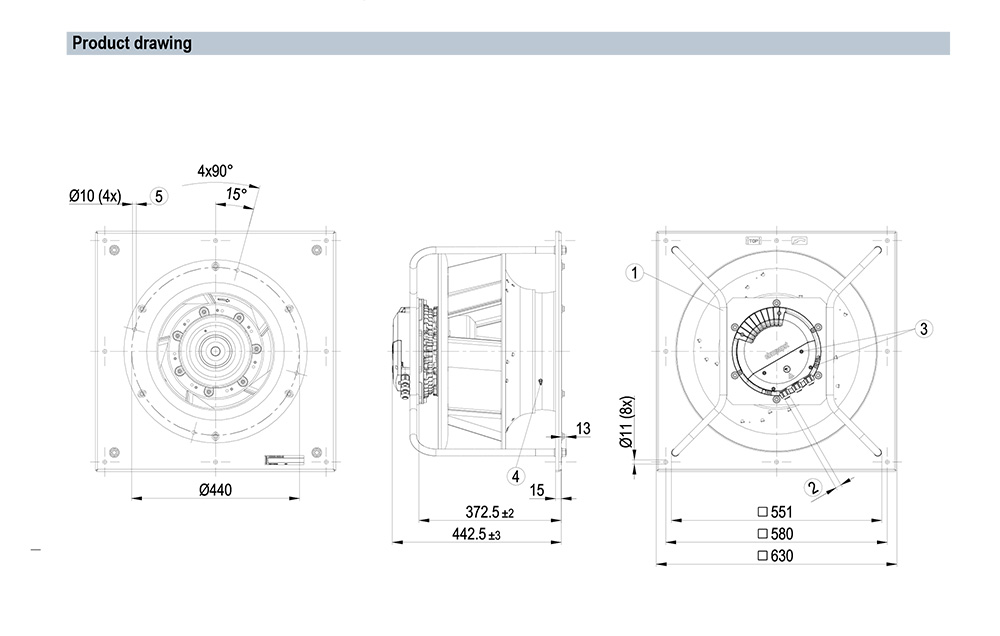

For a K3G450-PA31-61 replacement, compare the complete part number, impeller diameter, housing dimensions, mounting points, wiring and control interface. Related K3G variants are not automatically interchangeable.
Q: What type of fan is K3G450-PA31-61?
A: It is an ebm-papst centrifugal fan.
Q: What should determine the replacement choice?
A: The required operating point, mechanical envelope, electrical supply and control interface should all match.
Q: Are K3G450 variants interchangeable?
A: No. Variant suffixes can represent different motor, control or performance configurations.
