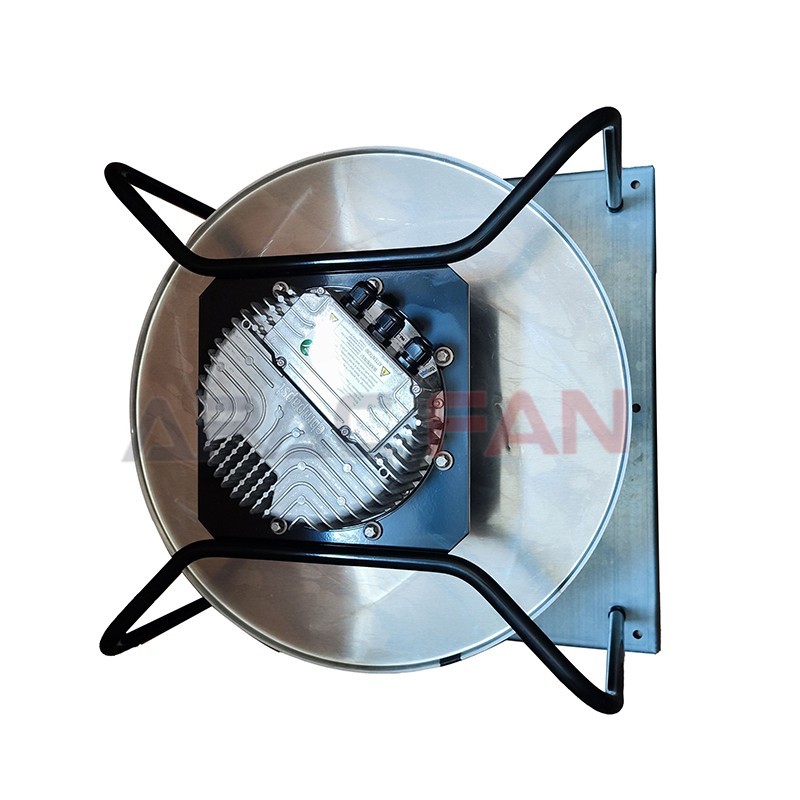

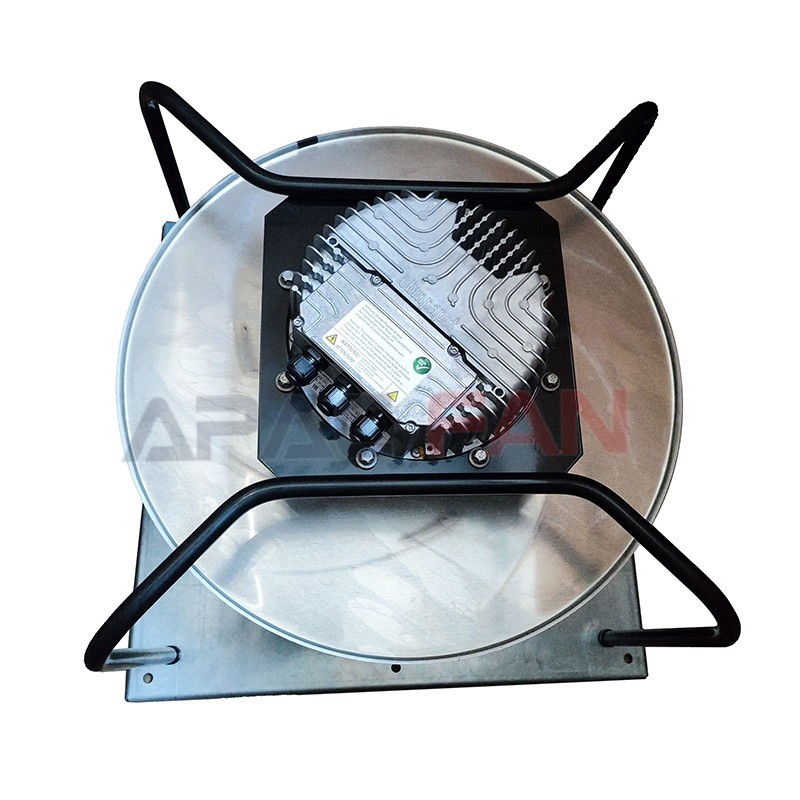

EC centrifugal module - RadiPac, backward curved, single inlet with support bracket
| Brand： | ebm-papst |
| Part No： | K3G500-AP25-01 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 400 |
| Size(mm)： | 500 |

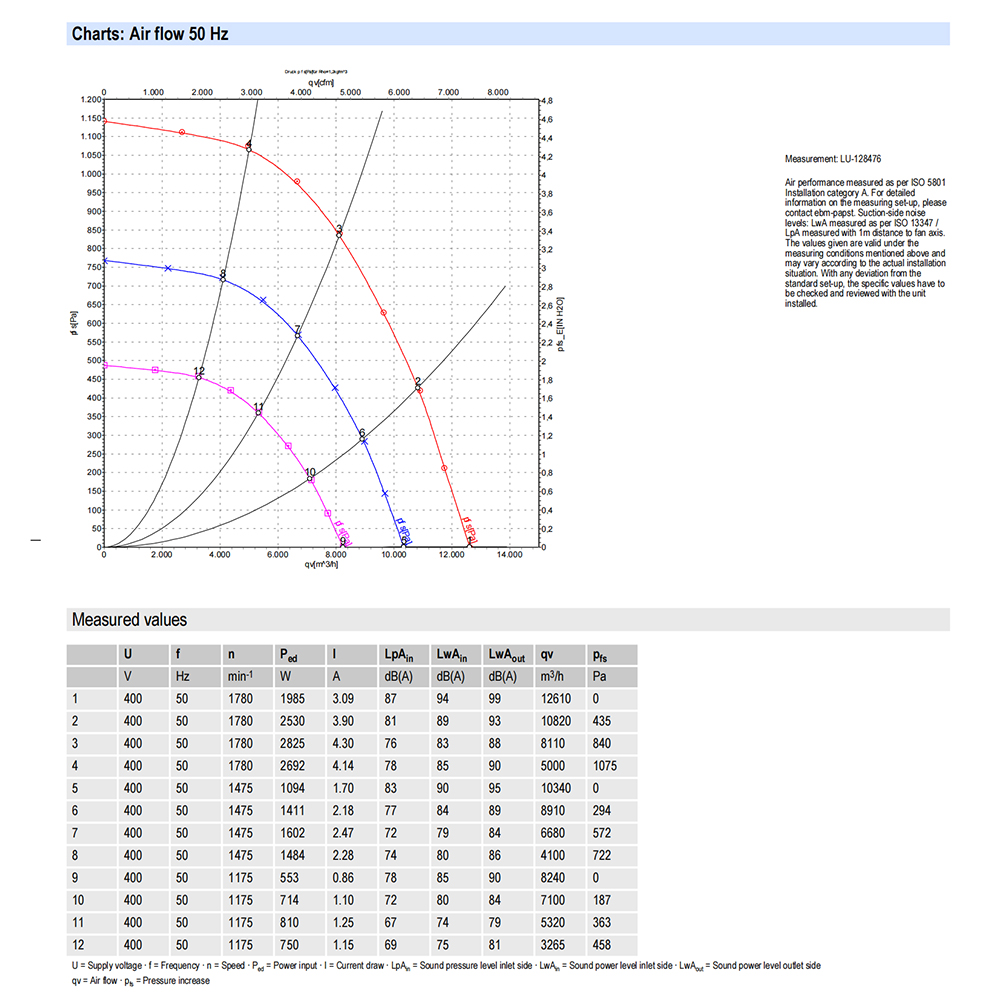

| Max.Air Flow(m³/h)： | 8110 |
| Max.Pressure(Pa)： | 840 |
| Input Power(W)： | 2825 |
| Speed(RPM)： | 1780 |
| Noise(dB)： | 76 |
| Mass: | 40 kg |
| Surface of Rotor: | Coated in black |
| Material of Electronics Housing: | Die-cast aluminium |
| Material of Impeller: | Aluminium sheet |
| Material of Mounting Plate: | Sheet steel, hot-dip galvanised |
| Material of Support Bracket: | Steel, coated in black plastic (RAL 9005) |
| Material of Inlet Nozzle: | Sheet steel, hot-dip galvanised |
| Number of Blades: | 7 |
| Direction of Rotation: | Clockwise, seen on rotor |
| Type of Protection: | IP 54 |
| Insulation Class: | "F" |
| Humidity Class: | F4-1 |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | +80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | -40 °C |

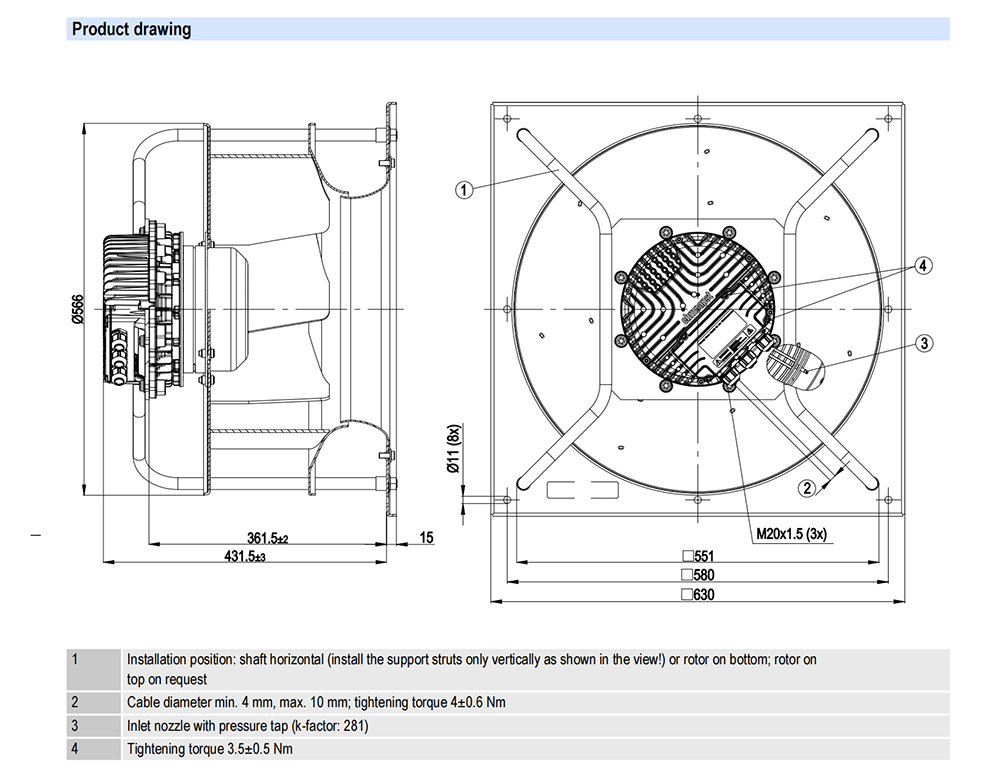

| Mounting Position: | Refer to product drawing |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | - External 24 V input (programming) - RS485 MODBUS-RTU - PFC, passive - Control input 0-10 VDC / PWM - Over-temperature protected electronics / motor - Alarm relay - Integrated PID controller - Input for sensor 0-10 V and 4-20 mA - Output for slave 0-10 V - Motor current limit - Soft start - Line undervoltage / phase failure detection - Output 10 VDC, max. 10 mA - Output 20 VDC, max. 50 mA |
| EMC Interference Immunity: | Acc. to EN 61000-6-2 (industrial environment) |
| EMC Interference Emission: | Acc. to EN 61000-6-3 (household environment) |
| Touch Current acc. IEC 60990 (Measuring Network Fig. 4, TN System): | <= 3.5 mA |

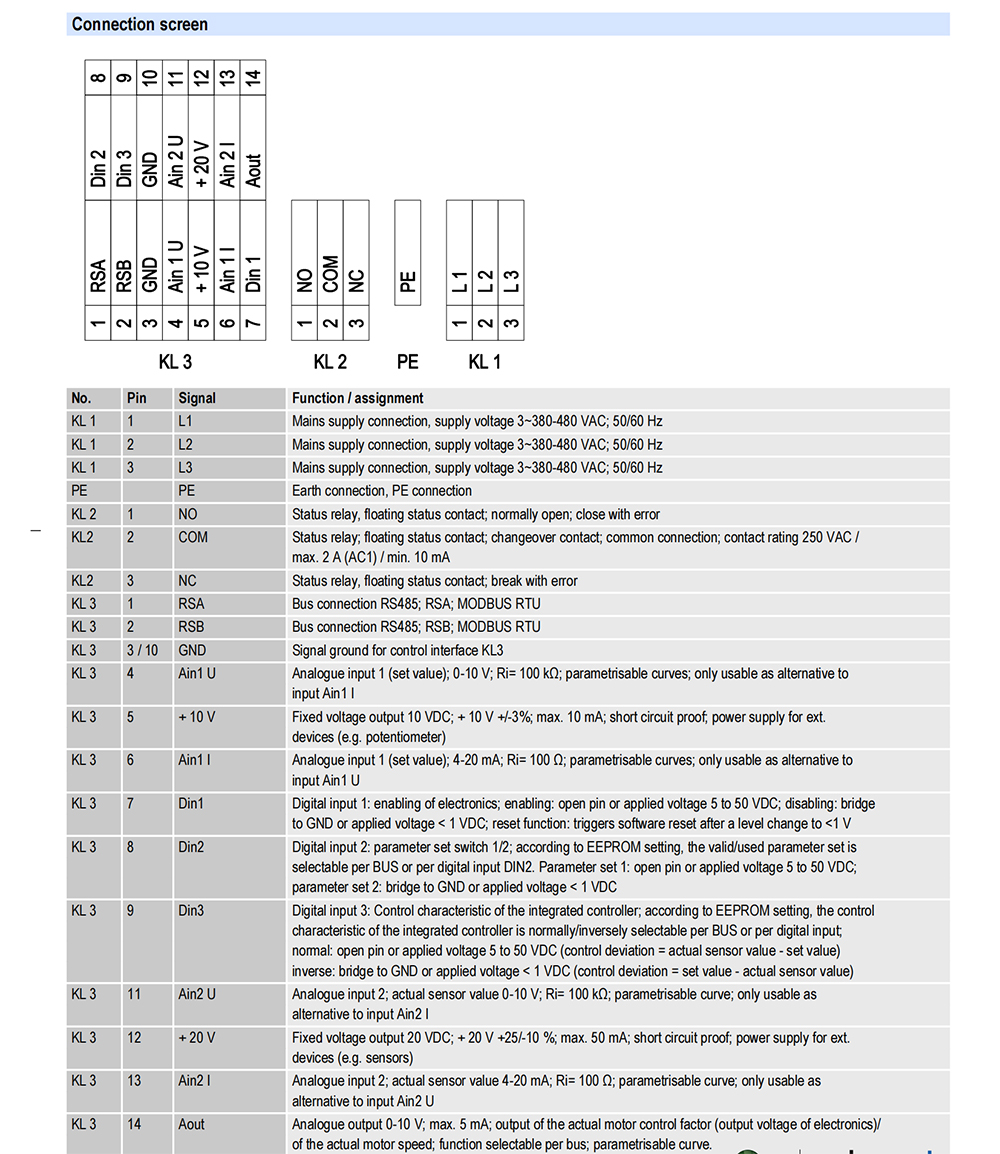

| Electrical Leads: | Via terminal box |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming to Standard: | EN 61800-5-1; CE |
| Approval: | UL 1004-7 + 60730; GOST; C22.2 Nr.77 + CAN/CSA-E60730-1 |
