| Brand: | ebm-papst |

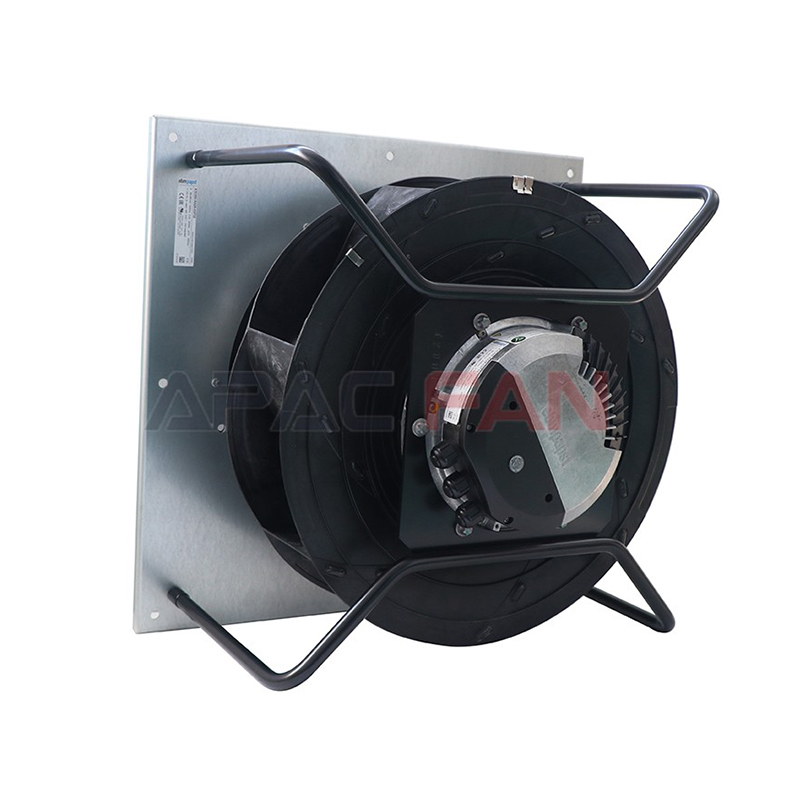

| Part No.: | K3G560-FA28-03 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage (V): | 400 |
| Size (mm): | 500 |
| Max. Air Flow (m³/h): | 18290 |
| Max. Pressure (Pa): | 900 |
| Input Power (W): | 3650 |
| Speed (RPM): | 1900 |
| Noise (dB): | 76 |
Applications and Selection
The model can be evaluated for AHU sections, filtered ventilation and industrial cooling systems. Selection should use the exact fan curve and the resistance of the full installation, including coils, filters, guards and ductwork.
Installation and Connection
Confirm the complete product nameplate and dimensional drawing before installation, including any suffix shown on the supplied unit. Use the exact connection diagram for the 400V power input and EC control interface. Provide a uniform inlet path, secure structural support and adequate service clearance around the fan.
Frequently Asked Questions
Q1: What type of fan is the K3G560-FA28-03?
A1: It is listed as an EC centrifugal fan.
Q2: Can maximum airflow and maximum pressure be used as one duty point?
A2: No. The listed 18290 m³/h and 900 Pa are separate maximum values. Use the fan curve to determine the working point.
Q3: How should the EC control connection be identified?
A3: Use the wiring diagram for the exact nameplate configuration; do not assign terminals from the model family alone.
Q4: Which details should be photographed for replacement confirmation?
A4: Photograph the full nameplate, connector or terminal area, cable arrangement, mounting frame and surrounding inlet and outlet geometry.
