FAQ
Q1: What are the core performance highlights of the ebm-papst K3G560-PC10-L1 centrifugal fan for large-scale ventilation?
A1: The K3G560-PC10-L1 is a heavy-duty centrifugal fan designed for high-demand ventilation scenarios, boasting a 560mm size and 400V rated voltage. It delivers an impressive maximum air flow of 21025 m³/h and a peak pressure of 1400 Pa, operating at 1860 RPM with an input power of 5950 W. This robust performance makes it ideal for large industrial spaces, such as factory workshops and commercial building air handling systems, where massive air exchange and strong pressure are required to maintain air quality.
Q2: How does the 560mm size of the K3G560-PC10-L1 influence its airflow and pressure capabilities?
A2: The 560mm size of the K3G560-PC10-L1 centrifugal fan is a key factor in its exceptional performance, enabling a larger blade sweep area that moves more air per rotation. This dimension, paired with a 1860 RPM operating speed, supports a maximum airflow of 21025 m³/h and a high static pressure of 1400 Pa, which is critical for overcoming resistance in large, complex ductwork systems. The fan’s size also ensures stable operation at high power loads, making it a reliable choice for heavy-duty continuous applications.
Q3: What power supply and energy performance should users expect from the K3G560-PC10-L1?
A3: The K3G560-PC10-L1 is rated for a 400V power supply, which is compatible with industrial three-phase electrical systems commonly used in large manufacturing and commercial facilities. With an input power of 5950 W, it is engineered to deliver high airflow and pressure outputs efficiently, matching power consumption to performance needs for large-scale ventilation tasks. Its optimized design ensures that power is used to drive air movement rather than wasted on excess heat, making it a cost-effective option for long-term industrial use.

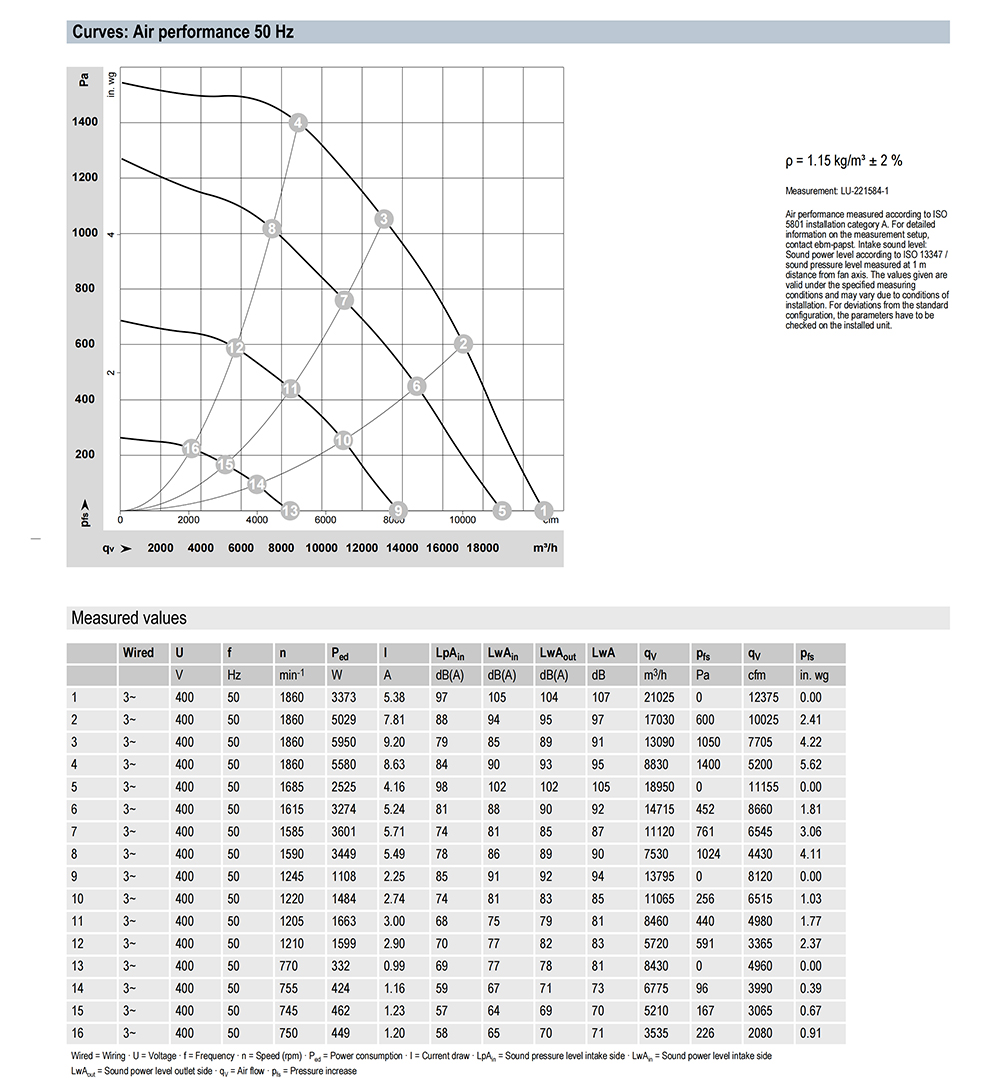

Q4: How does the 1400 Pa maximum pressure of the K3G560-PC10-L1 support its application in complex ductwork?
A4: The 1400 Pa maximum pressure of the K3G560-PC10-L1 centrifugal fan allows it to push large volumes of air (up to 21025 m³/h) through highly resistant ductwork, including long runs, multiple bends, and high-efficiency air filters. This pressure capability is essential for applications like industrial dust extraction, large HVAC systems, and clean room ventilation, where airflow must overcome significant resistance to reach all target areas. The fan’s 1860 RPM speed ensures consistent pressure delivery, even under varying system loads.
Q5: What is the noise level of the K3G560-PC10-L1, and how does it balance performance with operational sound?
A5: The K3G560-PC10-L1 centrifugal fan operates at a noise level of 79 dB, a manageable figure for a heavy-duty industrial fan with its high airflow and pressure outputs. This noise performance is achieved through aerodynamic blade design and balanced rotor construction, which minimize turbulence and vibration during operation. While 79 dB is higher than small compact fans, it is well-suited for industrial environments where performance is prioritized, and it can be further reduced with sound-dampening enclosures for applications requiring lower noise pollution.
