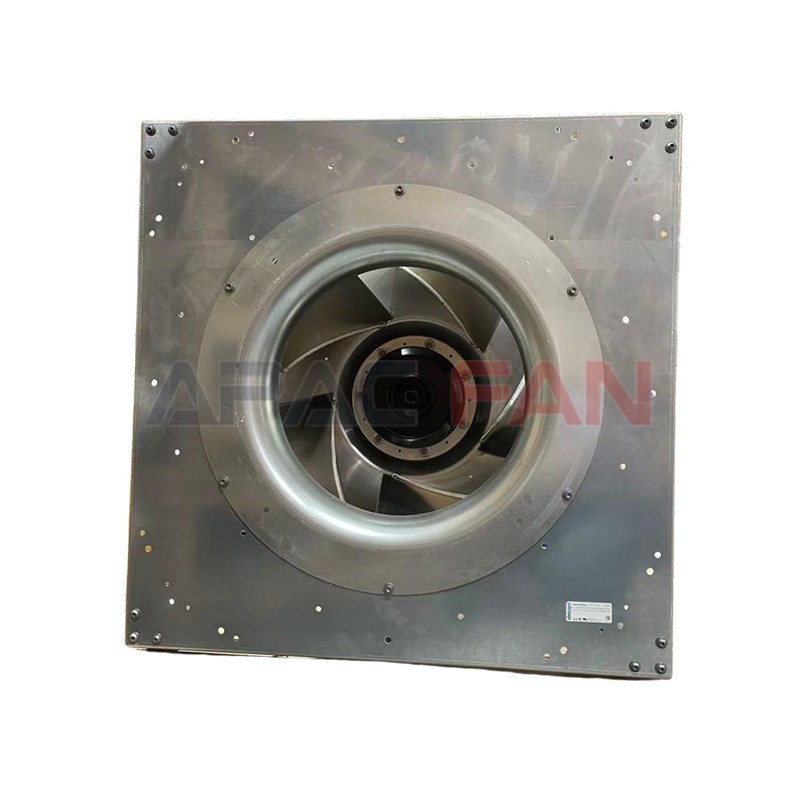

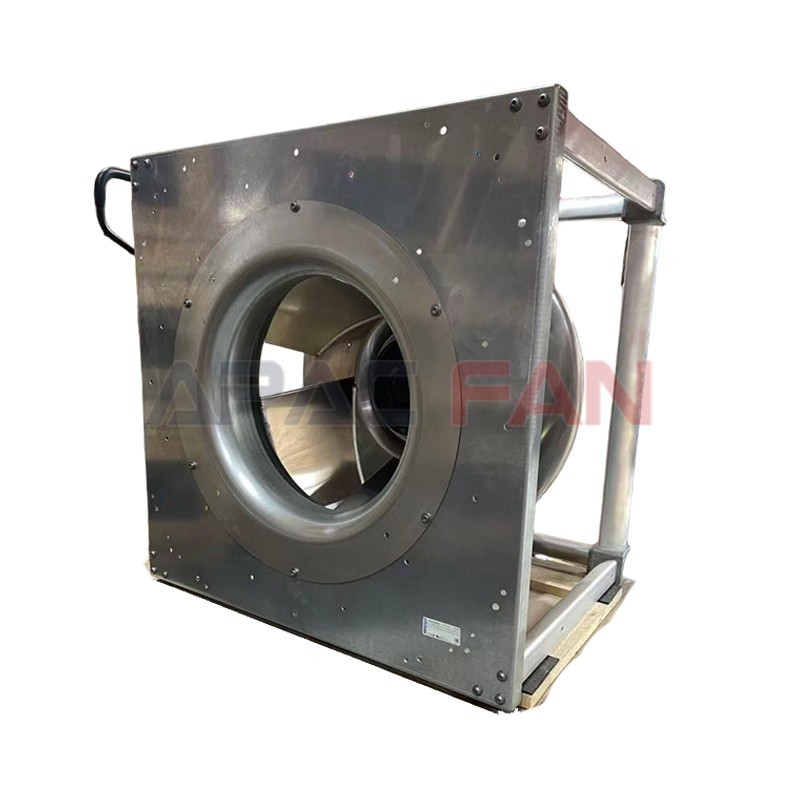

EC centrifugal module - RadiPac, forward-curved, single-intake with cube design
| Brand: | ebm-papst |
| Part No: | K3G710-PV05-01 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 400 |
| Size(mm): | 710 |
| Max.Air Flow(m³/h): | 30565 |
| Max.Pressure(Pa): | 1250 |
| Input Power(W): | 7050 |

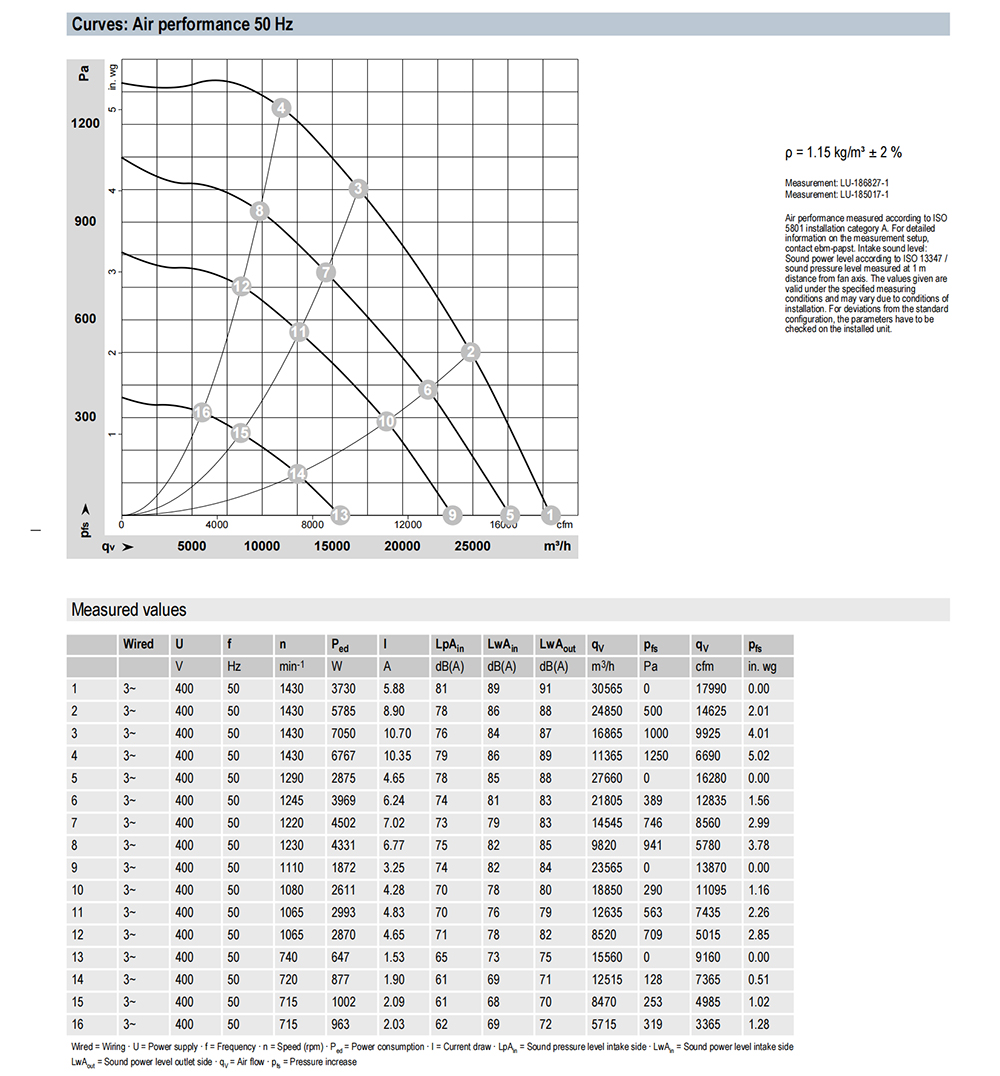

| Speed(RPM): | 1430 |
| Noise(dB): | 76 |
| Weight: | 128.7 kg |
| Motor Size: | 200 |
| Rotor Surface: | Painted black |
| Electronics Housing Material: | Die-cast aluminum |
| Impeller Material: | Sheet aluminum |
| Support Plate Material: | Sheet steel, galvanized |
| Spacer Material: | Aluminum |
| Inlet Nozzle Material: | Sheet steel, galvanized |
| Number of Blades: | 5 |
| Direction of Rotation: | Clockwise, viewed toward rotor |
| Degree of Protection: | IP54 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | H1 |
| Ambient Temperature Note: | Occasional start-up between -40°C and -25°C is permissible. For continuous operation at temperatures below -25°C (e.g. refrigeration applications) we recommend our fan design with special low-temperature bearings. |
| Max. Permitted Ambient Temp. for Motor (transport/storage): | +80 °C |
| Min. Permitted Ambient Temp. for Motor (transport/storage): | -40 °C |

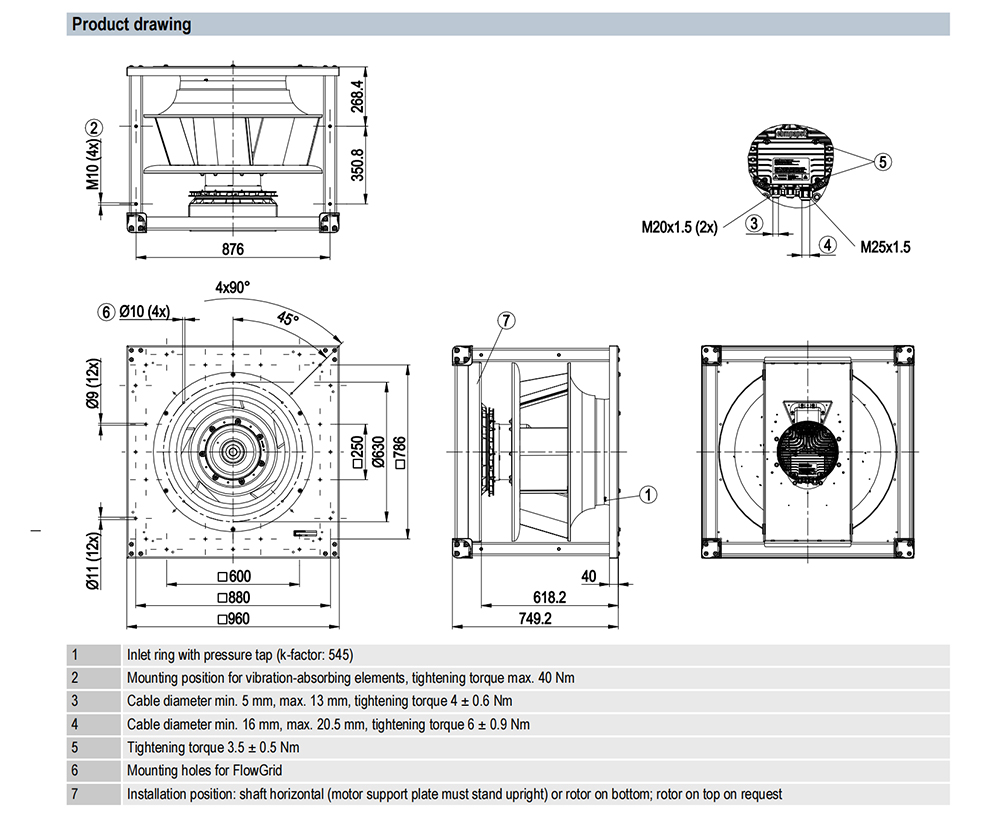

| Installation Position: | See product drawing |
| Condensation Drainage Holes: | On rotor side |
| Mode: | S1 |
| Motor Mounting: | Ball bearing |

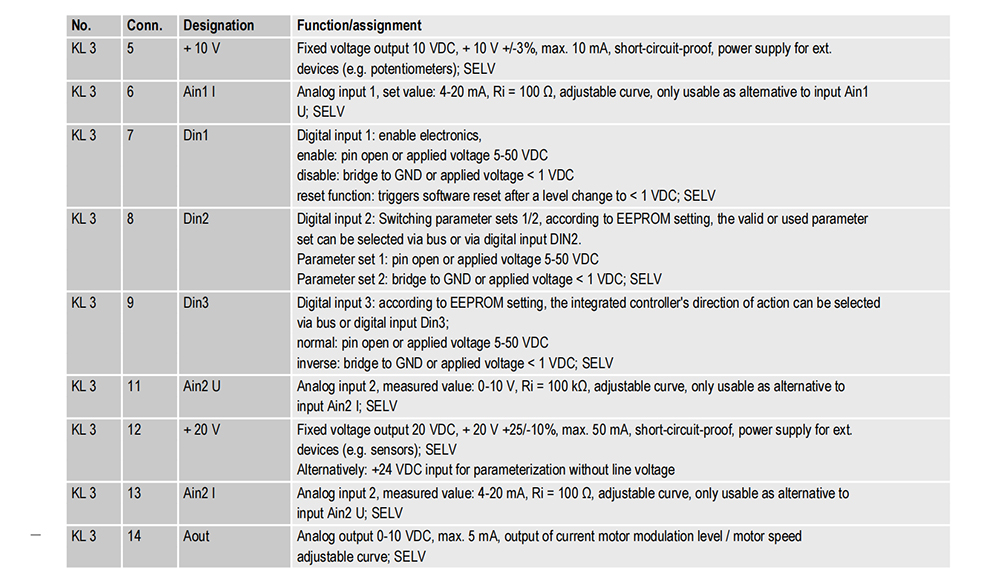

| Technical Features: | - Output 10 VDC, max. 10 mA - Output 20 VDC, max. 50 mA - Output for slave 0-10 V - Operation and alarm display - Input for sensor 0-10 V or 4-20 mA - External 24 V input (parameter setting) - External release input - Alarm relay - Integrated PI controller - Motor current limitation - PFC, passive - RS-485 MODBUS-RTU - Soft start - EEPROM write cycles: 100,000 maximum - Control input 0-10 VDC / PWM - Control interface with SELV potential safely disconnected from the mains - Thermal overload protection for electronics/motor - Line undervoltage / phase failure detection |
| EMC Immunity to Interference: | According to EN 61000-6-2 (industrial environment) |
| EMC Interference Emission: | According to EN 61000-6-4 (industrial environment) |
| Touch Current According to IEC 60990 (measuring circuit Fig. 4, TN system): | <= 3.5 mA |

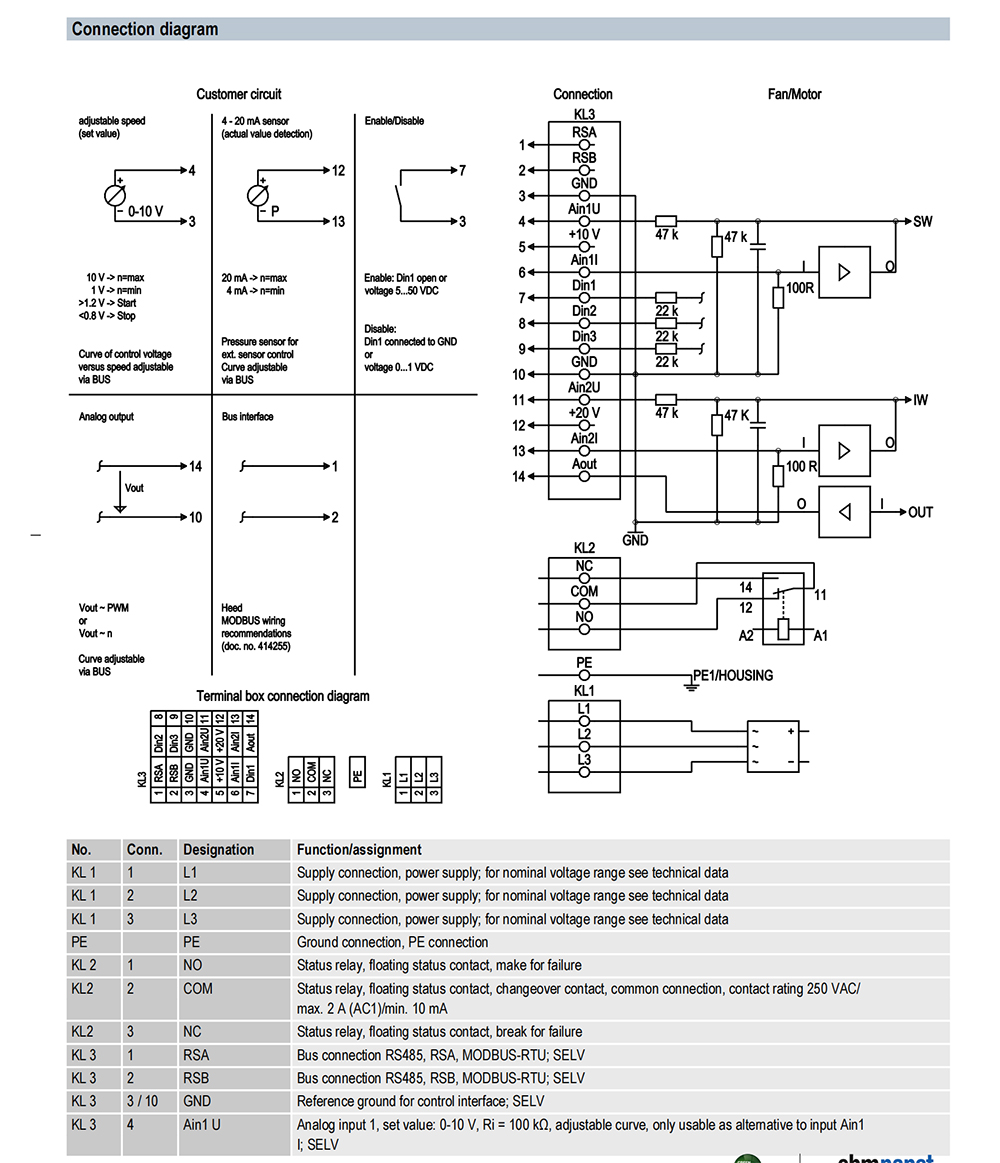

| Electrical Hookup: | Terminal box |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity with Standards: | EN 61800-5-1; CE |
| Approval: | EAC; CSA C22.2 No. 77 + CAN/CSA-E60730-1; UL 1004-7 + 60730 |
