| Brand： | ebmpapst |
| Part No： | M4Q045-DA01-01 |
| Fan Type： | Motor |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 45 |
| Max.Air Flow(m³/h)： | N/A |
| Max.Pressure(Pa)： | N/A |
| Input Power(W)： | 62 |
| Speed(rpm)： | 1550 |
| Noise(db)： | N/A |
| Weight: | 1.53 kg |
| Bearing shield material: | Die-cast aluminum |
| Direction of rotation: | Counterclockwise, viewed toward rotor |
| Degree of protection: | IP42; installation- and position-dependent |
| Insulation class: | "B" |
| Installation position: | Shaft horizontal |
| Condensation drainage holes: | None |
| Mode: | S1 |
| Motor bearing: | Calotte bearing |
| Touch current acc. IEC 60990 (measuring circuit Fig. 4, TN system): | < 0.75 mA |

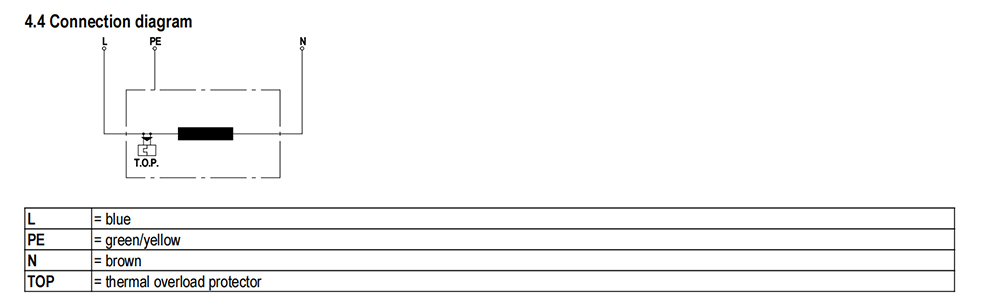

| Motor protection: | Thermal overload protector (TOP) internally connected |
| Cable exit: | Lateral |
| Protection class: | I (with customer connection of protective earth) |
| Conformity with standards: | EN 60335-1; CE |
| Approval: | EAC; VDE; CCC |
In the wind turbine manufacturing industry, ebm-papst is a well-known brand. This brand occupies an important position in the global wind turbine market with its advanced technology, excellent quality, and innovative design. The M4Q045-DA01-01 engine fan, as an important product under ebm-papst, is carefully crafted for the engine's cooling needs. It has become an ideal choice for many engine cooling systems due to its high efficiency, stability, and durability.
（1） Part number
The unique part number M4Q045-DA01-01 is like the "ID card" of a fan. It not only contains specific model information of the product, which facilitates production management and after-sales traceability, but also enables users to search for relevant technical information and accessories more accurately and efficiently.
（2） Fan type
This fan belongs to the engine fan type, and its core function is to provide reliable heat dissipation guarantee for the engine. The engine generates a large amount of heat during operation, and if it cannot dissipate heat effectively in a timely manner, it can lead to high engine temperature, which in turn affects its performance and lifespan. The M4Q045-DA01-01 engine fan can quickly dissipate the heat generated by the engine, ensuring that the engine is always within the appropriate operating temperature range.
（3） Rated voltage
The rated voltage of the fan is 230V, which is a common industrial standard voltage. In practical use, it is necessary to ensure that the power supply voltage is stable at around 230V to ensure the normal and efficient operation of the fan. Excessive voltage may damage the motor and other electrical components of the fan; If the voltage is too low, it will cause the fan speed to decrease, the air volume to decrease, and affect the heat dissipation effect.
（4） Size
The size of the fan is precisely designed to meet the installation requirements of different engines. Its appearance and structural design fully consider compatibility with the engine, ensuring easy and stable installation on the engine without interfering with other components. Specific size information can be obtained by consulting the manufacturer.
（5） Input power
The input power of the M4Q045-DA01-01 engine fan is 62W. A relatively high input power means that it can provide more powerful power, thereby generating greater air volume and wind power to meet the heat dissipation needs of the engine under different operating conditions. However, when designing and using, it is also necessary to consider the balance between energy consumption and heat dissipation efficiency.
（6） Rotational speed
The speed of the fan remains stable at 1550rpm. A higher rotational speed allows the fan to quickly push air flow, creating a strong airflow and improving heat dissipation efficiency. Stable speed output is one of the key factors to ensure the stability of fan performance, which helps to reduce air volume fluctuations and ensure continuous and uniform heat dissipation of the engine.
（7） Noise
In actual operation, the fan inevitably generates certain noise. ebm-papst used advanced noise reduction technology and optimized air duct design in the design of this fan to minimize noise levels as much as possible. Under normal working conditions, the noise generated by the fan will not cause significant interference to the operator and the surrounding environment.
（1） Efficient heat dissipation
The M4Q045-DA01-01 engine fan adopts advanced aerodynamic design concepts. The shape, angle, and number of its blades have been carefully optimized to generate strong and uniform wind force during high-speed rotation. This efficient design enables the fan to quickly remove heat from the engine surface, greatly improving heat dissipation efficiency. At the same time, the air duct design of the fan has undergone strict simulation and testing, which can effectively reduce air flow resistance, ensure smooth air circulation, and further enhance the heat dissipation effect.
（2） Stable and reliable
In order to ensure stable operation in various harsh working environments, the fan adopts strict quality control standards and high-quality materials in the production process. The casing of the fan is made of high-strength engineering plastics or metal materials, which have good corrosion resistance, impact resistance, and high temperature resistance, and can effectively protect internal components from external environmental influences. The key components such as motors and bearings have been carefully selected and rigorously tested, with high reliability and long service life, capable of withstanding long-term continuous operation.
（3） Energy saving design
Although the input power is relatively high, the M4Q045-DA01-01 engine fan achieves good energy-saving effects by using efficient motors and advanced control technology. The motor of the fan adopts efficient permanent magnet materials and optimized winding design, which can more efficiently convert electrical energy into mechanical energy and reduce energy loss. In addition, the fan may also be equipped with an intelligent energy-saving control system (please consult customer service for specific functions of this product), which can automatically adjust the fan speed according to the actual heat dissipation needs of the engine, avoiding unnecessary energy waste.
（4） Easy installation
The design of this fan fully considers the convenience of installation. It adopts a modular design, with tight connections between various components and easy disassembly and installation. The installation size and interface standards of the fan are compatible with most engines, and users only need to follow the instructions in the manual to easily complete the installation. At the same time, the fan is also equipped with detailed installation drawings and operation guidelines, providing great convenience for users.
（5） Strong compatibility
The M4Q045-DA01-01 engine fan has strong compatibility and can be used in conjunction with various types and specifications of engines. Whether it is a small or large engine, as long as its heat dissipation requirements are within the performance range of the fan, this fan can be used for heat dissipation. This wide compatibility makes the fan have a broader application prospect in the market and can meet the needs of different users.
（1） Industrial engine
In industrial production, many engines require long-term continuous operation and generate a large amount of heat. The M4Q045-DA01-01 engine fan can provide a reliable cooling solution for industrial engines. For example, in equipment such as generator sets, compressors, and pumps in factories, this fan can ensure stable operation of the engine in high-temperature environments, improve equipment reliability and production efficiency, and reduce downtime and maintenance time caused by engine overheating.
（2） Agricultural machinery engine
When agricultural machinery such as tractors, harvesters, seeders, etc. are operating in the field, their engines need to bear a large load and generate a lot of heat. Due to the harsh working environment in agriculture, there is a high demand for the reliability and adaptability of wind turbines. The high reliability, corrosion resistance, and efficient heat dissipation performance of the M4Q045-DA01-01 engine fan enable it to meet the working needs of agricultural machinery, provide effective heat dissipation protection for the engine, and ensure the smooth progress of agricultural production.
（3） Transportation engine
In the field of transportation, such as automobiles, trucks, ships, etc., the performance and reliability of engines are directly related to driving safety and transportation efficiency. The M4Q045-DA01-01 engine fan can provide good heat dissipation support for these engines, ensuring stable operation in different road and climate conditions. Especially in hot weather or long-term high-speed driving, this fan can effectively reduce engine temperature, improve engine power performance and fuel economy.
The ebm-papst M4Q045-DA01-01 engine fan has become an excellent product in the field of engine cooling due to its advanced design, excellent performance, and wide applicability. Its reasonable parameter design, unique product features, and reliable quality assurance can meet the heat dissipation needs of different users in different scenarios.
In the engine cooling system, a high-performance fan is crucial for ensuring the normal operation of the engine. The ebm-papst M4Q045-DA01-01 engine fan stands out in the market with its unique features. This article will delve into the characteristics of the fan and provide a reference for users to fully understand the product.
