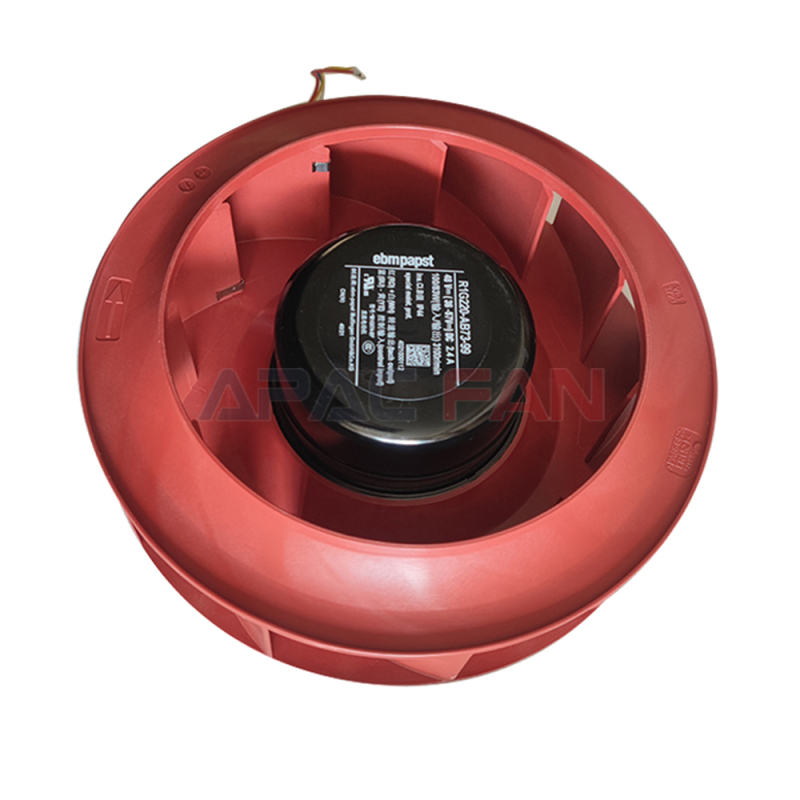

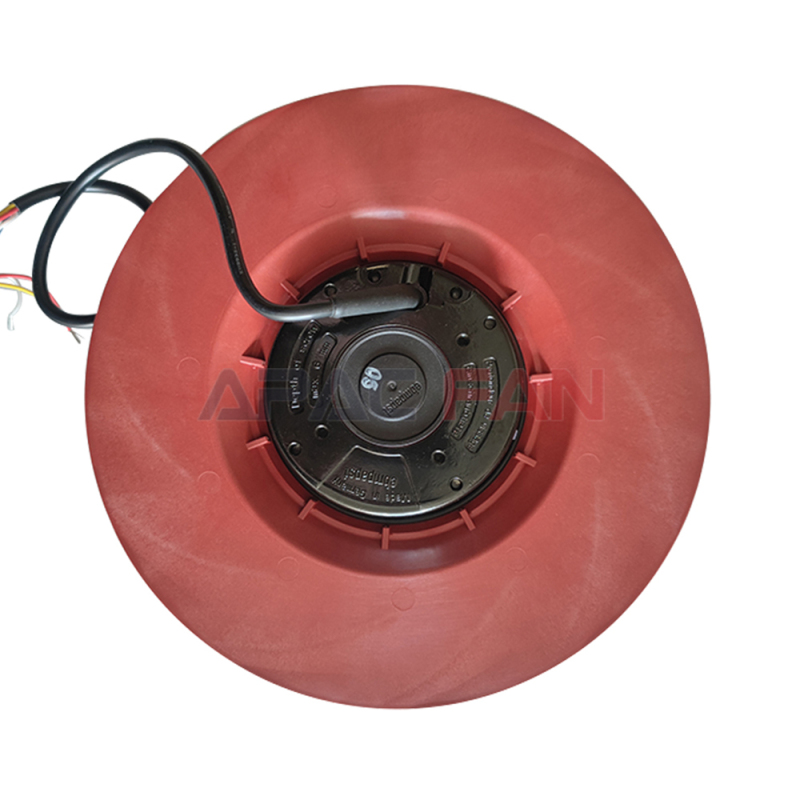

R1G220-AB73-99 ebm-papst

In the field of wind turbines, ebm-papst's R1G220-AB73-99 centrifugal fan has attracted much attention for its unique performance and advanced technology.

• Interpretation of key parameters

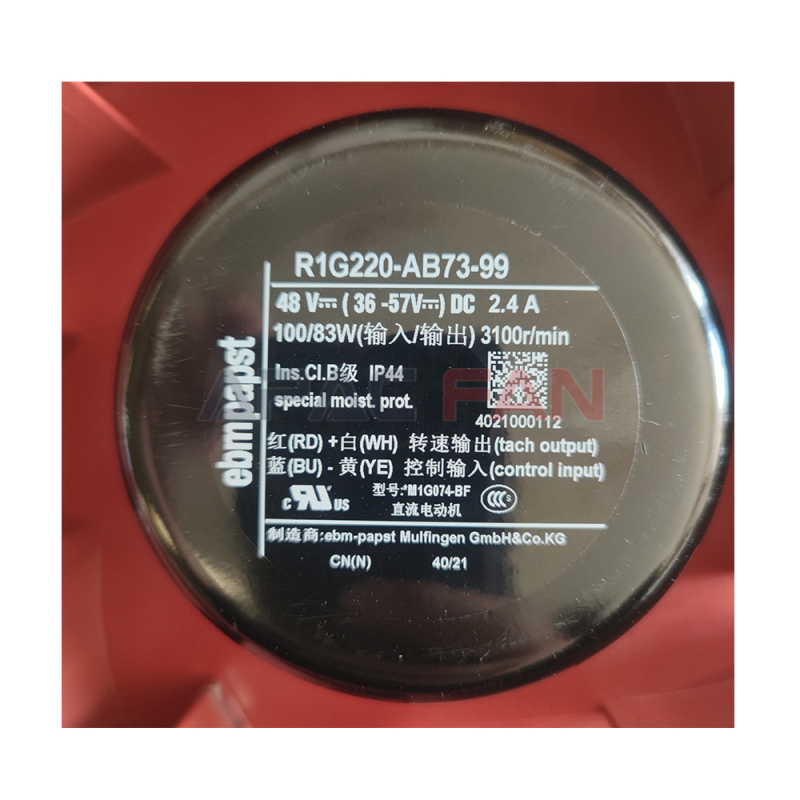

Rated voltage: The rated voltage of R1G220-AB73-99 wind turbine is 48V, which gives it unique application advantages in some scenarios with special requirements for power supply due to its relatively low voltage. For example, in some places where low-voltage power supply systems are used, such as specific electronic equipment, communication base stations, etc., the rated voltage of 48V can be directly connected without the need for complex voltage conversion equipment, reducing the complexity and cost of the system while also improving its safety.

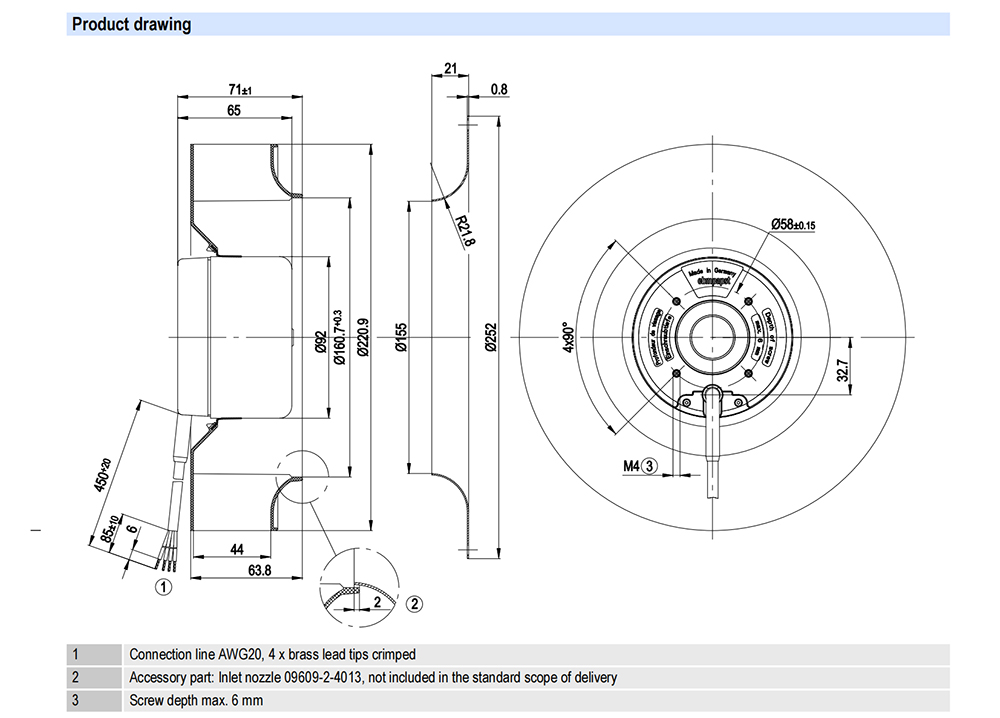

Size specification: The size of the fan is 220 millimeters, which belongs to a relatively compact design. This compact size allows it to be flexibly installed in environments with limited space, whether inside small devices or in narrow ventilation ducts of buildings, finding suitable installation locations. For some application scenarios that require strict space requirements, such as small laboratories, precision instruments and equipment, the compact size of R1G220-AB73-99 fan is undoubtedly an important advantage.

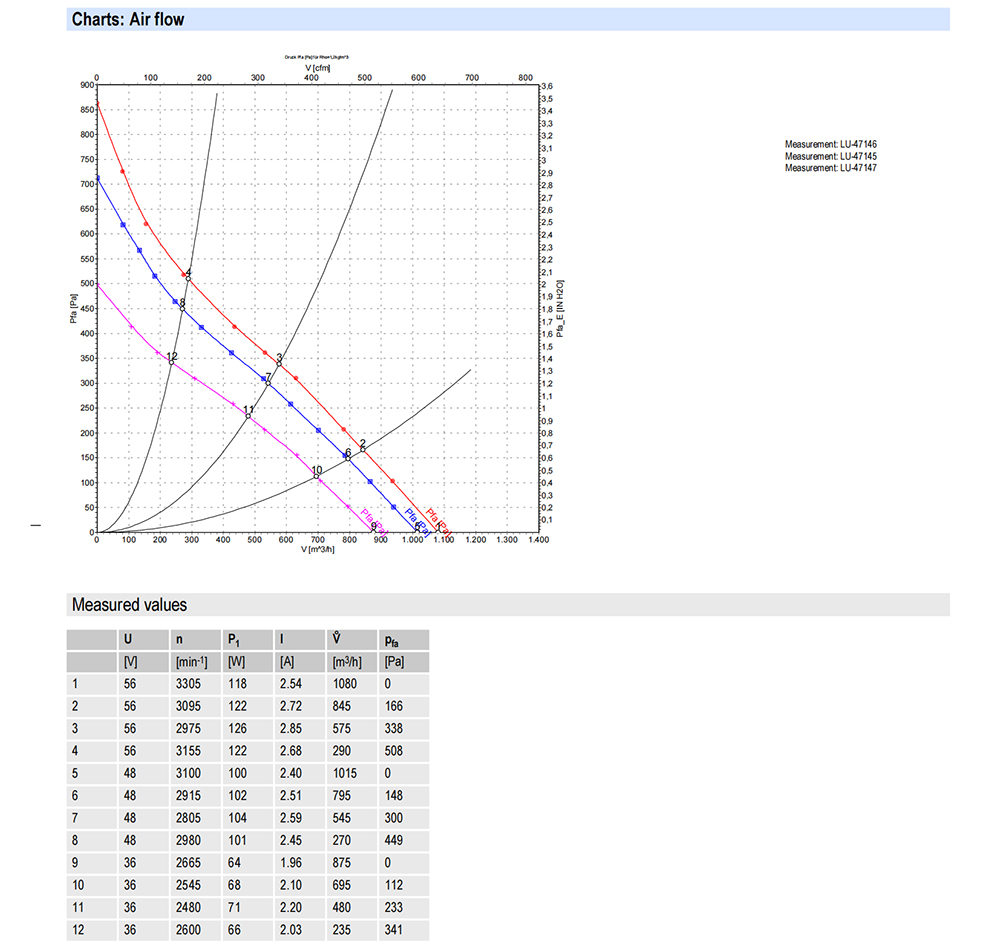

Air volume and pressure: The maximum air volume can reach 1080 cubic meters per hour, and the maximum pressure is 508Pa. This parameter combination indicates that the fan performs well in terms of air transport capacity, providing both a large air volume to meet the ventilation needs of large spaces and a certain pressure to overcome resistance in ventilation ducts. In some places that require high ventilation efficiency, such as data center cabinet heat dissipation and local ventilation in small industrial workshops, the large air volume and appropriate pressure of R1G220-AB73-99 fan can ensure effective air circulation and provide a good ventilation environment for equipment or work areas.

Speed and power: The speed is 3100rpm and the input power is 104W. The higher rotational speed allows the impeller to rotate rapidly, thereby generating strong wind force. The input power of 104W is relatively low, which not only ensures the performance of the fan, but also reflects good energy-saving characteristics. Compared with some fans with higher power but similar performance, the R1G220-AB73-99 fan can effectively reduce energy consumption and lower user operating costs during long-term operation.

Noise level: Noise is not applicable. Although there is no clear noise value, ebm-papst, as a company that focuses on product quality and user experience, will inevitably take a series of noise reduction measures in the design and manufacturing process of fans, such as optimizing the impeller shape, using sound-absorbing materials, etc., to minimize the impact of fan operation on the surrounding environment. In practical applications, with reasonable installation and sound insulation treatment, it is believed that the fan can operate within an acceptable noise range.

• Analysis of unique characteristics

Efficient centrifugal gas transportation method: As a centrifugal fan, the working principle of R1G220-AB73-99 is based on centrifugal force. When the motor drives the impeller to rotate at high speed, gas is sucked into the center of the impeller. Under the action of centrifugal force, the gas moves outward along the blades of the impeller, with increasing speed and kinetic energy. After leaving the impeller, the gas enters the volute. As the cross-sectional area of the volute gradually increases, the flow velocity of the gas gradually decreases, and kinetic energy is converted into pressure energy, thereby allowing the gas to obtain higher pressure and ultimately be discharged through the air outlet. This working method gives fans unique advantages in conveying high-pressure, medium to high volume air, and can meet the needs of various complex ventilation scenarios.

Stable and reliable operating performance: ebm-papst's exquisite manufacturing process ensures the stability and reliability of the R1G220-AB73-99 fan. The structural design of the fan has been optimized, using high-strength materials and precise manufacturing processes, which can withstand the enormous stress and vibration generated during high-speed operation. The impeller has undergone strict dynamic balance testing and can maintain smooth operation at a high speed of 3100rpm, reducing noise and equipment wear caused by vibration and greatly extending the service life of the equipment. The motor adopts high-quality materials and advanced design, with high efficiency and stability, and can maintain good performance during long-term operation. In some industries that require extremely high stability in equipment operation, such as electronic manufacturing, medical equipment, etc., the R1G220-AB73-99 fan can operate stably for a long time, providing reliable ventilation guarantee for production or equipment operation.

Good environmental adaptability: This fan has good adaptability to different working environments and conditions. The rated voltage of 48V is suitable for some specific low-voltage power systems, and the 220mm size can be reasonably arranged in various ventilation scenarios. In some special working environments, such as high temperature, high humidity, and high dust, the R1G220-AB73-99 fan can still operate stably and meet ventilation requirements by using special protective measures and materials. For example, in the heat dissipation and ventilation of some electronic devices, they may face high temperatures and dusty environments. By using dust-proof and heat dissipation materials and designs, fans can effectively resist the impact of harsh environments and ensure the normal operation of the ventilation system.

• Exploration of Technical Principles

Optimization of the working principle of centrifugal fan: R1G220-AB73-99 fan has been optimized based on the working principle of centrifugal fan. The blade shape and angle of the impeller are carefully designed, using advanced aerodynamic principles to enable gas to obtain greater kinetic and pressure energy when passing through the impeller. By special twisting design and precise angle adjustment of the blades, the friction and energy loss of gas on the blade surface are reduced, enabling the fan to achieve higher air volume and pressure output at the same power. At the same time, the design of the snail shell has also been optimized to better guide the flow of gas, improve the pressure conversion efficiency of gas, and further enhance the overall performance of the fan.

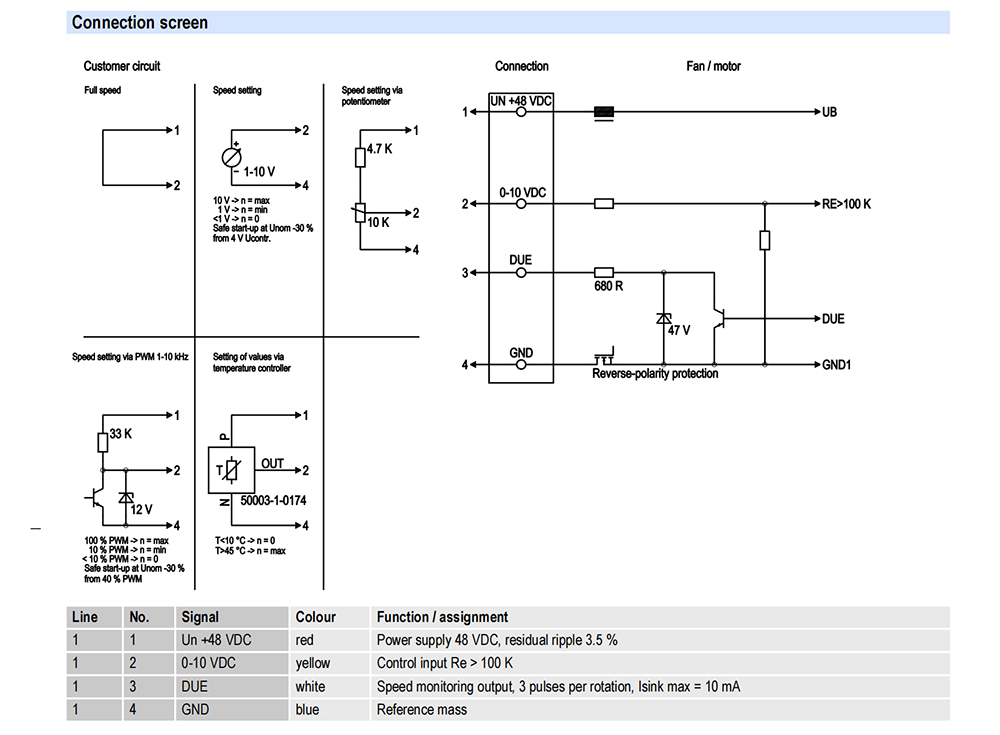

Innovation in motor and transmission technology: The fan adopts an efficient motor that can efficiently convert electrical energy into mechanical energy, driving the impeller to rotate at high speed. The design of the motor has been optimized to have high efficiency and stability, and can maintain good performance during long-term operation. The transmission system adopts precision bearings and reliable couplings to ensure that the power of the motor can be stably transmitted to the impeller, reducing energy loss and mechanical failures. In terms of motor control, advanced speed regulation technology may be used to accurately adjust the fan speed according to actual needs, achieving energy conservation, consumption reduction, and precise control. For example, by using frequency conversion speed regulation technology, the speed of the fan can be automatically adjusted according to the temperature, humidity and other parameters of the ventilation environment, so that the fan can maintain the best operating state under different working conditions.

In summary, the R1G220-AB73-99 centrifugal fan occupies an important position in the fan market due to its unique parameter advantages, excellent characteristics, and advanced technical principles. Whether in scenarios with special requirements for power supply or in application environments with limited space and complex environments, it can demonstrate its powerful performance and provide users with efficient and reliable ventilation solutions. With the continuous advancement of technology and the increasing demand for applications, we believe that the R1G220-AB73-99 fan will demonstrate greater potential in future development.
