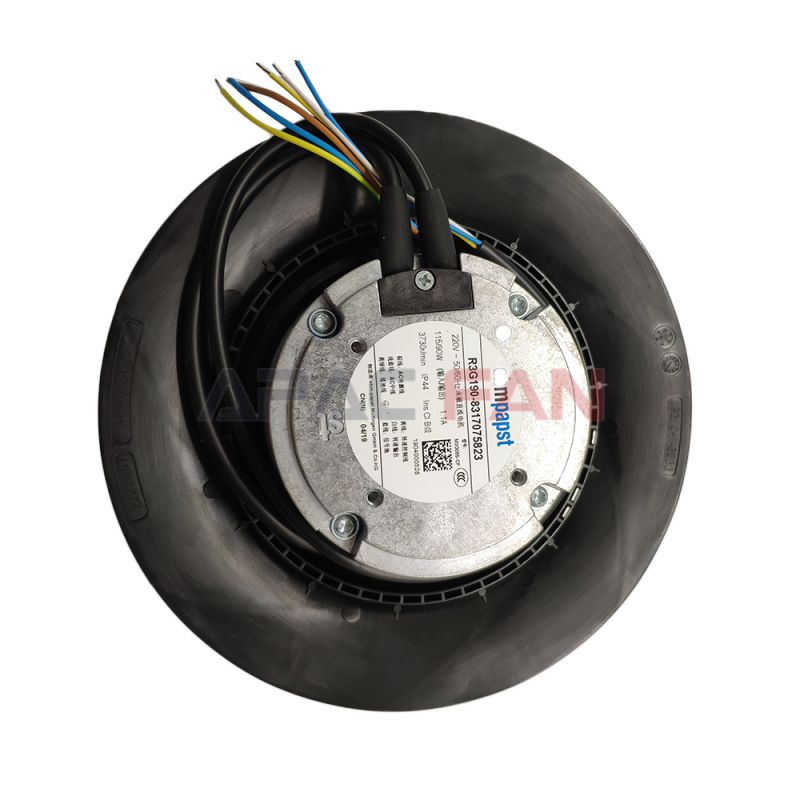

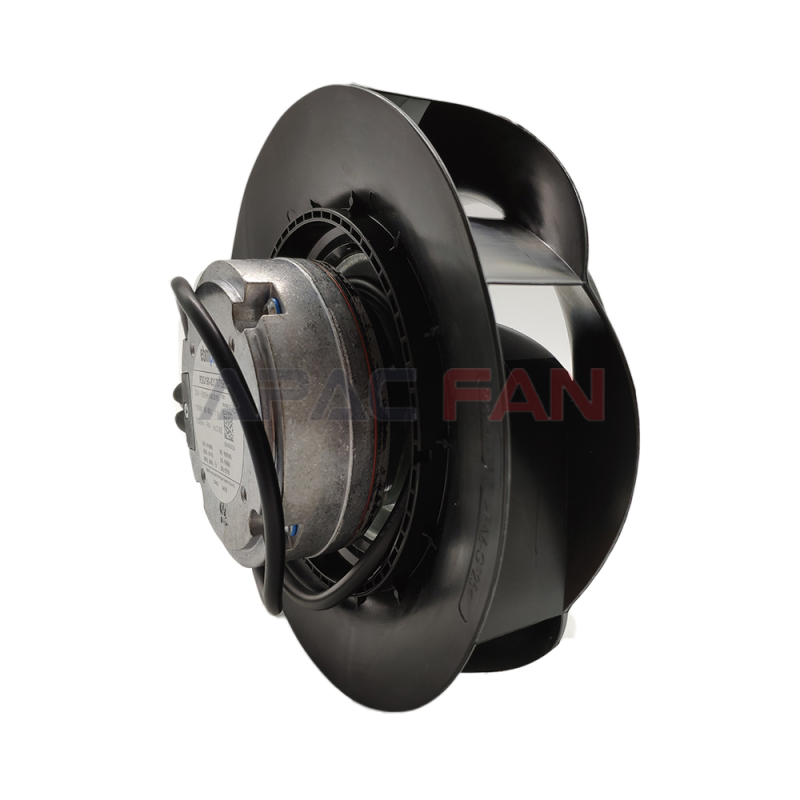

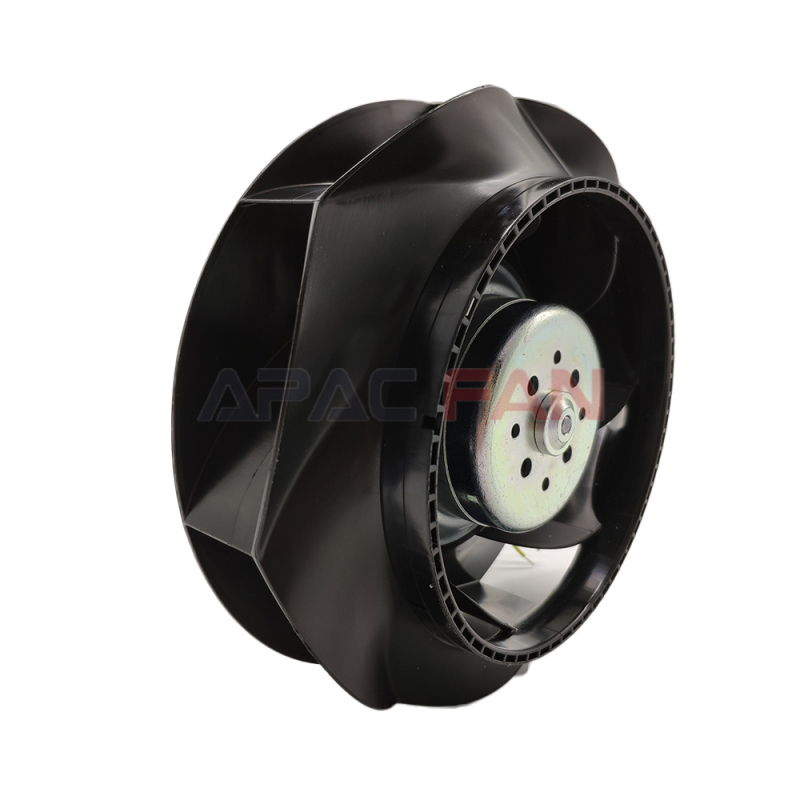

R3G190-8317075823 ebm-papst

As a world-renowned fan manufacturer, ebm-papst has profound technical accumulation and rich production experience. Over the years, the brand has always insisted on innovation-driven, continuously invested a lot of resources in research and development, and is committed to providing customers with high-quality and high-performance fan products. Its products are well-known for their high reliability and outstanding efficiency. They are widely used in many fields such as industry, commerce, and construction, and have won high recognition and trust from the market.

Core parameter analysis

Fan type: centrifugal fan. The working principle of the centrifugal fan is based on the action of centrifugal force. The gas is accelerated by the rotating impeller, and then the kinetic energy is converted into pressure energy to achieve gas transportation. Compared with axial flow fans, centrifugal fans have higher pressure and smaller air volume, and are more suitable for ventilation systems that need to overcome greater resistance.

Rated voltage: 220V. This common rated voltage allows the fan to be easily connected to various conventional power systems without complex voltage conversion, greatly improving the versatility and applicability of the equipment and reducing the cost of use.

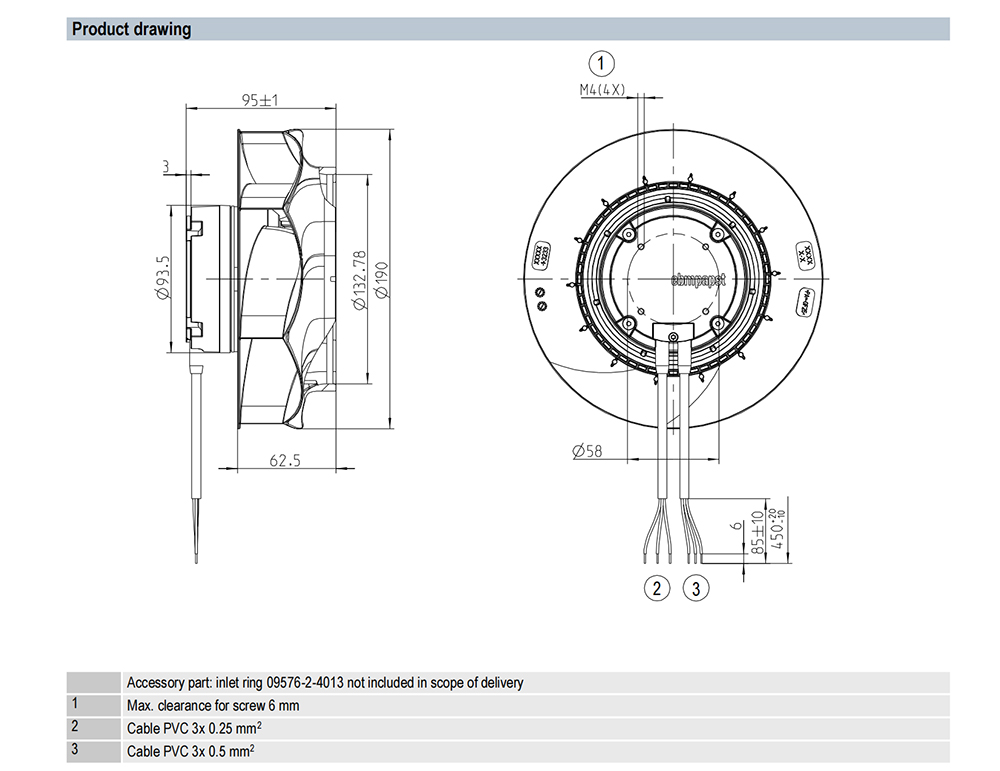

Size: 190 mm. The compact size design makes the fan extremely flexible during installation and can easily adapt to various application scenarios with limited space. Whether in a small industrial workshop or in the ventilation duct of a commercial building, a suitable installation location can be found.

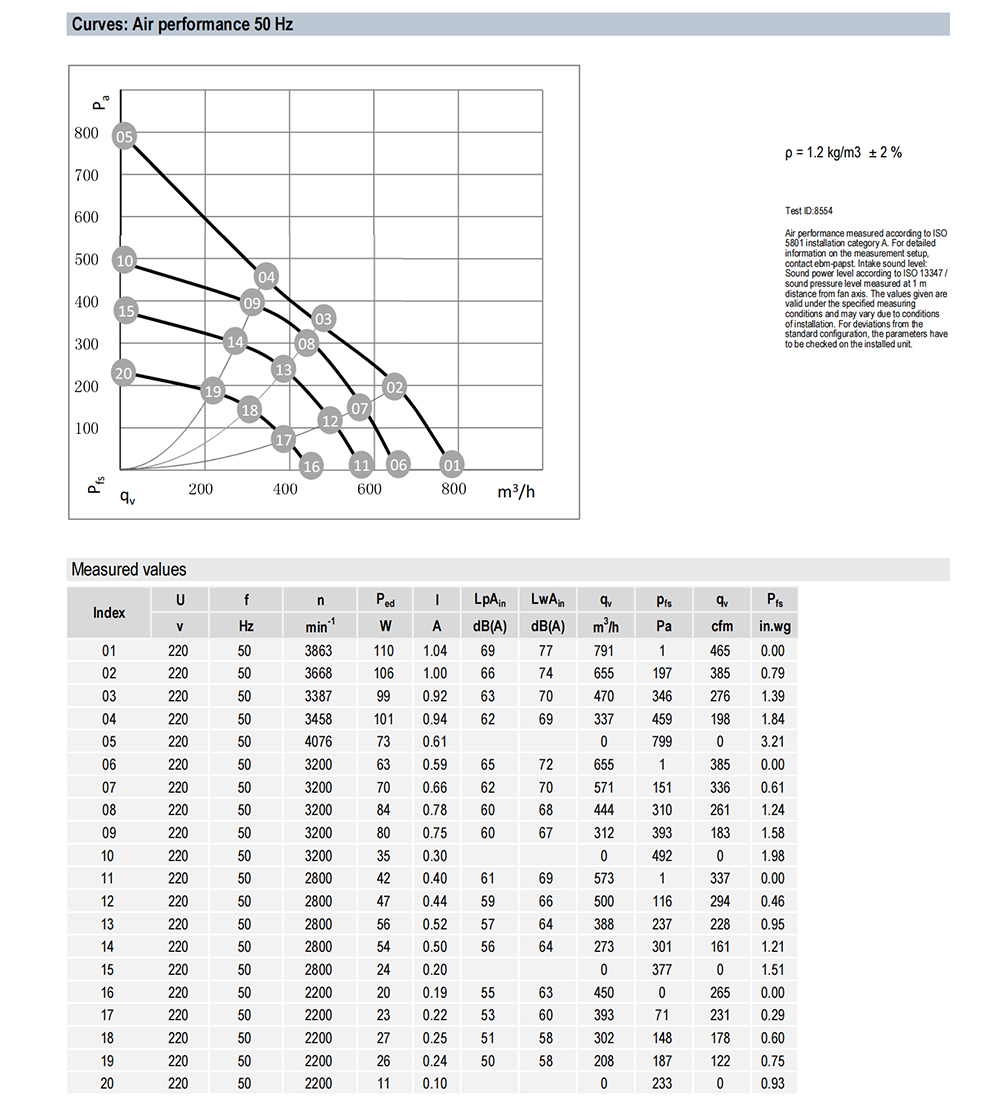

Maximum air volume: 791m³/h. Although its air volume is not very outstanding compared to some large fans, in many specific application scenarios, this air volume is sufficient to meet actual needs. For example, in small warehouses, laboratories and other places, air circulation and exchange can be effectively achieved.

Maximum pressure: 799Pa. The higher pressure capacity enables the fan to overcome certain resistance in the ventilation system and transport air to a longer distance or higher position. This is a very important performance indicator for some applications with long ventilation ducts or large system resistance.

Input power: 110W. Under the premise of ensuring certain performance, the input power of the fan is relatively low, and it has good energy-saving effect. This not only helps to reduce the user's operating costs, but also meets the requirements of today's society for energy conservation and environmental protection, and embodies the concept of green development.

Speed: 3863rpm. The appropriate speed enables the fan to generate sufficient air volume and pressure while operating stably. Too high a speed may cause the fan to have increased noise and shorten its lifespan, while too low a speed cannot meet the ventilation needs. The speed of this fan has been carefully designed to achieve a balance between performance and stability.

Noise: 50dB. Low-noise operation is a highlight of this fan. During operation, the noise level generated is low and will not cause significant interference to the surrounding environment and personnel. This is especially important for places with high noise requirements, such as hospitals, schools, offices, etc.

Unique product features

Efficient aerodynamic design: The fan is designed using advanced aerodynamic principles, and the shape and structure of the impeller are carefully optimized to maximize the air delivery efficiency and reduce energy loss. This enables the fan to generate greater air volume and pressure at the same input power, improving the ventilation effect.

High-quality materials and exquisite craftsmanship: The use of high-quality materials ensures that the structure of the fan is sturdy and durable. At the same time, the use of advanced production processes and strict quality control systems ensures that the performance and quality of each fan meet high standards. Whether in harsh industrial environments or long-term continuous operation, it can maintain a stable and reliable working state.

Low vibration operation: Through precise dynamic balance adjustment and reasonable structural design, the vibration of the fan during operation is effectively reduced. Low vibration not only helps to extend the service life of the fan, but also reduces the impact on surrounding equipment and structures, and improves the stability and reliability of the entire ventilation system.

Easy maintenance: The fan has a reasonable structural design and each component is easy to disassemble and install. This allows operators to easily clean, inspect and replace parts during daily maintenance and maintenance, reducing maintenance costs and difficulties.

Wide application scenarios

Industrial ventilation field: In various industrial production processes, a large amount of exhaust gas, dust and heat are generated. R3G190-8317075823 The fan can be used for ventilation and air exchange in industrial plants, exhausting dirty air outdoors and introducing fresh air to ensure a safe and comfortable working environment. For example, in workshops in industries such as electronic manufacturing and mechanical processing, the fan can effectively remove harmful gases and dust and protect the health of workers.

Commercial building ventilation: In commercial buildings such as shopping malls, hotels, and office buildings, a good ventilation system is required to maintain indoor air quality and comfort. This fan can be used as an important part of the ventilation system of commercial buildings, providing stable air volume and pressure for the air conditioning system to ensure the circulation and regulation of indoor air.

Equipment heat dissipation application: During the operation of many electronic equipment and mechanical equipment, a large amount of heat will be generated. If the heat is not dissipated in time, the performance and life of the equipment will be affected. R3G190-8317075823 fans can be used for heat dissipation of equipment, such as computer servers, communication equipment, etc., to dissipate the heat generated by the equipment in time to ensure the normal operation of the equipment.

R3G190-8317075823 centrifugal fans provide an excellent solution for the field of industrial ventilation and air conditioning with their excellent performance, unique characteristics and wide application scenarios. Whether it is in improving work efficiency, ensuring personnel health or energy saving and environmental protection, it has significant advantages.
