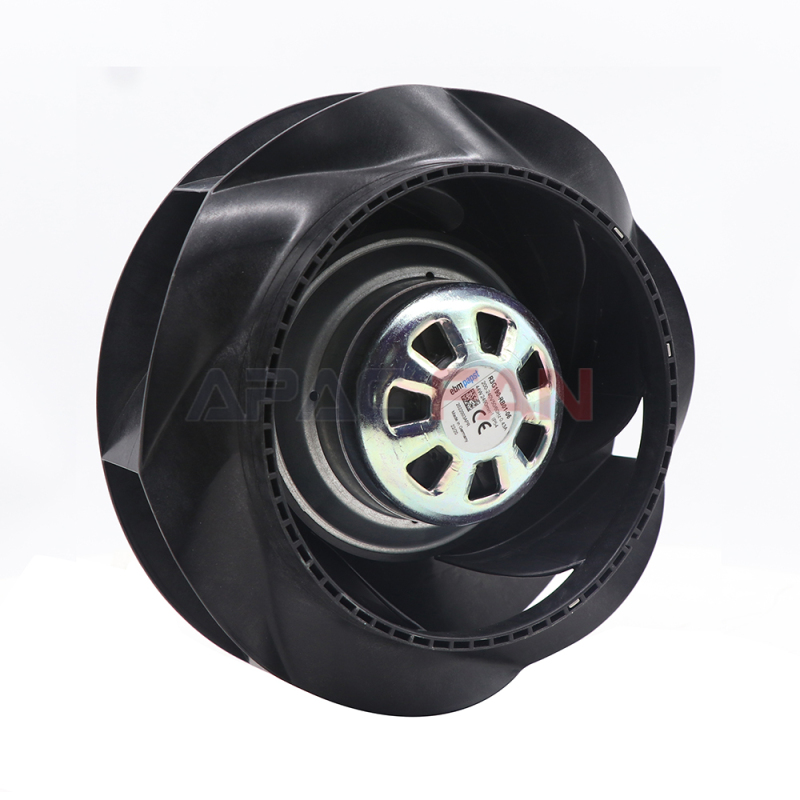

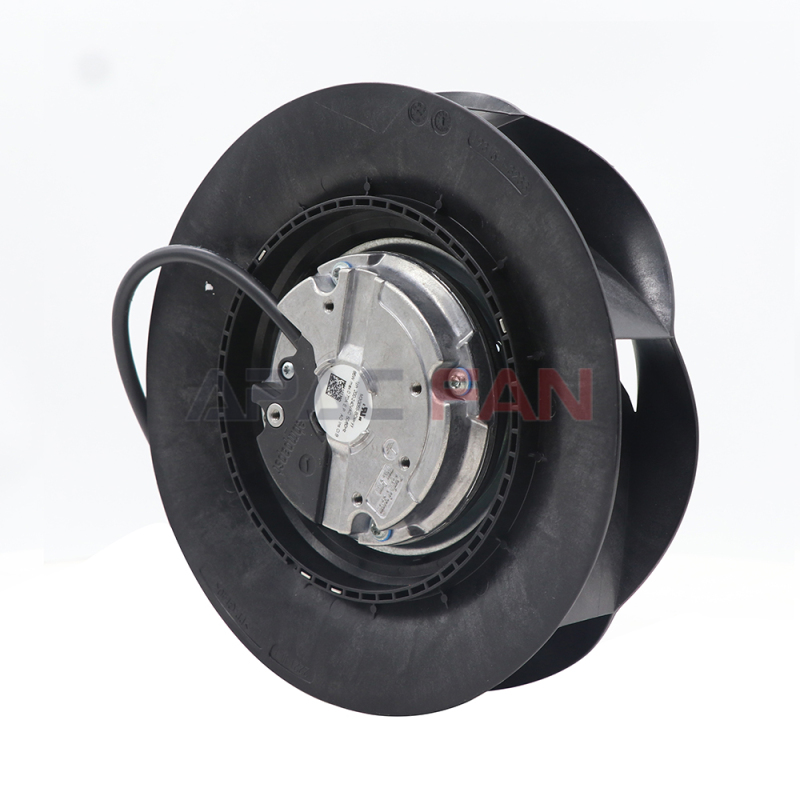

R3G190-RB01-06 ebm-papst

Product parameter analysis

Fan type: R3G190- RB01-06 belongs to centrifugal fans. The working principle of a centrifugal fan is based on the high-speed rotation of the impeller, which uses centrifugal force to suck in and accelerate air, and then discharges the air at a higher pressure through the volute shell. This working method enables centrifugal fans to perform well in ventilation scenarios that require overcoming certain resistance, effectively achieving air transport and exchange.

Rated voltage: The rated voltage of this fan is 230V. This common industrial and civilian voltage specification makes wind turbines highly versatile and convenient when connected to power sources. Whether in factory workshops, commercial spaces, or home environments, stable power support can be easily provided without the need for complex voltage conversion, reducing usage costs and installation difficulties.

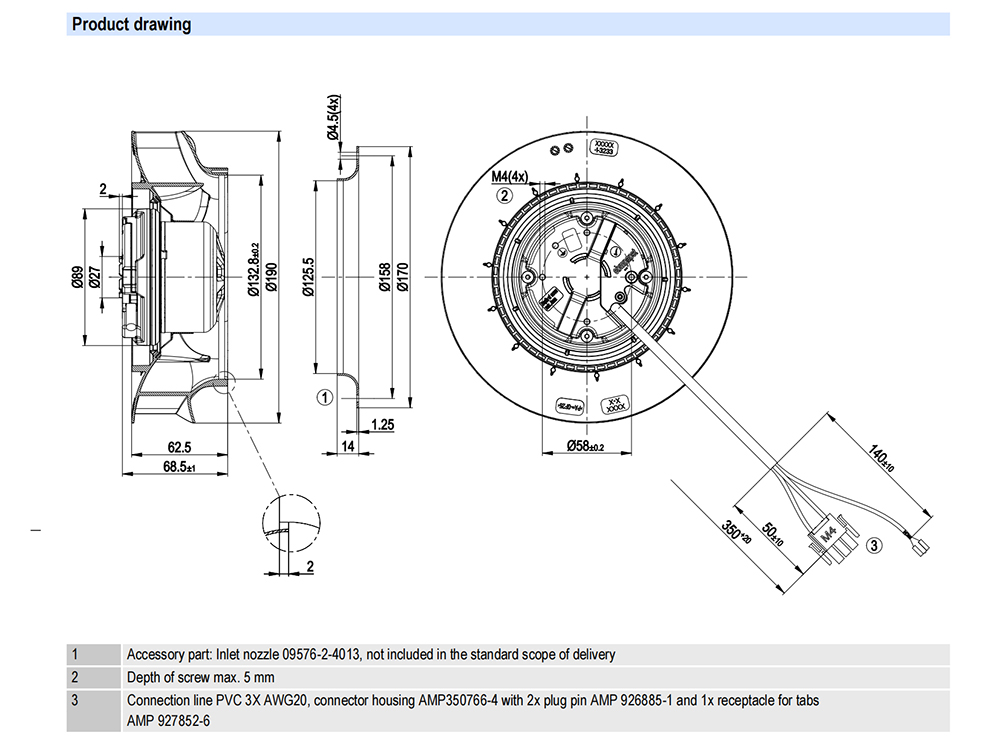

Size specification: The size of the fan is 190 millimeters. This compact design is one of its significant advantages. In modern society, space resources are becoming increasingly valuable, and many application scenarios have strict requirements for the size of devices. The R3G190-RB01-06 centrifugal fan, with its compact size, can easily adapt to various small installation spaces, such as small cabinets and compact equipment interiors, providing more possibilities for the overall layout of the equipment.

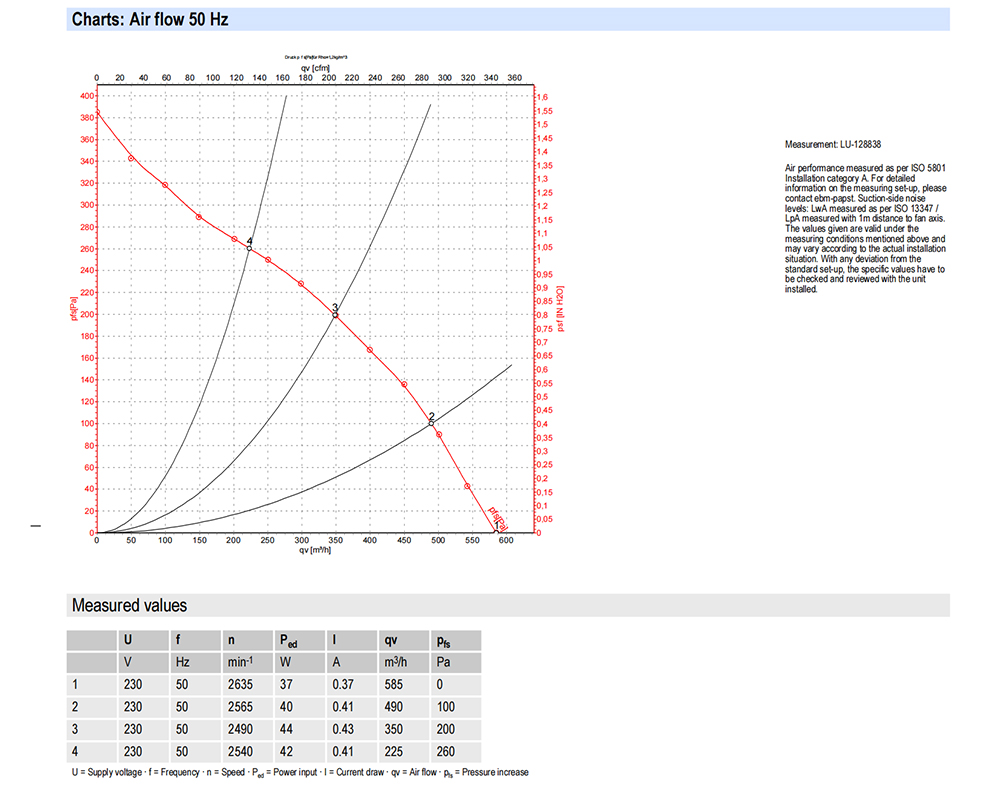

Maximum air volume: Its maximum air volume can reach 585m³/h. A larger air volume means that the fan can deliver more air per unit time, thereby achieving rapid ventilation and air exchange. In some places that require a large amount of air circulation, such as large warehouses, workshops, etc., this parameter can ensure timely air renewal, effectively improve indoor air quality, and create a comfortable and healthy working environment for workers.

Maximum pressure: The maximum pressure is 260Pa. The higher pressure allows the fan to overcome certain resistance and transport air to farther distances or higher positions. In systems with long ventilation ducts or certain resistance, the R3G190-RB01-06 centrifugal fan can stably provide the required pressure, ensuring the stability and reliability of the ventilation effect.

Input power: The input power is only 44W. This fully reflects the energy-saving characteristics of the fan. In today's era of advocating energy conservation and emission reduction, low-energy equipment can not only reduce users' operating costs, but also meet environmental protection requirements. Under long-term continuous operation, lower input power can significantly reduce energy consumption and save users a lot of electricity expenses.

Speed: The speed reaches 2635rpm. A higher rotational speed is one of the key factors in achieving high flow and high pressure. The high-speed rotating impeller can quickly suck in and exhaust air, generating strong airflow and providing powerful power support for the ventilation system. At the same time, the stable speed also ensures the stability and reliability of the fan operation.

Analysis of Product Features

Efficient aerodynamic design: The R3G190-RB01-06 centrifugal fan is designed using advanced aerodynamic principles. The shape of the impeller and the angle of the blades have been carefully optimized, making the flow of air inside the impeller smoother, reducing energy loss, and improving ventilation efficiency. This efficient design not only enables high flow and high pressure air delivery, but also reduces the energy consumption of the fan, achieving energy-saving effects.

High quality material selection: The casing of the fan is made of sturdy and durable materials, which have good impact resistance and corrosion resistance. In practical use, fans may face various complex environments, such as collisions with external forces, contact with corrosive substances, etc. A sturdy casing can effectively protect the internal components of the fan from damage and extend the service life of the fan. At the same time, key components such as impellers are also made of high-strength and lightweight materials, which not only ensure the strength of the structure, but also reduce the weight, lower the load on the motor, and further improve energy efficiency.

Stable and reliable motor: The high-performance motor equipped is the core guarantee for the stable operation of the fan. The motor has the characteristics of high efficiency and stability, and can maintain good performance during long-term continuous operation. Its good insulation performance can prevent the occurrence of faults such as leakage and short circuit, ensuring the safe operation of the equipment. In addition, the heat dissipation design of the motor is reasonable, which can timely dissipate the heat generated during operation, avoid damage to the motor due to overheating, and improve the reliability and stability of the fan.

Low noise operation: Although the product does not indicate noise parameters, a series of measures have been taken in the design and manufacturing process to reduce the noise during fan operation. By optimizing the balance performance of the impeller, the vibration and noise caused by imbalance have been reduced; The use of shock-absorbing materials reduces the transmission of vibration. These measures make the noise generated by the fan during operation relatively small, providing users with a relatively quiet usage environment, suitable for places with high noise requirements, such as offices, laboratories, etc.

Applicable scenarios and values

The R3G190-RB01-06 centrifugal fan, with its outstanding performance and features, is suitable for a variety of different scenarios. In the industrial field, it can be used for ventilation and heat dissipation in mechanical processing workshops, electronic manufacturing workshops, and other places to ensure the air quality of the production environment and the normal operation of equipment; In the commercial field, it can be applied to shopping malls, restaurants, offices and other places to provide comfortable indoor environments for customers and employees; In the civilian field, it can be used for ventilation in household kitchens, bathrooms, and other spaces to improve indoor air quality.

This fan, with its advantages of high efficiency, energy saving, stability, and low noise, provides users with a reliable ventilation solution that can effectively improve ventilation efficiency, reduce operating costs, and contribute to the development of various fields.
