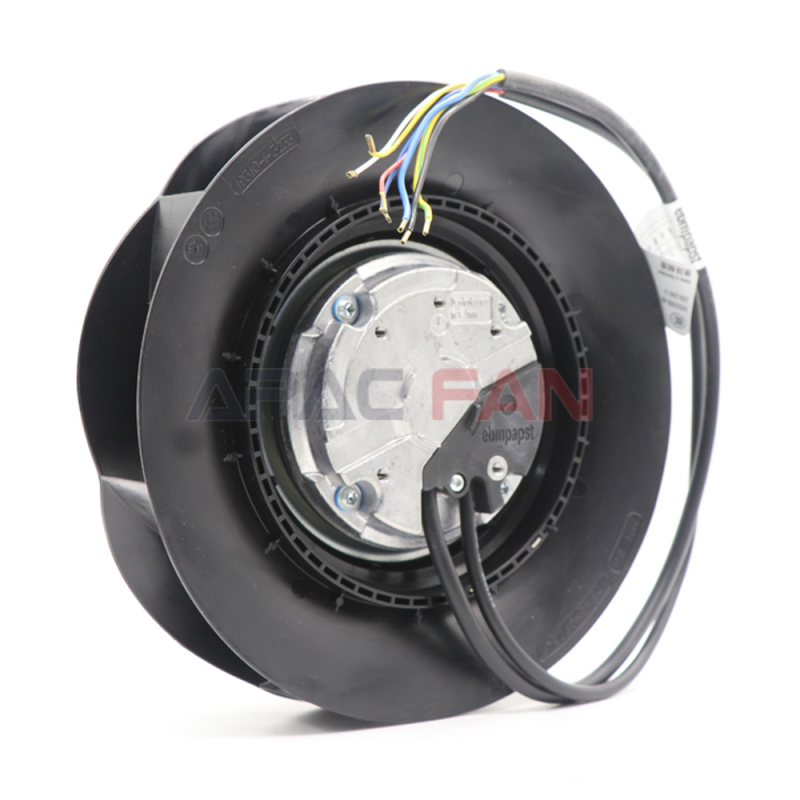

R3G190-RC05-03 ebm-papst

Firstly, the power of a brand cannot be ignored. ebm-papst is a company with a deep foundation and excellent reputation in the wind turbine manufacturing industry. For many years, it has held an important position in the global wind turbine market due to its continuous innovation in technology, strict control over quality, and precise insight into market demand. So, when we see that the R3G190-RC05-03 fan is from ebm-papst, we already have some confidence in its quality.

Next, let's take a look at the specific parameters of this fan. It belongs to the centrifugal fan type, which is widely used in industrial and commercial fields. The working principle of a centrifugal fan is to use the centrifugal force generated by the rotation of the impeller to transport air, which has the characteristics of large air volume and high pressure.

Its rated voltage is 230V, which is a common industrial and commercial electrical voltage. Using such a rated voltage means that it can be easily connected to the power system of most places without the need for additional voltage conversion equipment, which not only reduces costs but also improves the convenience of use.

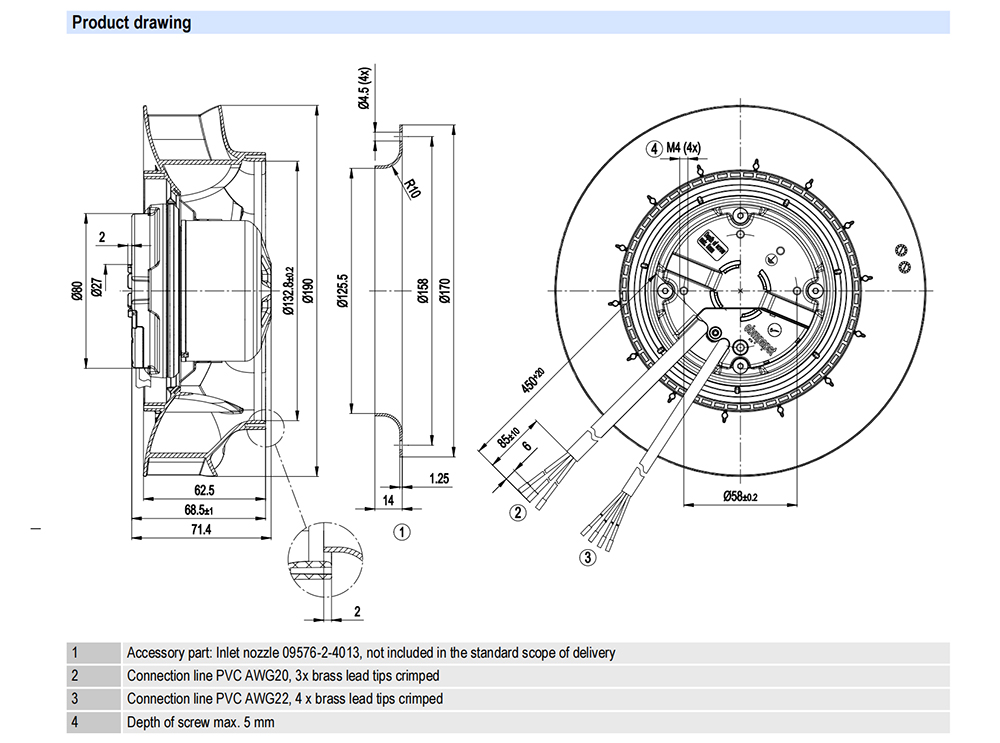

The size of the fan is 190 millimeters, which is relatively small. In many places with limited space, such as small cabinets and compact equipment interiors, it can be easily installed without taking up too much space, providing more possibilities for the overall layout of the equipment.

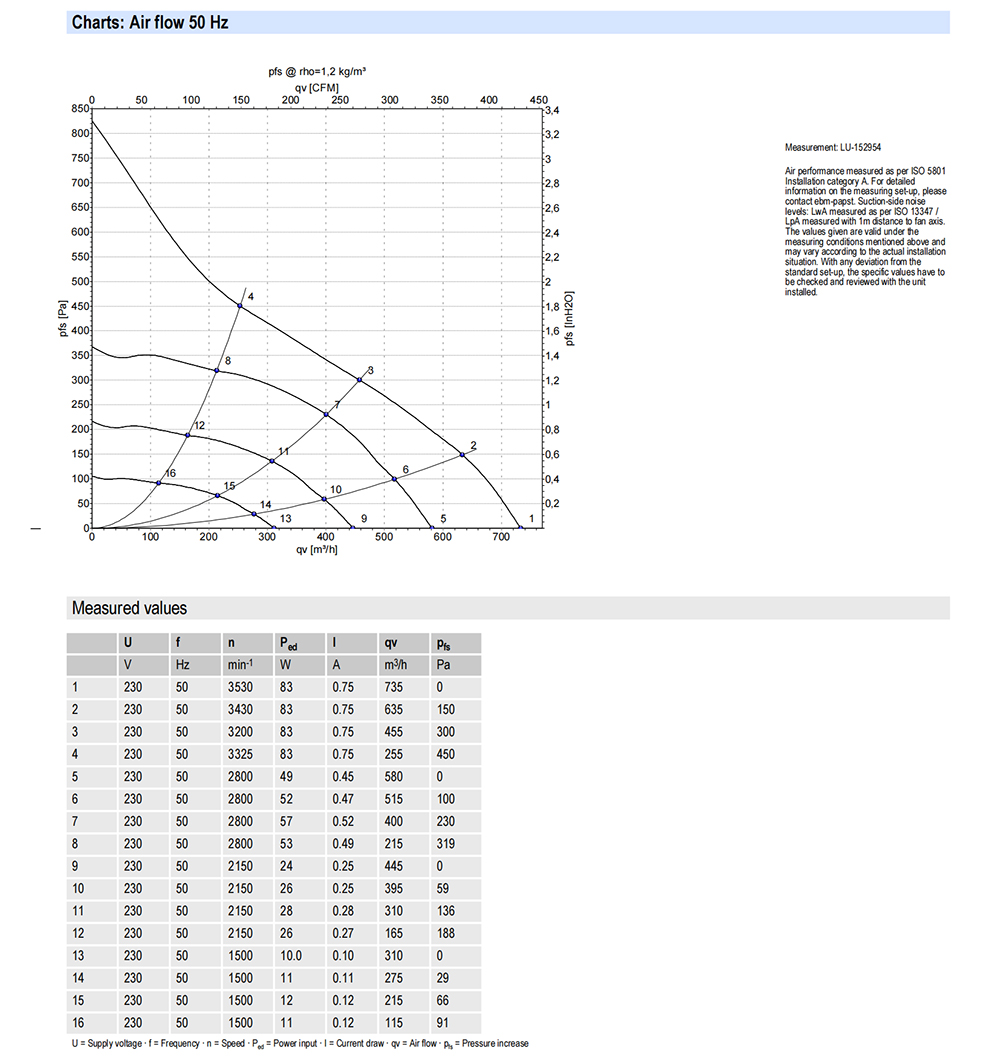

Let's talk about its performance parameters again. The maximum air volume can reach 735m³/h, which means it can transport a large amount of air per unit time. For some places that require rapid ventilation and air exchange, such as small workshops, warehouses, etc., such air volume can effectively meet the ventilation needs, ensuring the circulation and freshness of air.

The maximum pressure is 450Pa, and the higher pressure makes it perform well in overcoming ventilation duct resistance. Even if the ventilation duct is long, has many bends, or has certain blockages, it can still smoothly transport air to the designated location, ensuring the normal operation of the ventilation system.

The input power is 83W, although the power is not particularly low, considering the large air volume and high pressure it can provide, this power is still quite reasonable. While ensuring efficient ventilation, it does not consume too much electricity and has a good energy efficiency ratio.

The rotational speed reaches 3530rpm, and a higher rotational speed is one of the key factors for achieving high air volume and high pressure. The high-speed rotating impeller can quickly suck in and exhaust air, thereby generating a strong airflow.

From the perspective of design features, the R3G190-RC05-03 centrifugal fan adopts an efficient impeller design. The shape of the impeller and the angle of the blades have been carefully optimized to make the flow of air inside the impeller smoother, reduce energy loss, and improve ventilation efficiency. At the same time, high-strength and lightweight materials are selected for the impeller, which not only ensures the structural strength of the impeller, but also reduces its weight, lowers the load on the motor, and further improves energy efficiency.

The casing of the fan is made of sturdy and durable materials, which have good impact resistance and corrosion resistance. In actual use, the fan may be subjected to various external impacts and harsh environments. A sturdy casing can effectively protect the internal components of the fan from damage and extend its service life. Moreover, the sealing performance of the shell is good, which can prevent impurities such as dust and moisture from entering the interior of the fan, ensuring the normal operation of the fan.

In terms of motors, it is equipped with high-performance motors. Electric motors have the characteristics of high efficiency and stability, and can maintain good performance during long-term continuous operation. The insulation performance of the motor is good, which can effectively prevent the occurrence of faults such as leakage and short circuit, ensuring the safe operation of the equipment. At the same time, the heat dissipation design of the motor is reasonable, which can timely dissipate the heat generated during operation, avoiding damage to the motor due to overheating.

The R3G190-RC05-03 centrifugal fan also has good vibration and noise control performance. Although the noise parameters have not been clearly labeled, in the design and manufacturing process, measures such as optimizing the balance performance of the impeller and using shock-absorbing materials have effectively reduced the vibration and noise during fan operation, providing users with a relatively quiet usage environment.

Overall, the R3G190-RC05-03 centrifugal fan from ebm-papst is a high-performance and well-designed ventilation device. It can meet the ventilation needs of various places with its suitable size, strong ventilation capacity, efficient operating performance, and reliable quality, and can play an important role in industrial production, commercial places, and other fields. If you are looking for a high-quality centrifugal fan, then R3G190-RC05-03 is definitely worth considering.
