| Brand： | ebm-papst |
| Part No： | R3G220-RC05-07 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 220 |

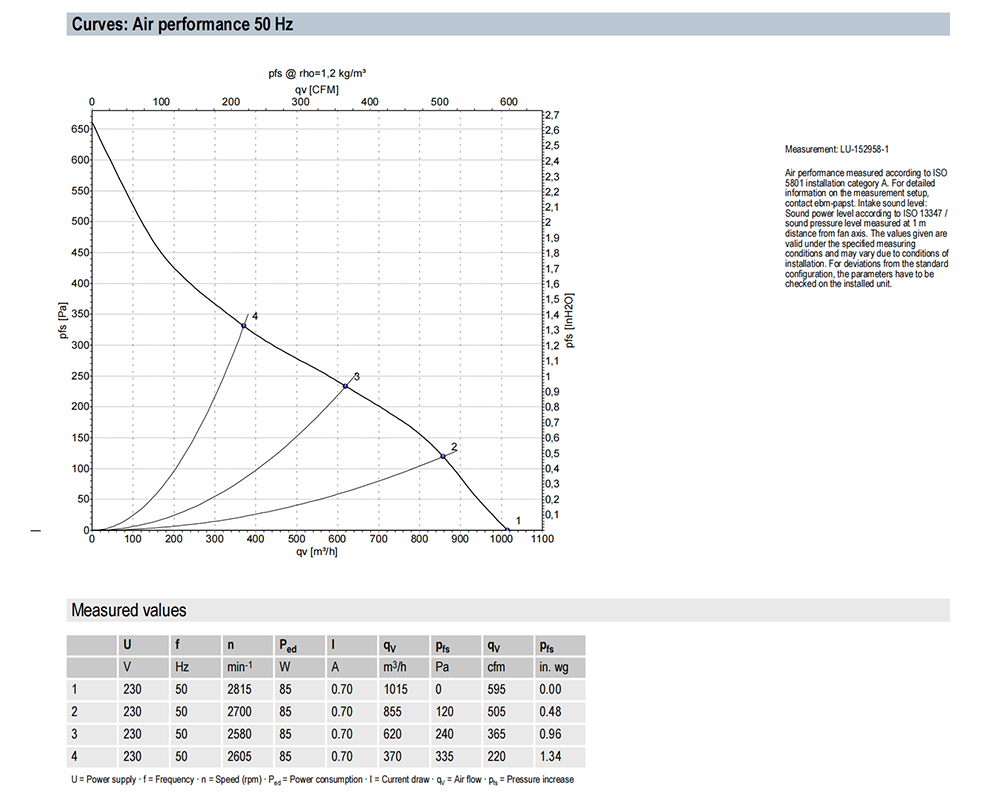

| Max.Air Flow(m³/h)： | 1015 |
| Max.Pressure(Pa)： | 335 |
| Input Power(W)： | 85 |
| Speed(rpm)： | 2815 |
| Noise(dB)： | N/A |
| Weight: | 0.97 kg |
| Rotor Surface: | Unpainted |
| Impeller Material: | PA plastic |
| Number of Blades: | 7 |
| Direction of Rotation: | Clockwise, viewed toward rotor |
| Degree of Protection: | IP54 |
| Insulation Class: | "B" |
| Moisture (F) / Environmental (H) Protection Class: | H1 |
| Max. Permitted Ambient Temp. For Motor (Transport/Storage): | + 80 °C |
| Min. Permitted Ambient Temp. For Motor (Transport/Storage): | - 40 °C |
| Installation Position: | Any |
| Condensation Drainage Holes: | None, open rotor |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | - Motor current limitation - Soft start - Thermal overload protection for electronics/motor |
| EMC Immunity To Interference: | According to EN 61000-6-2 (industrial environment) |
| EMC Circuit Feedback: | According to EN 61000-3-2/3 |
| EMC Interference Emission: | According to EN 61000-6-3 (household environment) |
| Touch Current According To IEC 60990 (Measuring Circuit Fig. 4, TN System): | <= 3.5 mA |

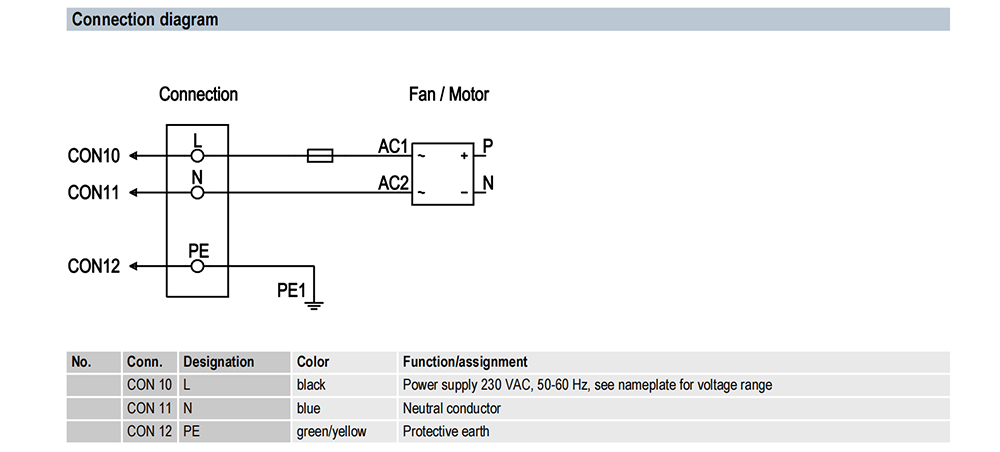

| Electrical Hookup: | STK |
| Motor Protection: | Electronic motor protection |
| With Cable: | Variable |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity With Standards: | EN 60335-1; CE |
| Approval: | CCC; C22.2 No.77 + CAN/CSA-E60730-1; UL 1004-7 + 60730 |
