ebm-papst R3G225-RE07-03: The High-Performance Centrifugal Fan Redefining Data Center Cooling

In the ever-evolving world of data centers, where equipment density continues to rise and heat dissipation becomes increasingly challenging, the need for robust, efficient cooling solutions has never been greater. Enter the ebm-papst R3G225-RE07-03—a centrifugal fan engineered to tackle the most demanding thermal management tasks in modern data centers. As a flagship offering from ebm-papst, a global pioneer in air movement and motor technology, this fan combines exceptional performance, durability, and smart control features, making it a game-changer for data center operators seeking to optimize cooling efficiency and ensure uninterrupted equipment operation.

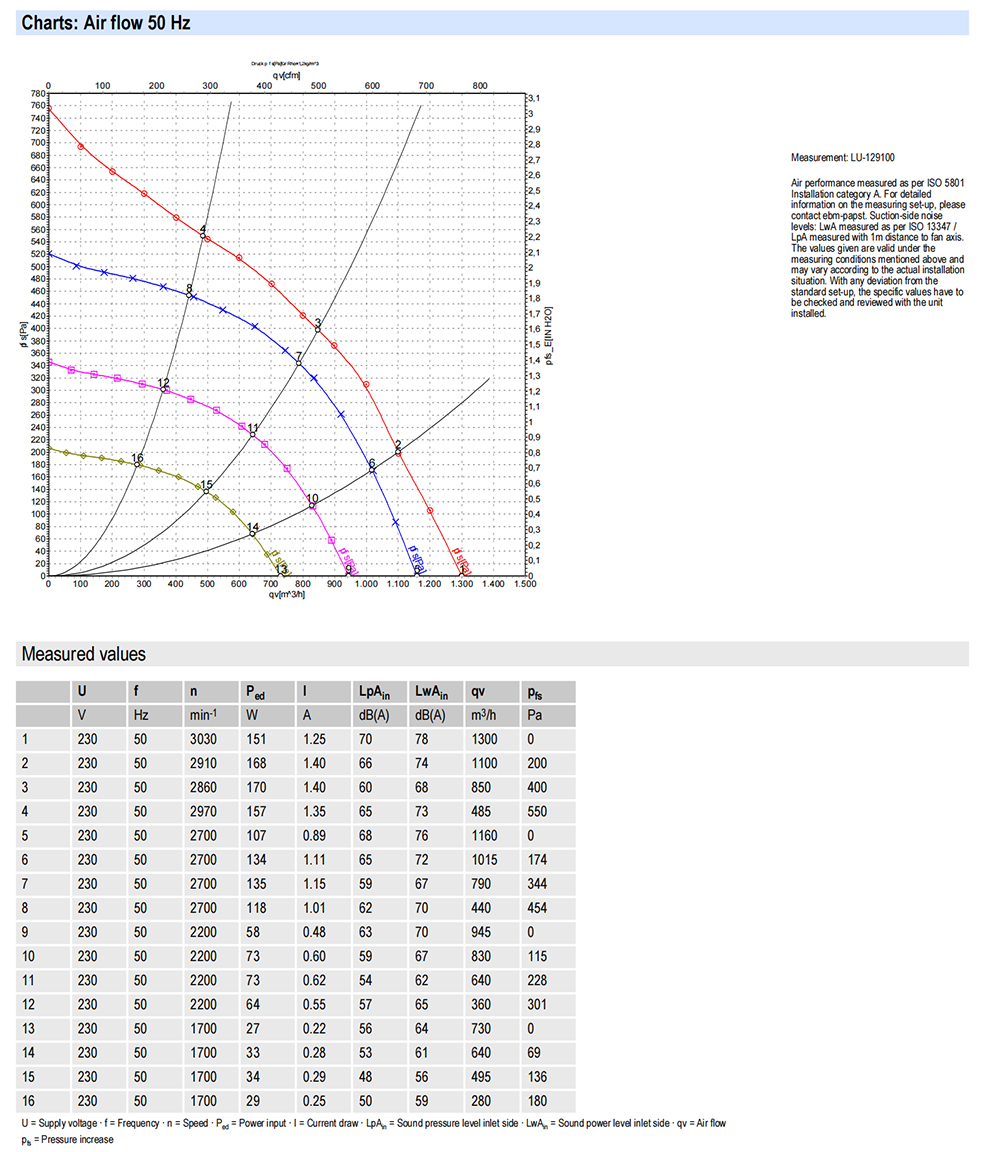

At first glance, the R3G225-RE07-03’s technical specifications reveal its readiness for data center challenges. Designed for 230V operation, it aligns seamlessly with the standard electrical infrastructure of most commercial and industrial data centers, eliminating the need for costly power adaptations. Its 170W input power delivers the muscle required to drive high cooling output, while its impressive 3030 rpm speed ensures rapid air circulation—critical for dissipating heat from dense server racks, storage arrays, and networking gear. What truly sets this centrifugal fan apart, however, is its cooling capacity: a maximum air flow of 1300 m³/h and a maximum pressure of 550 Pa. Unlike axial fans that excel in low-pressure, high-flow scenarios, centrifugal fans like the R3G225-RE07-03 thrive in applications requiring airflow to overcome significant resistance—such as data center cooling systems with complex ductwork, high-efficiency air filters, or enclosed server enclosures. This combination of high flow and pressure means the fan can deliver consistent cooling even in large-scale data centers or those with intricate airflow architectures, preventing hotspots that lead to performance throttling or hardware failure.

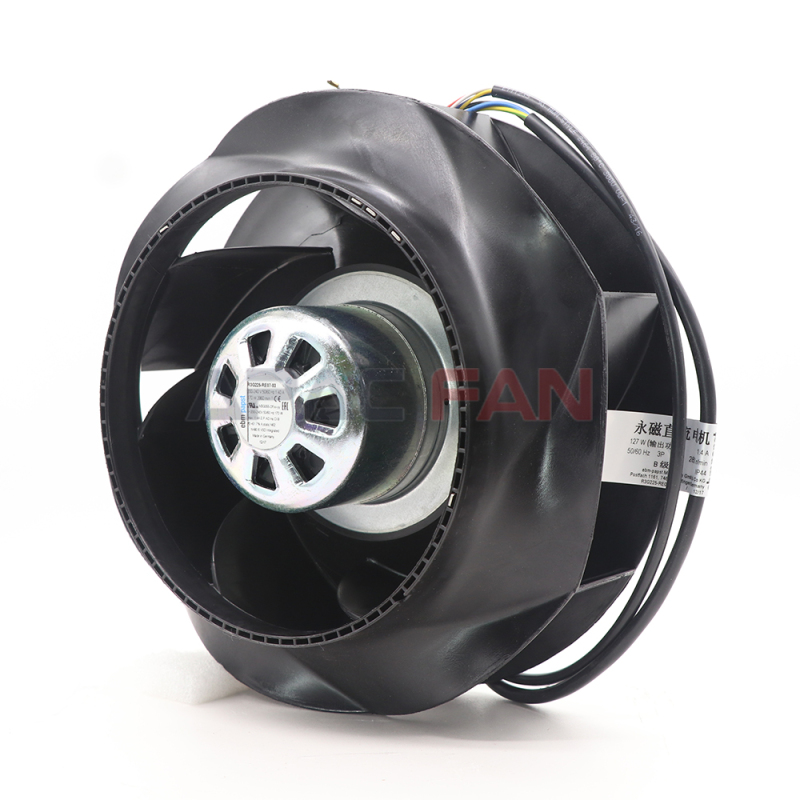

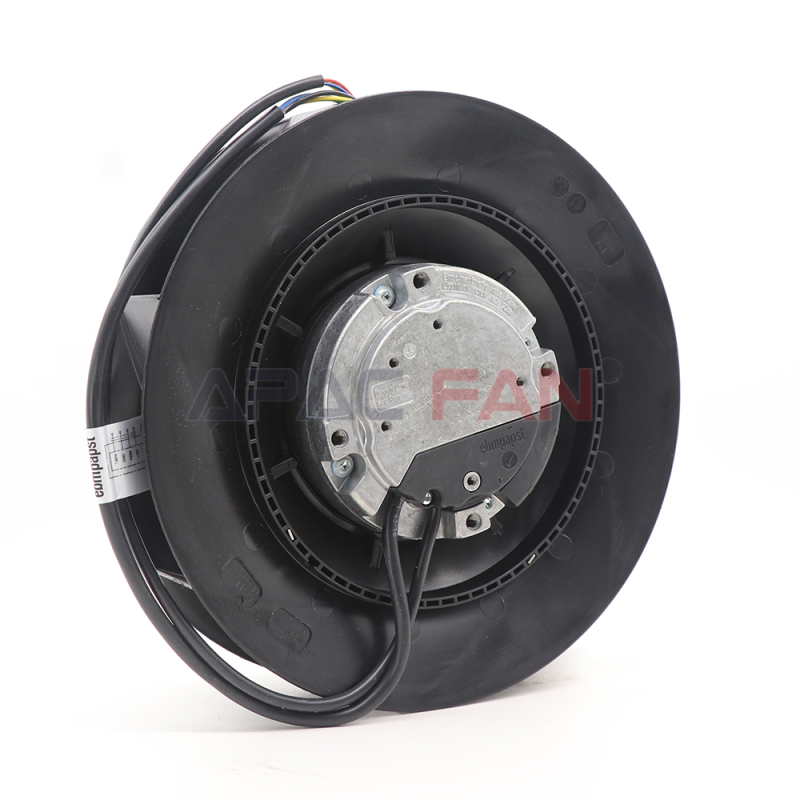

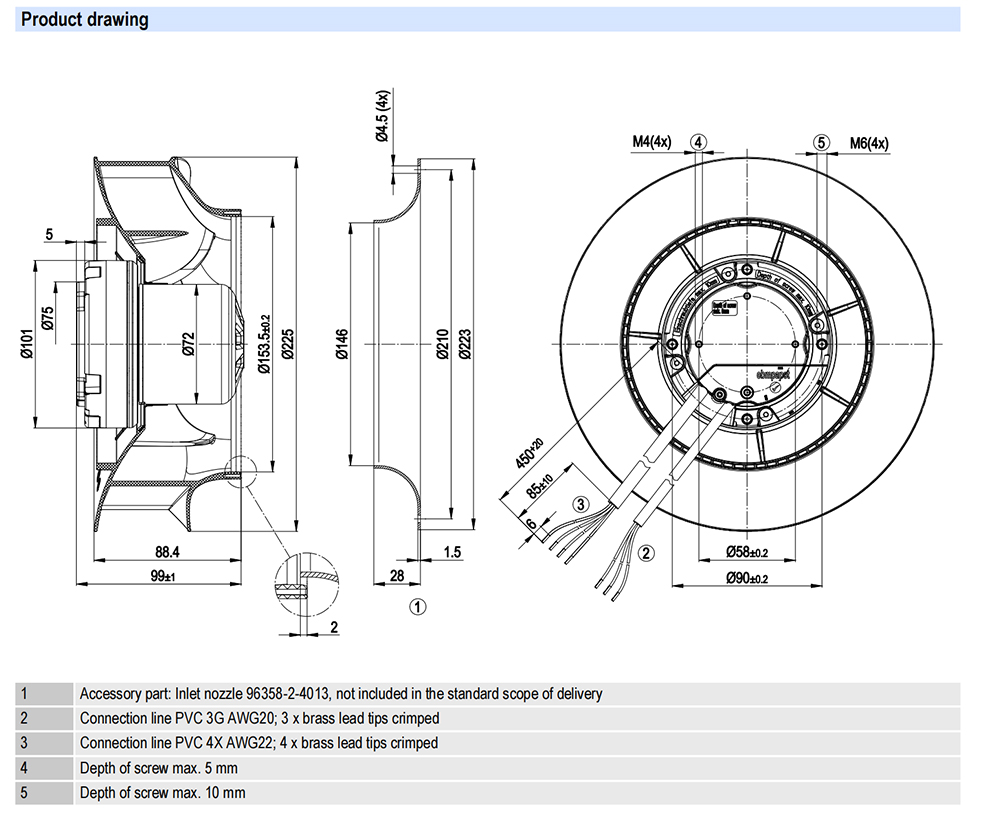

The fan’s physical design and material selection further underscore its suitability for data center environments. With a 225mm size and 1.75kg mass, it strikes a balance between compactness and stability—easy to integrate into in-row cooling units, overhead duct systems, or rack-mounted cooling modules, yet sturdy enough to withstand the constant vibration and operational stress of 24/7 data center use. The impeller, crafted from fibreglass-reinforced PA6 plastic, offers a winning blend of light weight and durability. Fibreglass reinforcement enhances impact resistance and thermal stability, ensuring the impeller maintains its shape and performance even at the fan’s high operating speed and in temperatures ranging from -40°C to +80°C (transit/storage). The rotor’s thick passivated surface adds an extra layer of protection against corrosion and dust buildup—common in data centers—while the die-cast aluminium electronics housing provides robust shielding for internal components, safeguarding them from physical damage and environmental contaminants. The seven-blade design of the impeller is no accident either: it is optimized to maximize airflow efficiency while minimizing turbulence, contributing to the fan’s relatively low 54dB noise level—a key advantage for data centers where noise reduction improves working conditions for on-site staff and aligns with occupational health standards.

Reliability is a non-negotiable requirement for data center cooling components, and the R3G225-RE07-03 is built to deliver. Equipped with ball bearings, it ensures smooth operation and extended lifespan—critical for fans that run continuously. Ball bearings reduce friction compared to sleeve bearings, translating to lower wear and tear and a mean time between failures (MTBF) that meets the long-term operational needs of data centers. The fan’s IP 54 protection rating is another reliability highlight: it shields internal components from dust ingress and splashing water, making it suitable for data center areas with higher humidity or potential moisture exposure (such as near cooling towers or in humid climates). The insulation class “B” rating provides thermal protection, ensuring the fan operates safely even when exposed to the warm ambient temperatures common in data center hot aisles. Additionally, the fan’s S1 operation mode (continuous duty) confirms its ability to run non-stop without overheating—a must for data centers that cannot afford cooling interruptions.

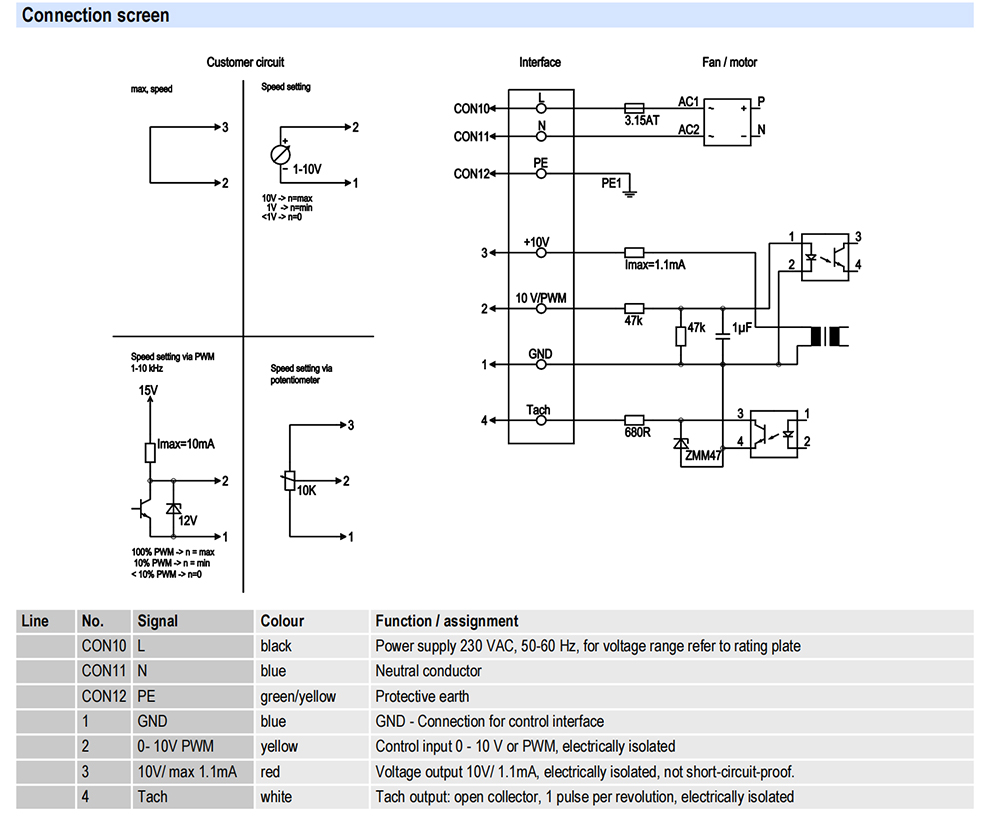

What truly elevates the R3G225-RE07-03 is its suite of smart technical features, designed to enhance controllability, safety, and energy efficiency. The fan includes a 0-10 VDC/PWM control input, allowing data center operators to adjust its speed dynamically based on real-time cooling demands. For example, during off-peak hours when server load is low, the fan can run at reduced speed to save energy; during peak usage, it can ramp up to full capacity to handle increased heat output. This variable speed capability not only cuts energy costs but also reduces wear on components, extending the fan’s lifespan. The tach output provides real-time speed feedback, enabling monitoring systems to track fan performance and alert operators to anomalies—such as unexpected speed drops that could indicate a mechanical issue.

Safety features are equally robust: over-temperature protection for both electronics and the motor prevents damage from excessive heat, while locked-rotor protection shuts down the fan if the impeller becomes jammed, avoiding motor burnout. Line undervoltage detection ensures the fan operates safely during power fluctuations, a common concern in data centers. The soft start function reduces inrush current when the fan powers on, protecting both the fan and the data center’s electrical system from voltage spikes. Even the touch current (≤3.5 mA per IEC 60990) is minimized, enhancing electrical safety for maintenance staff.

Global compliance is another strength of the R3G225-RE07-03. It meets the EN 60335-1 standard for electrical safety and holds certifications including CCC (China), UL 2111 (United States), and CSA C22.2 Nr.77 (Canada). This means data center operators can deploy the fan worldwide, ensuring consistent performance and adherence to local safety regulations—critical for multinational data center networks.

In practical data center applications, the R3G225-RE07-03 shines. In large-scale data centers with extensive ductwork, its high pressure capability ensures airflow reaches every corner of the facility, maintaining uniform temperatures. In high-density server racks, it pairs with in-row cooling systems to deliver targeted cooling, keeping CPUs, GPUs, and storage drives within optimal temperature ranges. Its “any mounting position” flexibility allows it to be installed in tight spaces or unconventional layouts, while the absence of condensate discharge holes (thanks to its open rotor design) simplifies installation and reduces maintenance needs.

Backed by ebm-papst’s global support network, the R3G225-RE07-03 comes with comprehensive technical documentation and access to expert service—ensuring data center operators can optimize installation, troubleshoot issues quickly, and minimize downtime.

In conclusion, the ebm-papst R3G225-RE07-03 centrifugal fan is a versatile, high-performance solution tailored to the unique demands of modern data centers. Its exceptional airflow and pressure, durable construction, smart control features, and global compliance make it an ideal choice for operators seeking to enhance cooling efficiency, improve reliability, and reduce operational costs. As data centers continue to scale and evolve, the R3G225-RE07-03 stands as a testament to ebm-papst’s commitment to innovation—and a reliable partner in keeping critical data center infrastructure cool and operational.
