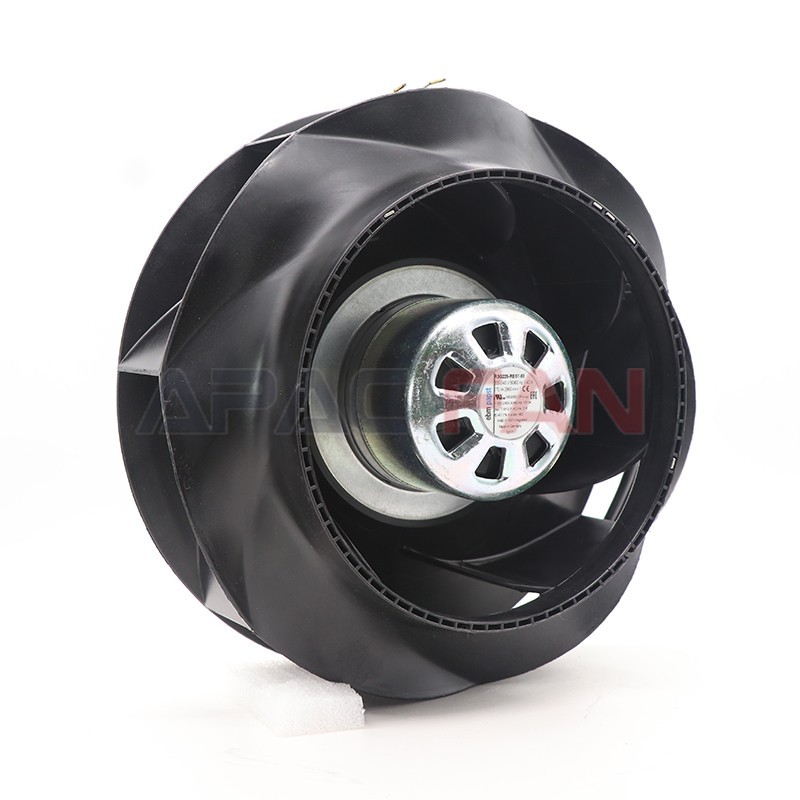

EC centrifugal fan - RadiCal®, backward curved
| Brand: | ebm-papst |
| Part No: | R3G225-RH17-11 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 230 |

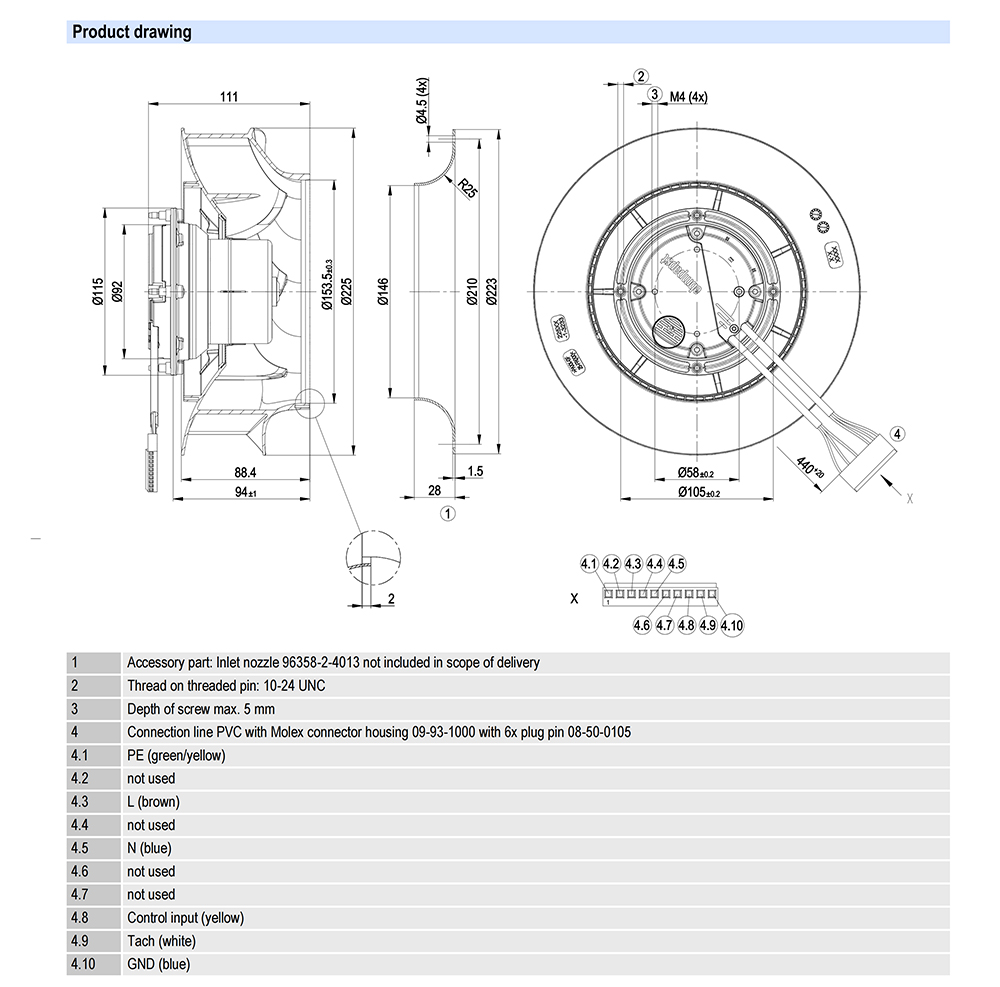

| Size(mm): | 225 |

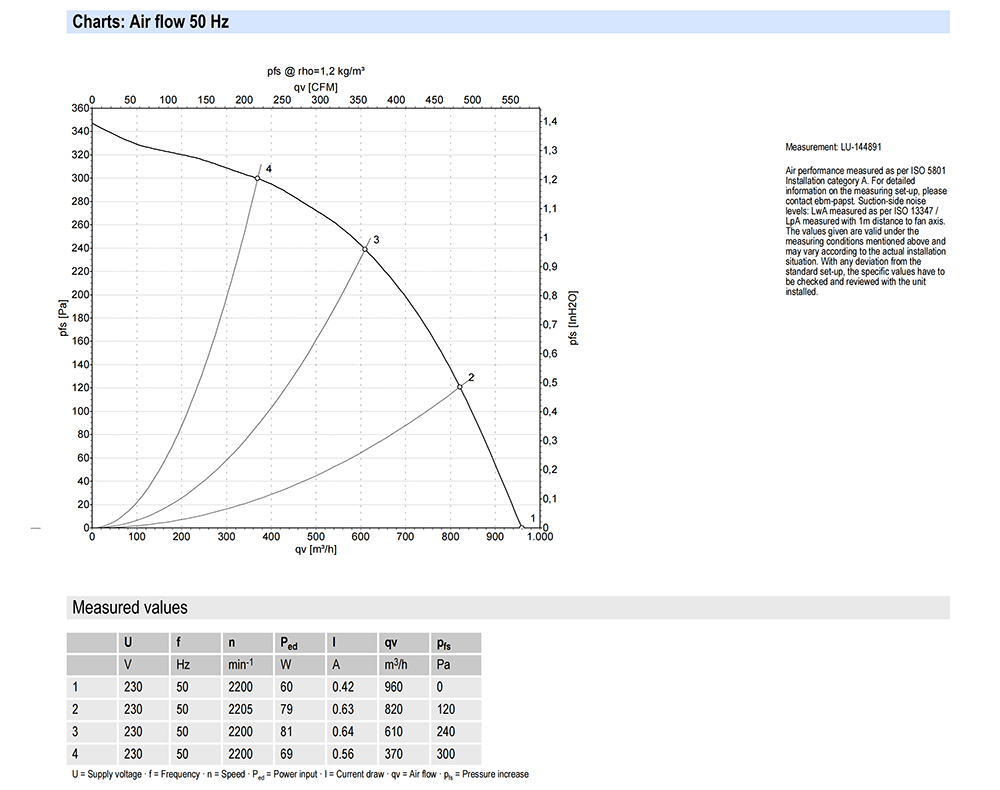

| Max.Air Flow(m³/h): | 960 |
| Max.Pressure(Pa): | 300 |
| Input Power(W): | 60 |
| Speed(RPM): | 2200 |
| Mass: | 1.5 kg |
| Surface of Rotor: | Thick layer passivated |
| Material of Electronics Housing: | Die-cast aluminium |
| Material of Impeller: | PA plastic |
| Number of Blades: | 7 |
| Direction of Rotation: | Clockwise, seen on rotor |
| Type of Protection: | IP 44 |
| Insulation Class: | "B" |
| Humidity Class: | F3-1 |
| Max. Permissible Ambient Motor Temp. (transp./ storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (transp./storage): | - 40 °C |
| Mounting Position: | Any |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |

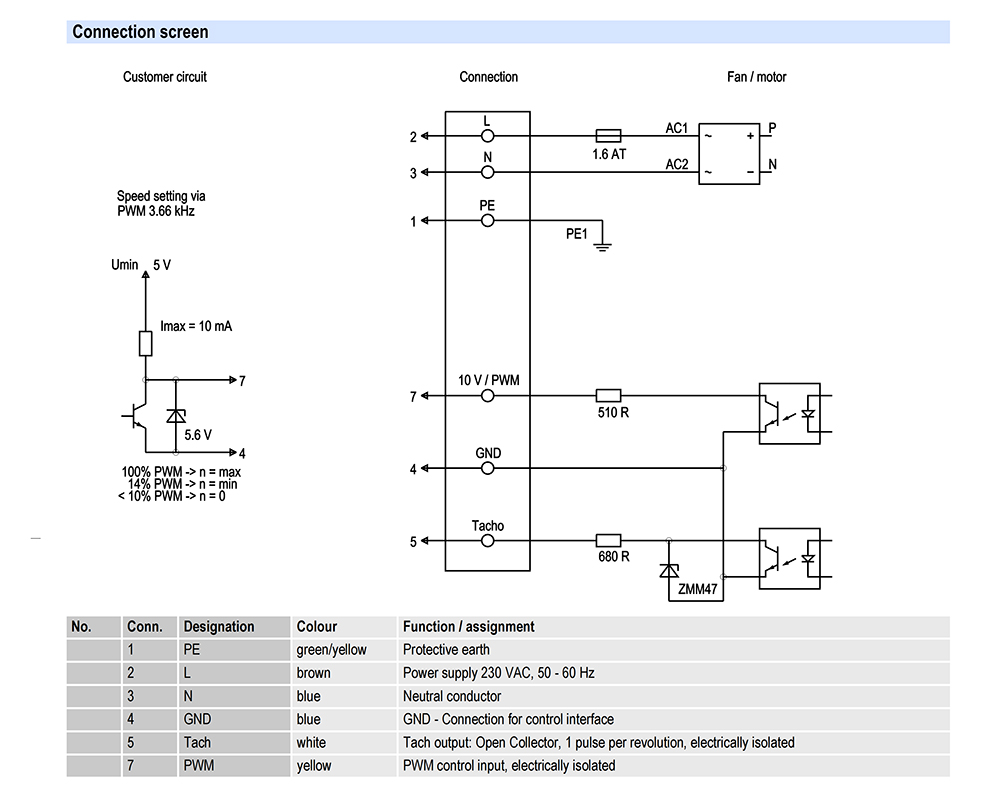

| Technical Features: | - Tach output - Motor current limit - Soft start - PWM control input |
| EMC Interference Immunity: | Acc. to EN 61000-6-2 (industrial environment) |
| EMC Harmonics: | Acc. to EN 61000-3-2/3 |
| EMC Interference Emission: | Acc. to EN 61000-6-3 (household environment) |
| Touch Current acc. IEC 60990 (measuring network Fig. 4, TN system): | <= 3.5 mA |
| Electrical Leads: | With plug |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Cable Exit: | Variable |
| Protection Class: | I (if protective earth is connected by customer) |
| Approval: | UL 2111; CSA C22.2 Nr.77 |
