R3G250-8317076409 ebm-papst

R3G250-8317076409 belongs to the centrifugal fan category. The working principle of the centrifugal fan is based on the high-speed rotation of the impeller, using centrifugal force to suck in and accelerate the air, and then directing the air to the outlet through the volute to achieve the function of ventilation. This type of fan usually has a higher pressure and a larger air volume, which is suitable for a variety of complex ventilation scenarios.

Product parameter analysis

Rated voltage: The rated voltage of this fan is 220V, which makes it easy to connect to common civil and industrial power systems without the need for additional power conversion equipment, improving the convenience and versatility of use.

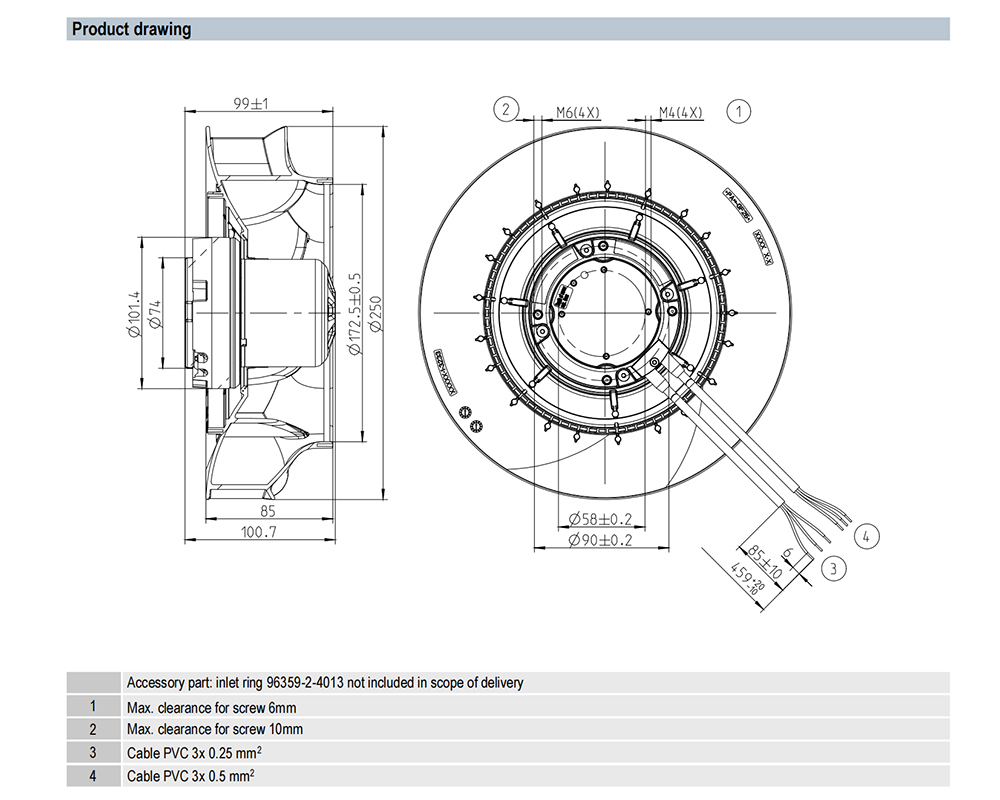

Dimensions: The size of the fan is 250 mm. Compared with some small fans, it has a larger volume and stronger ventilation capacity. At the same time, its reasonable size design also ensures that it can adapt to different space requirements during installation.

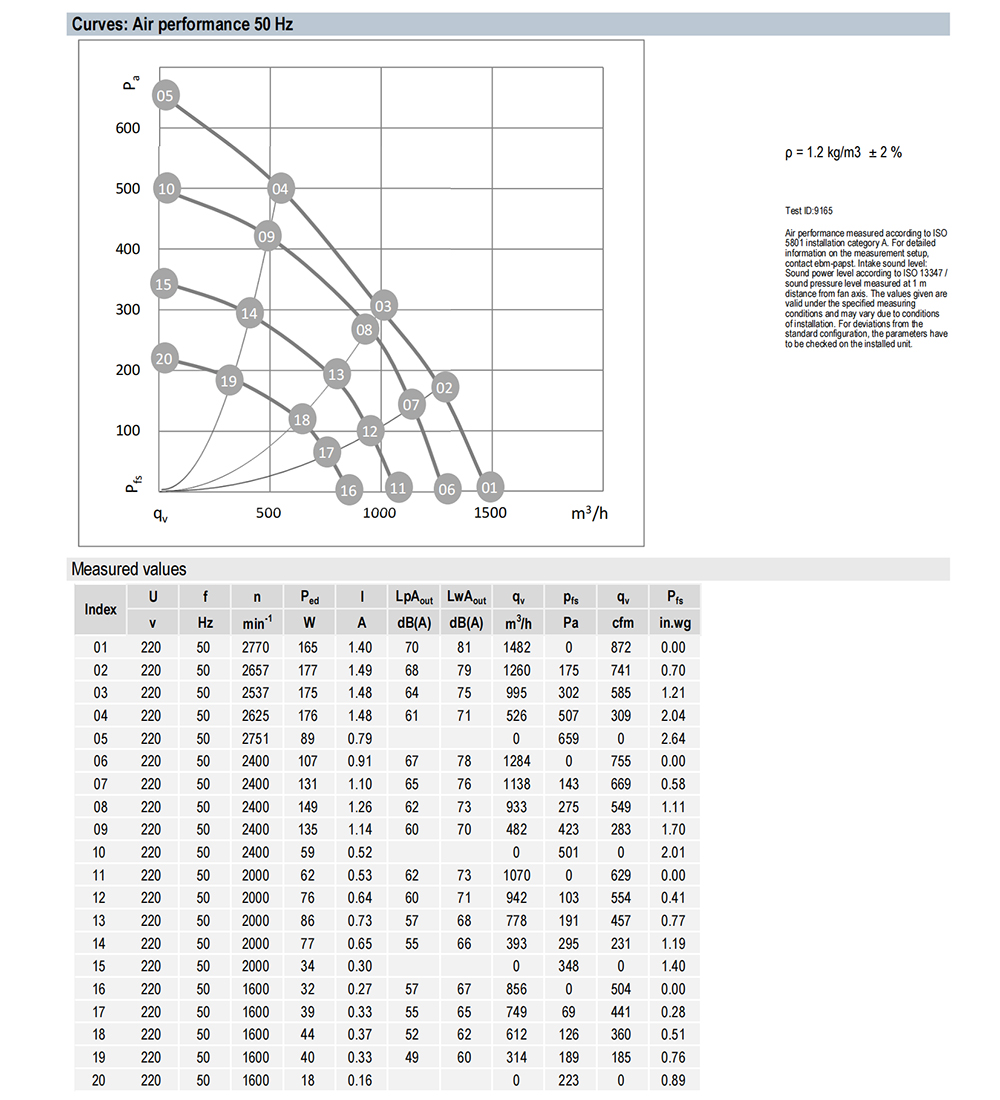

Maximum air volume: The maximum air volume can reach 1482m³/h, which means that the fan can deliver a large amount of air per unit time, meeting the needs of places with high ventilation requirements.

Maximum pressure: The maximum pressure is 659Pa. The higher pressure can ensure the smooth flow of air in the air duct, overcome certain resistance, and ensure the ventilation effect.

Input power: The input power is 170W. While ensuring efficient ventilation, the relatively low power consumption helps to reduce operating costs and achieve the goal of energy saving.

Speed: The speed is 2534rpm. The higher speed enables the fan to quickly inhale and exhaust air, thereby providing sufficient ventilation volume and pressure.

Noise level: The noise is only 49db. The lower noise level can create a quiet working and living environment for users and reduce the interference of noise to the human body.

Design highlights

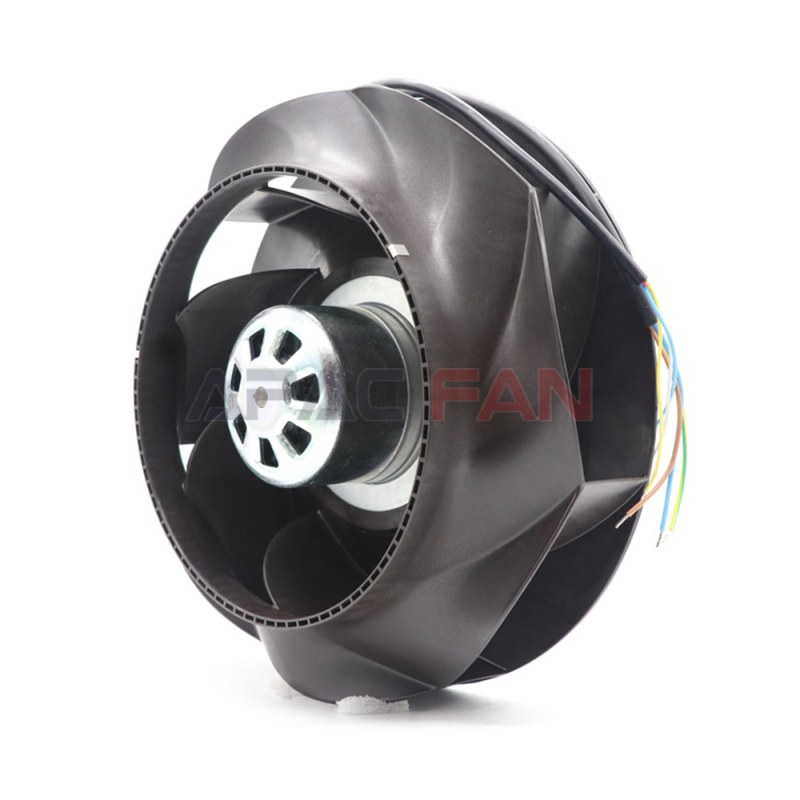

Efficient impeller design: The fan adopts an advanced impeller design concept. The shape and angle of its blades are carefully optimized to maximize the conversion of mechanical energy into kinetic energy and pressure energy of air, thereby improving the efficiency of the fan. At the same time, the material of the impeller has high strength and good wear resistance, which ensures the stability and reliability of the fan during long-term operation.

High-quality shell material: The shell of the fan is made of high-quality materials with excellent corrosion resistance and protection performance. The design of the shell can not only protect the internal components of the fan from the influence of the external environment, but also effectively reduce the noise generated by the fan during operation.

Good heat dissipation performance: During operation, the motor and other components inside the fan will generate heat. In order to ensure the normal operation of the fan and extend its service life, the fan adopts a reasonable heat dissipation design, which can dissipate the heat in time to avoid failures caused by overheating.

Performance advantages show

Stable ventilation performance: With its efficient impeller design and reasonable structural layout, the R3G250-8317076409 fan can provide stable ventilation volume and pressure to ensure that ventilation requirements can be met under different working conditions. Whether in the ventilation and air exchange of industrial plants or in the air-conditioning system of civil buildings, it can play an excellent performance.

Significant energy-saving effect: The low input power and high operating efficiency make the fan outstanding in energy saving. In the long-term operation process, it can save users a lot of energy costs, which meets the requirements of today's society for energy saving and environmental protection.

Low noise operation: The noise level of 49db makes the fan almost no interference to the surrounding environment during operation. This is of great significance for places with high noise requirements, such as hospitals, schools, offices, etc.

Scope of application

Industrial field: In industrial production, ventilation is required in many occasions to ensure the safety and comfort of the production environment. For example, in production workshops in chemical, electronic, mechanical and other industries, the fan can be used to remove harmful gases, dust and other pollutants to provide workers with a good working environment. At the same time, in some occasions where cooling equipment is required, such as transformers, motors, etc., the fan can also be used as cooling ventilation equipment.

Civil field: In civil buildings, the fan can be used for ventilation of air-conditioning systems to improve indoor air quality. In addition, in some commercial places, such as shopping malls, hotels, restaurants, etc., the fan can also be used to improve ventilation conditions and provide customers with a comfortable shopping and consumption environment.

R3G250-8317076409 Centrifugal fans have become an ideal choice in the field of ventilation with their excellent performance, reliable quality and wide applicability. Whether in industrial production or civil buildings, the fan can play an important role and provide users with high-quality ventilation solutions. With the continuous advancement of technology and the changing market demand, I believe that EBM-PAPST brand fan products will continue to innovate and improve, bringing more surprises and value to users.
