R3G280-AC66-30 ebm-papst

Interpretation of key parameters

Fan type: It belongs to centrifugal fans. The working principle of a centrifugal fan is to use the high-speed rotation of the impeller to move air from the center to the edge under the action of centrifugal force, and then discharge the air at a certain pressure through the volute. This working method enables centrifugal fans to perform well in ventilation systems that require overcoming certain resistance, effectively delivering air to designated locations.

Rated voltage: The rated voltage is 48V. The relatively low voltage requirement makes this fan safer to use and also suitable for places with special voltage requirements. It can be easily connected to the corresponding power system without the need for complex voltage conversion equipment, reducing the cost of use and installation difficulty.

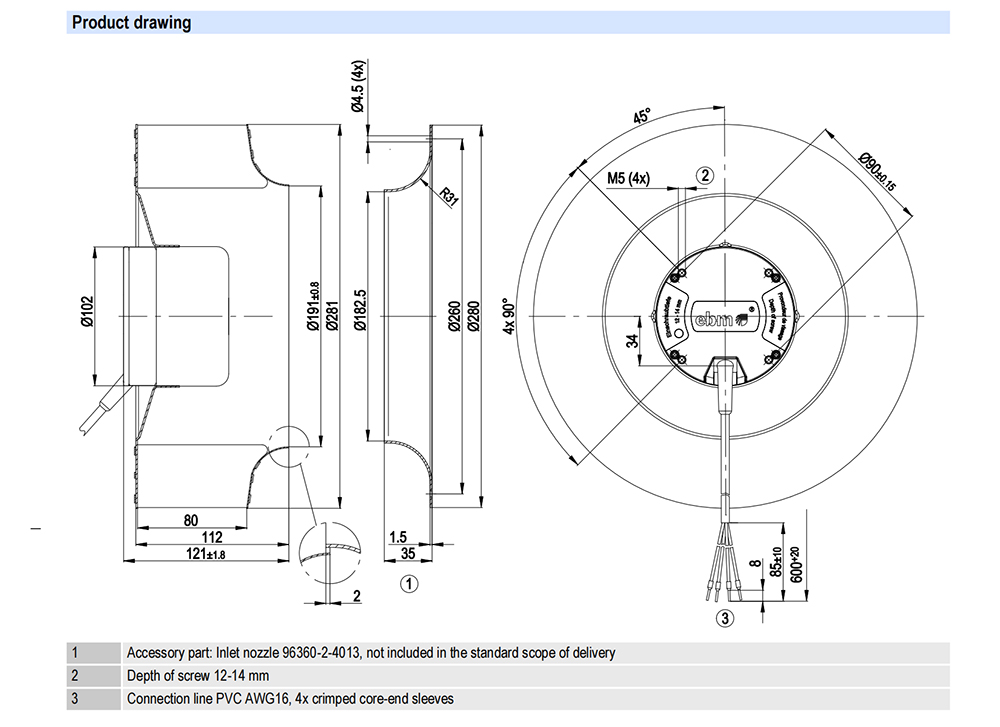

Size specification: The size of the fan is 280 millimeters. This size design ensures that the fan has sufficient ventilation capacity without taking up too much space. In some places with limited space, such as small computer rooms, narrow ventilation ducts, etc., it can be easily installed, providing more flexibility for the layout of ventilation systems.

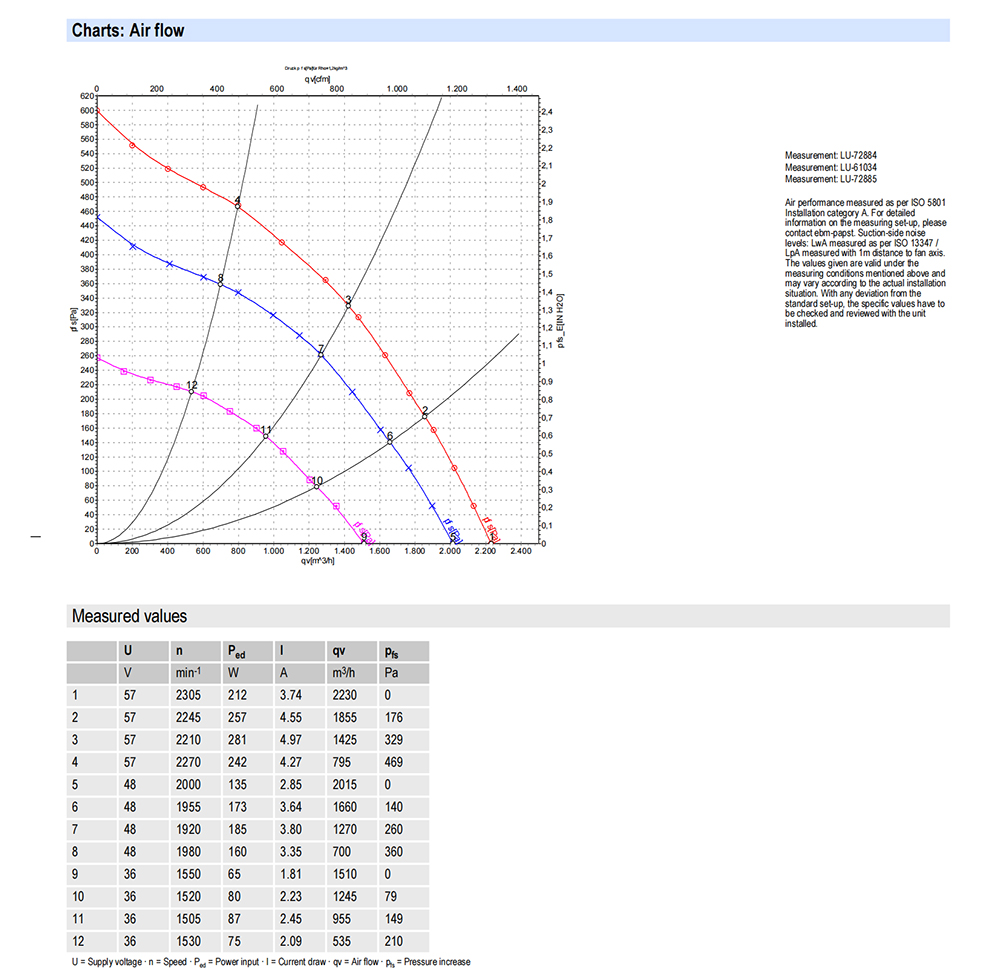

Maximum air volume: The maximum air volume can reach 2230m³/h. Although this air volume value may not be particularly large compared to some large fans, it can already meet the ventilation needs of many small and medium-sized places. It can quickly and effectively update indoor air, maintain fresh and circulating air, and create a comfortable environment for people.

Maximum pressure: The maximum pressure is 469Pa. The higher pressure output enables this fan to overcome greater resistance in the ventilation system and transport air over longer distances. It can work stably regardless of whether the ventilation duct is long or the system resistance is high, ensuring the achievement of ventilation effect.

Input power: The input power is 281W. This power is relatively reasonable while ensuring a large air volume and high pressure output. This means that the fan can achieve efficient ventilation with low energy consumption during operation, saving energy costs for users.

Speed: The speed is 2305rpm. The higher rotational speed provides powerful power to the fan, allowing it to quickly draw in and exhaust air. At the same time, a stable speed also ensures the stability and reliability of the fan operation, reducing faults and damage caused by speed fluctuations.

Analysis of Product Features

Efficient aerodynamic design: The impeller and volute of the fan are designed using advanced aerodynamic principles. The blade shape and angle of the impeller have been carefully optimized to make the flow of air inside the impeller smoother, reducing air turbulence and energy loss. The design of the snail shell can effectively collect and guide air, improving the efficiency of air discharge. This efficient design enables the fan to generate greater air volume and pressure under the same power input, greatly improving ventilation efficiency.

Selection of high-quality materials: The casing of the fan is made of high-strength and corrosion-resistant materials. In practical use, fans may face various harsh environmental conditions such as humidity, dust, chemical corrosion, etc. High quality shell materials can effectively resist the erosion of these factors, protect the internal components of the fan from damage, and extend the service life of the fan. The key components such as impellers are also made of lightweight and high-strength alloy materials, which not only ensure the strength of the structure, but also reduce the weight, lower the load on the motor, and improve the overall performance of the fan.

Stable and reliable motor: The equipped motor is the core of the stable operation of the fan. This motor has the characteristics of high efficiency, energy saving, and low noise. It adopts advanced electromagnetic design and manufacturing technology, which can maintain stable performance during long-term continuous operation. The insulation performance of the motor is good, which can effectively prevent the occurrence of faults such as leakage and short circuit, ensuring the safe operation of the equipment. At the same time, the cooling system of the motor is designed reasonably, which can timely dissipate the heat generated during operation, avoiding damage to the motor due to overheating.

Low noise operation: Although the product does not indicate noise parameters, a series of measures have been taken in the design and manufacturing process to reduce the noise during fan operation. By optimizing the balance performance of the impeller, the vibration and noise caused by imbalance have been reduced; The use of shock-absorbing materials and sound insulation structures reduces the propagation of noise. This makes the noise generated by the fan during operation relatively small, without causing significant interference to the surrounding environment and personnel, making it suitable for places with high noise requirements.

Application scenario outlook

Due to its outstanding performance and characteristics, the R3G280-AC66-30 centrifugal fan has broad application prospects in multiple fields.

Industrial field: In some small industrial plants, such as electronic processing plants, small machinery manufacturing plants, etc., a certain amount of heat and odor will be generated during the production process. This fan can be used as a ventilation device to discharge polluted indoor air, introduce fresh air, improve the working environment, and protect the health of employees. At the same time, in some industrial production processes that require high air circulation, such as painting workshops, printing workshops, etc., it can also play an important role in ensuring the smooth progress of the production process.

Business field: In commercial places such as shopping malls, supermarkets, hotels, etc., where people are dense, the air is prone to become polluted. The R3G280-AC66-30 centrifugal fan can be used as part of the central air conditioning system to provide sufficient fresh air indoors, maintain fresh and comfortable indoor air, and provide customers with a good shopping and consumption environment. In places such as cinemas and theaters, it can quickly update the air and meet the breathing needs of a large number of people.

In the civilian field: In some large residential buildings, villas and other places, in order to improve the comfort of living, a good ventilation system is needed. This fan can be used for whole house ventilation, expelling polluted indoor air and introducing fresh outdoor air. Especially in spaces such as kitchens and bathrooms that are prone to odors and humidity, it can effectively improve air quality and maintain dryness and freshness in the space.

summarize

The R3G280-AC66-30 centrifugal fan has become an excellent product in the field of ventilation due to its outstanding performance parameters, unique product features, and wide range of application scenarios. It not only meets the ventilation needs of different users, but also brings users an efficient, energy-saving, stable, and quiet user experience. I believe that in the future ventilation market, it will continue to play an important role in creating a more comfortable and healthy environment for people.
