 High-Performance Centrifugal Fan Design and Applications of the ebm-papst R3G310-AZ88-01​​

The ​​ebm-papst R3G310-AZ88-01​​ centrifugal fan is a versatile and robust solution engineered to meet the demanding requirements of industrial and commercial ventilation systems. Designed for reliability in harsh environments, this fan combines advanced aerodynamics, durable materials, and intelligent control features to deliver consistent airflow and pressure. With its compact footprint and modular design, the R3G310-AZ88-01 is widely adopted in sectors ranging from manufacturing and agriculture to HVAC and data center cooling. This article explores its technical architecture, operational advantages, and real-world applications in detail.

​​Engineering Design and Key Features​​

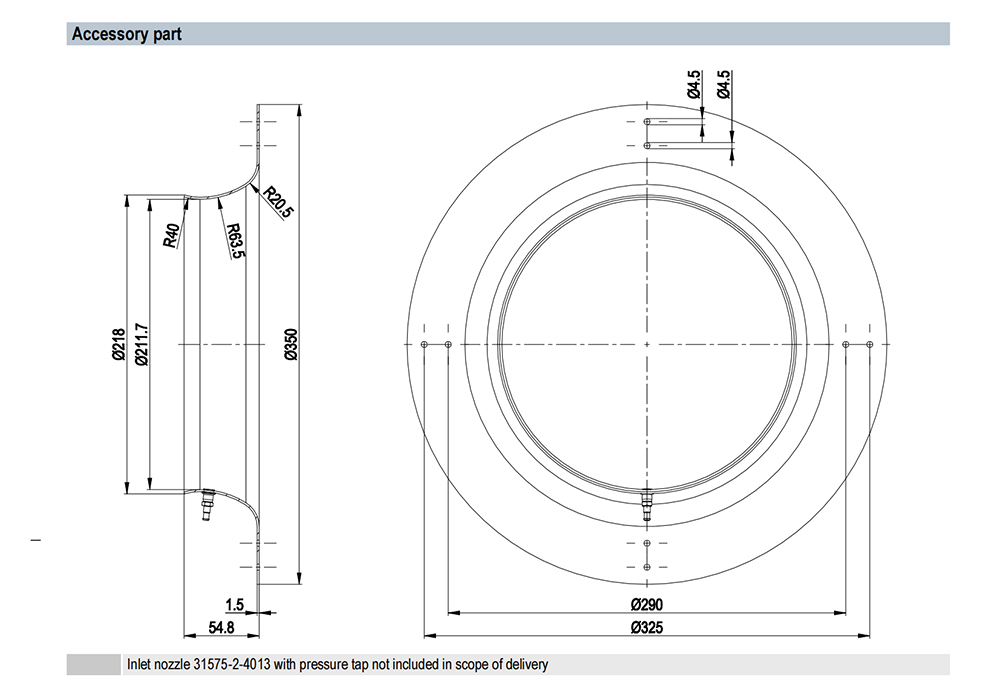

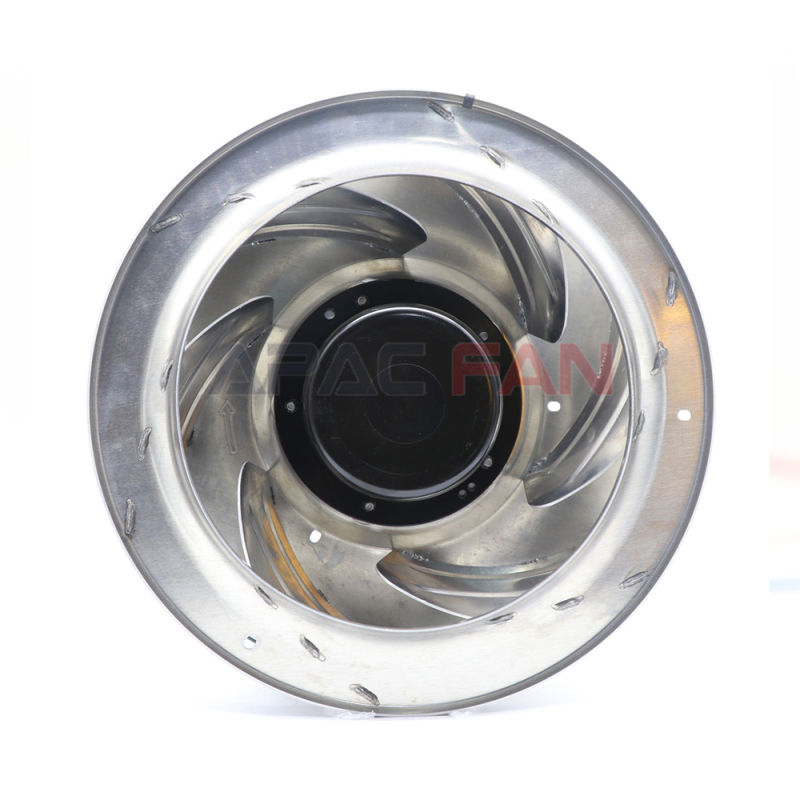

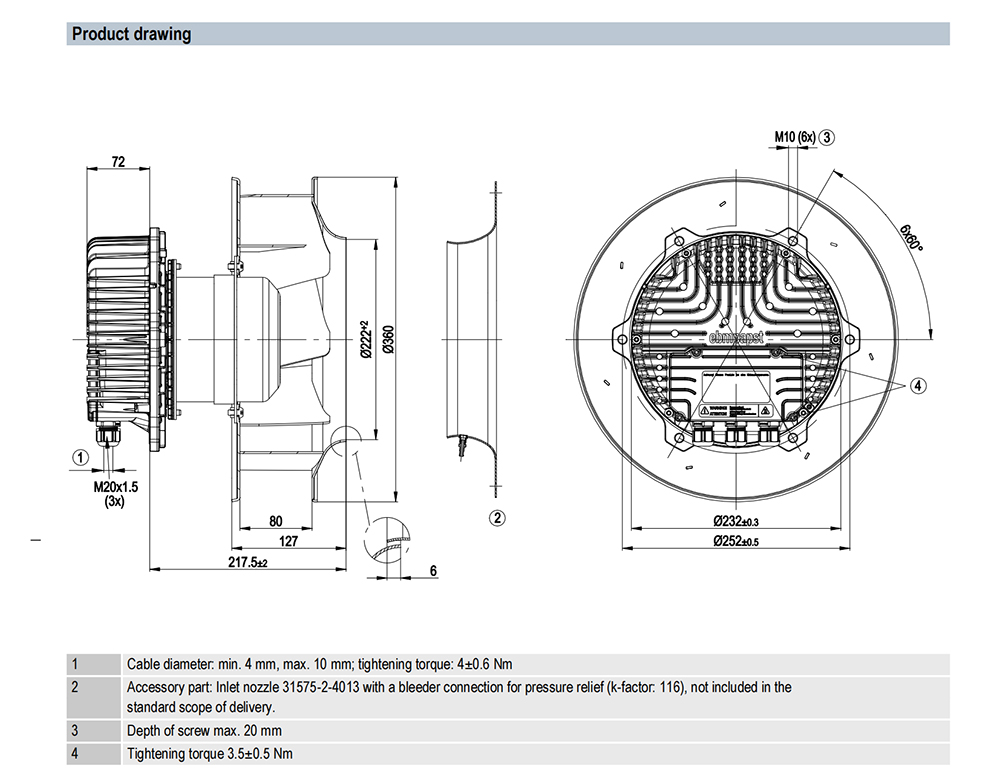

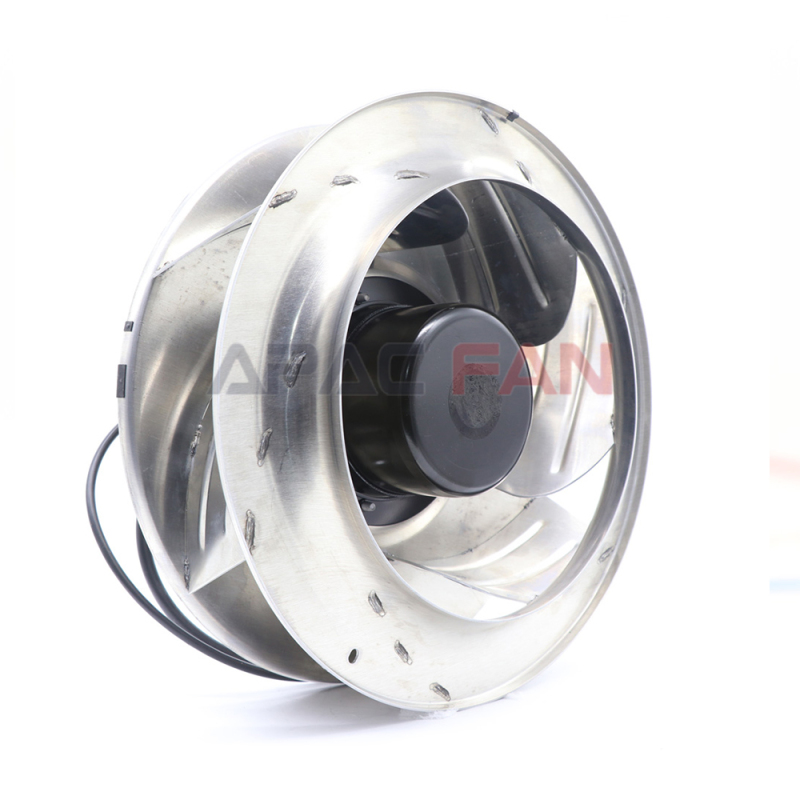

The R3G310-AZ88-01 is built around a ​​7-blade aluminum impeller​​, optimized for high airflow efficiency while maintaining structural integrity. The impeller’s sheet aluminum construction balances lightweight durability with resistance to corrosion, making it suitable for environments exposed to moisture, dust, or chemicals. The blades are arranged in a helical pattern to minimize turbulence and noise, ensuring smooth airflow even at peak speeds of 4100 RPM. The impeller’s black powder-coated finish further enhances its resistance to abrasion and UV degradation, extending service life in outdoor or high-humidity settings.

The fan’s ​​die-cast aluminum electronics housing​​ serves as a protective shield for sensitive components, safeguarding against physical impacts, dust ingress, and splashing water. This housing meets ​​IP54 protection standards​​, allowing operation in moderately damp or dusty conditions without compromising performance. The motor, rated at 3240W, is equipped with ​​precision-engineered ball bearings​​ that reduce friction and vibration, ensuring quiet operation and prolonged longevity. These bearings require minimal maintenance, as their design minimizes wear even under continuous high-speed operation.

Thermal management is addressed through the fan’s ​​Class B insulation​​ for the motor windings, which allows safe operation in ambient temperatures up to 40°C. Combined with ​​passive Power Factor Correction (PFC)​​, the motor reduces energy waste by optimizing electrical efficiency. This feature is particularly critical in industrial settings where power consumption directly impacts operational costs.

​​Versatile Installation and Environmental Adaptability​​

The R3G310-AZ88-01 offers unmatched flexibility in installation configurations. Its ​​shaft horizontal orientation​​ simplifies integration into ductwork, while the option for rotor-on-bottom or rotor-on-top mounting adapts to space-constrained layouts. For refrigeration or dehumidification systems, the ​​condensation drainage holes​​ on the rotor side prevent water pooling, reducing the risk of corrosion or microbial growth.

The fan’s ​​IP54-rated enclosure​​ ensures compliance with international safety standards, making it suitable for export to regions with varying regulatory requirements. Its ​​H1 moisture protection class​​ further addresses concerns in moderately humid environments, such as food processing plants or greenhouse ventilation systems.

For power-sensitive applications, the R3G310-AZ88-01 includes ​​thermal overload protection​​ and ​​reverse polarity safeguards​​ within its motor control circuitry. These features automatically shut down the unit if overheating or electrical faults occur, preventing damage to both the fan and connected systems.

​​Advanced Control and Integration Capabilities​​

The R3G310-AZ88-01 integrates a suite of intelligent features for automated system regulation. Its ​​built-in PID controller​​ uses feedback from connected sensors to adjust fan speed dynamically, optimizing energy use without manual intervention. For example, in HVAC systems, the PID controller can modulate airflow based on occupancy levels or temperature fluctuations, maintaining comfort while minimizing energy waste.

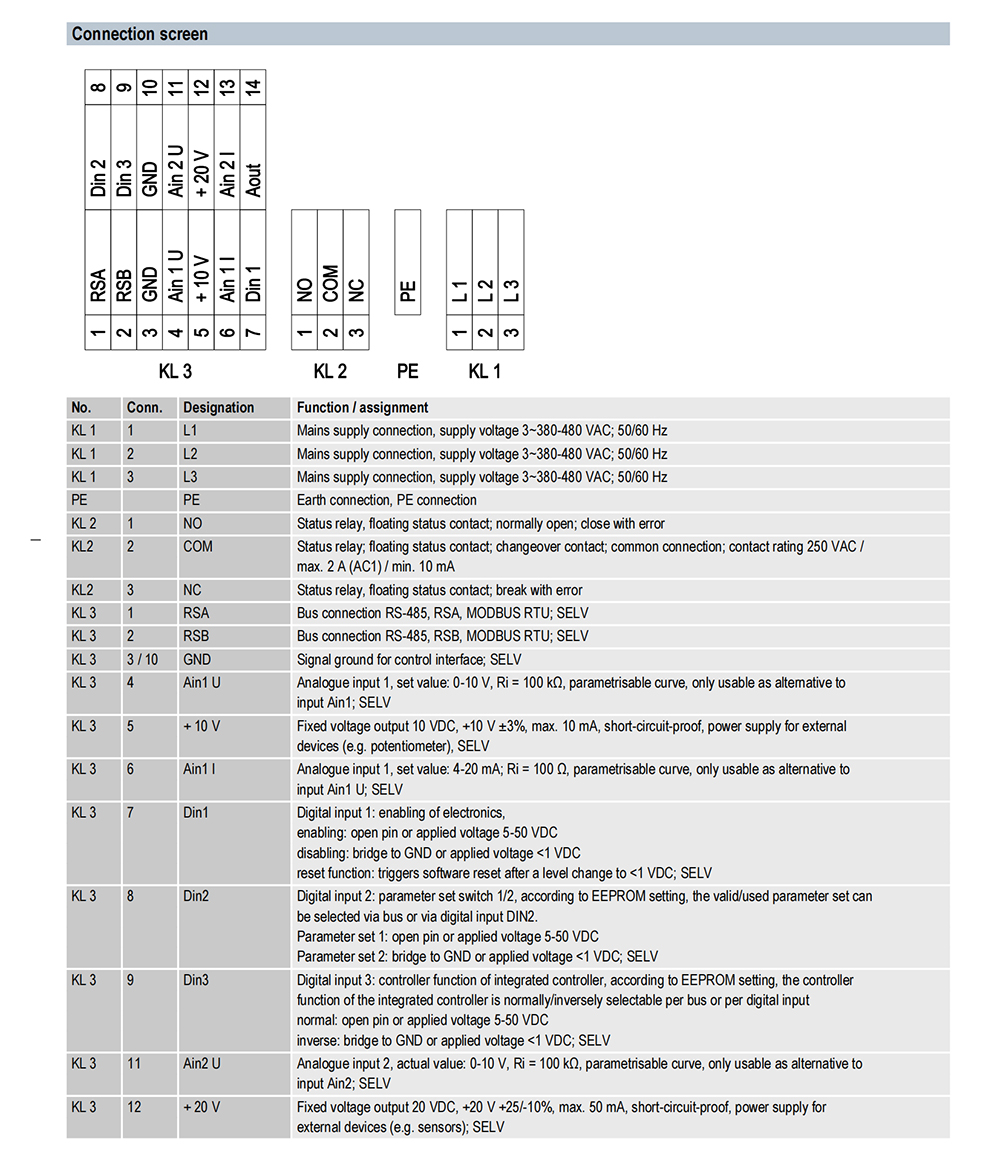

The fan supports ​​multiple control inputs​​, including 0-10 VDC, PWM, and 4-20 mA analog signals, enabling seamless integration with building management systems (BMS) or SCADA platforms. The ​​RS-485 MODBUS-RTU interface​​ allows multi-unit synchronization in large-scale installations, such as warehouse cooling networks or industrial exhaust systems. External 24V inputs further expand functionality, supporting custom safety protocols like emergency stop signals or phase-loss detection.

Notably, the fan’s ​​SELV-compliant control interface​​ ensures safe connections for sensors and actuators, reducing the risk of electrical hazards in healthcare or laboratory environments.

​​Applications in Industrial and Commercial Settings​​

​​1. Manufacturing and Process Ventilation​​

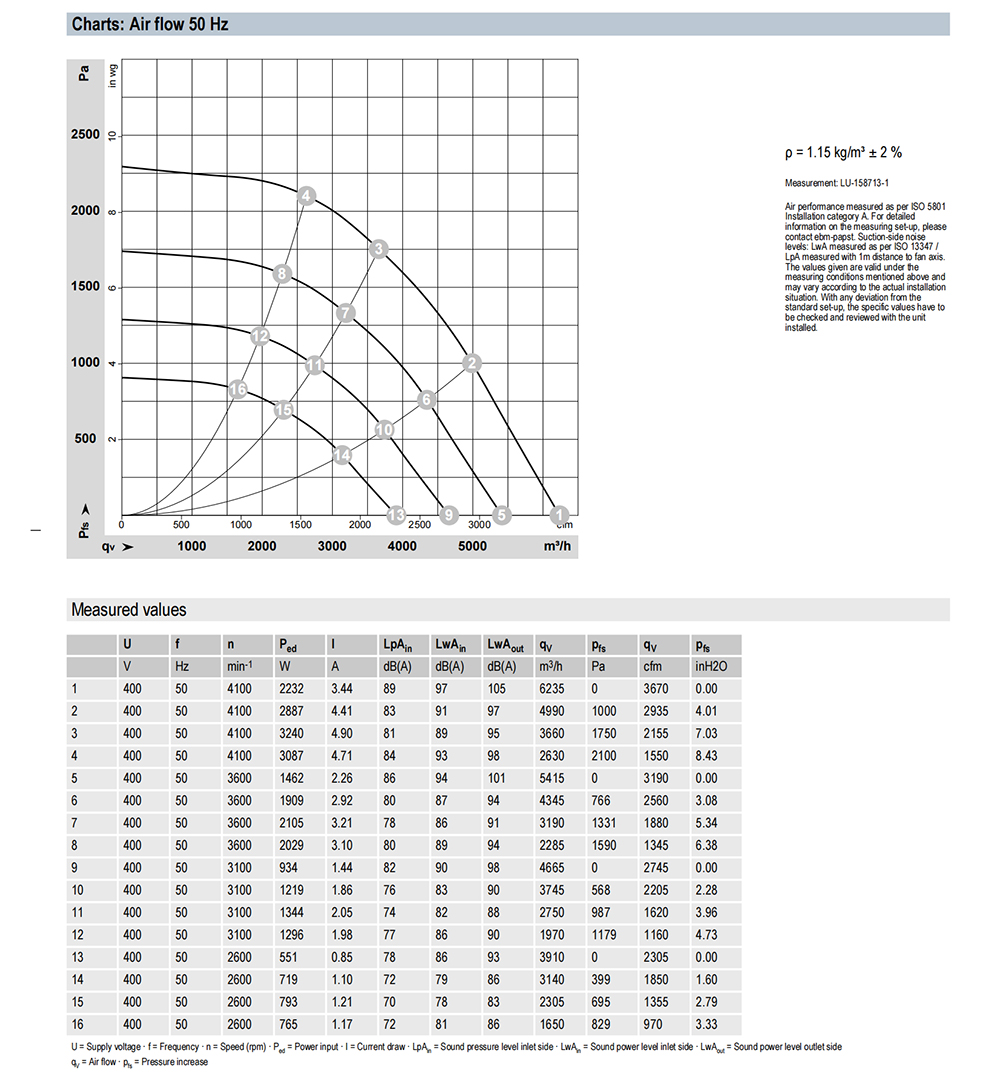

In manufacturing plants, the R3G310-AZ88-01 excels in applications requiring high airflow to remove fumes, heat, or particulates. For instance, in metalworking facilities, the fan’s 4025 m³/h maximum airflow efficiently evacuates welding smoke or grinding debris. Its corrosion-resistant impeller withstands exposure to coolant fluids and metal shavings, while the die-cast aluminum housing resists chemical splashes.

​​2. Data Center Cooling​​

Data centers demand consistent airflow to prevent equipment overheating. The R3G310-AZ88-01’s silent operation (despite its high speed) makes it ideal for auxiliary cooling in server rooms. The fan’s soft-start technology minimizes inrush current, reducing electrical strain on backup generators during power outages.

​​3. Agricultural Infrastructure​​

In poultry farms or greenhouses, the fan’s high airflow supports ventilation and climate control. The rotor-side drainage holes prevent condensation from dripping onto livestock or crops, while the IP54 rating ensures reliability in humid, ammonia-rich environments.

​​4. HVAC Systems​​

The R3G310-AZ88-01 is increasingly used in commercial HVAC systems as a standalone exhaust fan or part of air handling units. Its compact size allows retrofitting into tight ceiling cavities, while the optional rotor-on-top configuration simplifies maintenance in rooftop installations.

​​Advantages Over Traditional Fan Designs​​

Unlike conventional axial fans, the R3G310-AZ88-01’s centrifugal design generates higher static pressure, making it suitable for ducted systems with long runs or multiple bends. The impeller’s forward-curved blade design ensures stable airflow even under variable system resistance.

Compared to belt-driven fans, the R3G310-AZ88-01 eliminates maintenance-intensive belt replacements and alignment issues. Its direct-drive motor operates at 4100 RPM with minimal vibration, reducing wear on mounting brackets and ductwork.

​​Installation Best Practices​​

Proper installation is critical to maximizing the fan’s performance. Key considerations include:

​​Electrical Setup​​: Ensure the 400V three-phase supply matches the voltage tolerance of ±5%. Use shielded cables for control signals to prevent interference.

​​Mounting Position​​: When opting for rotor-on-bottom installation, verify that drainage holes remain unobstructed to avoid water ingress.

​​Thermal Management​​: Maintain clearance around the motor housing to dissipate heat effectively, especially in enclosed spaces.

Regular maintenance should include inspections of the impeller for imbalance or damage, cleaning of the housing to prevent airflow obstruction, and verification of bearing lubrication intervals.

​​Conclusion​​

The ​​ebm-papst R3G310-AZ88-01​​ stands out as a high-performance centrifugal fan engineered for durability, efficiency, and adaptability. Its combination of advanced aerodynamics, intelligent controls, and rigorous protection standards makes it a trusted choice in industries where reliability and energy efficiency are paramount. Whether deployed in harsh industrial settings or sensitive environments like data centers, this fan delivers unmatched airflow and operational longevity, solidifying its role as a cornerstone of modern ventilation systems.
