R3G310-RR05-H1 ebm-papst

Q1: What key performance combinations make the ebm-papst R3G310-RR05-H1 a reliable choice for high-pressure industrial ventilation needs?

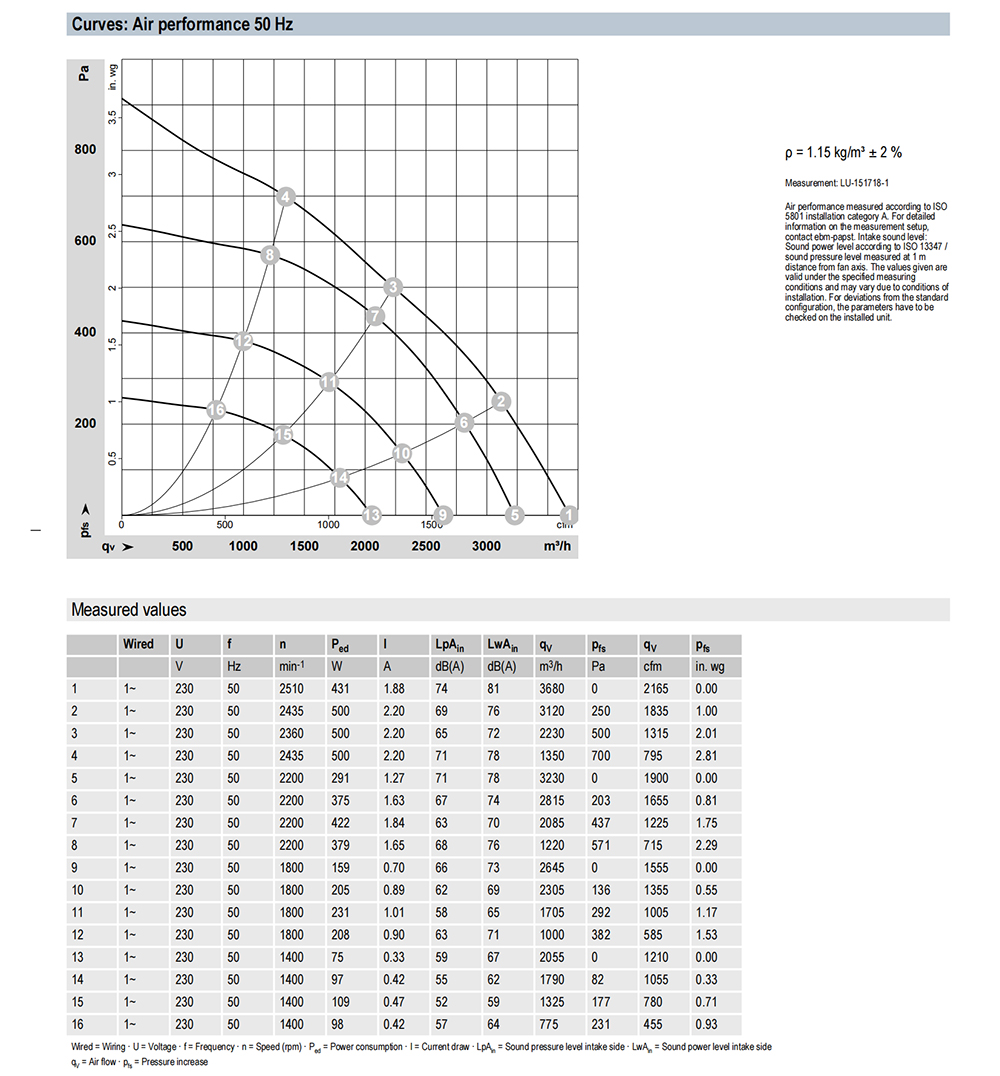

A1: The ebm-papst R3G310-RR05-H1 features a 310 mm size, 230 V rated voltage, 500 W input power and 2360 RPM speed, delivering a maximum airflow of 3680 m³/h and a high static pressure of 700 Pa with a low 65 dB noise level. This parameter combination lets it overcome moderate to high airflow resistance from long duct runs or multi-layer filters in industrial systems, while the low noise ensures it’s suitable for regular industrial working environments.

Q2: What intelligent control and monitoring features are integrated into the ebm-papst R3G310-RR05-H1 for industrial system compatibility?

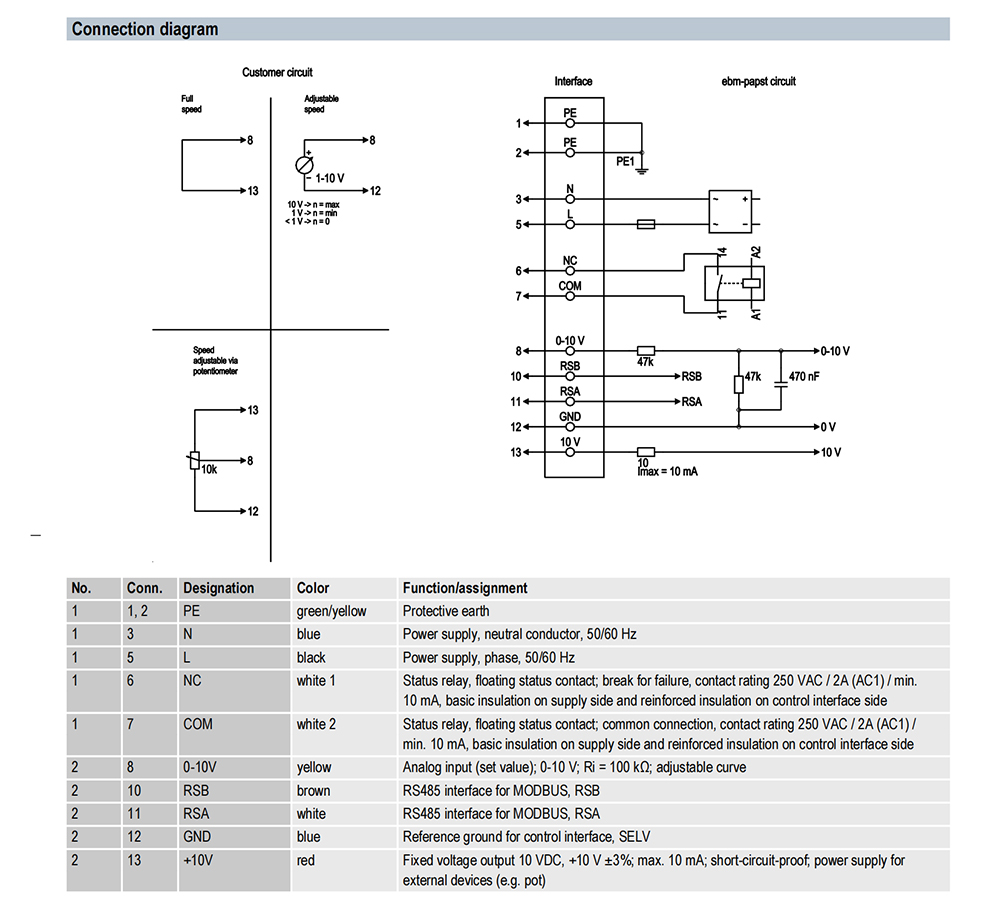

A2: The ebm-papst R3G310-RR05-H1 is built with a wealth of intelligent technical features, including an integrated PID controller, active PFC and soft start for stable operation. It supports 0-10 VDC/PWM control input and RS-485 MODBUS-RTU communication for remote adjustment and monitoring, plus an alarm relay with operation/alarm display and a 10 VDC output (max.10 mA) for real-time status feedback, perfectly adapting to intelligent industrial ventilation system integration.

Q3: What protection ratings and environmental tolerances does the ebm-papst R3G310-RR05-H1 have to withstand harsh industrial conditions?
A3: The ebm-papst R3G310-RR05-H1 has an IP55 dust and water jet protection rating, F insulation class and H1 environmental protection class, withstanding dust, moisture and other harsh industrial elements. It also supports an extreme temperature range of -40 °C to +80 °C for transport and storage, and is equipped with rotor-side condensation drainage holes to prevent moisture buildup, adapting to high-humidity industrial working environments.

Q4: What global safety and compliance certifications does the ebm-papst R3G310-RR05-H1 hold for cross-regional industrial applications?
A4: The ebm-papst R3G310-RR05-H1 complies with EN 61800-5-1, EN 60335-1, CE and UKCA standards, and has obtained CCC, EAC, UL 1004-7 + 60730-1 and CSA C22.2 No.77 + CAN/CSA-E60730-1 approvals, covering major markets in Asia, Europe, North America and the UK. It also meets strict EMC and touch current requirements (≤3.5 mA), ensuring safe and compliant operation in global industrial settings.

Q5: What structural and operational design features support the ebm-papst R3G310-RR05-H1 for 24/7 S1 continuous industrial operation?

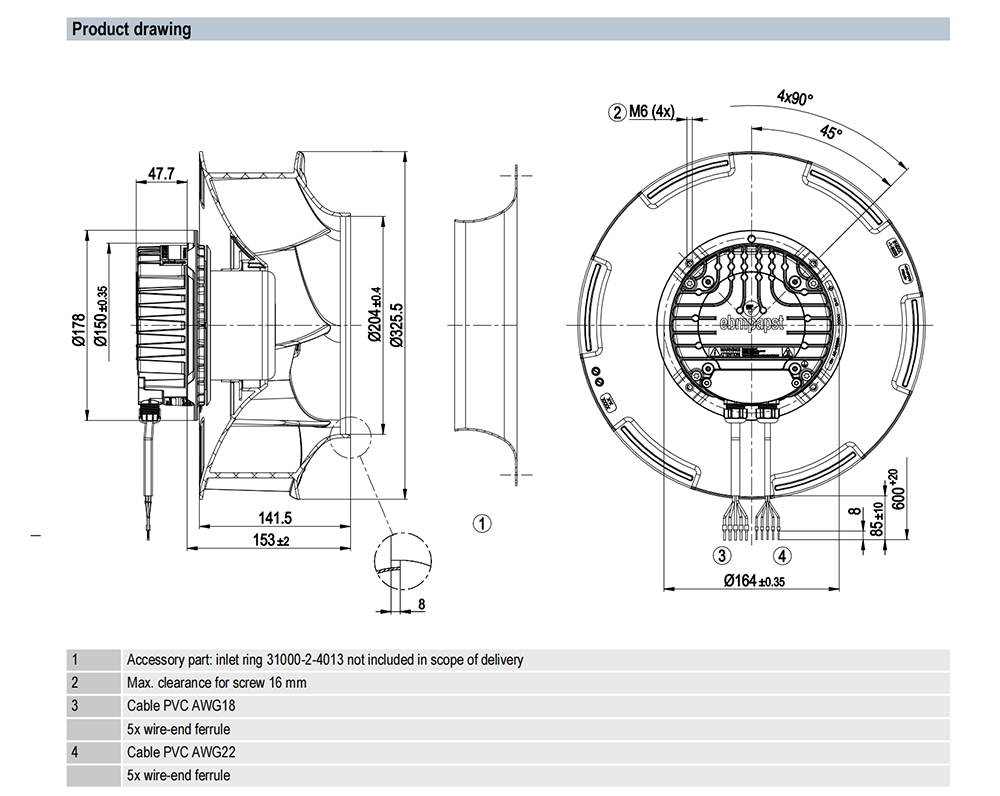

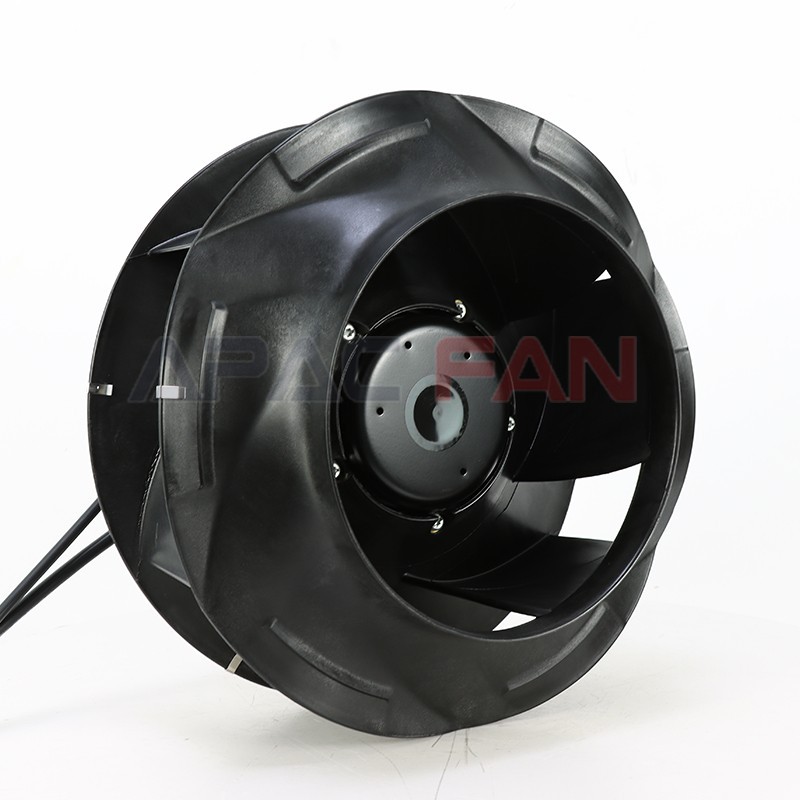

A5: The ebm-papst R3G310-RR05-H1 is designed for S1 continuous operation, with ball bearings to reduce mechanical wear at 2360 RPM and an internally connected thermal overload protector (TOP), plus separate thermal overload protection for electronics to prevent overheating damage. Its impeller is made of PP plastic, electronics housing of die-cast aluminum for efficient heat dissipation, and it offers flexible mounting options (shaft horizontal/rotor on bottom as standard, rotor on top on request) to adapt to diverse industrial installation layouts for long-term reliable use.
