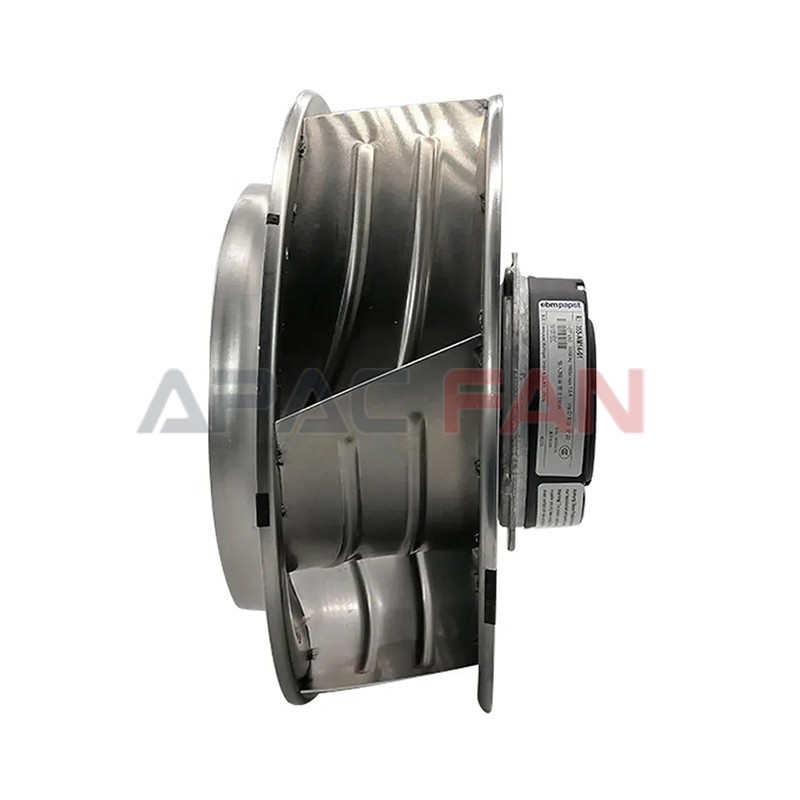

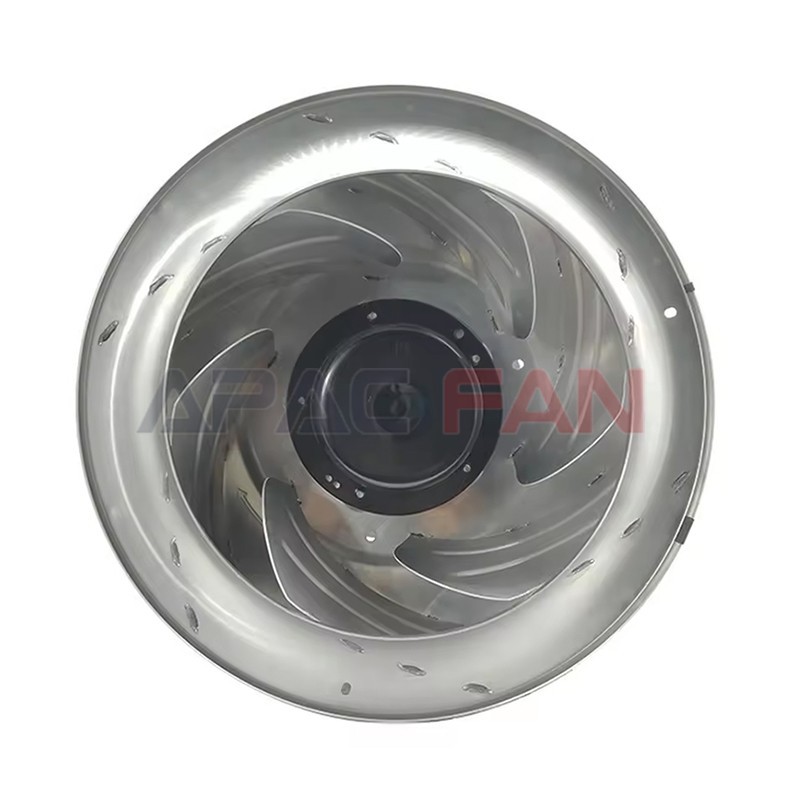

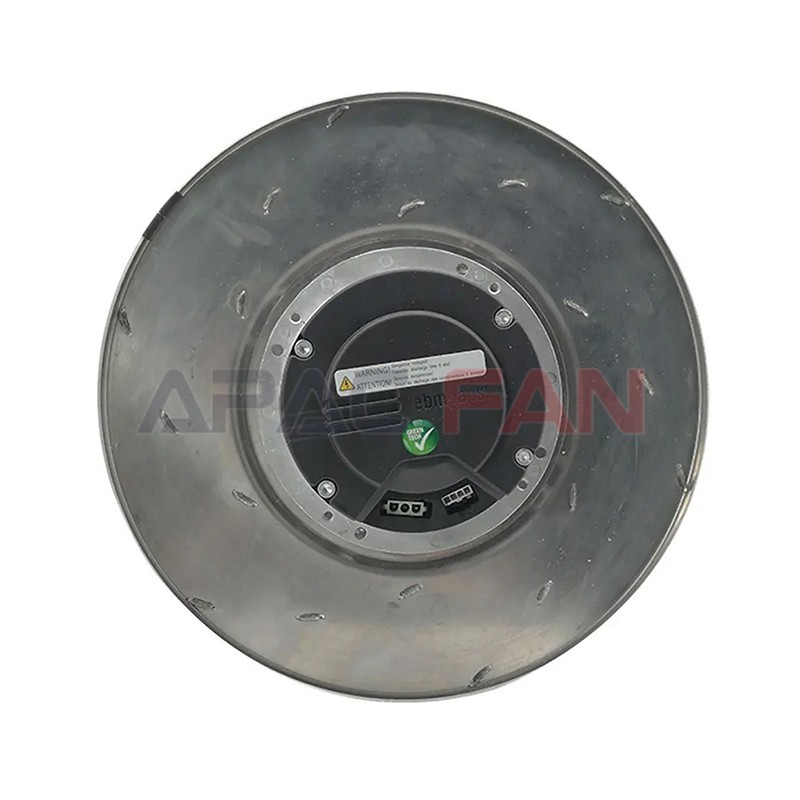

EC centrifugal fan, backward-curved, single-intake
| Brand： | ebm-papst |
| Part No： | R3G355-AM08-30 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 48 |
| Size(mm)： | 355 |
| Max.Air Flow(m³/h)： | 3450 |
| Input Power(W)： | 178 |
| Speed(RPM)： | 1560 |
| Weight: | 4.9 kg |
| Rotor Surface: | Painted black |
| Electronics Housing Material: | Die-cast aluminum |
| Impeller Material: | Sheet aluminum |
| Number Of Blades: | 6 |
| Direction Of Rotation: | Clockwise, viewed toward rotor |
| Degree Of Protection: | IP42 |
| Insulation Class: | "B" |
| Moisture (F) / Environmental (H) Protection Class: | H1 |
| Max. Permitted Ambient Temp. For Motor (Transport/Storage): | +80 °C |
| Min. Permitted Ambient Temp. For Motor (Transport/Storage): | -40 °C |
| Installation Position: | Any |
| Condensation Drainage Holes: | None |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |

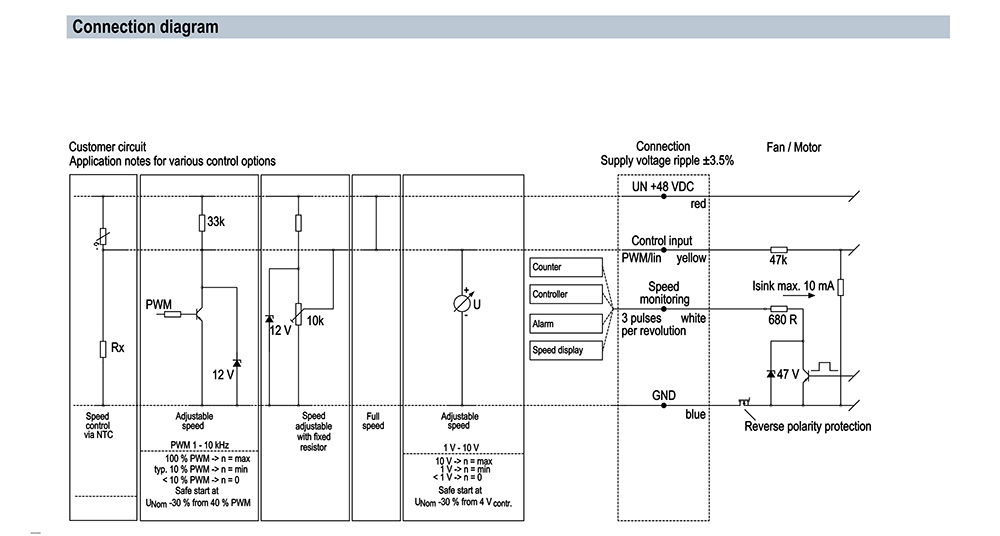

| Technical Features: | - Tach output - Motor current limitation - Soft start - Control input 0-10 VDC / PWM - Control interface with SELV potential safely disconnected from supply - Thermal overload protection for motor |
| Motor Protection: | Thermal overload protector (TOP) internally connected |
| With Cable: | Variable |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity With Standards: | EN 60950-1; CE |
| Approval: | CSA C22.2 No. 100; UL 1004-1; CCC; EAC |
