| Brand： | ebmpapst |
| Part No： | R3G355-AM14-61 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 355 |
| Max.Air Flow(m³/h)： | 3500 |
| Max.Pressure(Pa)： | 550 |
| Input Power(W)： | 446 |
| Speed(rpm)： | 1900 |
| Noise(db)： | 65 |
In the fields of industrial and civil ventilation, centrifugal fans play a crucial role. The R3G355-AM14-61 centrifugal fan produced by ebm-papst company has become an ideal choice for many ventilation demand scenarios due to its excellent performance and reliable quality. This article will provide a comprehensive and detailed introduction to the fan, covering its basic parameters, design features, working principles, and application scope.
Brand and Part Number
ebm-papst is an internationally renowned enterprise in the field of wind turbine manufacturing, known for its innovative technology and high-quality products. R3G355-AM14-61, as a specific model of fan under its umbrella, has a part number that is an important identifier for identifying the product, facilitating precise management and inquiry during production, sales, and after-sales processes.
Fan type
This fan belongs to the centrifugal fan category. The working mode of a centrifugal fan relies on the input mechanical energy to increase gas pressure and deliver gas. Its working principle is based on the action of centrifugal force, which gives it unique advantages in conveying air and overcoming resistance.
Rated voltage
The rated voltage is 230V, which is a common industrial and civilian voltage standard. This voltage setting enables the fan to be widely applicable to various conventional power supply environments without the need for additional complex voltage conversion equipment, making it convenient for users to directly connect and use.

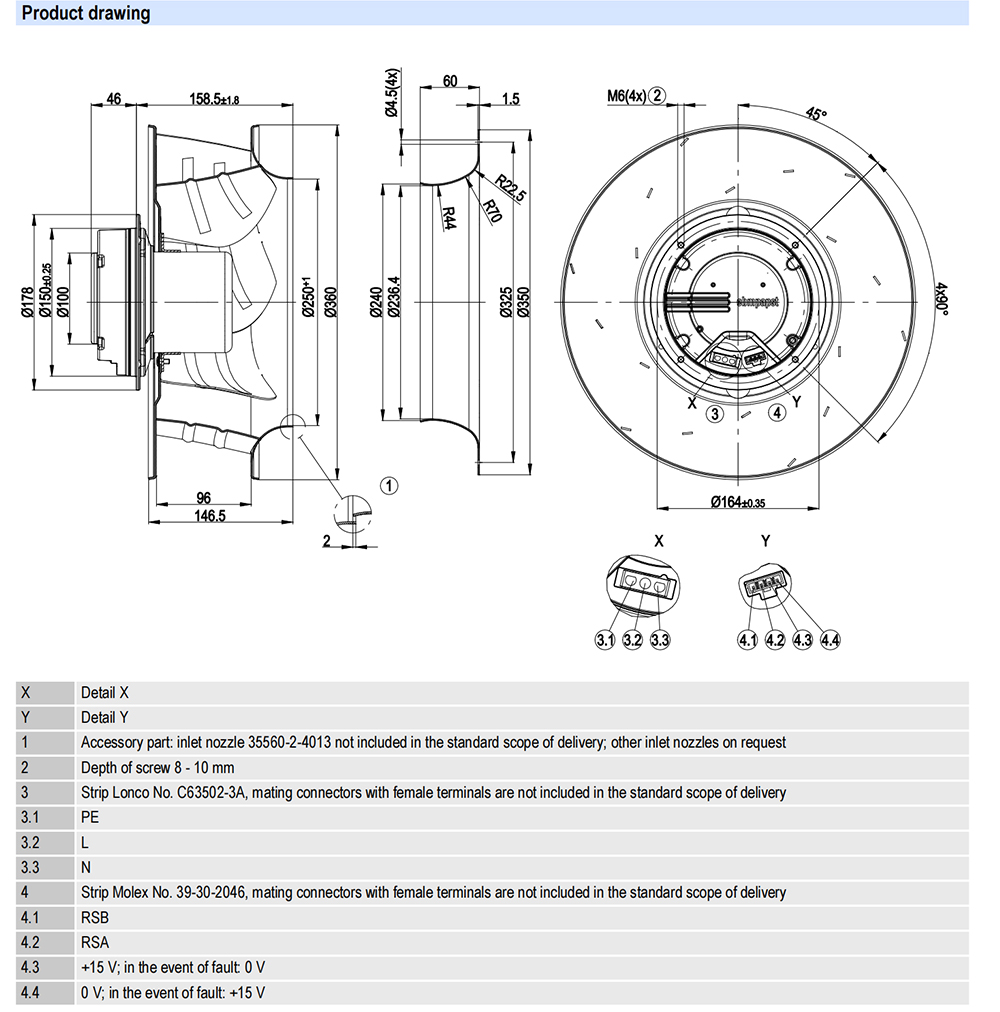

Size
The size of the fan is 355 millimeters, which is at a moderate level in centrifugal fans, ensuring a certain air handling capacity without causing excessive limitations on installation space, and has good universality and flexibility.

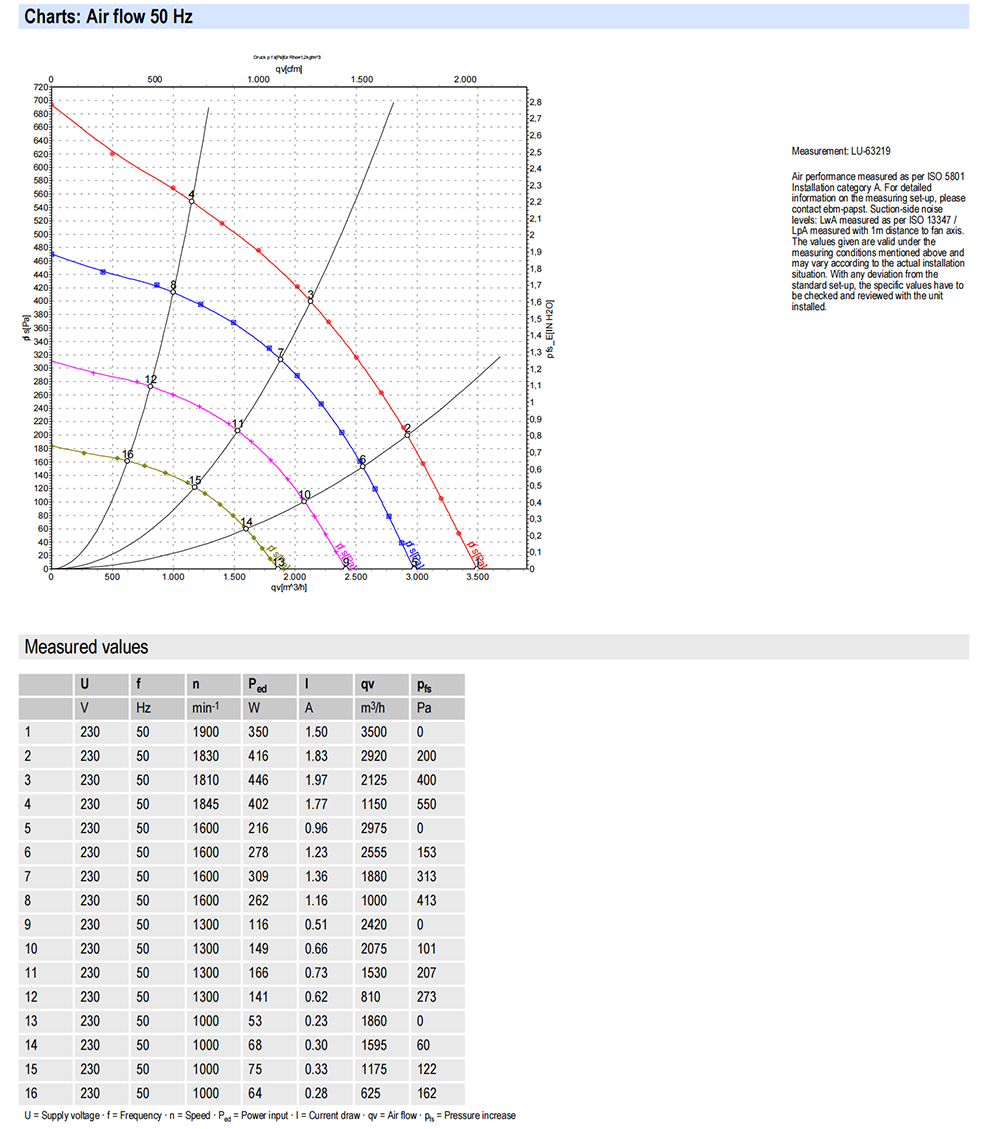

Maximum air volume
The maximum air volume can reach 3500m ³/h, which means that the fan can deliver a large amount of air per unit time. This parameter indicates that it can quickly and effectively achieve air exchange and circulation, suitable for places with high ventilation requirements.
Maximum pressure
The maximum pressure is 550Pa, which reflects the ability of the fan to overcome resistance in the ventilation system. In practical applications, the length of ventilation ducts, the number of bends, and air filters all generate resistance, and higher pressure can ensure smooth air flow in complex ventilation systems.
Input power
The input power is 446W, which is relatively reasonable in terms of its large air volume and pressure output, reflecting good energy utilization efficiency and helping to reduce operating costs.
Speed
The speed is 1900rpm, and an appropriate speed is one of the key factors for achieving high efficiency performance of the fan. This speed can generate sufficient centrifugal force on the impeller, ensuring that the fan reaches the predetermined air volume and pressure.
Noise
The noise level is 65dB, and noise is an indicator that needs attention during the operation of the fan. The noise of the fan is within an acceptable range and will not cause serious interference to the surrounding environment and personnel.
Efficient impeller design
The impeller of the fan has been carefully designed and optimized, and the shape, angle, and quantity of its blades have been accurately calculated. This design allows air to flow smoothly in the impeller, reducing energy loss and improving the overall efficiency of the fan, thereby achieving greater air volume and pressure output at the same input power.
High quality material selection
In order to ensure the reliability and durability of the fan, R3G355-AM14-61 uses high-quality materials. Impellers are usually made of high-strength and lightweight alloy materials, which can ensure sufficient strength while reducing inertia during rotation and energy consumption. The shell is made of corrosion-resistant and impact resistant engineering plastics or metal materials, which can be used for a long time under different environmental conditions.
Compact structure layout
The overall structural design of the fan is compact, with tight and reasonable connections between various components. This compact structure not only saves installation space, but also facilitates integration and installation in various ventilation systems, improving installation convenience and efficiency.
Good heat dissipation design
During operation, the motor and other components generate heat. In order to ensure the performance and lifespan of the fan, a good heat dissipation design is adopted. By setting up heat dissipation holes, fins, and other structures on the casing, heat can be dissipated in a timely manner, ensuring that the fan operates within the normal temperature range.
The working principle of R3G355-AM14-61 centrifugal fan is based on the action of centrifugal force. When the motor drives the impeller to rotate at high speed, the air inside the impeller rotates together with the impeller. Under the action of centrifugal force, the air is thrown towards the edge of the impeller, forming a high-speed airflow. Then, these high-speed airflows pass through the volute of the fan, which converts the kinetic energy of the airflow into pressure energy, increasing the pressure of the air. Finally, high-pressure air is discharged from the fan through the air outlet to achieve the purpose of air transportation and ventilation.
Industrial ventilation
In the industrial field, this fan can be used for ventilation and air exchange in factory workshops, to remove harmful gases, dust, and heat generated during the production process, improve the working environment, and protect the health of workers. For example, its application can be seen in workshops in industries such as chemical, electronics, and mechanical manufacturing.
Commercial building ventilation
In commercial buildings such as shopping malls, hotels, office buildings, etc., this fan can be used as part of the central air conditioning system to provide fresh air inside the building, maintain the freshness and comfort of the air, and improve people's quality of life and work.
Agricultural ventilation
In the field of agriculture, it can be used for ventilation in greenhouses, regulating the temperature, humidity, and air quality inside the greenhouse, creating a favorable environment for the growth of crops. At the same time, it can also be used for ventilation in breeding farms, to eliminate odors and harmful gases, and to improve the breeding environment.
The R3G355-AM14-61 centrifugal fan from ebm-papst has become a trusted product in the field of ventilation due to its excellent parameters, unique design features, and wide range of applications. Whether in industrial production, commercial buildings, or agriculture, it can provide users with efficient and stable ventilation solutions to meet the ventilation needs of different scenarios. With the continuous advancement of technology and the increasing demand for applications, we believe that this fan will continue to improve and perfect, making greater contributions to the development of the ventilation industry.
Among numerous centrifugal fan products, ebm-papst's R3G355-AM14-61 stands out with its unique features. These characteristics not only determine its performance advantages, but also demonstrate excellent adaptability in different application scenarios. This article will deeply analyze the characteristics of the fan, providing reference for users to better understand and choose the product.
