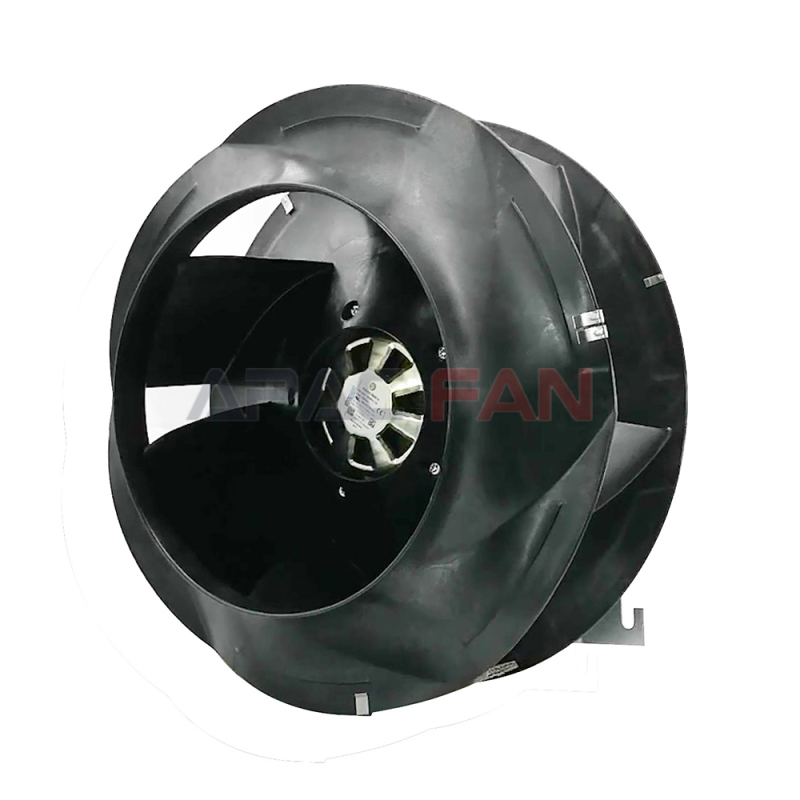

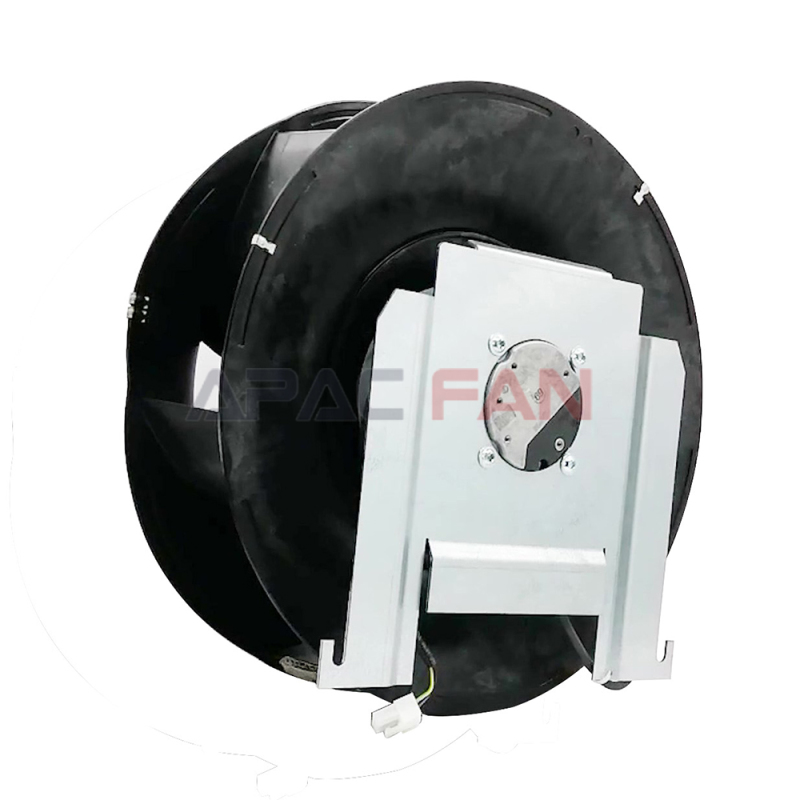

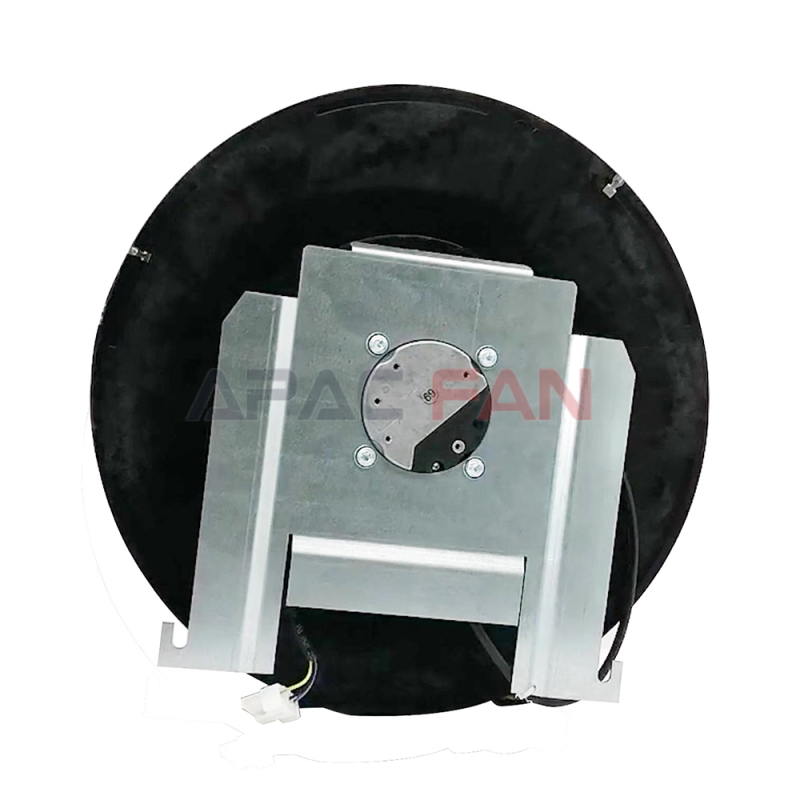

R3G355-RB03-10 ebm-papst

Interpretation of Basic Parameters

Fan type: It belongs to centrifugal fans. The working principle of a centrifugal fan relies on the high-speed rotation of the impeller, which causes air to be thrown from the center of the impeller to the edge under the action of centrifugal force, and then discharged at a higher pressure through the volute shell. This working method enables centrifugal fans to perform well in ventilation systems that require overcoming certain resistance, enabling efficient air delivery.

Rated voltage: The rated voltage is 230V. This common voltage specification is widely used in both industrial and civilian fields, which means that this fan can be easily connected to various conventional power sources without the need for complex voltage conversion, greatly improving its convenience and applicability. Suitable power supply can be easily found in factory workshops, commercial spaces, or ordinary home environments.

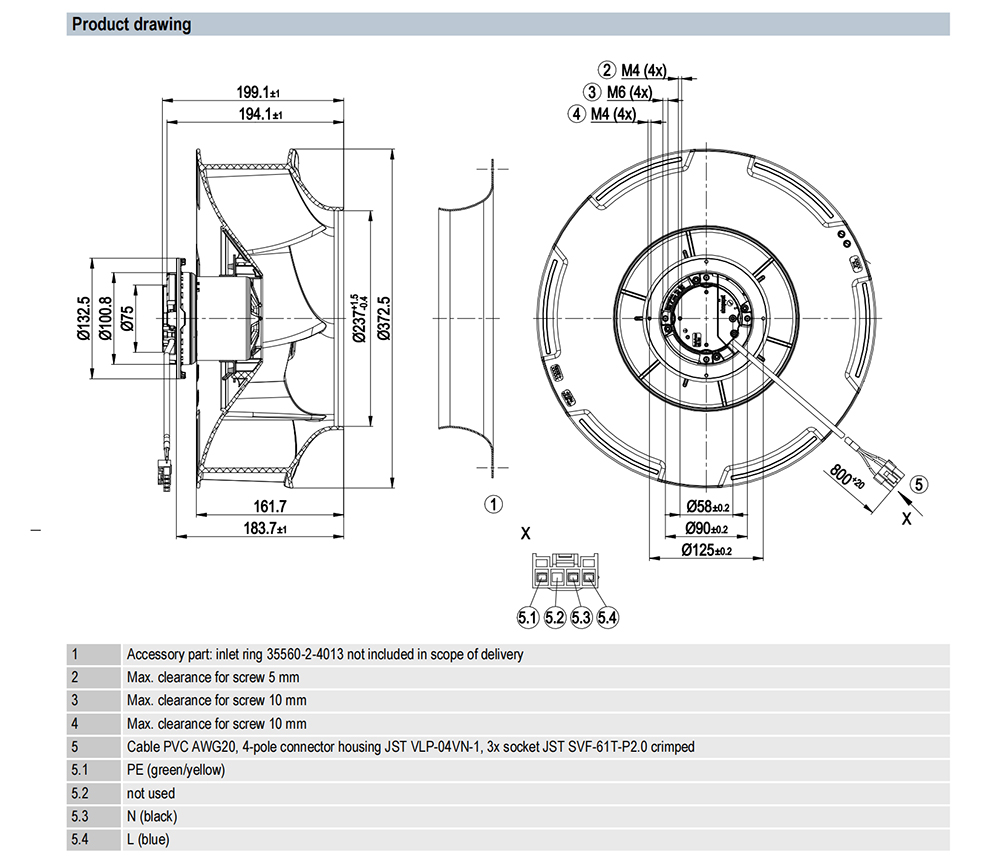

Size specification: The size of the fan is 355 millimeters. The relatively large size provides the foundation for achieving high flow air delivery. However, its design also fully considers the rationality of installation space, optimizing the structure as much as possible while ensuring performance, so that it will not occupy too much unnecessary space during installation and can adapt to various installation environments.

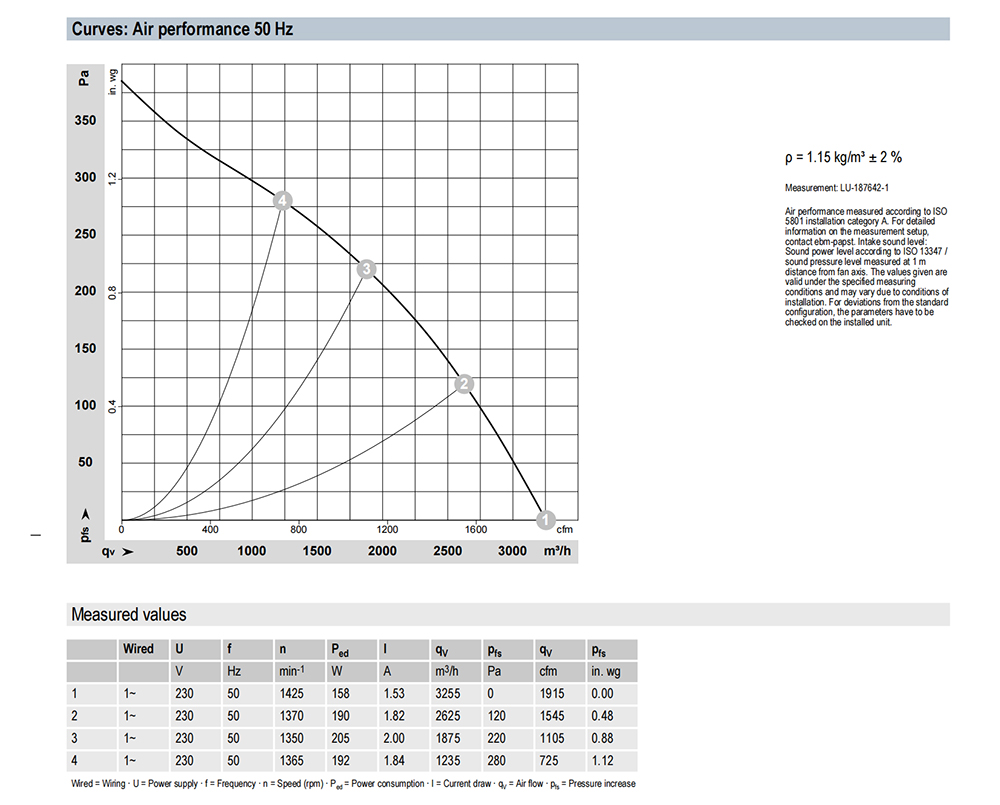

Maximum air volume: The maximum air volume can reach 3255m³/h. Such a large air volume gives this fan a significant advantage in places that require a large amount of air exchange. For example, in large industrial plants, shopping malls, exhibition halls and other spaces, it can quickly and effectively achieve air renewal and circulation, maintain fresh and circulating indoor air, and create a comfortable environment for people.

Maximum pressure: The maximum pressure is 280Pa. Higher pressure means that the fan can overcome certain ventilation resistance and transport air to farther distances or higher positions. In the case of long ventilation ducts and high system resistance, the R3G355-RB03-10 centrifugal fan can still stably provide sufficient pressure to ensure the normal operation of the ventilation system.

Input power: The input power is 205W. Although its air volume and pressure are relatively high, the input power is within a reasonable range. This indicates that the fan has focused on energy efficiency in its design, which can work efficiently while minimizing energy consumption and saving operating costs for users.

Speed: The speed is 1425rpm. The appropriate speed can ensure that the fan generates sufficient air volume and pressure, while reducing wear and noise caused by high-speed operation. A stable rotational speed also helps to improve the operational stability and reliability of the fan, extending its service life.

Analysis of Product Features

Efficient aerodynamic design: The impeller and volute of this fan are designed using advanced aerodynamic principles. The blade shape and angle of the impeller have been carefully optimized to make the flow of air inside the impeller smoother, reducing air turbulence and energy loss. The design of the snail shell can effectively collect and guide air, improving the efficiency of air discharge. This efficient design enables the fan to generate greater air volume and pressure under the same power input, greatly improving ventilation efficiency.

High quality material selection: The casing of the fan is made of high-strength and corrosion-resistant materials. In actual use, fans may face various harsh environmental conditions such as humidity, dust, chemical corrosion, etc. High quality shell materials can effectively resist the erosion of these factors, protect the internal components of the fan from damage, and extend the service life of the fan. The key components such as impellers are also made of lightweight and high-strength alloy materials, which not only ensure the strength of the structure, but also reduce the weight, lower the load on the motor, and improve energy efficiency.

Stable and reliable motor: The equipped motor is the core guarantee for the stable operation of the fan. Electric motors have the characteristics of high efficiency, energy saving, and low noise. It adopts advanced electromagnetic design and manufacturing technology, which can maintain stable performance during long-term continuous operation. The insulation performance of the motor is good, which can effectively prevent the occurrence of faults such as leakage and short circuit, ensuring the safe operation of the equipment. At the same time, the cooling system of the motor is designed reasonably, which can timely dissipate the heat generated during operation, avoiding damage to the motor due to overheating.

Low noise operation: Although the product does not indicate noise parameters, a series of measures have been taken in the design and manufacturing process to reduce the noise during fan operation. By optimizing the balance performance of the impeller, the vibration and noise caused by imbalance have been reduced; The use of shock-absorbing materials and sound insulation structures reduces the propagation of noise. This makes the noise generated by the fan during operation relatively small, without causing significant interference to the surrounding environment and personnel, making it suitable for places with high noise requirements.

Application scenario analysis

Due to its outstanding performance and characteristics, the R3G355-RB03-10 centrifugal fan has a wide range of applications in multiple fields.

In the industrial field, it can be used for ventilation, air exchange, and heat dissipation in large factory workshops, timely discharging the hot air, dust, and harmful gases generated during the production process, ensuring the air quality and safety of the working environment in the workshop. In industries such as chemical and metallurgical, it can also be used to transport gases with certain corrosiveness or high temperature.

In the commercial field, it can serve as an important component of central air conditioning systems in shopping malls, hotels, office buildings, and other places, providing sufficient fresh air indoors and maintaining a comfortable indoor environment. In crowded places such as cinemas and theaters, it can quickly achieve air renewal and meet the breathing needs of a large number of people.

In the civilian field: In some large residential buildings, villas and other places, it can be used for whole house ventilation systems to improve indoor air quality and enhance living comfort. In spaces such as basements and garages, it can promptly release humid air and odors, keeping the space dry and fresh.

summarize

The R3G355-RB03-10 centrifugal fan has become an excellent product in the field of ventilation due to its outstanding performance parameters, unique product features, and wide range of application scenarios. It not only meets the ventilation needs of different users, but also brings users an efficient, energy-saving, stable, and quiet user experience.
