ebm-papst R3G355-RG56-01: The High-Capacity Centrifugal Fan Powering Large-Scale Data Center Cooling

In the landscape of large-scale data centers—where thousands of servers operate in tandem, generating massive heat loads—cooling solutions must deliver unmatched capacity, precision control, and industrial-grade reliability. The ebm-papst R3G355-RG56-01 centrifugal fan rises to this challenge, engineered to meet the rigorous demands of hyperscale and enterprise data centers. As a flagship offering from ebm-papst, a global leader in air movement technology, this fan combines exceptional airflow, advanced smart controls, and robust construction, making it a cornerstone of high-performance thermal management systems for mission-critical data infrastructure.

At the heart of the R3G355-RG56-01’s appeal is its extraordinary cooling capacity—tailored to address the heat density of large data centers. Operating at a rated voltage of 400V, it aligns with the three-phase electrical systems commonly used in industrial-scale facilities, ensuring stable power delivery and compatibility with high-capacity cooling architectures (such as chilled water systems or air handlers). Its performance metrics are equally impressive: a maximum airflow of 5340 m³/h and a maximum pressure of 800 Pa. This means the fan can circulate vast volumes of conditioned air across expansive data center floors, overcoming the resistance of long ductwork, high-efficiency air filters, and dense server racks. For context, this airflow is sufficient to cool entire rows of high-power servers (e.g., those used for cloud computing or AI workloads), preventing the hotspots that can cripple performance or cause hardware failure. Even with this power, the fan maintains a relatively low noise level of 50 dB—critical for data centers where excessive noise can disrupt on-site operations and violate occupational health standards.

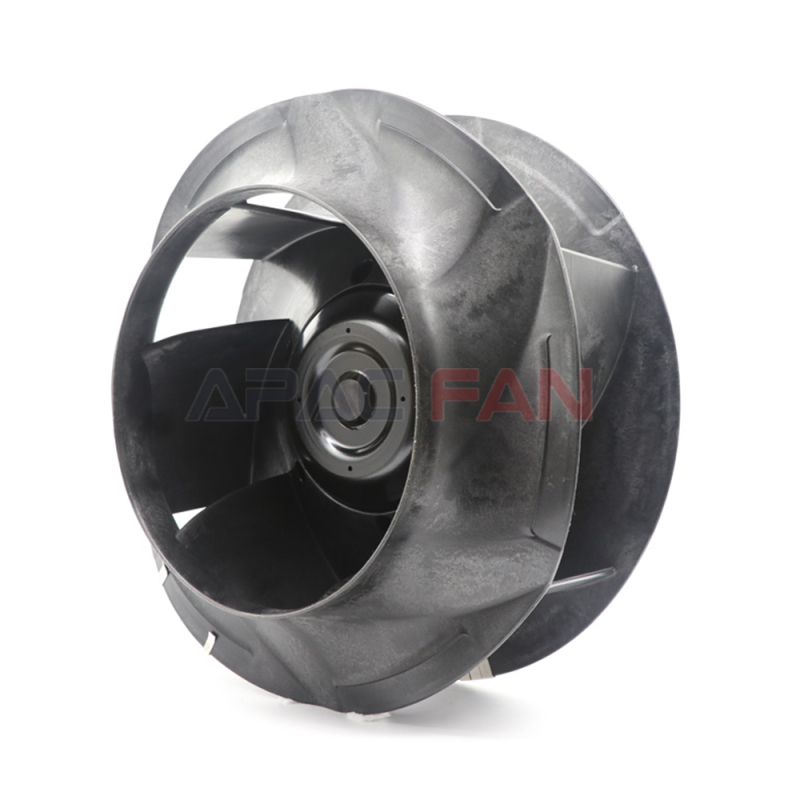

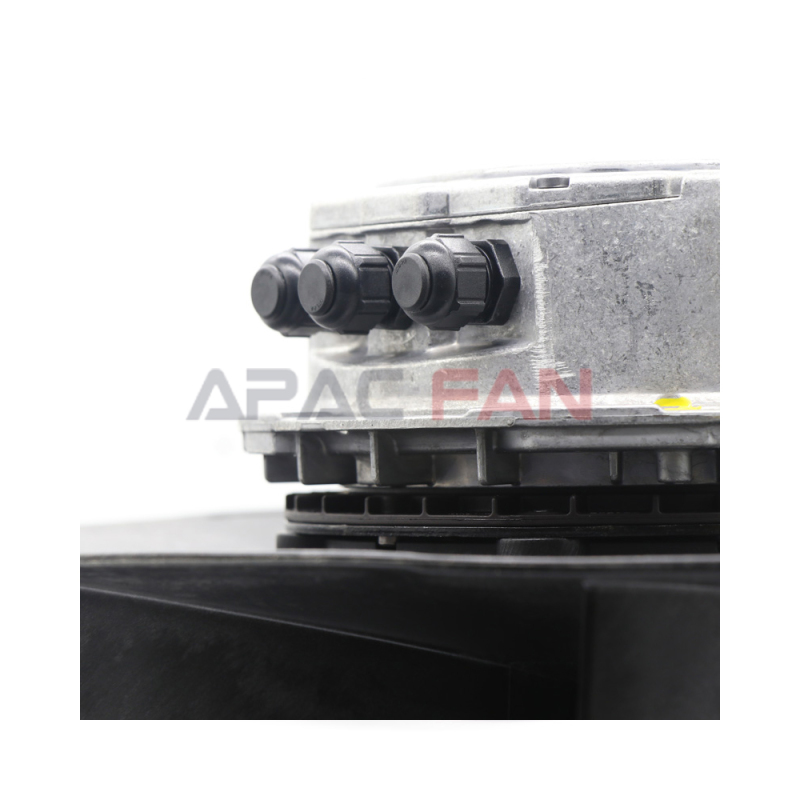

The fan’s physical design and material selection reflect its focus on durability and long-term reliability. Measuring 355mm and weighing 8.4 kg, it features a robust build suited for heavy-duty, 24/7 operation. The impeller, crafted from PP plastic, offers excellent chemical resistance and thermal stability—ideal for data centers where exposure to dust, humidity, or airborne contaminants is unavoidable. The electronics housing, made from die-cast aluminium, provides rugged protection for internal components, while the rotor’s black-coated surface resists corrosion and debris buildup. With six blades optimized for airflow efficiency, the fan minimizes turbulence and maximizes air delivery, ensuring consistent cooling even in dynamic load conditions.

What truly distinguishes the R3G355-RG56-01 is its suite of advanced technical features—designed to enable precision control, remote monitoring, and seamless integration with data center management systems. A standout is its integrated PID (Proportional-Integral-Derivative) controller, which automatically adjusts fan speed based on real-time temperature data. This eliminates the need for manual intervention: if a server row heats up (e.g., during peak AI processing), the PID controller ramps up airflow to maintain set temperatures; during off-peak hours, it reduces speed to save energy. Complementing this is a 0-10 VDC/PWM control input, allowing operators to fine-tune performance to match specific cooling needs, while an input for 0-10 V or 4-20 mA sensors enables integration with external temperature or pressure sensors for comprehensive environmental monitoring.

The fan also supports advanced connectivity via RS485 MODBUS RTU—a communication protocol widely used in industrial systems. This allows data center operators to remotely monitor and control the fan through centralized management platforms (e.g., DCIM, or Data Center Infrastructure Management software). Operators can track key metrics (such as speed, current, or temperature) in real time, receive alerts for anomalies (e.g., motor overheating), and even adjust settings without on-site visits—critical for large data centers with sprawling footprints. Additional outputs (10 VDC, 20 VDC, and a 0-10 V slave output) enable synchronization with other cooling components (e.g., secondary fans or dampers), creating a cohesive, automated thermal management system.

Safety and resilience are woven into every aspect of the fan’s design. Its IP 54 protection rating shields internal components from dust ingress and splashing water, making it suitable for data center areas with higher humidity (e.g., near cooling towers). The F4-1 humidity class further confirms its ability to withstand high-moisture environments without performance degradation. A thermal overload protector (TOP) wired internally shuts down the fan if it overheats, while line undervoltage/phase failure detection prevents damage during power fluctuations—a common risk in large facilities. Passive Power Factor Correction (PFC) enhances energy efficiency by reducing reactive power, lowering electricity costs and minimizing strain on the data center’s electrical grid. The fan’s soft start function reduces inrush current during power-up, protecting both the fan and the facility’s electrical infrastructure from voltage spikes.

Compliance with global standards and certifications ensures the R3G355-RG56-01 meets the strict safety and performance requirements of large data centers worldwide. It adheres to EN 61800-5-1 (a standard for adjustable-speed electrical power drive systems) and carries the CE mark. It also holds approvals from leading bodies, including CCC (China), EAC (Eurasian Economic Union), and UL 1004-7 + 60730 (U.S.), eliminating barriers to deployment in multinational data center networks. Its EMC (Electromagnetic Compatibility) compliance—aligned with EN 61000-6-2 (industrial interference immunity), EN 61000-3-2/3 (harmonics), and EN 61000-6-3 (emission)—ensures it does not disrupt sensitive IT equipment or other electrical systems.

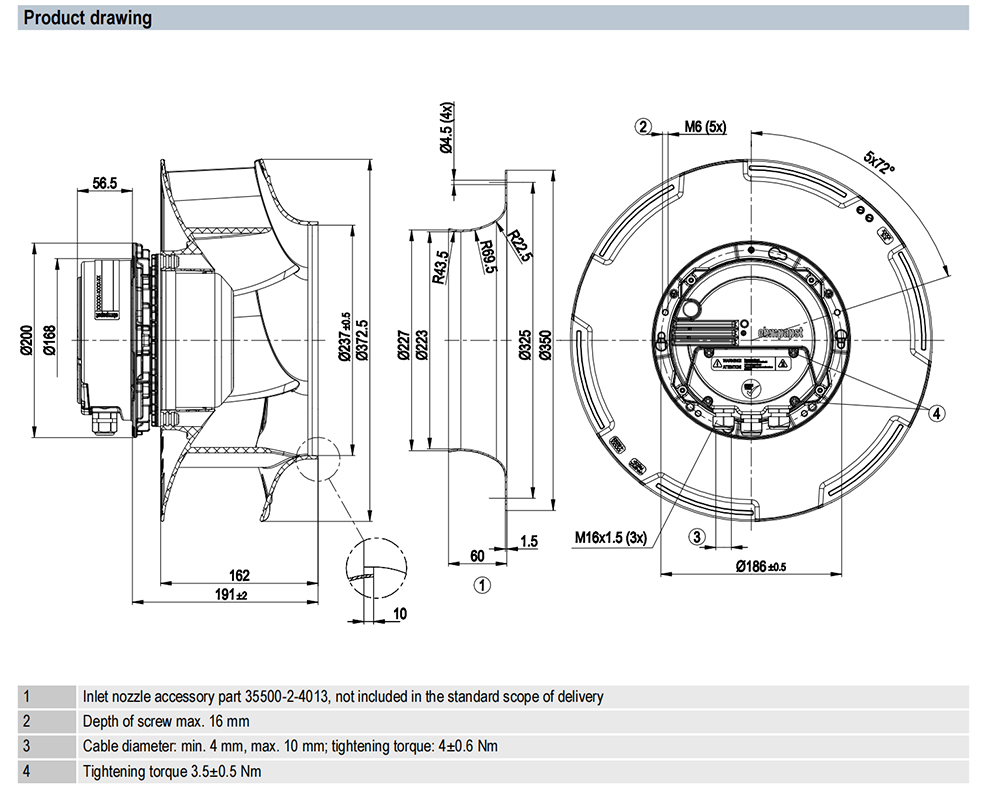

In practical application, the R3G355-RG56-01 excels in large-scale data center scenarios. It is ideal for use in air handling units (AHUs) that distribute conditioned air across entire facility floors, or in row-based cooling systems for high-density server clusters. Its rotor-side condensate discharge holes simplify maintenance by preventing moisture buildup, while its flexible mounting options (per product drawing) allow integration into diverse cooling architectures. For data centers prioritizing sustainability, the fan’s energy-efficient design and PID control contribute to lower carbon footprints—aligning with global goals to reduce data center emissions.

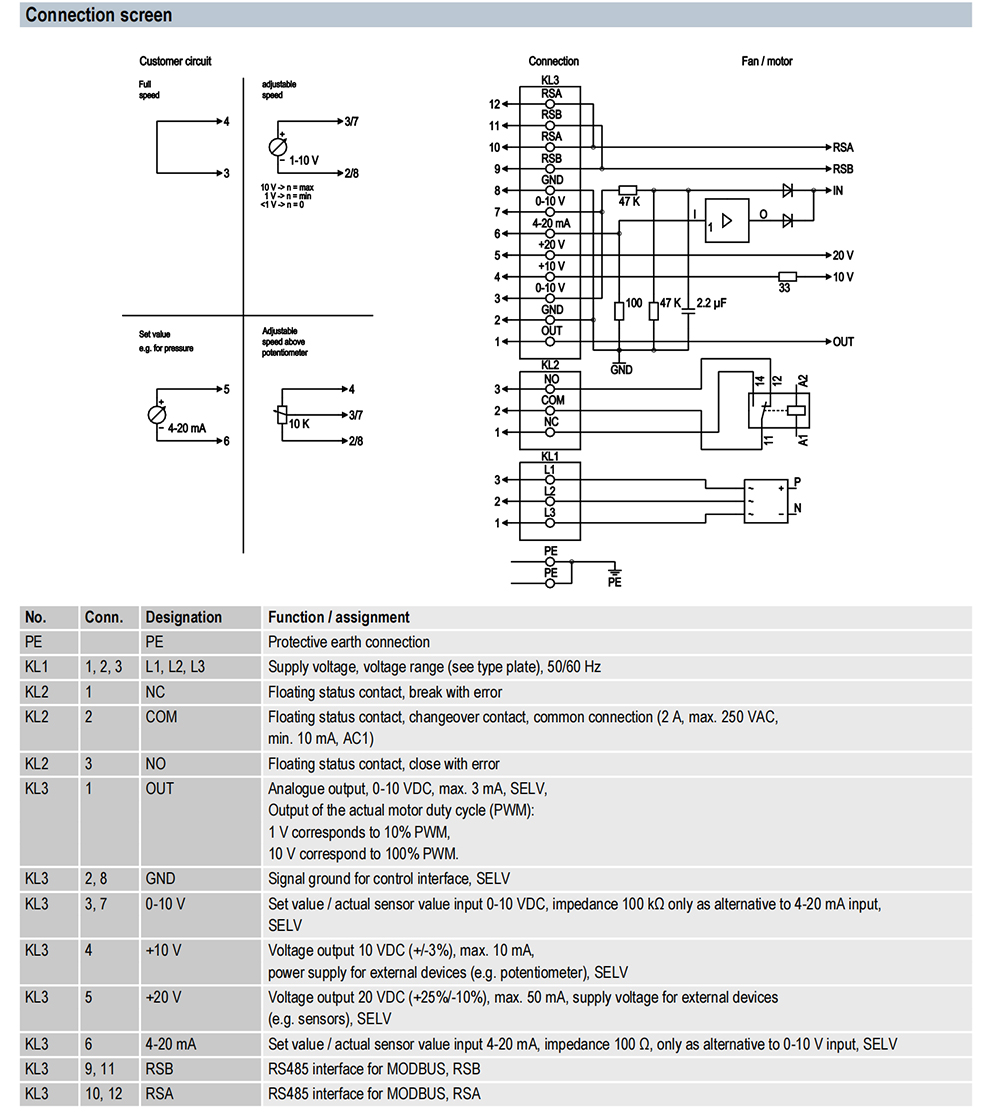

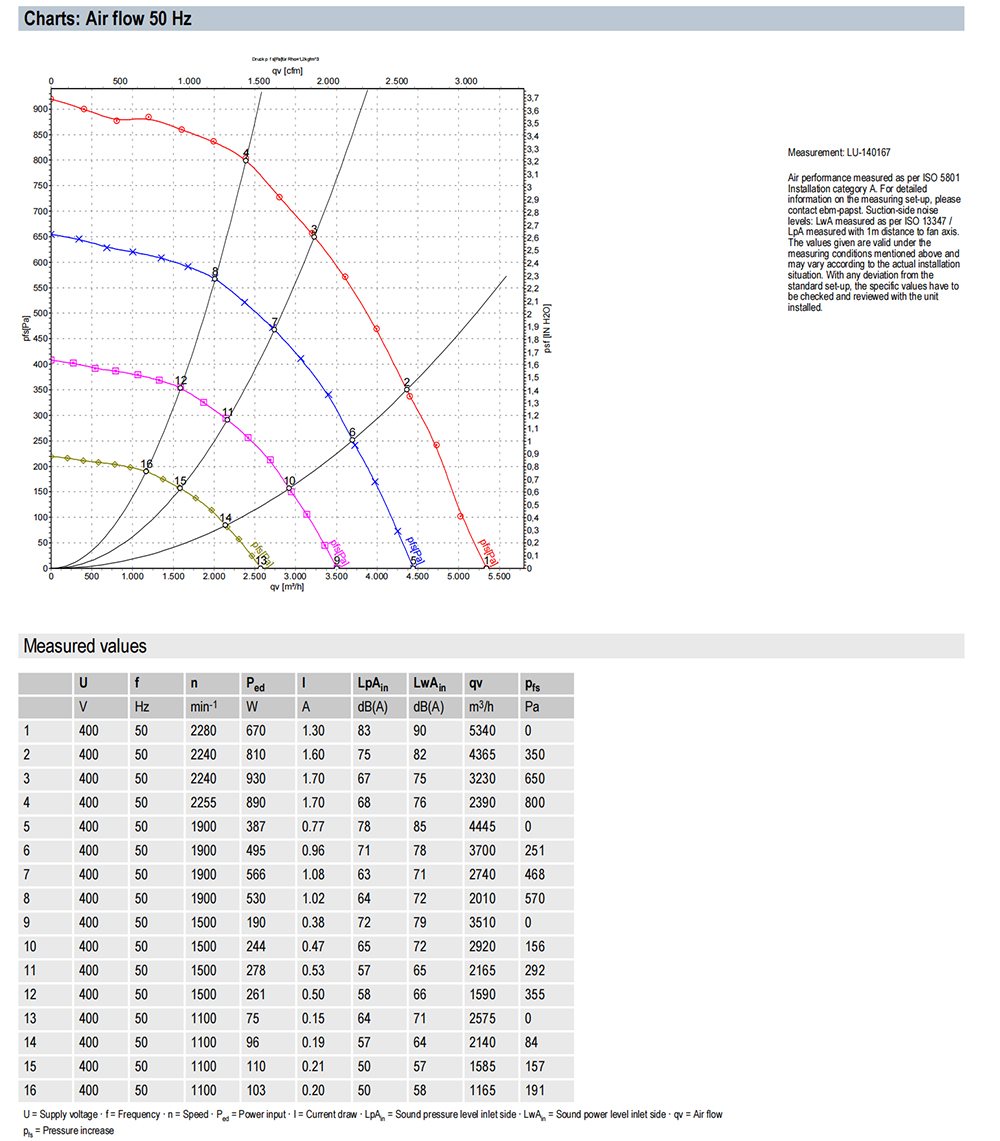

Backed by ebm-papst’s global support network, the R3G355-RG56-01 comes with comprehensive technical documentation, including wiring diagrams and performance curves, to assist with integration. ebm-papst’s regional service centers also provide timely maintenance and troubleshooting, minimizing downtime for mission-critical data operations.

In conclusion, the ebm-papst R3G355-RG56-01 centrifugal fan is a powerhouse solution for large-scale data centers. Its exceptional cooling capacity, advanced smart controls, and robust construction address the unique challenges of hyperscale and enterprise facilities, ensuring reliable thermal management for mission-critical IT infrastructure. As data centers continue to scale to meet the demands of cloud computing, AI, and big data, the R3G355-RG56-01 stands as a testament to ebm-papst’s innovation—and a trusted partner in keeping the world’s most important data systems cool and operational.
