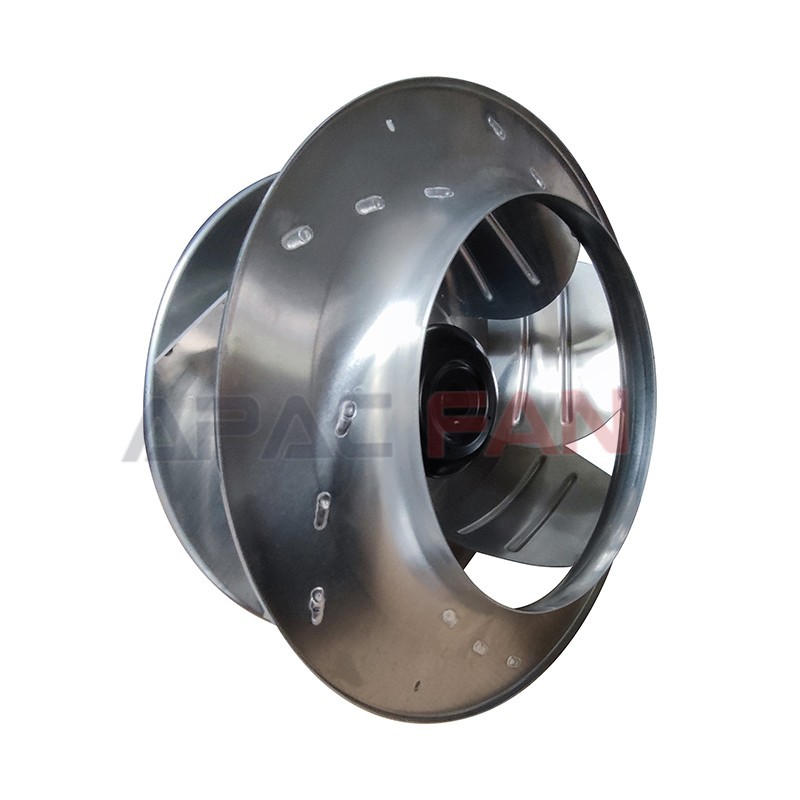

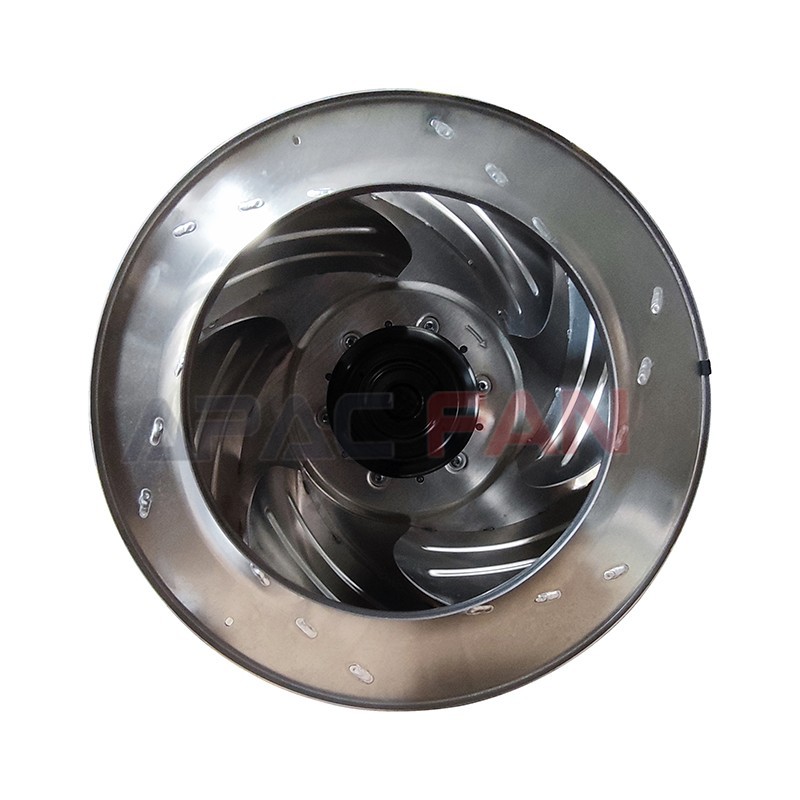

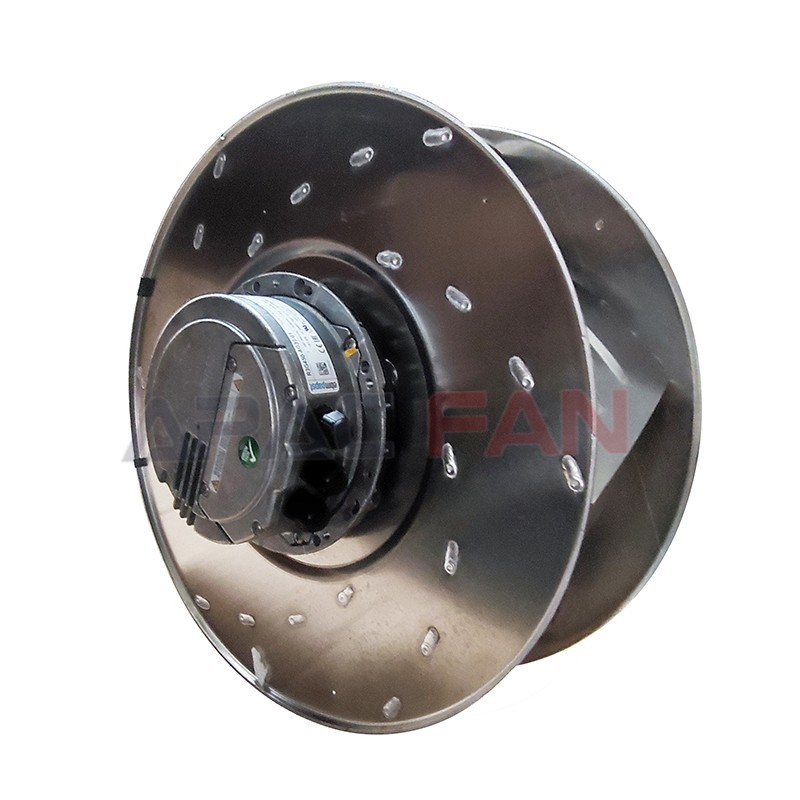

backward curved, single inlet
| Brand： | ebm-papst |
| Part No： | R3G450-AG33-01 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 400 |
| Size(mm)： | 450 |
| Max.Air Flow(m³/h)： | 1135 |
| Max.Pressure(Pa)： | 500 |
| Input Power(W)： | 1000 |
| Speed(rpm)： | 1550 |
| Noise(dB)： | 66 |
| Mass: | 11.2 kg |
| Surface of Rotor: | Coated in black |
| Material of Electronics Housing: | Die-cast aluminium |
| Material of Impeller: | Aluminium sheet |
| Number of Blades: | 6 |
| Direction of Rotation: | Clockwise, seen on rotor |
| Type of Protection: | IP 54 |
| Insulation Class: | "B" |
| Humidity Class: | F4-1 |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | - Output 10 VDC, max. 10 mA - Output 20 VDC, max. 50 mA - Output for slave 0-10 V - Input for sensor 0-10 V or 4-20 mA - Alarm relay - Integrated PID controller - Motor current limit - PFC, passive - RS485 ebmBUS - Soft start - Control input 0-10 VDC / PWM - Control interface with SELV potential safely disconnected from the mains - Over-temperature protected electronics / motor - Line undervoltage / phase failure detection |
| EMC Interference Immunity: | Acc. to EN 61000-6-2 |
| EMC Harmonics: | Acc. to EN 61000-3-2/3 |
| EMC Interference Emission: | Acc. to EN 61000-6-3 (household environment) |
| Touch Current Acc. IEC 60990 (Measuring Network Fig. 4, TN System): | <= 3.5 mA |

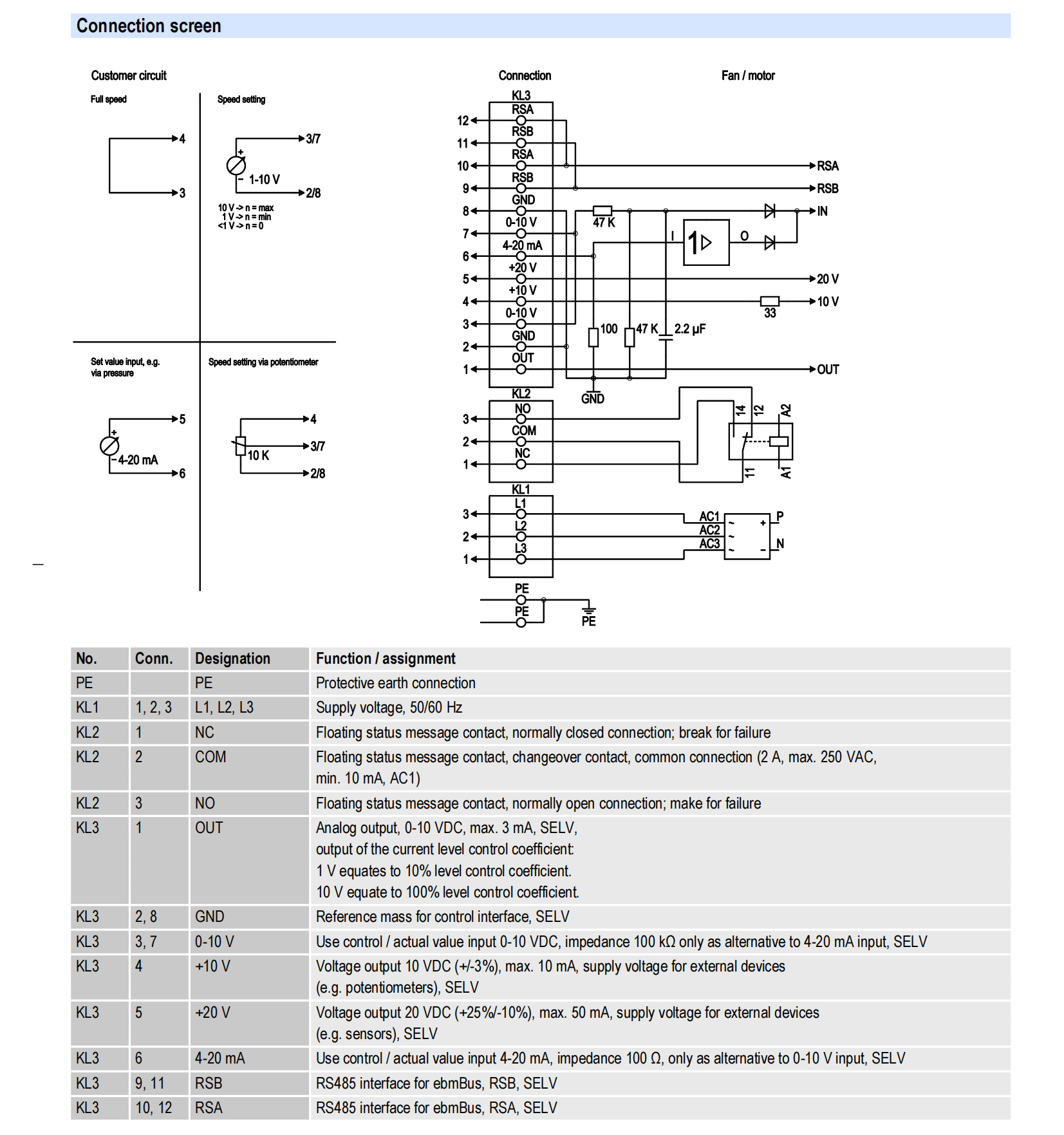

| Electrical Leads: | Via terminal box |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Cable Exit: | Variable |
| Protection Class: | I (acc. to EN 61800-5-1) |
| Product Conforming to Standard: | EN 61800-5-1; CE |
| Approval: | CCC; CSA C22.2 Nr.77; EAC; UL 2111 |
