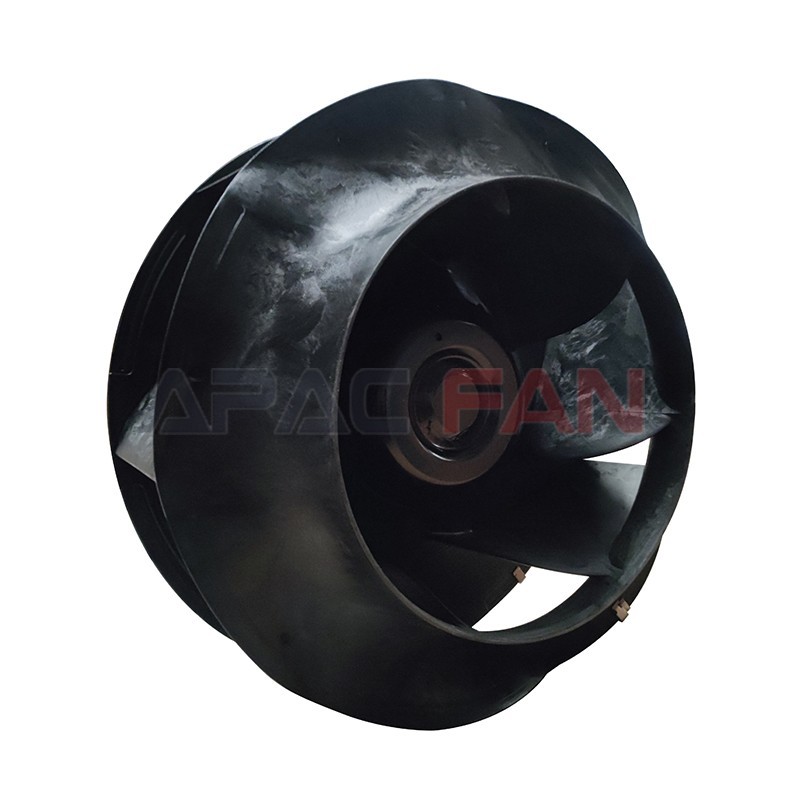

EC centrifugal fan - RadiCal®, backward curved, single inlet
| Brand: | ebm-papst |
| Part No: | R3G500-RA24-71 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 400 |
| Size(mm): | 500 |

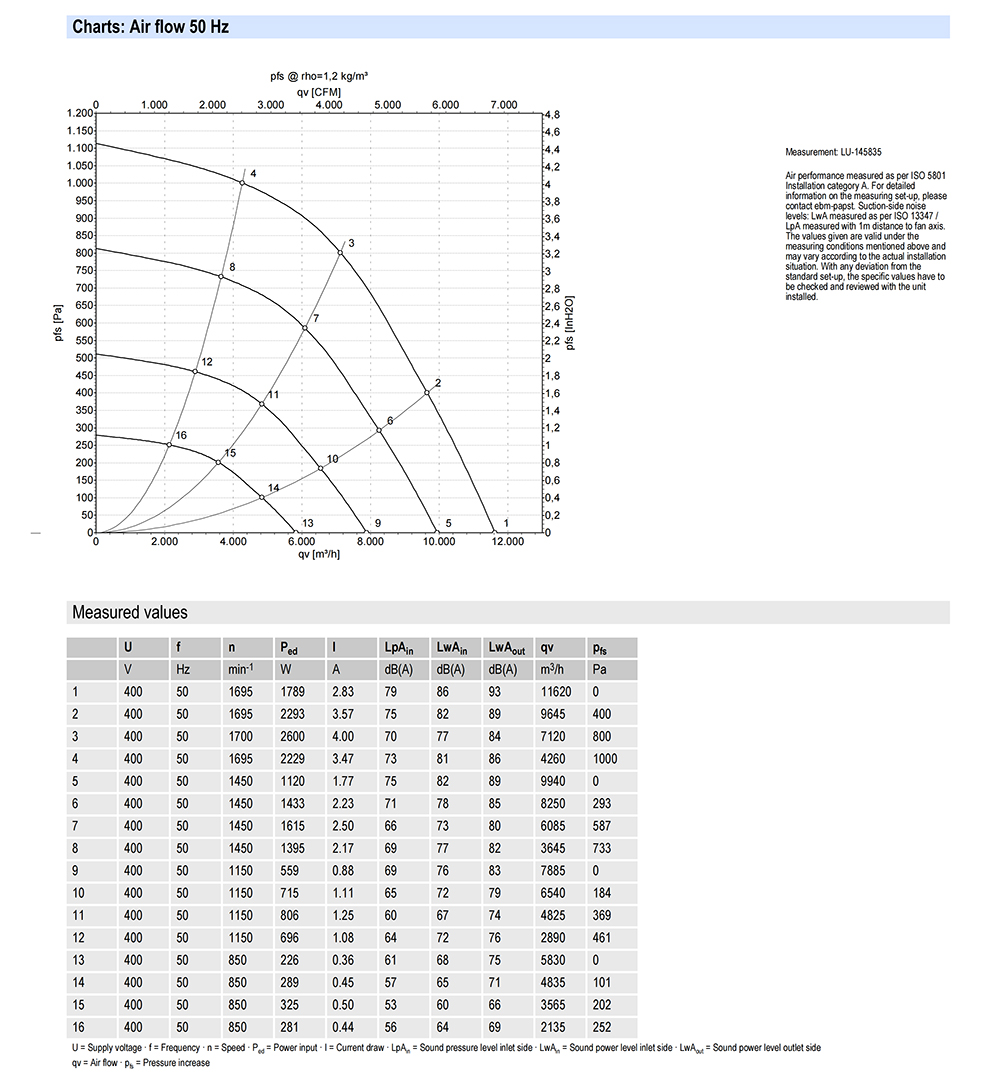

| Max.Air Flow(m³/h): | 11620 |
| Max.Pressure(Pa): | 1000 |
| Input Power(W): | 2600 |
| Speed(RPM): | 1700 |
| Noise(dB): | 70 |
| Mass: | 22 kg |
| Size: | 500 mm |
| Surface Of Rotor: | Coated in black |
| Material Of Electronics Housing: | Die-cast aluminium |
| Material Of Impeller: | PP plastic |
| Number Of Blades: | 7 |
| Direction Of Rotation: | Clockwise, seen on rotor |
| Type Of Protection: | IP 54 |
| Insulation Class: | "F" |
| Humidity Class: | F4-1 |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | +80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | -40 °C |
| Mounting Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | - Output 10 VDC, max. 10 mA - Operation and alarm display - External 24 V input (programming) - External release input - Alarm relay - Integrated PID controller - Motor current limit - PFC, passive - RS485 MODBUS RTU - Soft start - Control input 0-10 VDC / PWM - Control interface with SELV potential safely disconnected from the mains - Over-temperature protected electronics / motor - Line undervoltage / phase failure detection |
| EMC Interference Immunity: | Acc. to EN 61000-6-2 (industrial environment) |
| EMC Interference Emission: | Acc. to EN 55022 (Class B, household environment) |
| Touch Current Acc. IEC 60990 (Measuring Network Fig. 4, TN System): | <= 3.5 mA |

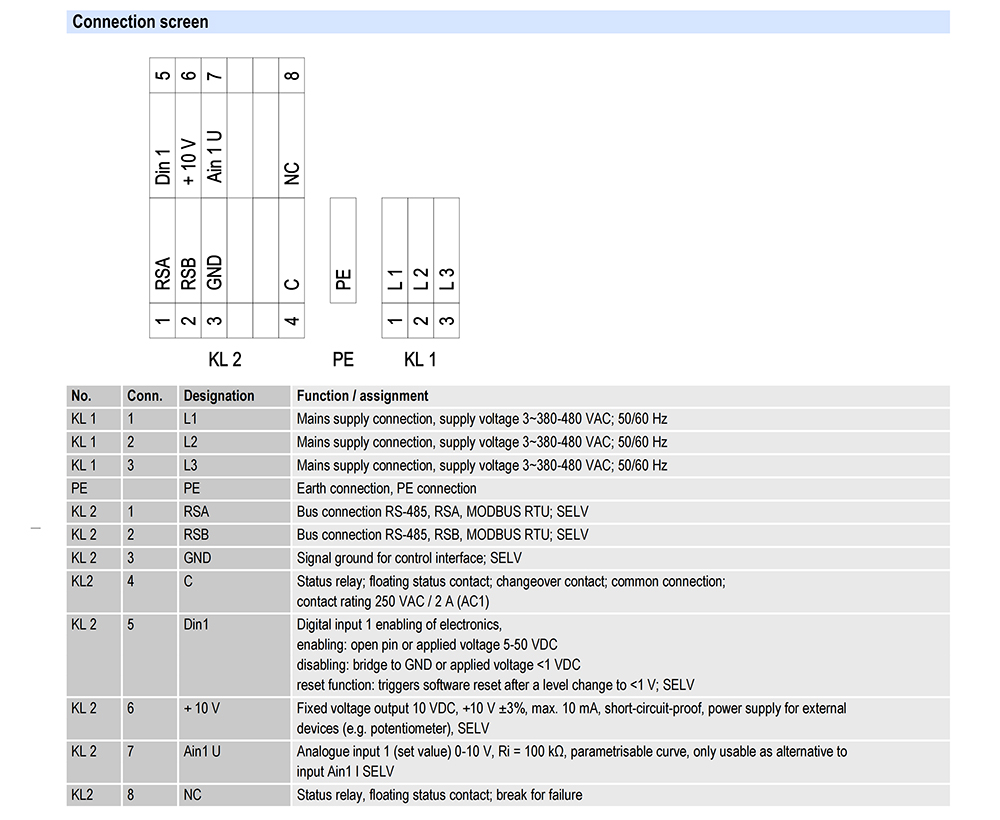

| Electrical Leads: | Via terminal box |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming To Standard: | EN 61800-5-1; CE |
| Approval: | EAC |
