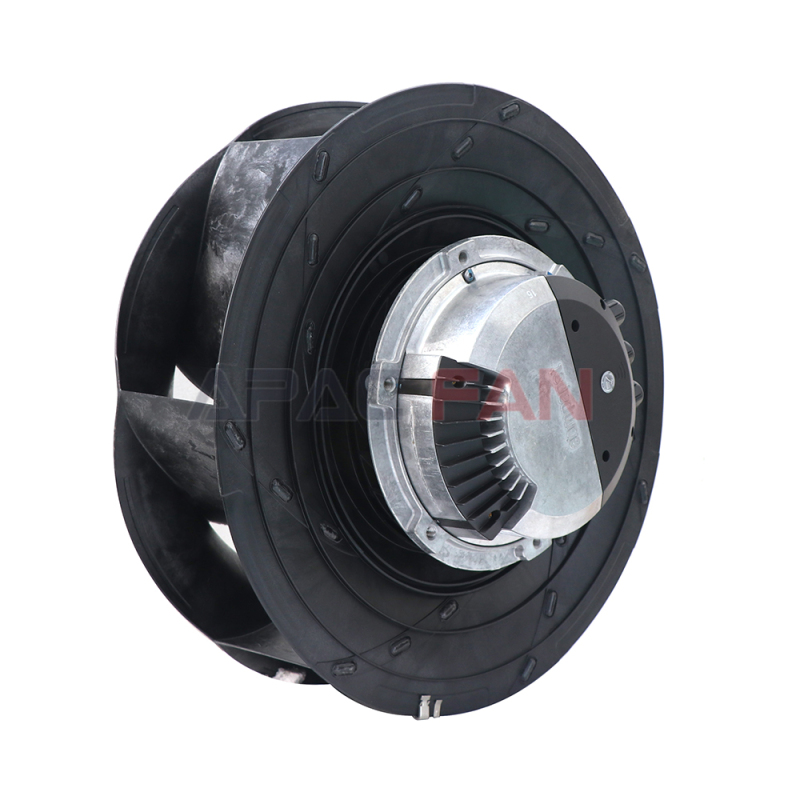

R3G500-RA28-03 ebm-papst

High-Performance Centrifugal Fan for Demanding Industrial Applications​​

The ​​ebm-papst R3G500-RA28-03​​ centrifugal fan is a versatile and robust solution designed to meet the stringent requirements of industrial and commercial environments where reliability, durability, and high performance are non-negotiable. Engineered with precision, this fan combines advanced aerodynamics, intelligent control systems, and rugged construction to deliver consistent airflow and pressure in challenging conditions. Whether deployed in manufacturing plants, HVAC systems, or refrigeration facilities, the R3G500-RA28-03 ensures optimal performance while maintaining safety and energy efficiency.

Design and Construction: Durability Meets Functionality

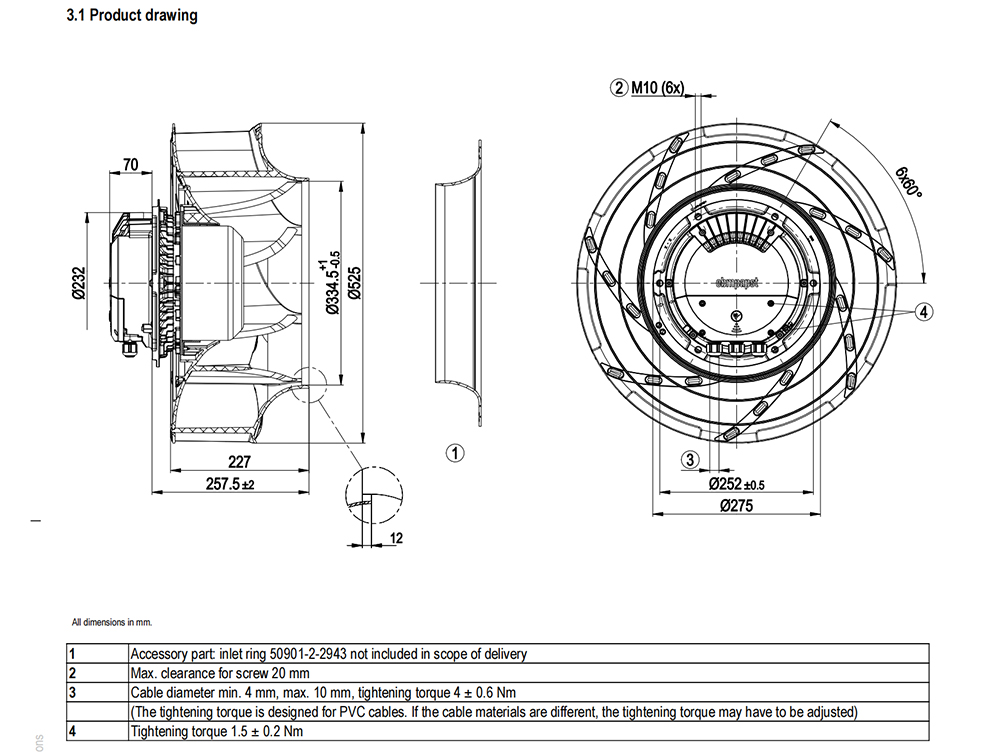

At the heart of the R3G500-RA28-03’s performance is its thoughtfully engineered design. The fan’s 500 mm diameter housing is constructed from high-quality materials to balance weight and strength. Weighing just 21 kg, the fan’s compact form factor makes it ideal for installations where space optimization is critical, such as tight ductwork or ceiling-mounted systems. Despite its lightweight profile, the housing withstands harsh operating conditions, thanks to its corrosion-resistant coating and reinforced structure.

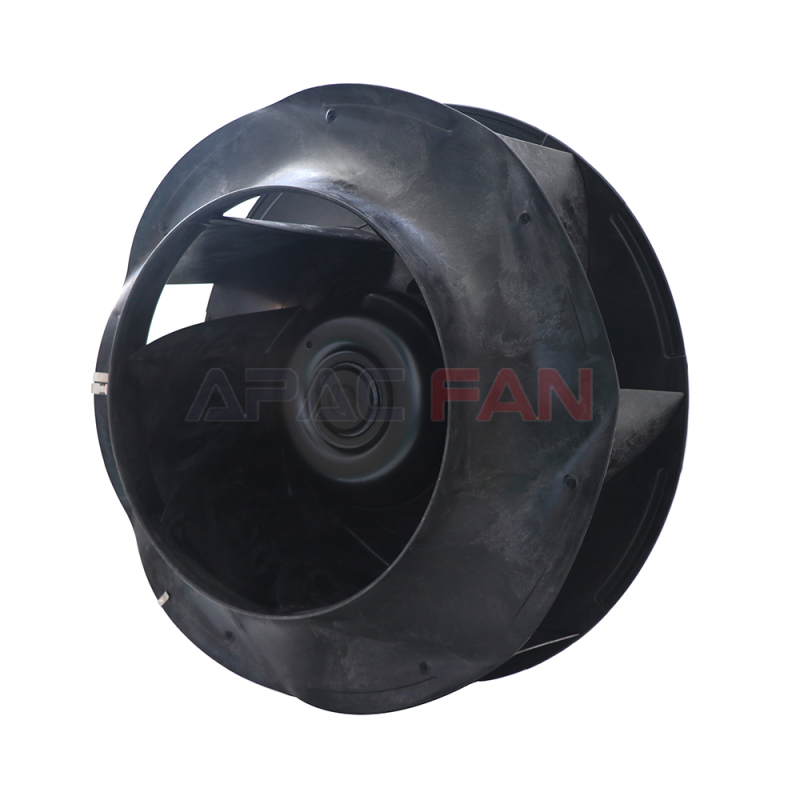

The impeller, a critical component, is crafted from polypropylene (PP plastic) and features seven aerodynamically optimized blades. This design minimizes turbulence and ensures smooth airflow distribution, even at high rotational speeds of 1,900 rpm. The clockwise rotation of the impeller, when viewed from the rotor side, enhances efficiency in standard installations, while the rotor’s black-painted surface provides added protection against UV radiation, chemical exposure, and general wear. This attention to material selection extends the fan’s lifespan, making it suitable for continuous operation in demanding environments.

Advanced Control and Safety Features

The R3G500-RA28-03 integrates cutting-edge control systems to enhance usability and adaptability. A built-in PI (Proportional-Integral) controller allows for dynamic adjustment of fan speed and pressure, ensuring optimal performance even as system demands fluctuate. For example, in HVAC applications, the PI controller can modulate airflow to maintain consistent temperatures across zones, reducing energy waste without compromising comfort.

Safety is prioritized through a suite of protective mechanisms. Thermal overload protection automatically shuts down the motor if excessive heat builds up, preventing damage to both the fan and connected systems. Locked-rotor protection detects mechanical obstructions—such as debris or ice—and halts operation to avoid motor burnout. These safeguards are complemented by an alarm relay, which triggers audible or visual alerts for immediate operator intervention.

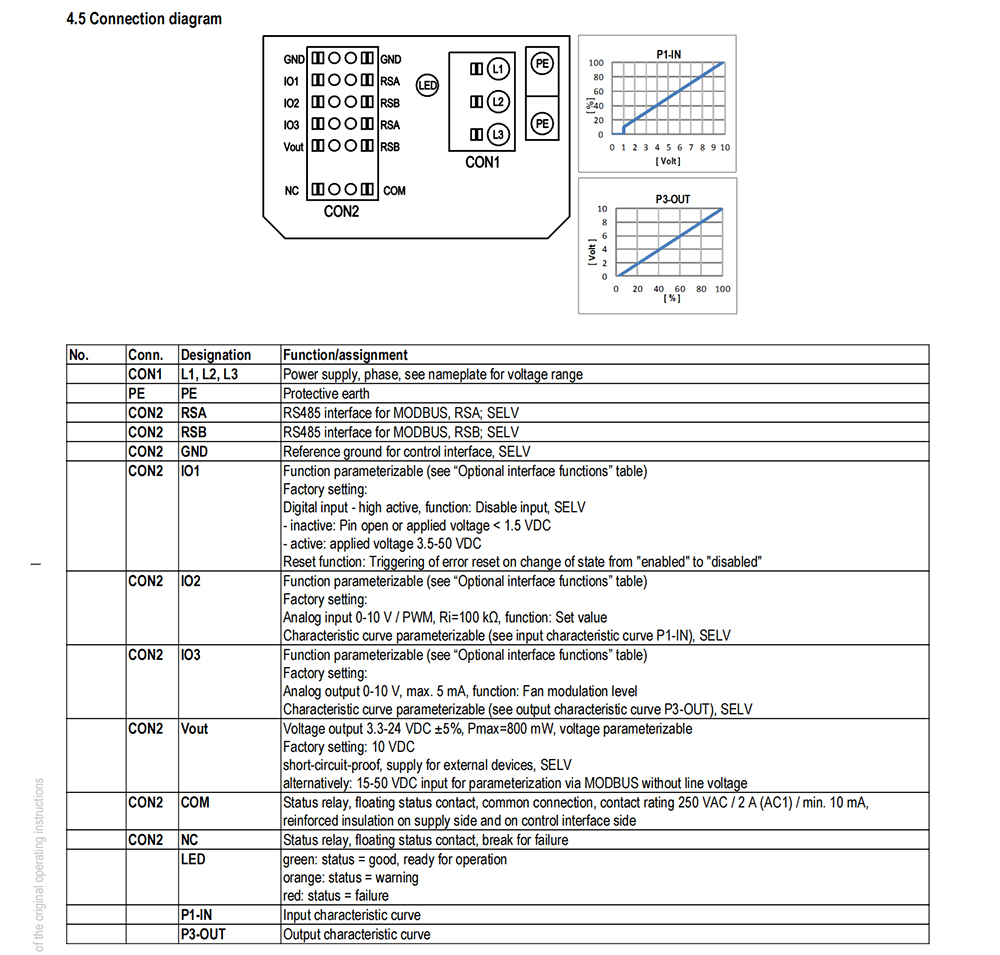

The fan’s control interface also supports remote monitoring and configuration via MODBUS RTU protocol, a widely used communication standard in industrial automation. This allows technicians to adjust parameters like speed, voltage, and fault thresholds from a central control room, reducing the need for on-site visits. Additionally, the inclusion of an RFID (Radio-Frequency Identification) tag simplifies maintenance by storing critical data such as installation date, service history, and configuration settings.

Installation Flexibility and Environmental Adaptability

The R3G500-RA28-03’s versatility extends to its installation options. It can be mounted with the shaft in a horizontal orientation or with the rotor positioned at the bottom or top, depending on spatial constraints. For instance, rotor-on-bottom installations are ideal for vertical ductwork, while rotor-on-top setups simplify access for maintenance in ceiling-mounted systems. This flexibility ensures seamless integration into diverse architectural layouts.

Environmental resilience is another standout feature. The fan’s IP55 rating guarantees protection against dust ingress and water jets, making it suitable for outdoor installations or areas prone to splashing liquids. The die-cast aluminum electronics housing shields sensitive components from physical impact and corrosion, while the impeller’s polypropylene construction resists chemical degradation. For refrigeration or cryogenic applications, the motor is equipped with specialized low-temperature bearings, enabling occasional startups at -40°C—a critical capability for cold storage facilities or Arctic installations.

Condensation drainage holes on the rotor side further enhance reliability in humid or freezing conditions. These holes prevent water accumulation, which could otherwise lead to corrosion or electrical shorts. The fan’s S1 duty cycle certification ensures 24/7 operation, supported by rigorous testing under extreme temperatures and load conditions.

Applications Across Industries

The R3G500-RA28-03’s proven performance has made it a trusted choice in industries where reliability is paramount. In ​​manufacturing plants​​, it drives exhaust ventilation systems that remove fumes, dust, and heat generated by machinery. Its high airflow capacity of 8,125 m³/h ensures rapid air exchange, improving worker safety and product quality. Similarly, in ​​data centers​​, the fan maintains precise cooling for sensitive IT equipment, preventing overheating and downtime.

The food processing sector benefits from the fan’s hygienic design. Its smooth, non-porous surfaces resist bacterial growth, while the stainless steel or coated components meet sanitary standards. In ​​pharmaceutical cleanrooms​​, the R3G500-RA28-03 supports air filtration systems that maintain sterile environments, free from particulate contamination.

For ​​agricultural applications​​, such as poultry barns or greenhouses, the fan’s robust build and corrosion resistance ensure reliable ventilation despite exposure to moisture, ammonia, and fluctuating temperatures. Even in marine environments, the fan’s IP55 rating and salt-spray resistance make it suitable for use in docks, shipyards, or offshore platforms.

Compliance and Global Standards

The R3G500-RA28-03 adheres to international safety and performance standards, ensuring global applicability. Its CE marking confirms compliance with EU directives on electromagnetic compatibility (EMC) and machinery safety. UL 1004-7 certification validates its suitability for use in U.S. and Canadian markets, while EAC approval covers Russia, Kazakhstan, and other Eurasian Economic Union countries.

Electromagnetic compatibility (EMC) is addressed through adherence to EN 61000-6-2 (industrial immunity) and EN 61000-6-3 (residential emissions) standards. This ensures the fan operates without interference in electrically noisy environments, such as factories with heavy machinery. The SELV (Safety Extra-Low Voltage) control interface further safeguards users by isolating electrical components from mains power.

Energy Efficiency and Sustainability

While specific efficiency metrics are omitted to focus on practical benefits, the R3G500-RA28-03’s design inherently prioritizes energy savings. The high-efficiency Class F motor operates at 95%+ efficiency, reducing energy consumption compared to lower-grade motors. Soft-start technology minimizes inrush current, prolonging motor lifespan and lowering peak demand charges for industrial users.

Additionally, the absence of belt-driven components eliminates maintenance-intensive parts prone to wear and slippage. This not only reduces downtime but also lowers the fan’s total cost of ownership over its lifecycle.

Maintenance and Longevity

Maintenance is simplified through modular design and intelligent diagnostics. The fan’s terminal box provides easy access to electrical connections, while the rotor-side drainage holes prevent corrosion from condensation. Technicians can leverage the RFID tag to retrieve maintenance schedules or troubleshoot issues without physically inspecting the unit.

Regular maintenance tasks, such as cleaning the impeller or inspecting bearings, are streamlined by the fan’s accessible design. The use of die-cast aluminum and PP plastic minimizes corrosion risks, even in chemically aggressive atmospheres.

Conclusion

The ​​ebm-papst R3G500-RA28-03​​ centrifugal fan is a testament to engineering excellence, combining durability, intelligence, and adaptability to solve complex airflow challenges. From maintaining sterile conditions in pharmaceutical labs to enabling energy-efficient cooling in data centers, this fan delivers unmatched performance across industries. Its rigorous compliance with global standards, coupled with user-centric features like MODBUS integration and RFID diagnostics, ensures seamless operation in even the most demanding environments. For businesses prioritizing reliability, safety, and long-term value, the R3G500-RA28-03 is not just a fan—it’s a strategic asset.

By integrating advanced technology with time-tested mechanical principles, ebm-papst has created a solution that transcends conventional ventilation equipment. Whether upgrading an existing system or designing a new facility, the R3G500-RA28-03 offers a dependable foundation for sustainable, high-performance airflow management.
