| Brand： | ebm-papst |
| Part No： | R3G560-AH23-01 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 400 |
| Size(mm)： | 560 |

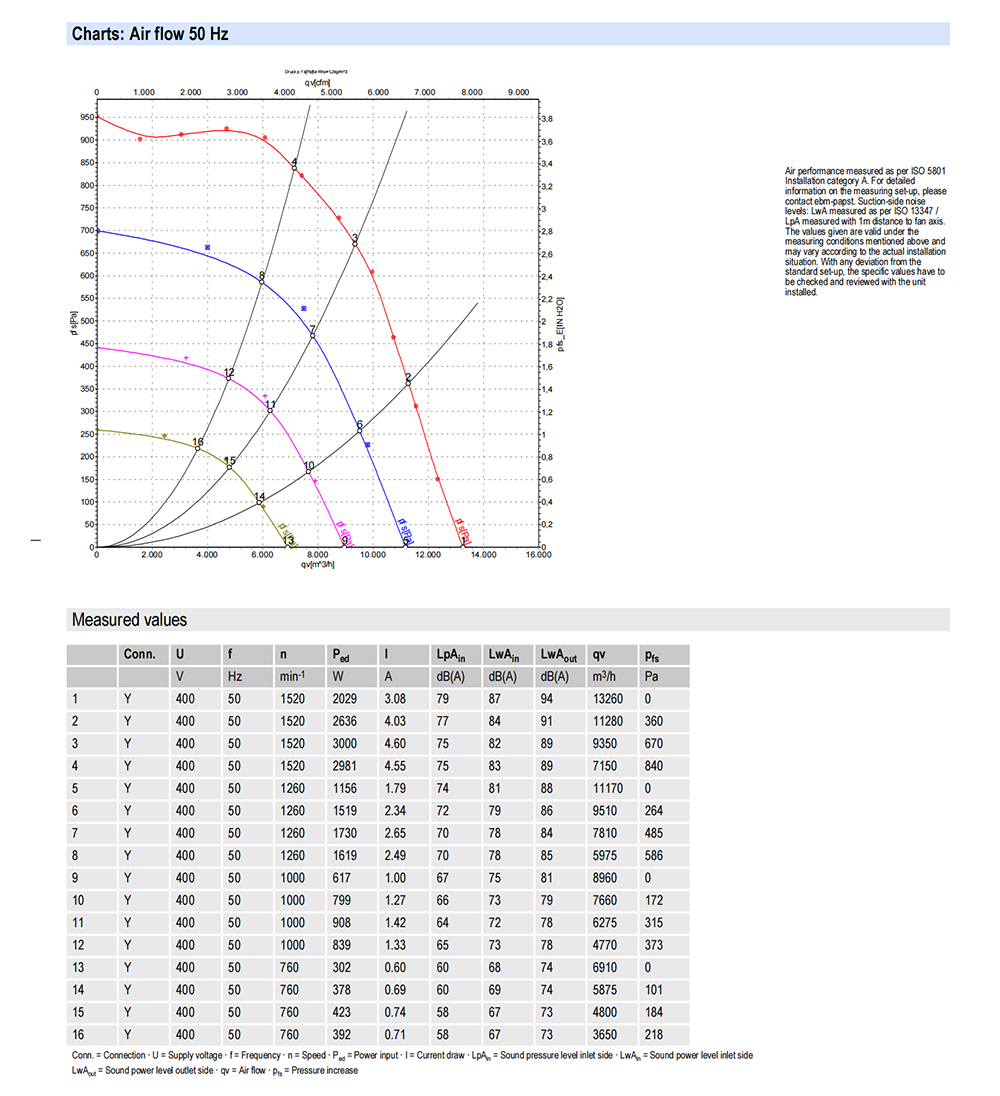

| Max.Air Flow(m³/h)： | 9350 |
| Max.Pressure(Pa)： | 670 |
| Input Power(W)： | 3000 |
| Speed(rpm)： | 1520 |
| Noise(dB)： | 75 |
| Mass: | 29 kg |
| Surface of Rotor: | Coated in black |
| Material of Electronics Housing: | Die-cast aluminium |
| Material of Impeller: | Aluminium sheet |
| Number of Blades: | 9 |
| Direction of Rotation: | Clockwise, seen on rotor |
| Type of Protection: | IP 54 |
| Insulation Class: | "F" |
| Humidity Class: | F4-1 |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | +80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | -40 °C |
| Mounting Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | - Output 10 VDC, max. 10 mA |
| - Output 20 VDC, max. 50 mA | |
| - Output for slave 0-10 V | |
| - Operation and alarm display | |
| - Input for sensor 0-10 V or 4-20 mA | |
| - External 24 V input (programming) | |
| - External release input | |
| - Alarm relay | |
| - Integrated PID controller | |
| - Motor current limit | |
| - PFC, passive | |
| - RS485 MODBUS RTU | |
| - Soft start | |
| - Control input 0-10 VDC / PWM | |
| - Control interface with SELV potential safely disconnected from the mains | |
| - Over-temperature protected electronics / motor | |
| - Line undervoltage / phase failure detection | |
| EMC Interference Immunity: | Acc. to EN 61000-6-2 (industrial environment) |
| EMC Interference Emission: | Acc. to EN 61000-6-3 (household environment) |
| Touch Current acc. IEC 60990 (Measuring Network Fig. 4, TN System): | <= 3.5 mA |

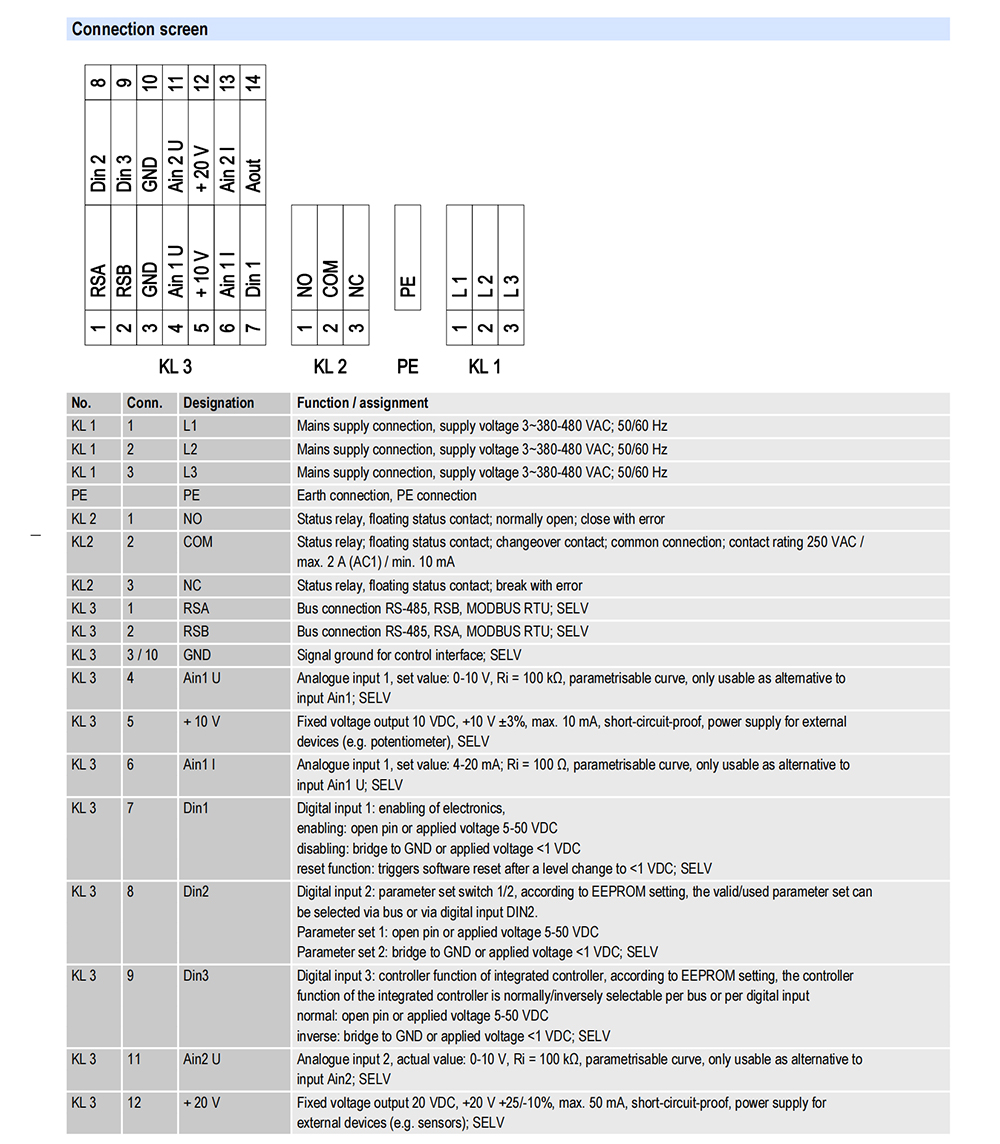

| Electrical Leads: | Via terminal box |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming to Standard: | CE |
| Approval: | C22.2 Nr.77 + CAN/CSA-E60730-1; EAC; UL 1004-7 + 60730 |
