R3G560-AQ04-01 ebm-papst

The Power of Brands

ebm-papst is a prominent presence in the field of wind turbine manufacturing. Over the years, it has won the trust of numerous customers in the global market with its persistent pursuit of quality and continuous innovation spirit. This brand has always been committed to researching and producing high-performance and reliable fan products, and R3G560-AQ04-01 is the perfect embodiment of its technical strength and exquisite craftsmanship.

Interpretation of key parameters

Fan type: It belongs to centrifugal fans. The working principle of a centrifugal fan is to use the high-speed rotation of the impeller to move air from the center to the edge under the action of centrifugal force, and then discharge the air at a certain pressure through the volute. This working method enables centrifugal fans to perform exceptionally well in ventilation systems that require overcoming significant resistance.

Rated voltage: The rated voltage is 400V. This voltage level is suitable for most industrial and commercial power supply systems. A relatively high voltage can provide sufficient power for the fan, ensuring its stable and efficient operation.

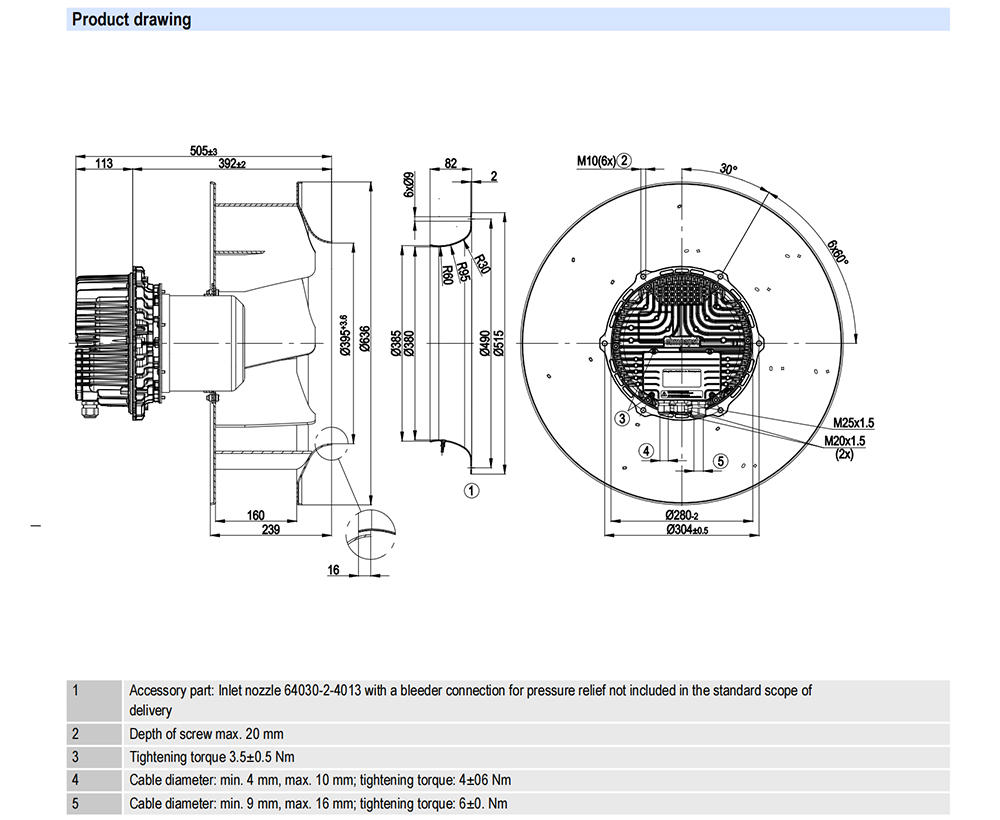

Size specification: The size of the fan is 560 millimeters. This size design gives it a large ventilation capacity, which can meet the ventilation needs of some large places. Meanwhile, during the installation process, it is also necessary to consider its size to ensure sufficient space for placing the fan.

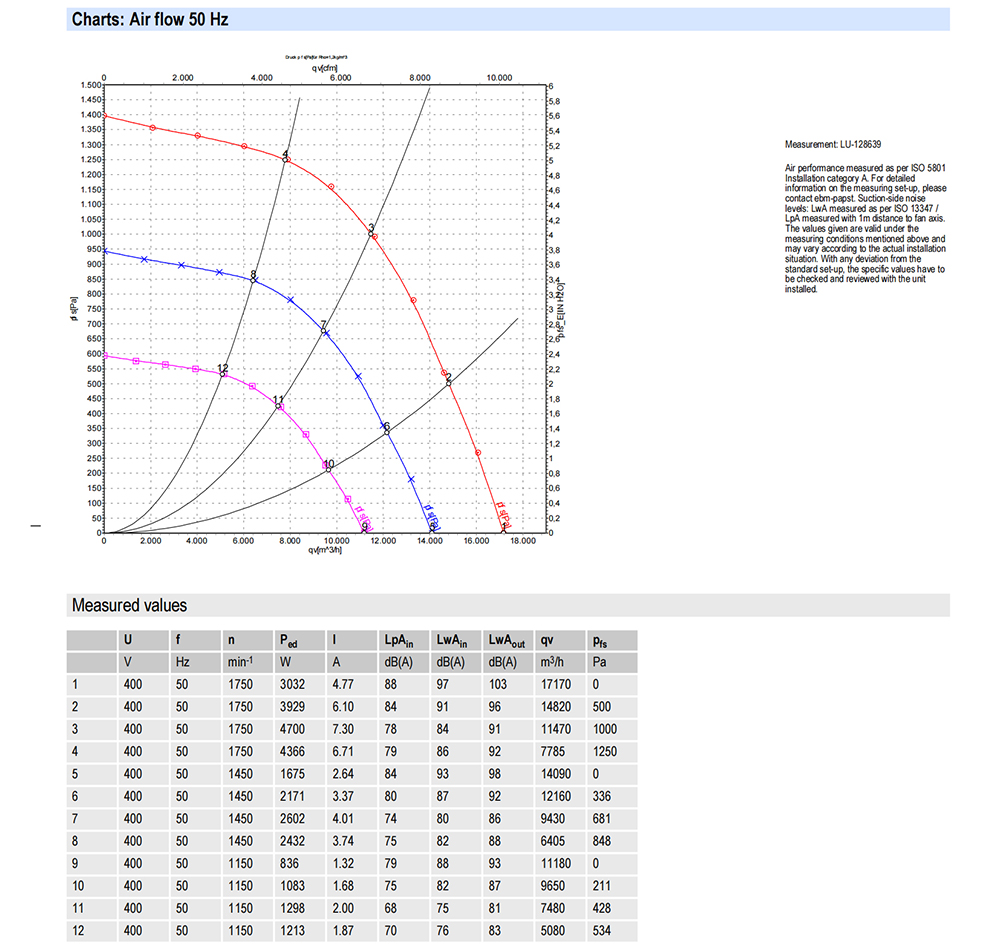

Maximum air volume: The maximum air volume can reach 17170m ³/h. Such a large air volume enables it to quickly update the air in a large area of space in a short period of time. Whether it is a large factory workshop, commercial complex, or large warehouse, it can easily handle and provide sufficient fresh air for these places.

Maximum pressure: The maximum pressure is 1250Pa. High pressure output means it can overcome greater resistance in the ventilation system and transport air over longer distances. In some places with long ventilation ducts and high system resistance, it can still ensure smooth air circulation.

Input power: The input power is 4700W. Although its power is relatively high, considering its powerful air volume and pressure output, its energy utilization efficiency is still very considerable. While ensuring efficient ventilation, it can also control operating costs to a certain extent.

Speed: The speed is 1750rpm. The stable speed provides continuous and reliable power for the fan, ensuring its stable operation. Meanwhile, a reasonable speed design can also help reduce the noise and vibration of the fan, and improve the smoothness of operation.

Analysis of Product Features

Advanced aerodynamic design: The impeller and volute of the fan are designed using advanced aerodynamic principles. The blade shape and angle of the impeller have been carefully optimized to make the flow of air inside the impeller smoother, reducing air turbulence and energy loss. The design of the snail shell can effectively collect and guide air, improving the efficiency of air discharge. This efficient design enables the fan to generate greater air volume and pressure under the same power input, greatly improving ventilation efficiency.

Selection of high-quality materials: The casing of the fan is made of high-strength and corrosion-resistant materials. In practical use, fans may face various harsh environmental conditions such as humidity, dust, chemical corrosion, etc. High quality shell materials can effectively resist the erosion of these factors, protect the internal components of the fan from damage, and extend the service life of the fan. The key components such as impellers are also made of lightweight and high-strength alloy materials, which not only ensure the strength of the structure, but also reduce the weight, lower the load on the motor, and improve the overall performance of the fan.

Efficient and stable motor: The equipped motor is the core of the stable operation of the fan. This motor has the characteristics of high efficiency, energy saving, and low noise. It adopts advanced electromagnetic design and manufacturing technology, which can maintain stable performance during long-term continuous operation. The insulation performance of the motor is good, which can effectively prevent the occurrence of faults such as leakage and short circuit, ensuring the safe operation of the equipment. At the same time, the cooling system of the motor is designed reasonably, which can timely dissipate the heat generated during operation, avoiding damage to the motor due to overheating.

Low vibration operation: A series of measures have been taken in the design and manufacturing process to reduce the vibration of the fan during operation. By optimizing the balance performance of the impeller, the vibration caused by imbalance has been reduced. At the same time, shock-absorbing materials and structures were used to further reduce the propagation of vibration. Low vibration operation can not only reduce the impact on the surrounding environment, but also extend the service life of the fan and reduce maintenance costs.

Application scenario outlook

Due to its outstanding performance and characteristics, the R3G560-AQ04-01 centrifugal fan has broad application prospects in multiple fields.

In the industrial field, large industrial plants such as steel mills and cement plants generate a large amount of hot gas, dust, and harmful gases during the production process. This fan can be used as a ventilation device to discharge polluted indoor air, introduce fresh air, improve the working environment, and protect the health of employees. At the same time, in some industrial production processes that require high air circulation, such as ventilation in chemical reaction vessels and air purification in electronic chip manufacturing workshops, it can also play an important role in ensuring the smooth progress of the production process.

In the commercial field: In large shopping malls, supermarkets, hotels and other commercial places with dense population, the air is prone to become polluted. The R3G560-AQ04-01 centrifugal fan can be used as a part of the central air conditioning system to provide sufficient fresh air indoors, maintain fresh and comfortable indoor air, and provide customers with a good shopping and consumption environment. In large theaters, exhibition halls, and other places, it can quickly update the air and meet the breathing needs of a large number of people.

In the field of public facilities: In transportation hubs such as subway stations, train stations, airports, etc., there is a large flow of people and high requirements for air circulation. This fan can be used in ventilation systems to ensure the quality of indoor air and provide passengers with a comfortable and healthy environment. In the operating rooms, wards, and other areas of the hospital, it can ensure clean and circulating air, prevent cross infection, and provide guarantees for the recovery of patients.

summarize

The R3G560-AQ04-01 centrifugal fan has become a leader in the field of ventilation due to its excellent performance parameters, unique product features, and wide range of application scenarios. It not only meets the ventilation needs of different users, but also brings efficient, stable, and reliable user experience. I believe that in the future ventilation market, it will continue to play an important role in creating a more comfortable and healthy environment for people.
