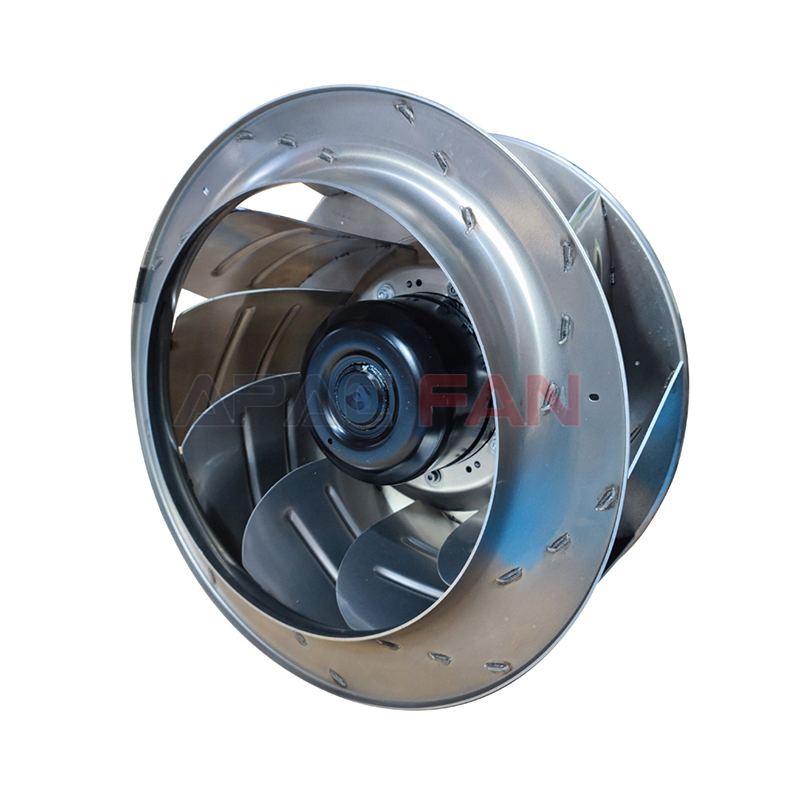

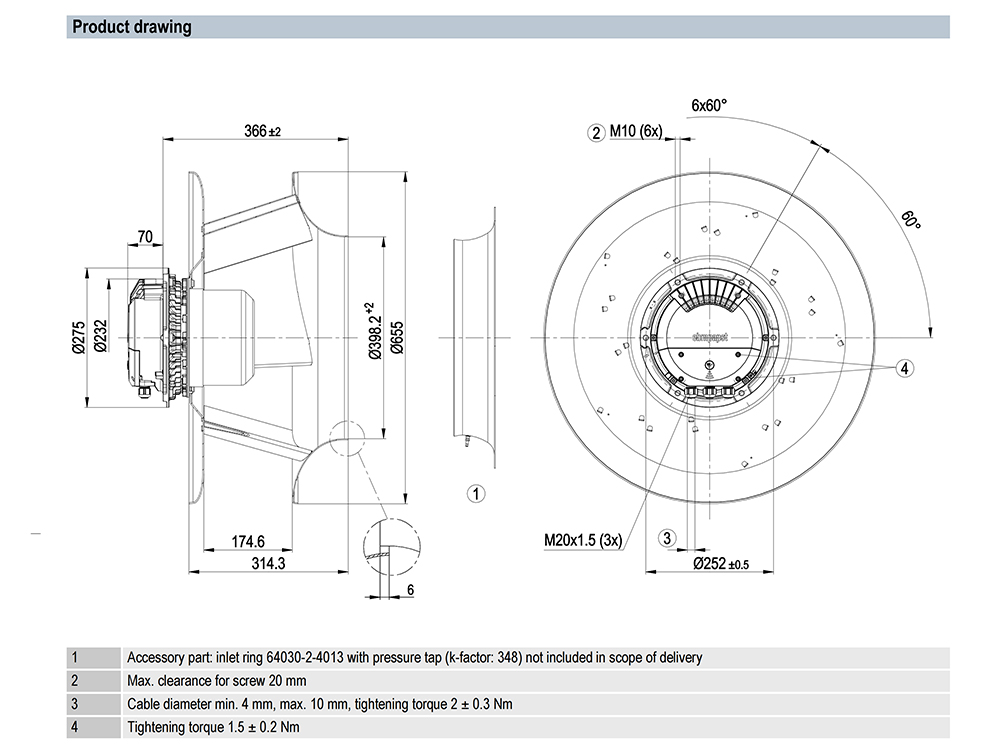

EC centrifugal fan - RadiPac, backward-curved, single-intake

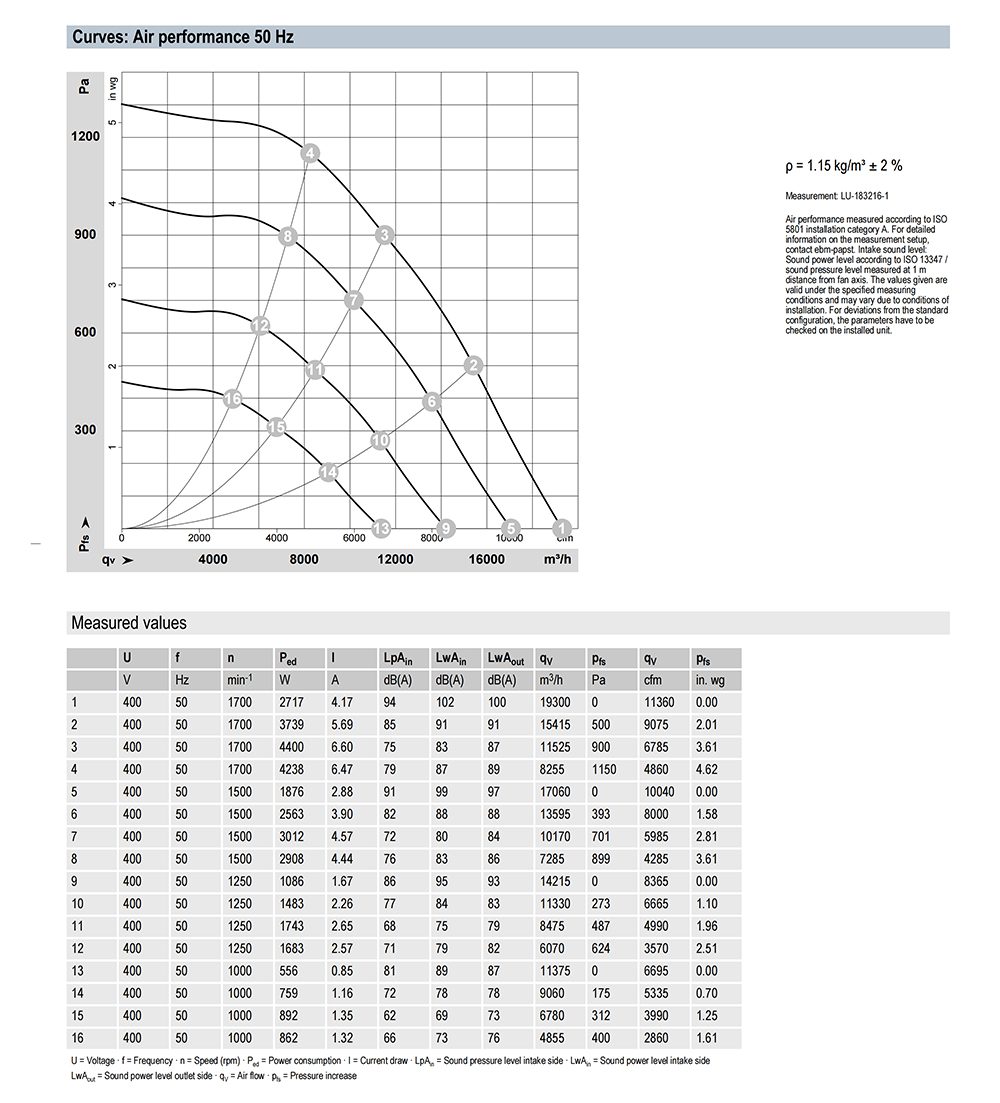

| Brand: | ebm-papst |
| Part No: | R3G560-PB31-03 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 400 |
| Size(mm): | 560 |
| Max.Air Flow(m³/h): | 19190 |
| Max.Pressure(Pa): | 1150 |
| Input Power(W): | 4250 |
| Speed(RPM): | 1700 |
| Noise(dB): | 75 |
| Weight: | 27.8 kg |
| Motor Size: | 150 |
| Rotor Surface: | Painted black |
| Electronics Housing Material: | Die-cast aluminum |
| Impeller Material: | Sheet aluminum |
| Number Of Blades: | 5 |
| Direction Of Rotation: | Clockwise, viewed toward rotor |
| Degree Of Protection: | IP55 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | H1 |
| Ambient Temperature Note: | Occasional start-up at temperatures between -40°C and -25°C is permitted. For continuous operation at ambient temperatures below -25°C (such as refrigeration applications), use must be made of a fan design with special low-temperature bearings. |
| Max. Permissible Ambient Temp. For Motor (Transport/Storage): | +80 °C |
| Min. Permissible Ambient Temp. For Motor (Transport/Storage): | -40 °C |
| Installation Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation Drainage Holes: | On rotor side |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | - Operation and alarm display with LED - External 15-50 VDC input (parameterization) - Alarm relay - Integrated PI controller - Configurable inputs/outputs (I/O) - MODBUS V6.0 - Motor current limitation - RFID - ISO 15693 compatible - RS-485 MODBUS-RTU - Soft start - Voltage output 3.3-24 VDC, Pmax = 800 mW - Control interface with SELV potential safely disconnected from the mains - Thermal overload protection for electronics/motor - Line undervoltage / phase failure detection |
| EMC Immunity To Interference: | According to EN 61000-6-2 (industrial environment) |
| EMC Interference Emission: | According to EN 61000-6-3 (household environment), except EN 61000-3-2 for professionally used equipment with a total rated power greater than 1 kW |
| Touch Current According To IEC 60990 (Measuring Circuit Fig. 4, TN System): | <= 3.5 mA |

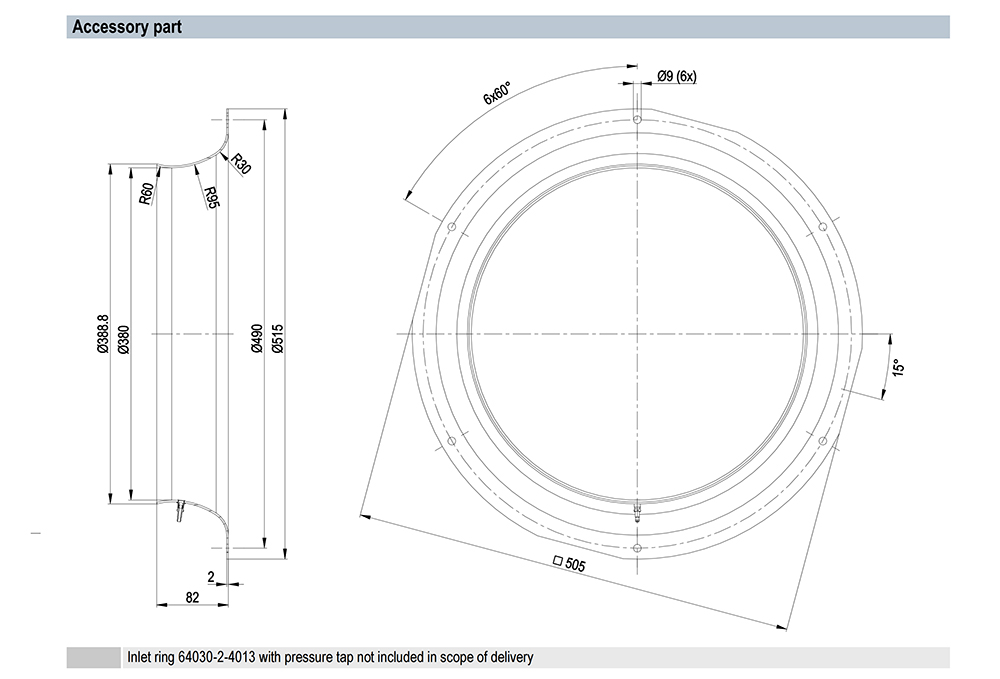

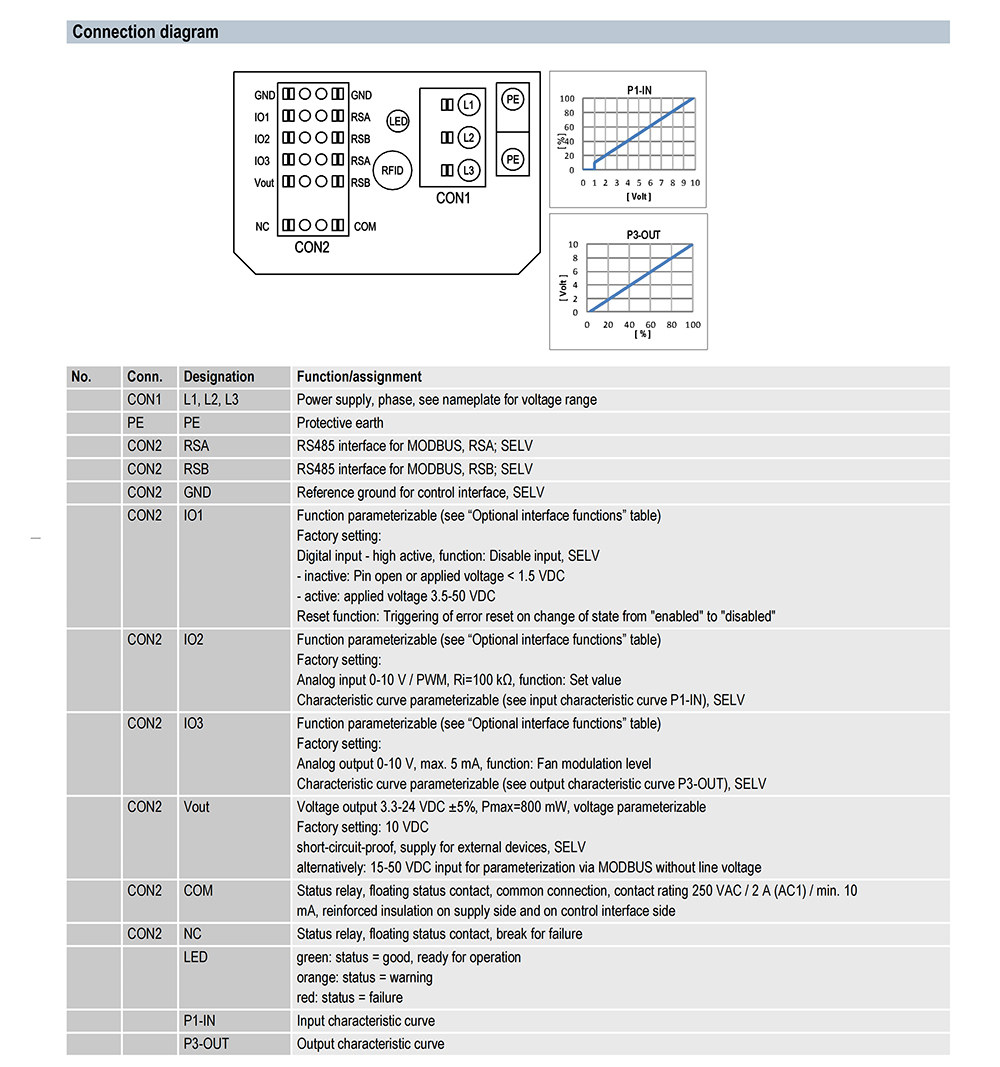

| Electrical Hookup: | Terminal box |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity With Standards: | EN 61800-5-1; CE |
| Approval: | EAC; CSA C22.2 No. 77 + CAN/CSA-E60730-1; UL 1004-7 + 60730-1 |
