Robust Industrial Ventilation with the ebm-papst R3G630-RB32-03 Centrifugal Fan​​

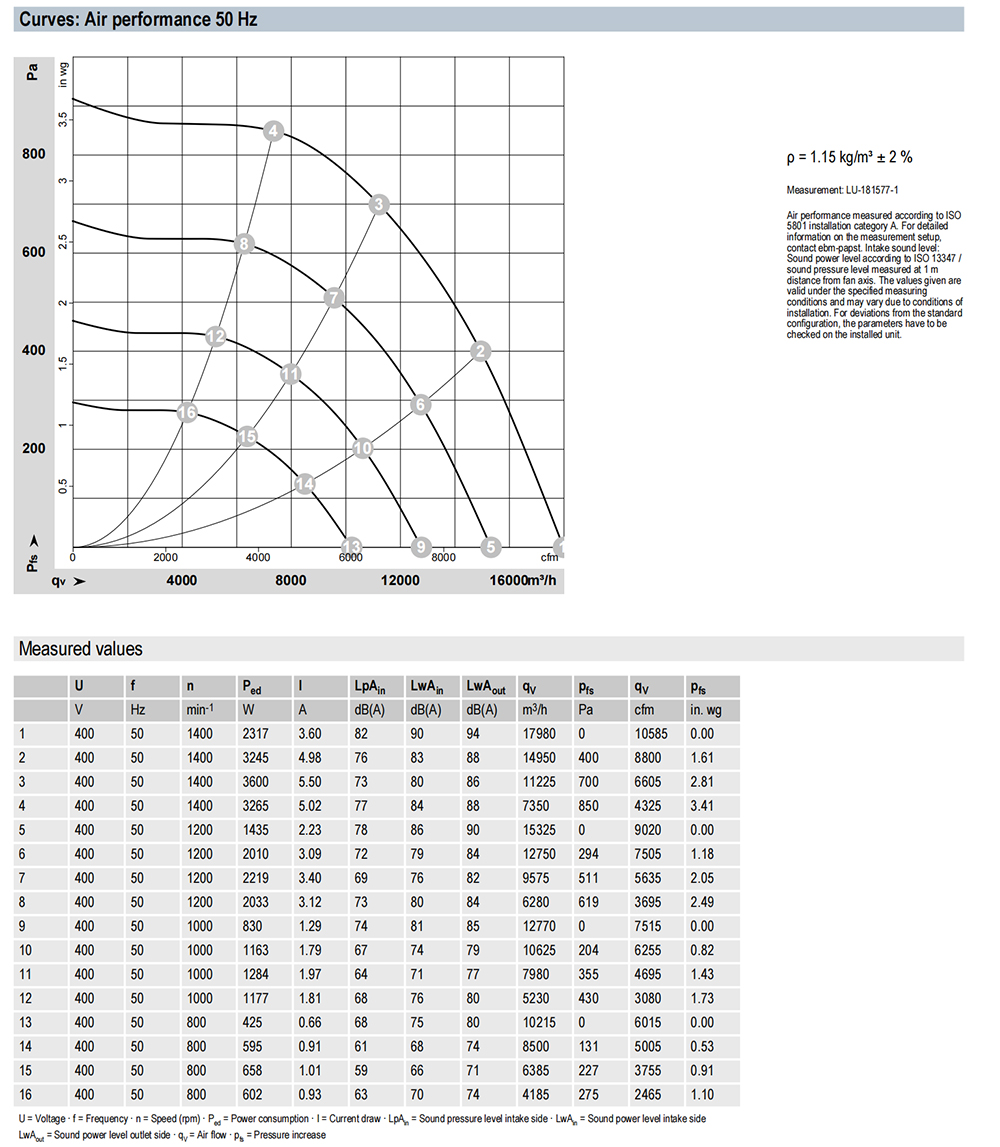

The ​​ebm-papst R3G630-RB32-03​​ centrifugal fan is engineered to address the most rigorous demands of industrial ventilation, offering a harmonious blend of power, durability, and intelligent control. With its 630mm frame diameter and 400V AC motor, this fan is engineered to deliver up to 17,980 cubic meters of airflow per hour while maintaining a maximum pressure of 850 Pa—a specification that makes it indispensable in environments where consistent air movement is critical. From heavy-duty manufacturing floors to climate-controlled storage facilities, the R3G630-RB32-03 is designed to operate flawlessly under conditions that would challenge lesser equipment.

Industrial Durability and Material Selection

Central to the fan’s reliability is its construction. The impeller, crafted from high-density polypropylene (PP) plastic, combines lightweight flexibility with exceptional resistance to chemical exposure and physical abrasion. This material choice is particularly advantageous in industries such as chemical processing, food manufacturing, or automotive assembly, where corrosive fumes, moisture, or particulate matter are common. Unlike metal impellers, which may corrode over time, the PP design ensures longevity even in abrasive environments. Additionally, the rotor’s black-painted surface not only enhances visual appeal but also provides a degree of thermal stabilization, dissipating heat more effectively during prolonged operation.

The die-cast aluminum electronics housing adds another layer of protection. This material is inherently resistant to corrosion, impact, and oxidation, making it suitable for outdoor installations or areas prone to humidity, such as wastewater treatment plants or coastal industrial zones. The housing also safeguards sensitive components like the integrated PI controller and MODBUS RTU interface, ensuring uninterrupted performance even in harsh conditions.

Advanced Control and Monitoring Systems

The R3G630-RB32-03 integrates a suite of smart features that streamline operation and maintenance. The built-in PI (Proportional-Integral) controller allows operators to fine-tune airflow and pressure dynamically. Unlike basic on/off controls, this system adjusts motor speed incrementally to maintain optimal performance based on real-time demand. For instance, in a warehouse where ventilation needs fluctuate between daytime occupancy and nighttime standby, the PI controller can reduce energy consumption by scaling back airflow when full capacity is unnecessary.

Complementing this is the MODBUS RTU communication protocol, which enables seamless integration with building management systems (BMS) or industrial automation platforms. Through this protocol, the fan can communicate with sensors, PLCs, or SCADA systems to automate responses to changing conditions. For example, if a temperature sensor detects a spike in a server room, the BMS could signal the fan to increase airflow to prevent overheating. The alarm relay further enhances this capability, triggering alerts for issues such as phase imbalances or locked rotors—problems that, if unaddressed, could lead to costly downtime.

The LED status display provides immediate visual feedback on operational parameters, including current airflow, pressure levels, and fault codes. This feature is invaluable for technicians performing routine checks, as it eliminates the need for specialized diagnostic tools. For instance, a flickering LED indicating low voltage allows maintenance crews to address power supply issues before they escalate into motor failures.

Safety Mechanisms and Environmental Adaptability

Safety is a cornerstone of the R3G630-RB32-03’s design. The IP55 protection rating ensures resilience against dust ingress and water jets, making it suitable for use in explosive atmospheres (such as grain silos) or outdoor installations exposed to rain and snow. Thermal overload protection is another critical safeguard, monitoring motor temperature to prevent overheating during sustained high-load operation. This is particularly important in applications like metalworking shops, where sparks or friction-generated heat could pose risks.

For extreme environments, the fan supports optional low-temperature bearings, enabling reliable operation in sub-zero conditions. While the standard motor bearings are rated for continuous use down to -25°C, these specialized variants extend usability to -40°C—a necessity in cryogenic storage facilities or Arctic research stations. Even without these modifications, the R3G630-RB32-03 can handle intermittent startups at ultra-low temperatures, provided the rotor is allowed to warm up gradually.

Moisture management is addressed through condensation drainage holes positioned on the rotor side. In cold storage facilities or refrigerated transport, condensation can accumulate on the rotor blades, potentially causing imbalance or corrosion. These drainage holes allow water to exit the system safely, preserving the fan’s structural integrity and performance.

Installation Flexibility and Energy Efficiency

The R3G630-RB32-03’s versatility extends to its installation options. It can be mounted with the rotor oriented horizontally or vertically (rotor on top or bottom), accommodating architectural constraints in retrofits or new constructions. For example, in a multi-story factory with limited ceiling space, a bottom-mounted rotor configuration might be ideal. Conversely, in a ground-level facility with ample floor space, a horizontal setup simplifies maintenance access.

Energy efficiency is achieved through soft-start technology, which gradually increases motor speed to reduce inrush current. This not only prolongs motor life by minimizing mechanical stress but also lowers peak power demand, contributing to lower electricity costs. In applications like paint booths or grinding stations—where the fan cycles on and off frequently—the soft-start feature reduces wear on bearings and belts (though this model uses direct-drive construction, eliminating belts entirely).

Applications Across Industries

The R3G630-RB32-03’s adaptability makes it a workhorse in diverse sectors. In ​​manufacturing​​, it ensures safe air quality in facilities handling volatile chemicals or fine particulates. In ​​logistics​​, its high airflow supports temperature control in cold storage warehouses, while its IP55 rating protects against forklift splashes or ice buildup. The fan’s quiet operation at 59 dB is equally valuable in ​​commercial settings​​, such as shopping malls or office buildings, where HVAC systems must balance performance with occupant comfort.

For ​​agricultural applications​​, such as poultry farms or greenhouses, the fan’s corrosion-resistant materials and adjustable airflow help maintain optimal humidity and oxygen levels. Even in niche sectors like ​​pharmaceuticals​​, where contamination risks are paramount, the PP impeller’s smooth surface resists particle adhesion, simplifying cleaning and sterilization processes.

Maintenance and Longevity

Maintenance intervals are extended through the fan’s robust design. The ball-bearing motor requires minimal lubrication, while the die-cast housing resists corrosion from airborne salts or industrial solvents. The absence of belt drives eliminates alignment issues and belt wear, a common maintenance headache in traditional centrifugal fans.

Proactive diagnostics further reduce downtime. The alarm relay can be configured to trigger SMS alerts or BMS notifications, prompting crews to address issues before they escalate. For example, a voltage drop detected by the reverse polarity protection circuit would immediately notify technicians, preventing motor burnout.

Conclusion

The ​​ebm-papst R3G630-RB32-03​​ centrifugal fan is more than just a high-performance component—it’s a comprehensive solution tailored to the challenges of industrial and commercial ventilation. Its combination of durability, intelligent control, and adaptability ensures reliability in some of the harshest environments imaginable. By integrating advanced safety features, energy-efficient operation, and seamless connectivity, this fan not only meets current operational needs but also future-proofs ventilation systems against evolving industry demands. Whether in a bustling factory, a climate-sensitive warehouse, or a remote storage facility, the R3G630-RB32-03 delivers unmatched performance, making it a trusted ally in industrial airflow management.
