| Brand： | Rittal |
| Part No： | SK3326.107 (W2E200-HH38-07) |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 230 |

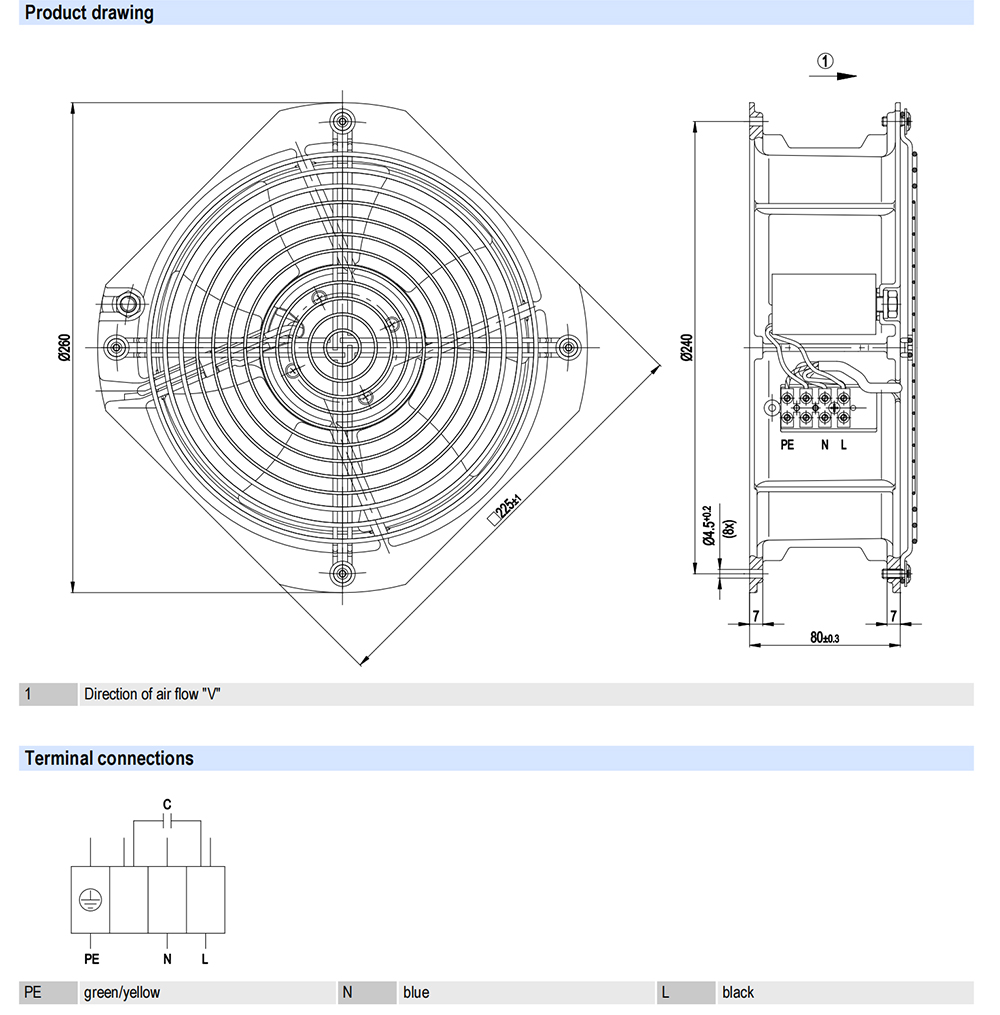

| Size(mm)： | 225*225*80 |

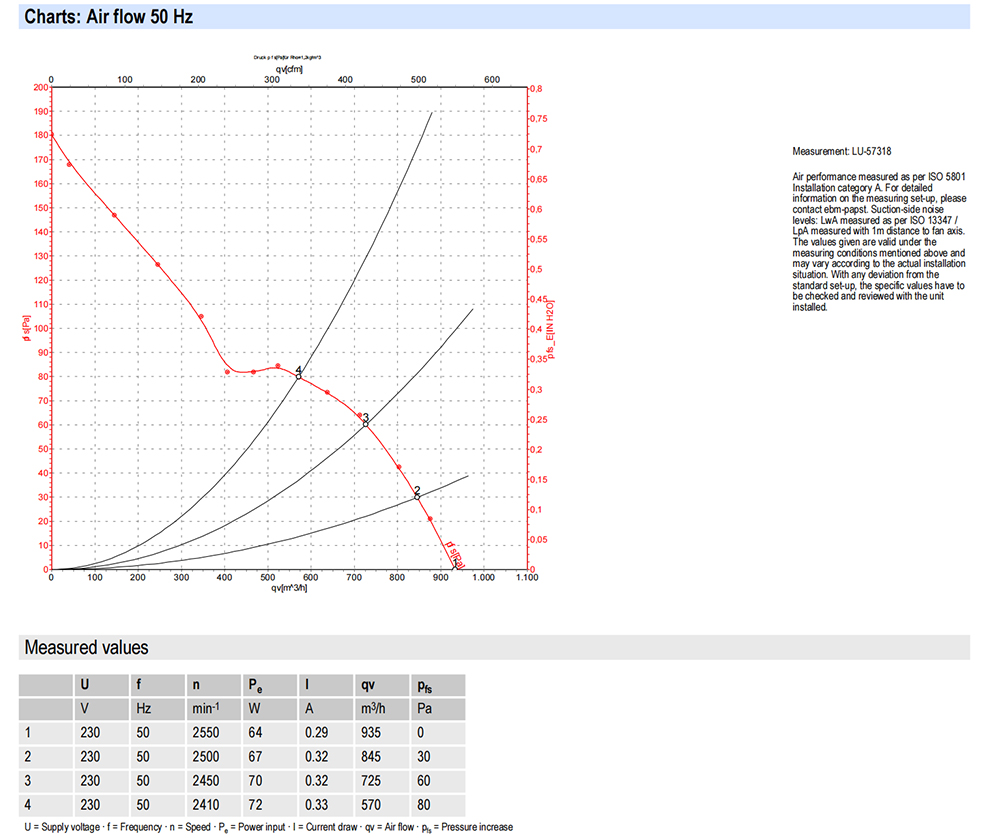

| Max.Air Flow(m³/h)： | 935 |
| Max.Pressure(Pa)： | 80 |
| Input Power(W)： | 64 |
| Speed(RPM)： | 2550 |
| Noise(dB)： | N/A |
| Surface of Rotor: | Coated in black |
| Material of Blades: | Sheet steel, coated in black |
| Material of Wall Ring: | Die-cast aluminium |
| Material of Guard Grille: | Steel, galvanised and plastic-coated in white aluminium (RAL 9006) |
| Number of Blades: | 9 |
| Direction of Air Flow: | "V" |
| Direction of Rotation: | Counter-clockwise, seen on rotor |
| Type of Protection: | IP 44; Depending on installation and position |
| Insulation Class: | "B" |
| Humidity Class: | F0 |
| Max. Permissible Ambient Motor Temp. (Transp./Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Any |
| Condensate Discharge Holes: | None |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current Acc. IEC 60990 (Measuring Network Fig. 4, TN System): | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Cable Exit: | Variable |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming to Standard: | EN 60335-1; CE |
| Approval: | UL 507; CCC; VDE; CSA C22.2 Nr.113 |

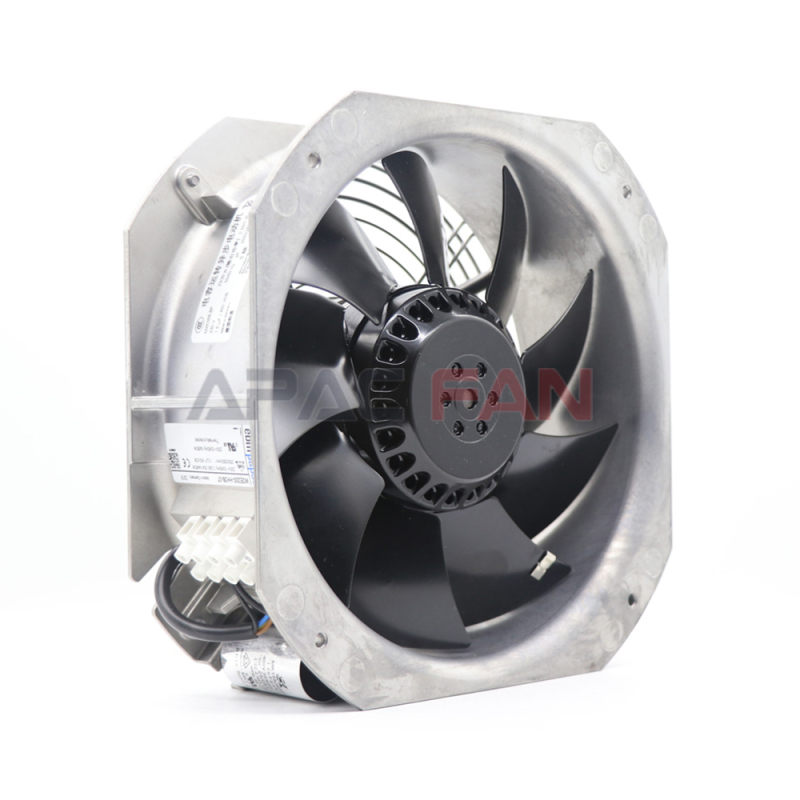

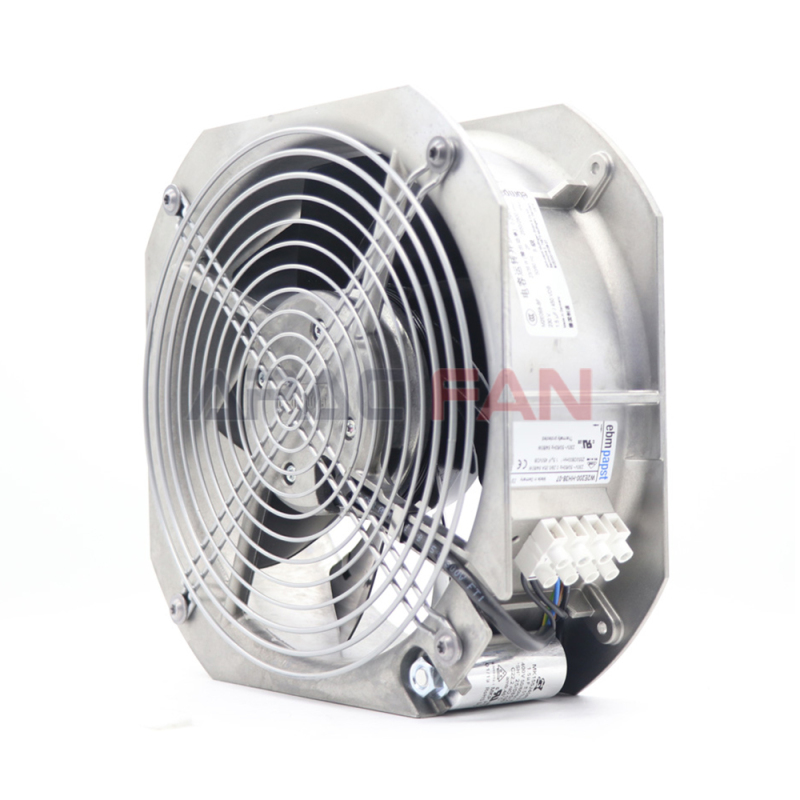

Detailed introduction of W2E200-HH38-07 axial fan
In the field of fans, ebm-papst is a brand with an excellent reputation, renowned for its high-quality, high-performance ventilation and drive solutions. As a product under the brand, W2E200-HH38-07 axial fan plays an important role in many industrial and commercial applications due to its excellent design and reliable performance. Axial flow fan is a common ventilation device that works by making air flow along the axial direction, enabling efficient transportation and exchange of air.
Rated voltage
The rated voltage of W2E200-HH38-07 axial fan is 230V, which is a common industrial and commercial electrical voltage standard. The use of a rated voltage of 230V enables the fan to be easily connected to most power systems without the need for additional voltage conversion equipment, improving the product's versatility and ease of use. Meanwhile, stable voltage input also helps ensure the stable operation of the fan and reduce performance instability caused by voltage fluctuations.
Size specifications
The size of the fan is 225 * 225 * 80 millimeters, and this compact design allows it to be installed without taking up too much space. Whether inside a small cabinet or in ventilation ducts with limited space, it can be easily installed. Its reasonable size design also ensures the stability of the fan during operation, reducing the noise and damage risks caused by vibration.
Maximum air volume
The maximum air volume of the W2E200-HH38-07 axial fan can reach 935m ³/h. This high air volume indicator means that the fan can deliver a large amount of air per unit time, effectively achieving the function of ventilation and air exchange. In application scenarios where it is necessary to quickly eliminate indoor polluted air or provide sufficient cooling air for equipment, such a large air volume can ensure efficient ventilation. For example, in some large workshops or computer rooms, it is possible to quickly exhaust indoor hot air and exhaust gases, maintaining fresh and suitable indoor air temperature.
Maximum pressure
Its maximum pressure is 80Pa, which allows the fan to overcome the resistance in the ventilation system to a certain extent. In situations where ventilation ducts are long, have multiple bends, or are equipped with filtering devices, the ventilation system will generate certain resistance, affecting the flow of air. And the maximum pressure of 80Pa of the fan can push air smoothly through these resistances, ensuring the normal operation of the ventilation system. For example, in some complex ventilation networks, it is possible to ensure that air is evenly distributed to various areas.
Input power
The input power of the fan is 64W, and the relatively low input power means that energy can be saved during operation. In today's world where energy costs are increasing, energy conservation is an important factor that many users are concerned about. This fan operates at a lower power while ensuring high airflow and a certain pressure, reducing usage costs and in line with the development trend of energy conservation and environmental protection.
Speed
The speed is 2550rpm, and the higher speed allows the fan to generate strong airflow. During the operation of the fan, the speed directly affects the air volume and pressure. The 2550rpm speed ensures that the fan can quickly draw in and exhaust air, achieving efficient ventilation and heat dissipation.
Efficient ventilation
With its high air volume and certain pressure, the W2E200-HH38-07 axial fan can achieve large-scale ventilation and air exchange in a short period of time. Whether it is eliminating waste gas and heat generated during the production process in industrial plants or improving indoor air quality in commercial places, tasks can be quickly and effectively completed. Its efficient ventilation performance helps improve the comfort of the working environment and the stability of equipment operation.
Energy saving design
As mentioned earlier, the lower input power results in the fan consuming less electricity during operation. This not only reduces the user's usage cost, but also meets environmental protection requirements. In the long-term use process, the energy-saving effect will be more significant, bringing considerable economic benefits to users.
Compact structure
The size design of 225 * 225 * 80mm makes the fan structure compact, easy to install and arrange. In some places with limited space, such as small computer rooms, control cabinets, etc., the advantage of compact structure is more obvious. Users can flexibly install the fan in the appropriate position according to their actual needs to achieve the best ventilation effect.
Stable and reliable
The ebm-papst brand's products have always been known for their reliable quality, and the W2E200-HH38-07 axial fan is no exception. It adopts high-quality materials and advanced manufacturing processes to ensure the stability and reliability of the fan during long-term operation. The key components of the fan, such as the motor and blades, have been carefully designed and tested to adapt to various complex working environments and reduce the probability of failure.
Industrial sector
In industrial production, many devices generate a large amount of heat and exhaust gas during operation. For example, in an electronic manufacturing workshop, electronic devices generate heat during operation. If they cannot dissipate heat in a timely manner, it will affect the performance and lifespan of the equipment. The W2E200-HH38-07 axial fan can be installed on the casing of the equipment or in the ventilation duct to discharge heat and exhaust gas from the workshop, ensuring the normal operation of the equipment. In the chemical workshop, various harmful gases are generated during the production process. This fan can be used for ventilation, reducing the concentration of harmful gases in the workshop and ensuring the health of workers.
Business field
In commercial places such as shopping malls, supermarkets, hotels, etc., where people are dense, the air is prone to pollution. The W2E200-HH38-07 axial fan can be installed in ventilation systems to enhance indoor air circulation, improve air quality, and provide a comfortable environment for customers and employees. In underground parking lots, car exhaust can accumulate, and this fan can be used to exhaust the exhaust and reduce air pollution.
Data Center
The servers and other equipment in the data center generate a large amount of heat during operation. If they cannot dissipate heat in a timely manner, it can lead to a decrease in server performance or even damage. The W2E200-HH38-07 axial fan can be installed in the server cabinet to provide sufficient cooling air for the server and ensure its stable operation.
The W2E200-HH38-07 axial fan has broad application prospects in various fields such as industry, commerce, and data centers due to its excellent parameter indicators and characteristics. Its efficient ventilation, energy-saving design, compact structure, and stable and reliable characteristics can meet the needs of different users and provide high-quality ventilation and heat dissipation solutions for them. It can play an important role in improving the working environment and ensuring equipment operation.
