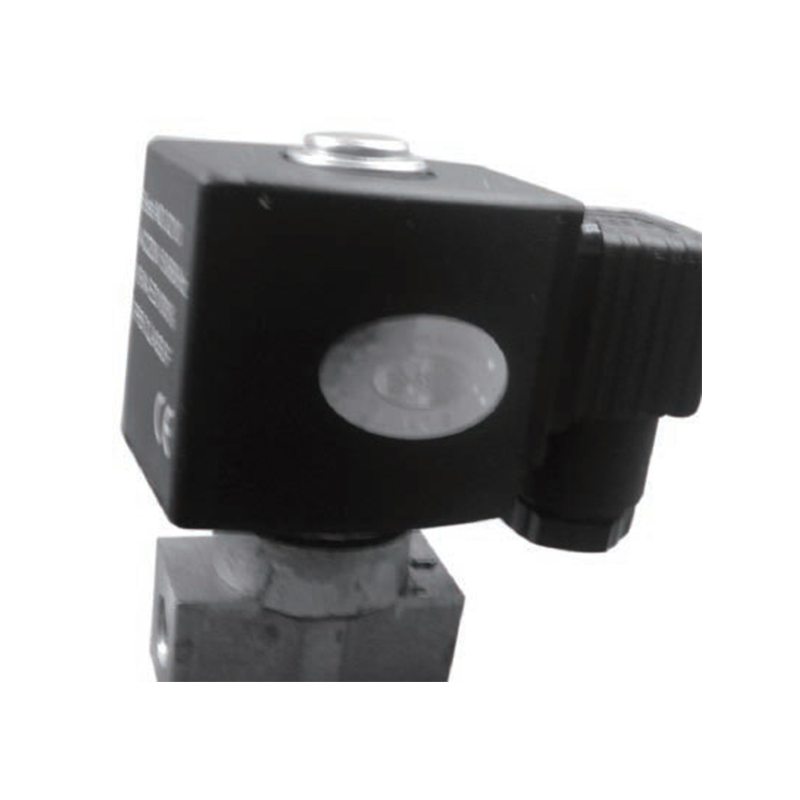

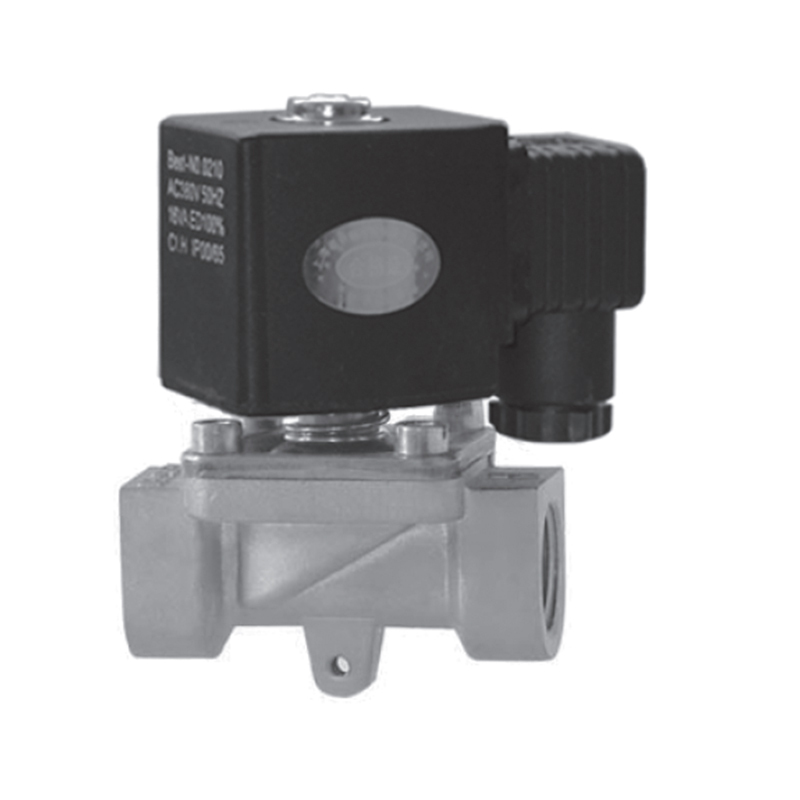

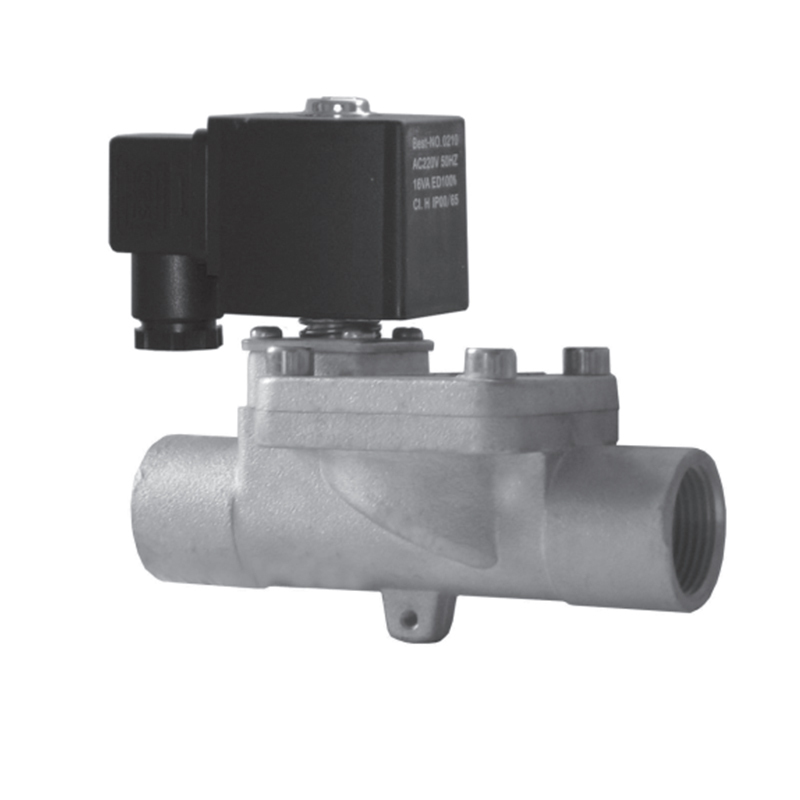

SV-G Series Solenoid Valves

Name: SV-G Series Solenoid Valves
Brand: APAC FAN
Availability: OutOfStock

4.7 (0)

47 Sold

$0.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (5)

1/1

Description

■ Introduction
SV-G series solenoid valves can be used as actor of automatic system in water supply system, fre control system, and water spray system in dirty proofing or agricultural. They also can be used for pneumatic hydraulic and food machine.Solenoid valves use full-closed magnetic coil and DIN international standard electric plug, so it is characterized by its good insulation, waterproof, moisture proof, anti-vibration and corrosion resistance.
■ Technical Parameters
● Ambient temperature: -20~+55°C
● Medium temperature: -25~+140°C
● Maximum working pressure: 2.1MPa
● Test pressure: 2.5MPa
● Coil voltage: AC 24V 36V 110V 220V 380V
DC 12V 24V
● Rated power: 16VA
● Coil insulation: F
● Suitable for medium water and fuids that do not attack copper alloys

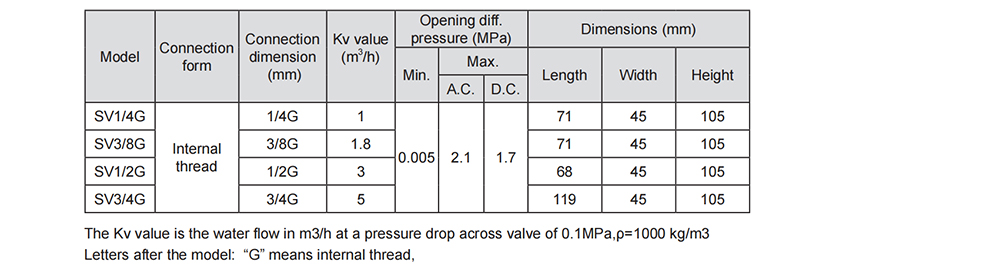

■ Type ＆ data
